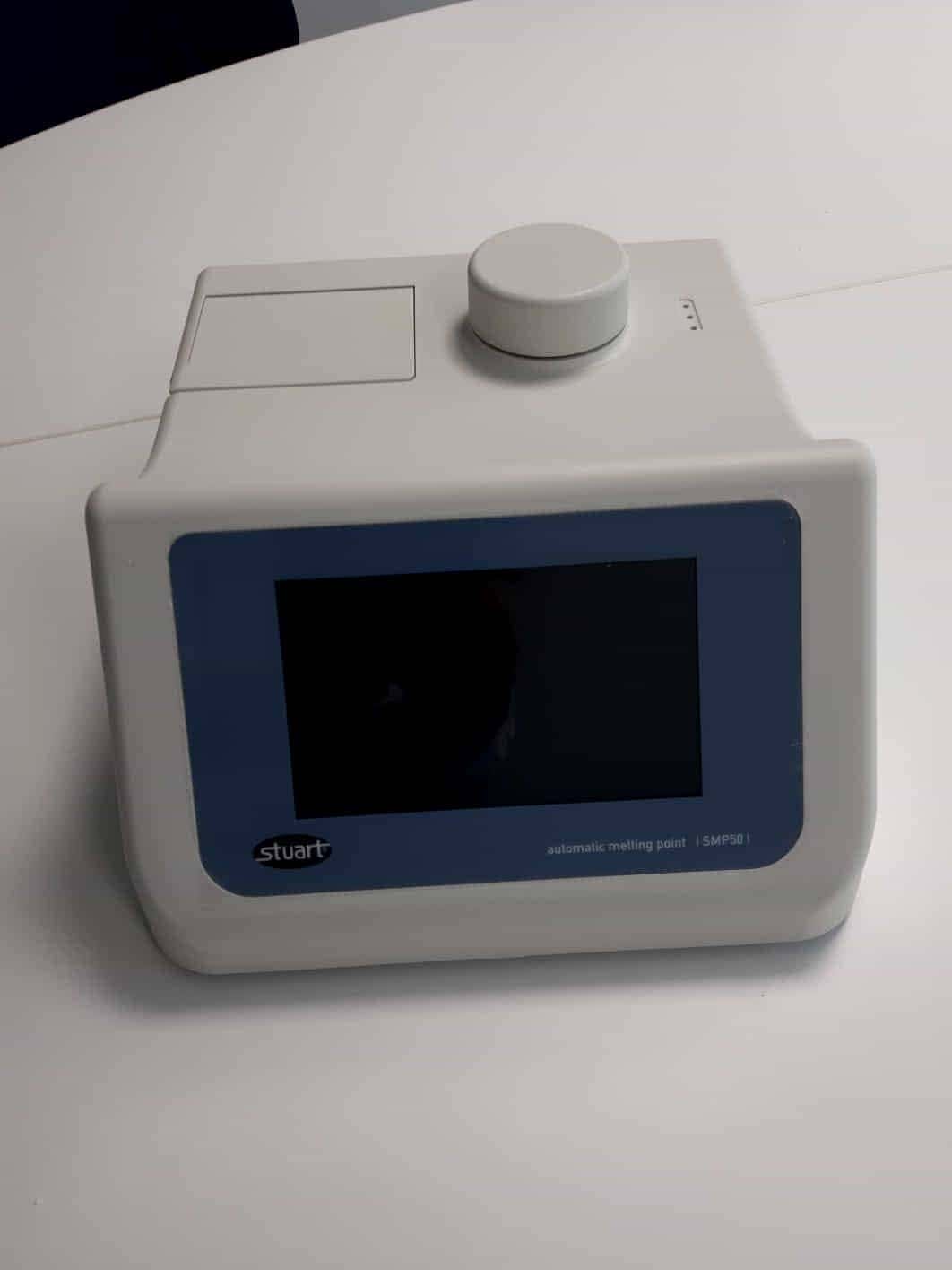

Stuart SMP50 Automatic Melting Point Apparatus
Stuart · SMP50 Automatic Melting Point Apparatus · ref ML-102AEA9A
Description
400 deg C Max Temperature, 100V-230V, 50-60Hz Designed to automatically measure and record the melting temperatures of crystalline samples held within capillary tubes Up to three tubes can be accommodated in an illuminated chamber within an aluminium block The tubes are monitored by a digital camera; the image of which can be viewed on the instrument display during the melting process Independently operated using the colour touch screen Allowing all operational and data management functions to be performed without the need to attach an external computer or keyboard The temperature range of the device is ambient to 400°C and the heating rate is variable between 0.1°C and 20°C/minute
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Stuart
- Model
- SMP50 Automatic Melting Point Apparatus
- Equipment weight
- 4 kg
- Equipment dimensions
- 18 × 22 × 25 cm
- Memory
- 8GB
- Display
- 7-inch HD Color
- Languages
- English, French.
- Increments
- 0.1-20°C in 0.1°C increments
- Size Hxdxw
- 164x360x300mm
- Cooling Time
- 350-50°C ~12 min.
- Heating Time
- 50-350°C ~ 6 min.
- Oven Control
- Closed-loop PID
- Power Supply
- 120V 230V, 50-60Hz
- Sample Level
- 2-3mm in 50mm or 100mm length capillaries
- Data Transfer
- USB stick
- Number Of Samples
- 3 simultaneously
- Temperature Range
- Ambient up to 400 °C
- Temperature Units
- °C or °F
- Temperature Sensor
- PT1000 Platinum resistor
- Temperature Resolution
- 0.1 °C
- Technical Specifications
- MP800
- Warranty
- 0 months
