BioSan UVC/T-AR DNA/RNA UV-Cleaner Box

Description

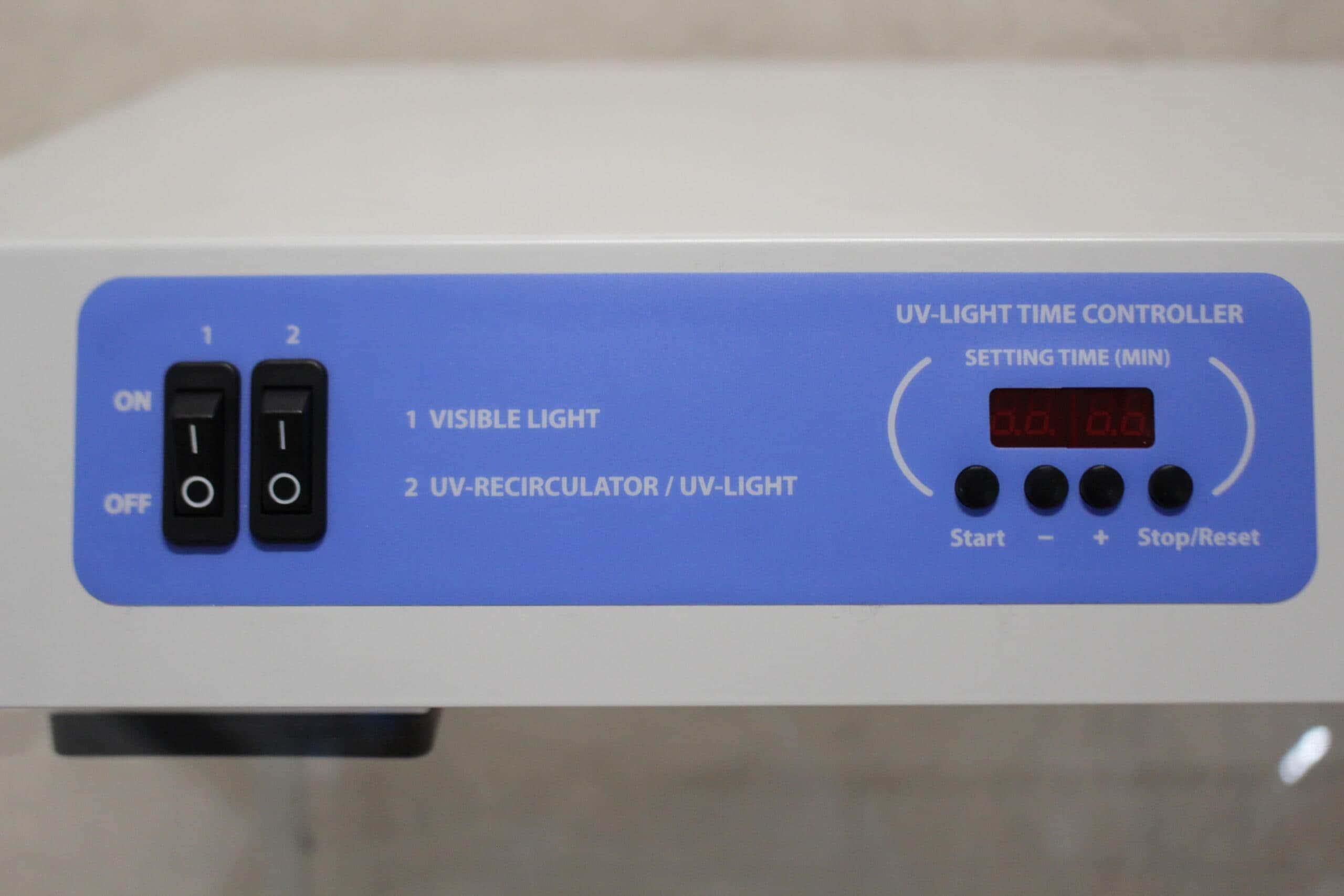

DNA/RNA UV-cleaner box UVC/T-AR is designed for clean operations with DNA samples. UV-cleaner box provide protection against contamination. Model is a bench-top type, made of metal framework, plexiglas walls and working surface painted with powder enamel. UV-cleaner boxes are equipped with an open UV lamp installed in the upper hood. UV-radiation from the open lamps disinfects the working area inactivating DNA/RNA fragments during 15–30 min of exposure. A digital timer controls duration of the direct UV irradiation. A daylight lamp provides proper illumination of the working surface. UV-cleaner boxes are equipped with a flow-type bactericidal UV cleaner–recirculator AR, which provides constant decontamination inside the box during operation. They are recommended for operations with DNA/RNA amplicons. UV cleaner–recirculator AR consists of a UV lamp, a fan and dust filters organized in a special body so that a user working with a UV-cleaner box is protected against UV light. Recirculator increases the maximum density of UV light making it sufficiently effective for DNA/RNA inactivation. The UV–recirculator processes 100 UV-cleaner box volumes per hour, creating permanent aseptic conditions of operation inside the UV-cleaner box. Advantages of Biosan UV-cleaner boxes: Ozone free high density UV decontamination Long living UV lamps (9,000 hours average) Automatic switch off of UV-lamps when the protective screen is opened Bactericidal flow-type recirculator providing permanent decontamination inside UV-cleaner box during operation Low noise, low energy consumption Walls material: Plexiglas: Polymethyl methacrylate ALTUGLAS EX Working surface material: Steel with chemicals resistant powder coating Open UV-lamp: 1 x 25W built‑in bactericidal UV-C, TUV 25W 1SL/25 UV radiation level: 18 mW / cm2 / sec Radiation type: UV (λ = 253.7 nm), ozone-free Digital time setting of direct UV exposure: 1 min–24 hrs / non–stop (increment 1 min) UV-recirculator: 1x25W (efficiency >99% per 1 hour) Daylight lamp (for working area illumination): 1 x TLD-15W Thickness of side panels: 4 mm Thickness of upper front panel: 8 mm Thickness of screen: 8 mm Optical transmission: 92% UV protection: >99.90% Polymethyl methacrylate ALTUGLAS EX Working area: 645 × 490 mm Opening dimensions (fully raised protective screen): 645 × 165 mm Safety features: Automatic open UV-lamp switch off when screen is open Power outlets inside the unit: Inlet for power cords Overall dimensions (WxDxH): 720 x 535 x 555 mm Weight: 23 kg
