Bio-Rad Gene Pulser Xcell Electroporation System 1652660

Description

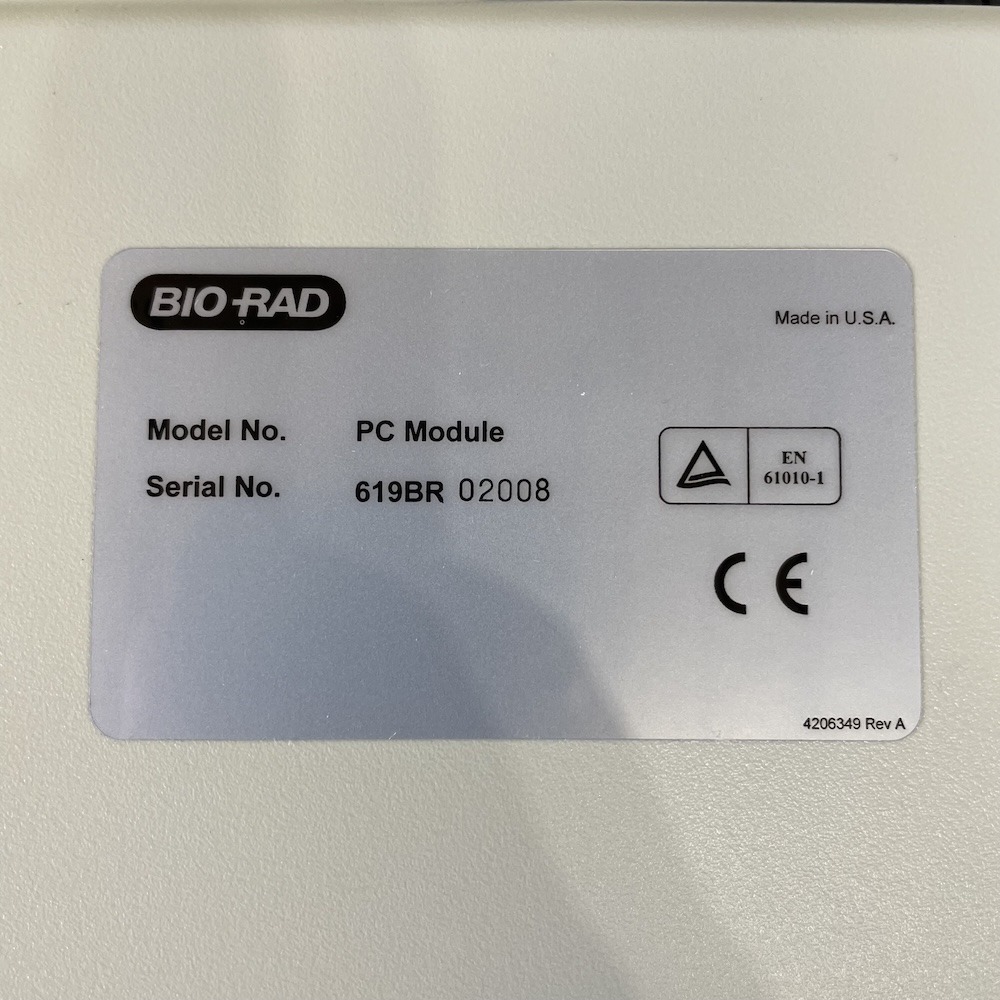

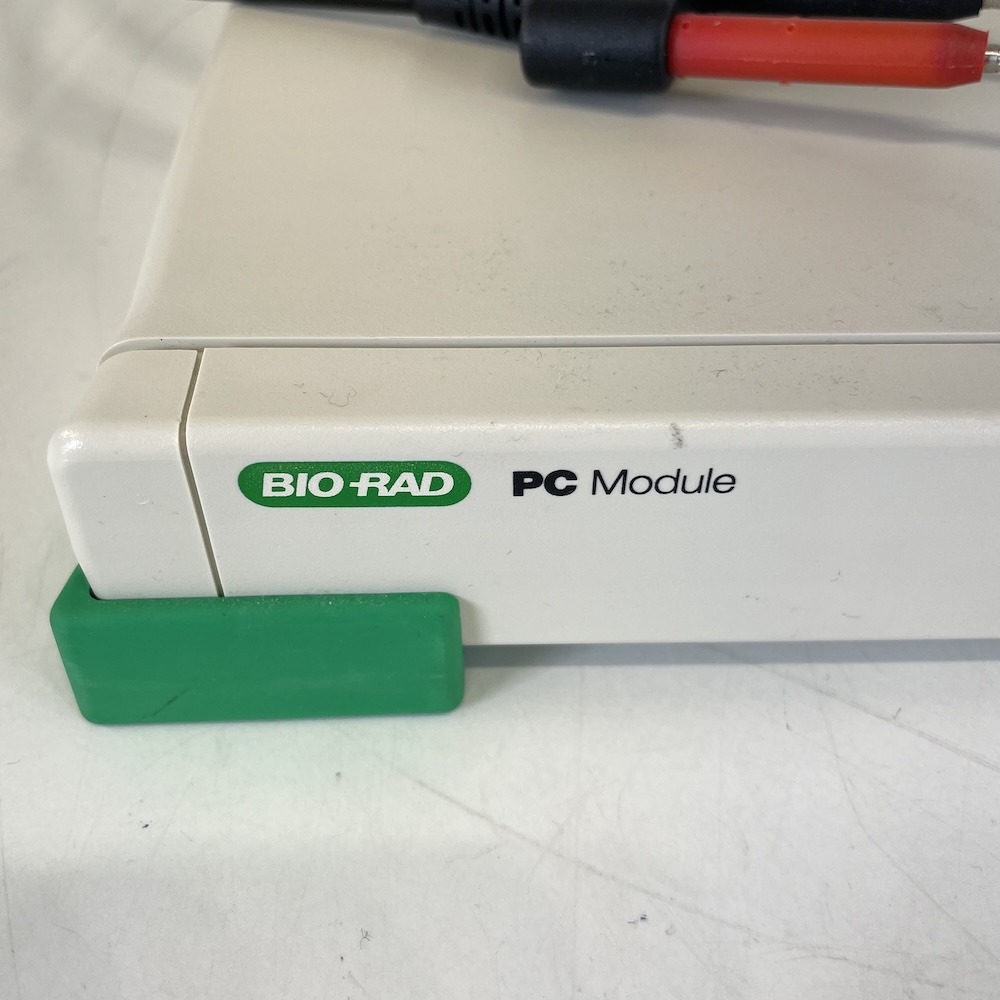

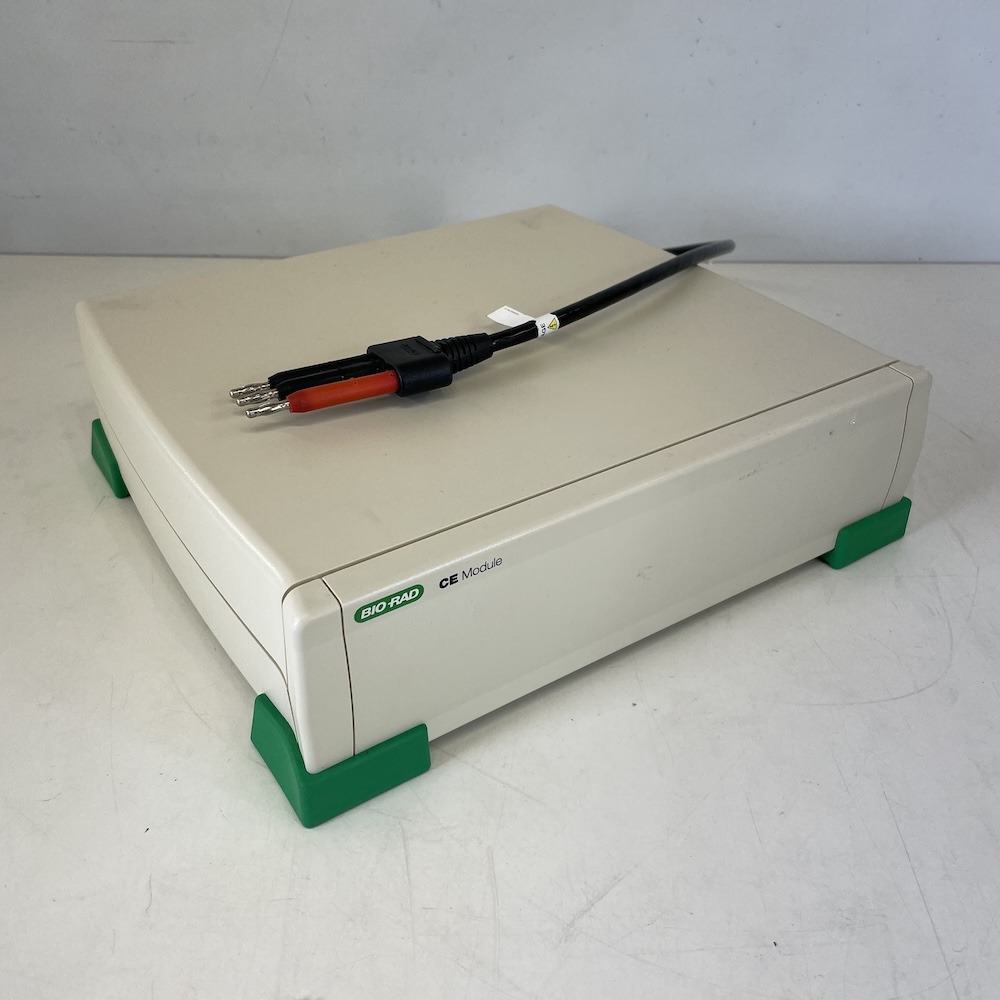

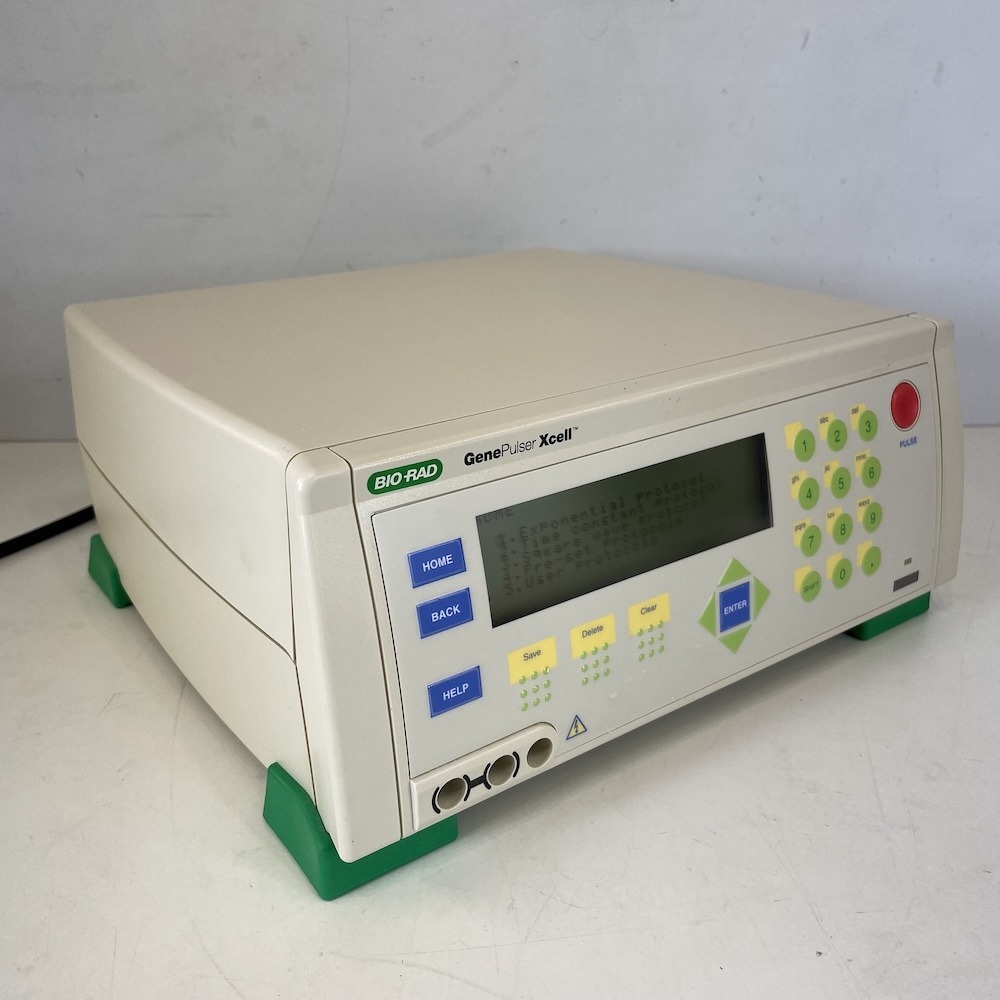

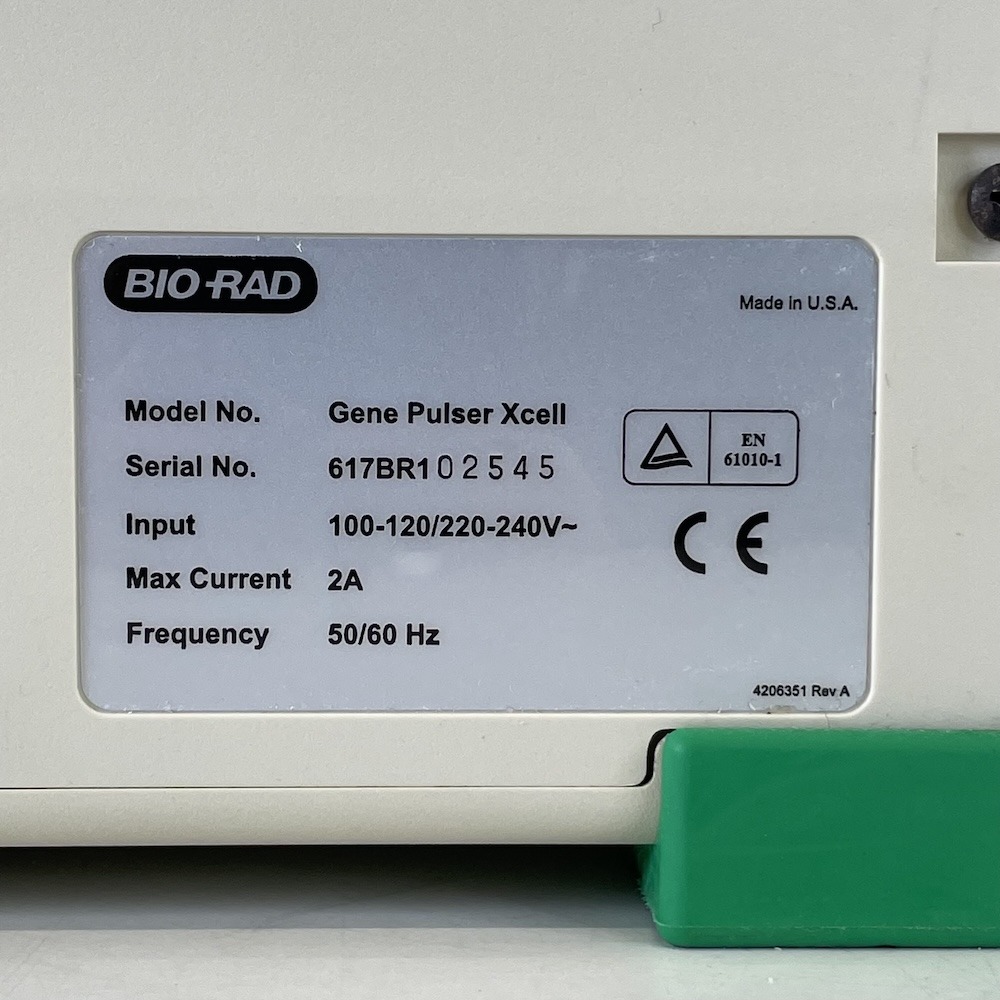

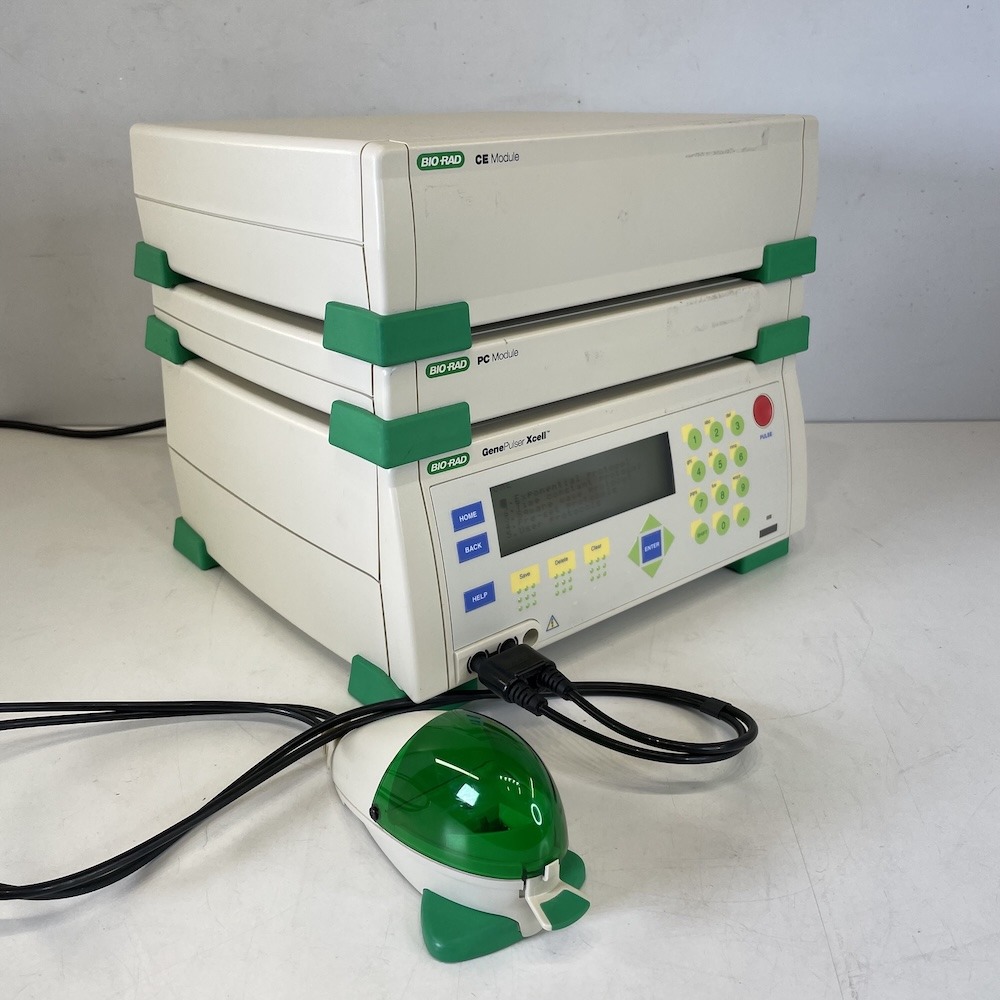

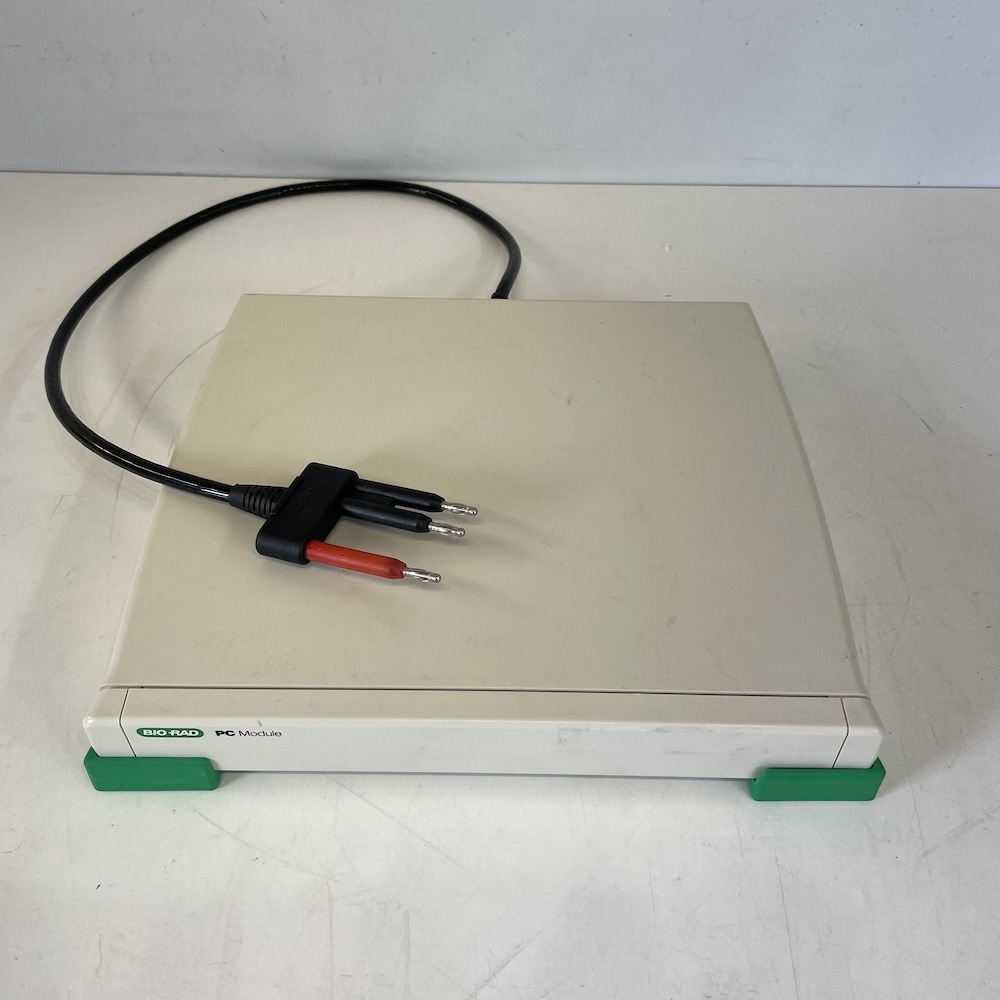

Bio-Rad Gene Pulser Xcell Electroporation System 1652660 The Bio-Rad Gene Pulser Xcell is a modular electroporation system used to transfect virtually all cell types, including mammalian cells, bacteria, and fungi, by delivering an electrical pulse to introduce DNA, siRNA, or other biomolecules. The Gene Pulser Xcell system features: Main Unit: Generates the waveforms (exponential and square waves) and includes preset protocols for common cell types. Capacitance Extender (CE Module): Extends the capacitance for mammalian and eukaryotic cells. Pulse Controller (PC Module): Provides fine control over resistance and voltage for bacterial and fungal applications. ShockPod Cuvette Chamber: Provides a safe, isolated chamber for delivering pulses In good working condition, includes all connections and mains cord, images from part of the description. Specification: Outputs: Waveform: Exponential or square Voltage: 10–3,000 V Capacitance: 10–500 V, 25–3,275 µF in 25 µF increments 500–3,000 V, 10, 25, 50 µF Sample resistance: 20 Ω minimum at 10–2,500 V 600 Ω minimum at 2,500–3,000 V Square wave timing: 0.05–5 ms pulse duration in 0.05 ms increments,1–2 pulses, 5 sec minimum interval
