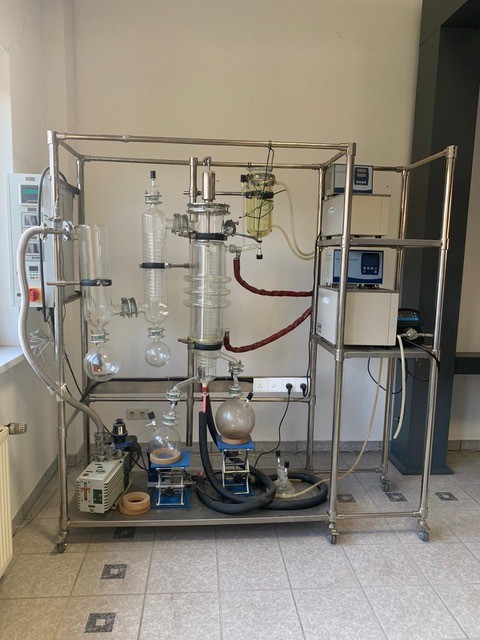

Labfirst Scientific Instrument MD-150 Moleculair Distillation Unit

Description

The Labfirst Scientific Instrument MD-150 Molecular Distillation Unit is an advanced system for molecular (short path / wiped film) distillation, designed for separating, purifying, and concentrating heat-sensitive substances under high vacuum. The system is particularly suitable for applications within the pharmaceutical, chemical, food, nutraceutical, and extraction technology industries. Thanks to the very short residence time of the product in the evaporation zone, thermal degradation is kept to a minimum. The MD-150 operates with a thin liquid film (“wiped film”), enabling efficient heat transfer and high separation performance. The unit is constructed from high-quality materials such as borosilicate glass and 316L stainless steel, ensuring excellent chemical resistance, durability, and a clear view of the process. The system has a modular design and can be expanded with additional condensers, chillers, and automation. 🛠️ Technical specifications Property Specification Model Labfirst MD-150 Type Molecular / Short Path Distillation Unit Process principle Wiped film / short path distillation Evaporation surface approx. 0.25 m² Operating temperature RT up to 250 °C Vacuum level Up to ≤ 0.1 Pa Throughput approx. 0.75 – 17.5 kg/h (depending on product) Yield / throughput approx. 1 – 7 kg/h Wet parts material Borosilicate glass, PTFE, Stainless Steel 316L Stirring system Magnetically coupled drive Wiper type PTFE centrifugal scraper Pump type Peristaltic pump (optional gear pump) Condenser Internal/external condenser depending on configuration Cold trap Included Control PLC touchscreen operation (optional full automatic) CE certification (optional UL / ATEX) Applications: CBD, oils, pharmaceutical substances, extracts, specialty chemicals
