Thermo Scientific Savant SPD2010 SpeedVac Concentrator

Description

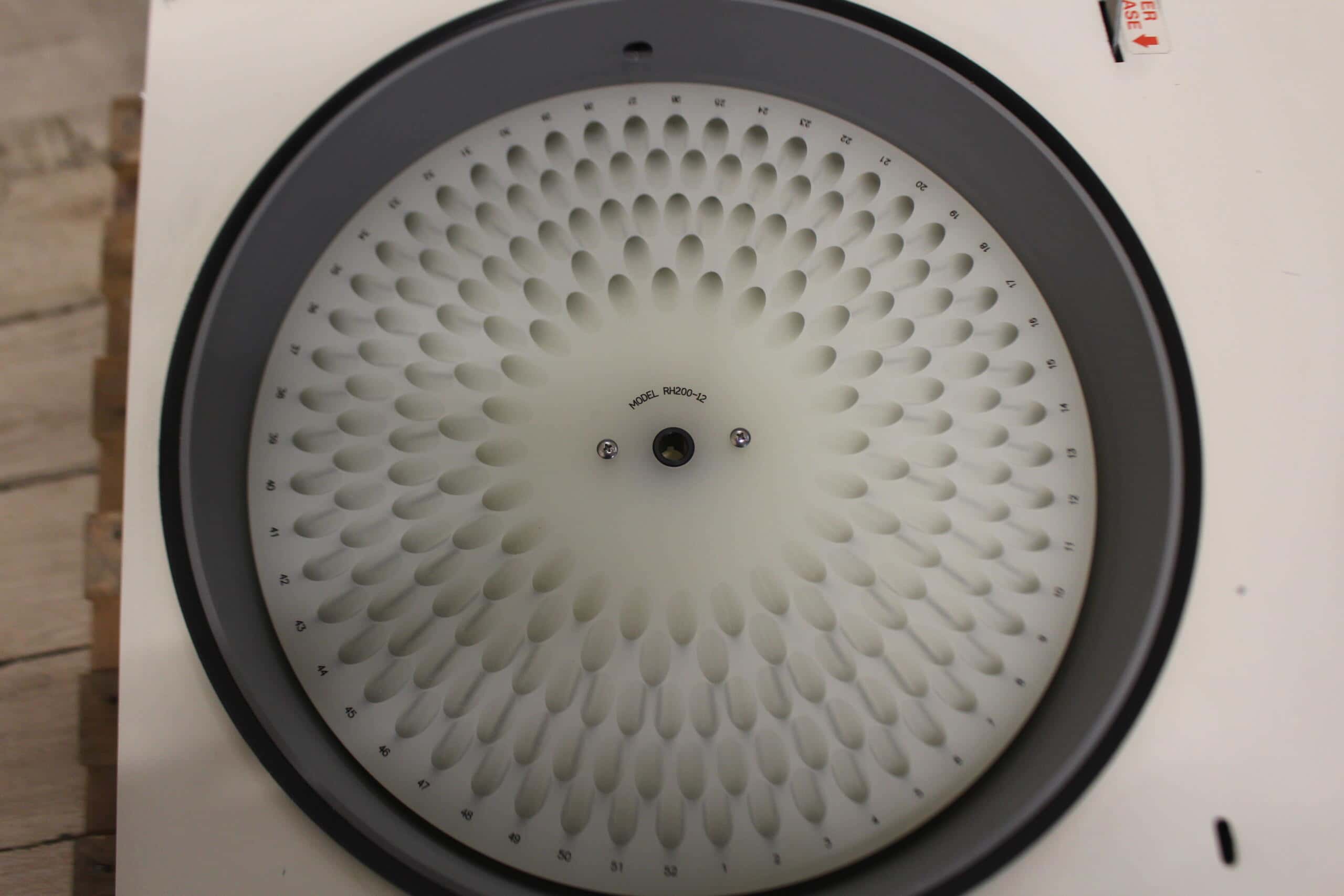

Thermo Scientific Integrated SpeedVac Systems are complete systems for solvent evaporation, sample concentration and drying. SPD systems use a patented technique that combines centrifugal force, vacuum and applied heat to eliminate sample bumping and foaming. Application of thermal energy to the sample during concentration counteracts the natural evaporative cooling effect that slows the drying rate. The SPD2010 systems integrate a SpeedVac concentrator, an oil-free vacuum pump, and a refrigerated vapor trap into a single compact package. Temperatue setting: 45 – 80°C in 5°C increments Timer settting (x2)(Heat and Run seperate): 1 min to 9 hours and 59 min, continuous Concentrator capacity: 500 mL Refrigerated trap: -50°C Vacuum pump displacement (50/60 Hz): 30/36 l/min Maximum vacuum: 7 Torr Vacuum level control: 30 to 5.1 torr in 0.1 increments Vacuum ramp setting: 1 to 5 Dimensions (WxDxH): 770 x 670 x 470 mm Weight: 83 kg Equipped with: Thermo RH200-12 fixed angle rotor (200x 1.5 – 2.0 ml microcentrifuge tube capacity)
