Cytiva Biacore 8K SPR Biosensor Analyser
Cytiva · Biacore 8K · 2017 · ref ML-2F1F2A2C
Price
Price on quoteCustom configuration. Final price on quote only.
We plant a tree for every item soldDescription
About this model

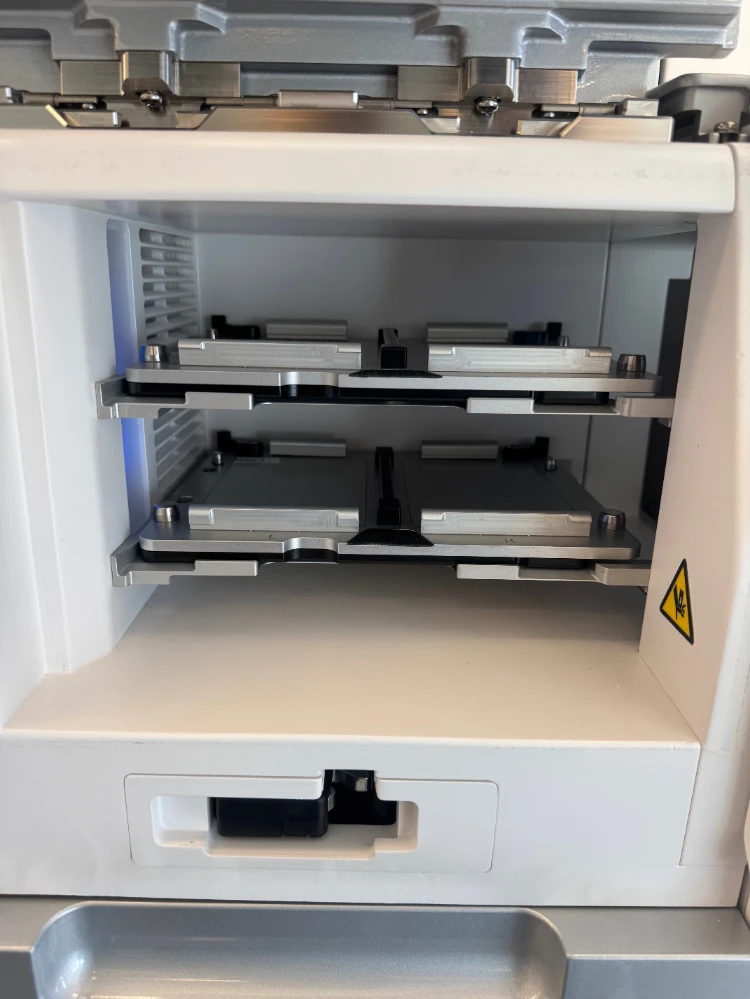

Eight-needle, 16-flow-cell SPR system for high-throughput screening and kinetic characterisation, with capacity for four 96- or 384-well plates and Biacore Insight software.
This unit

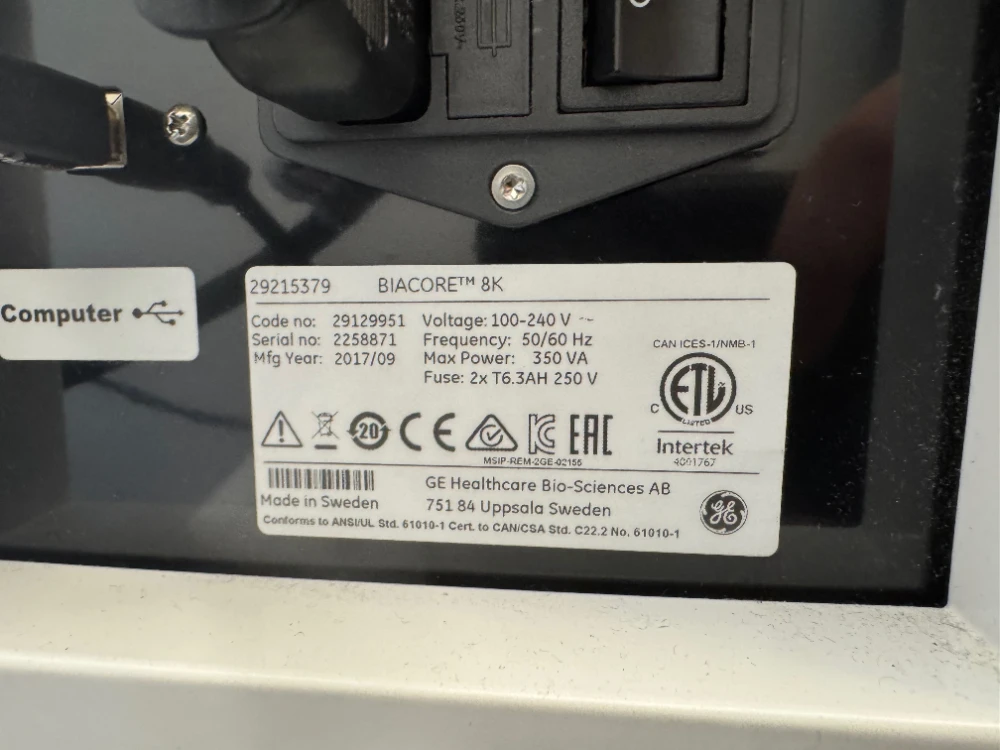

GE Healthcare Biacore 8K surface plasmon resonance system, manufactured September 2017 in Sweden, serial 2258871, with an HP desktop computer. Eight needles and 16 flow cells in eight channels run eight interactions in parallel, with capacity for four 96- or 384-well plates and up to 60 hours of unattended running. 100-240 V, 50/60 Hz, 1200 VA. Condition and testing: used. Software and computer: HP desktop PC supplied.
Equipment History & Condition
Used; ships from the USA.
What's Included
Biacore 8K processing unit HP desktop computer
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2017
- Manufacturer
- Cytiva
- Model
- Biacore 8K
- Ka
- Proteins: up to 10^9 M-1 s-1; LMW molecules: up to 10^7 M-1 s-1
- Kd
- 10^-6 to 0.5 s-1
- Power
- Processing unit: autorange voltage 100 to 240 V~, frequency 50/60 Hz. Power consumption: Processing unit: Maximum. 350 VA; Maximum. 550 VA
- Detection
- Surface plasmon resonance biosensor
- Automation
- 60 h unattended run time for Biacore 8K; 72 h for Biacore 8K+
- Flow Cells
- 16 in eight channels
- Mw Detection
- No lower limit for organic molecules
- Baseline Drift
- typically < 0.3 RU/min; blank subtracted drift < ±0.03 RU/min
- Baseline Noise
- < 0.02 RUtypically
- Flow Rate Range
- 1 to 100 μL/min
- Flow Cell Height
- 70 μm
- Flow Cell Volume
- 40 nL
- Injection Volume
- 1 to 200 μL
- Analysis Temperature
- 4°C to 40°C
- Data Collection Rate
- 1 or 10 Hz
- Instrument Weight Kg
- 127
- Sample Concentration
- ≥ 1 pM
- Instrument Dimensions
- [object Object]
- Software Compatibility
- Biacore Insight Software, includes SQL Server Express 2022 for local database; separate networked SQL server needed for full functionality. Min PC: 64-bit Windows 10 or 11 Enterprise/Professional, CPU at least four cores 2 GHz or faster, at least 16 GB RAM, at least 200 GB free disk, screen at least 1920 × 1080, one USB2 port.
- Sample Refractive Index
- 1.33 to 1.39
- Sample Storage Temperature
- 4°C to 40°C
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
