Sartorius Incucyte S3 Live-Cell Analysis System (Green/Red)
Sartorius · Incucyte S3 · ref ML-3690E6F9
Seller's 90-day warranty.
Description
About this model
The Incucyte S3 is a live-cell imaging and analysis system that sits inside a standard cell culture incubator and images cells in their vessels over hours to weeks. A microscope gantry with an automated 4X, 10X and 20X objective turret acquires HD phase contrast and green and red fluorescence images from up to six microplates, or flasks and dishes on three interchangeable trays, while an external controller schedules scans, stores the data and runs the analysis software.
This unit

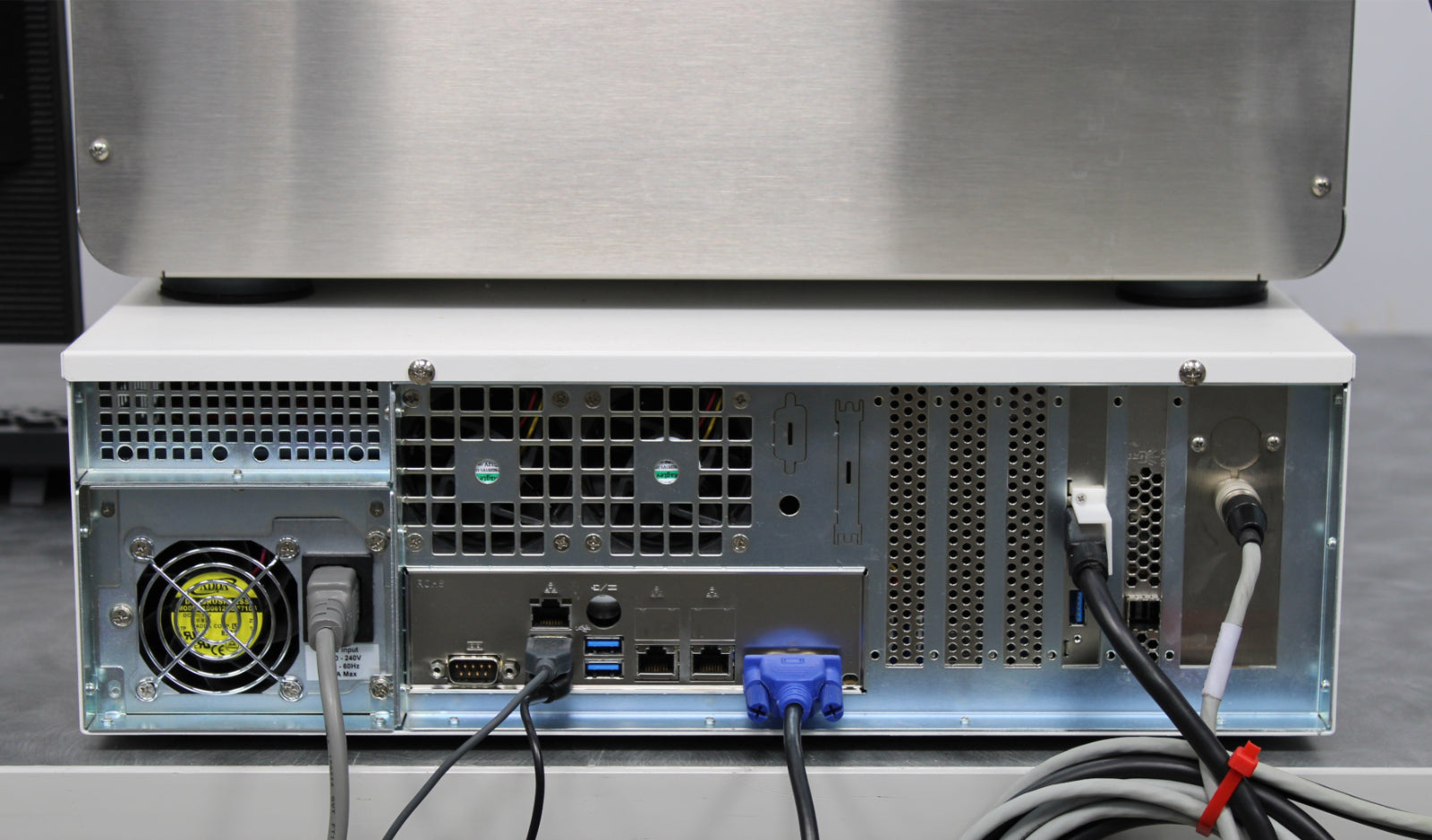

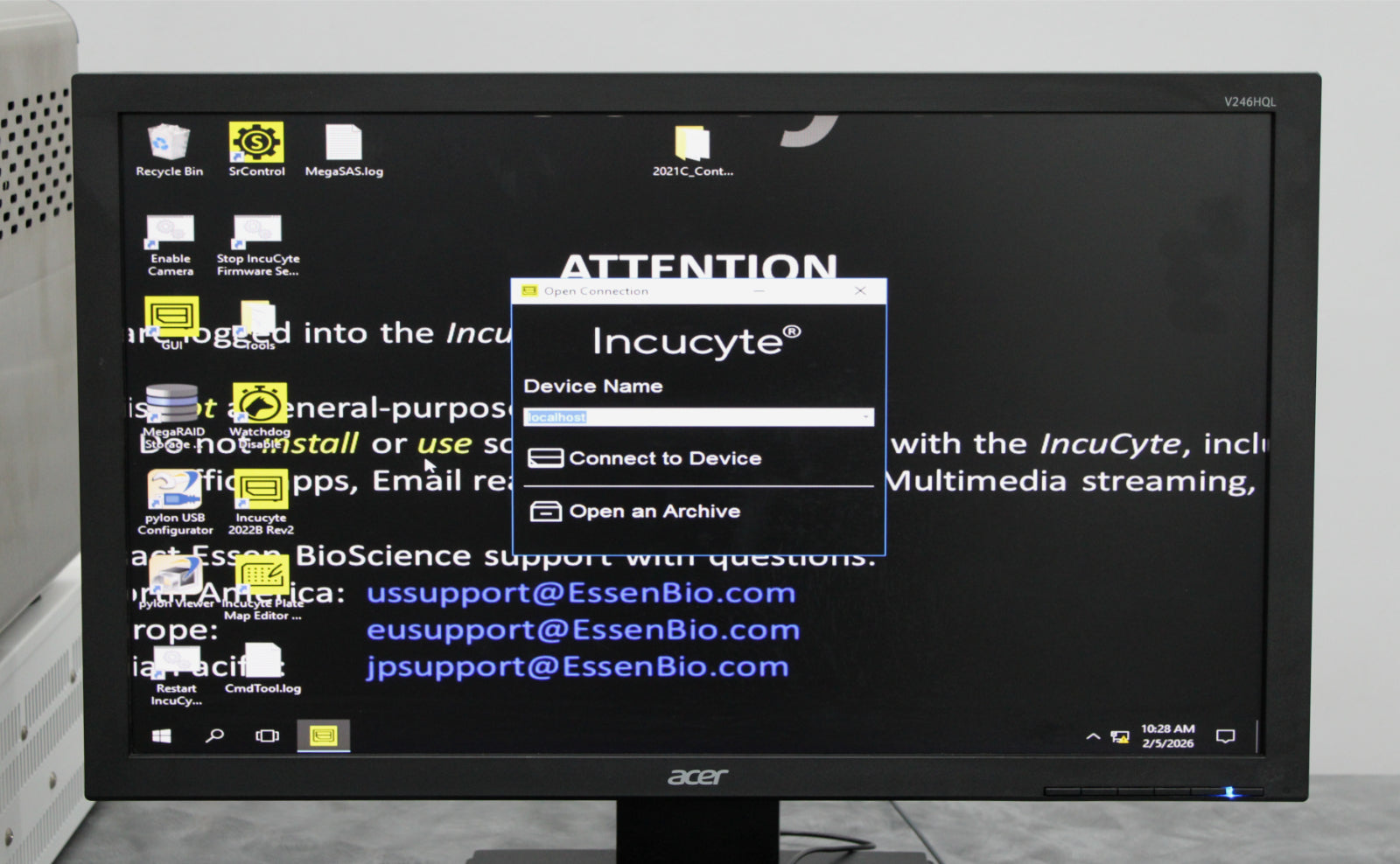

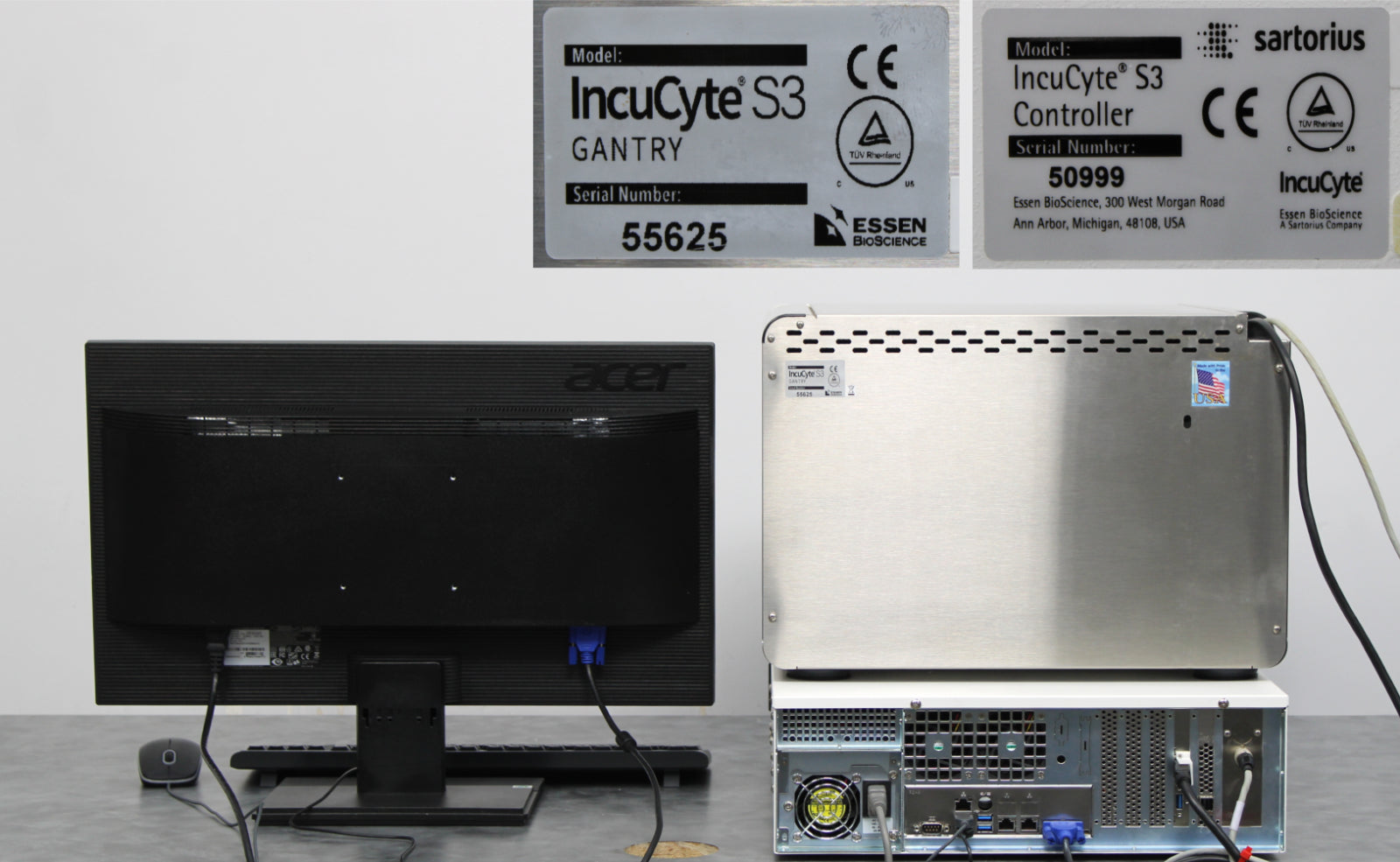

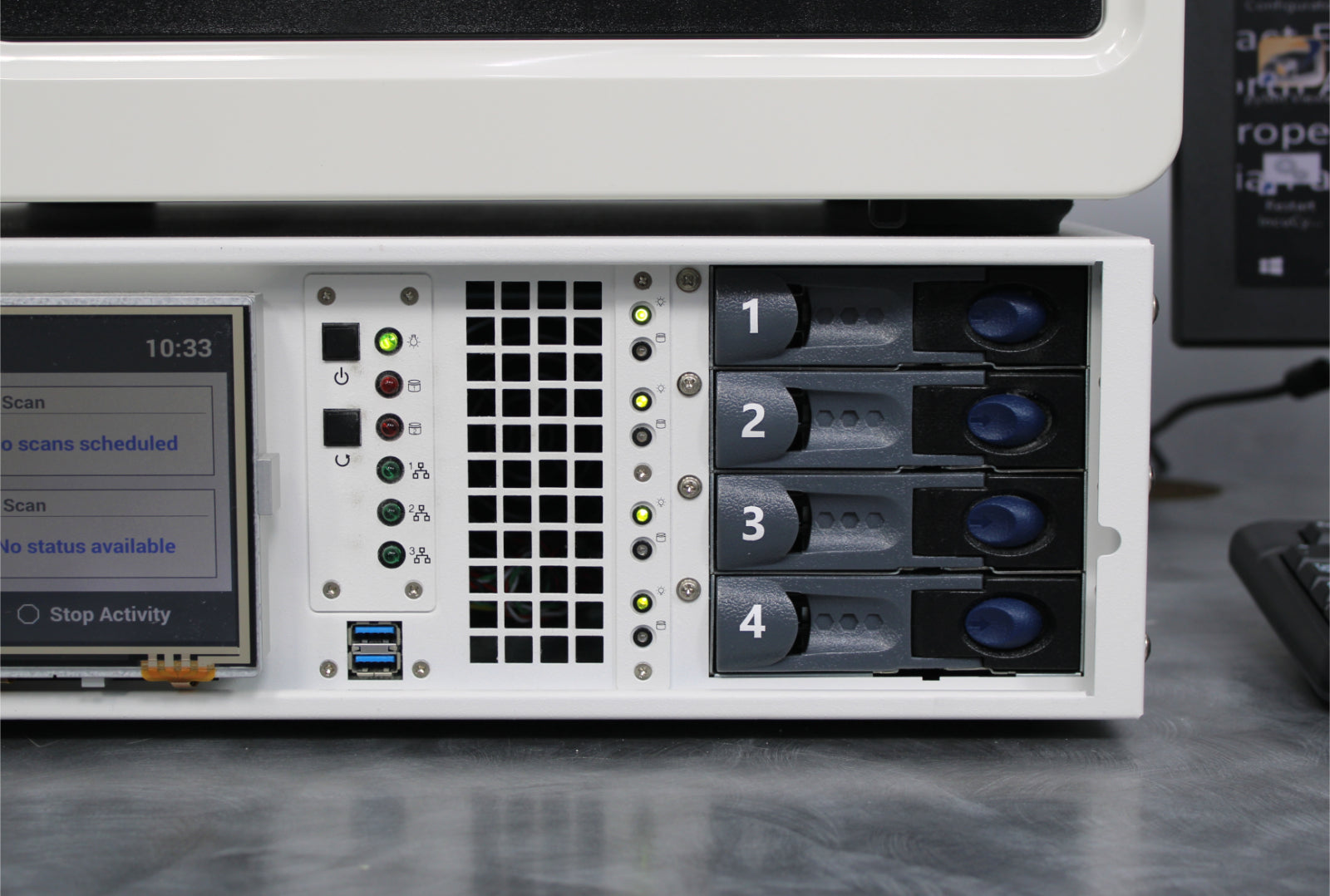

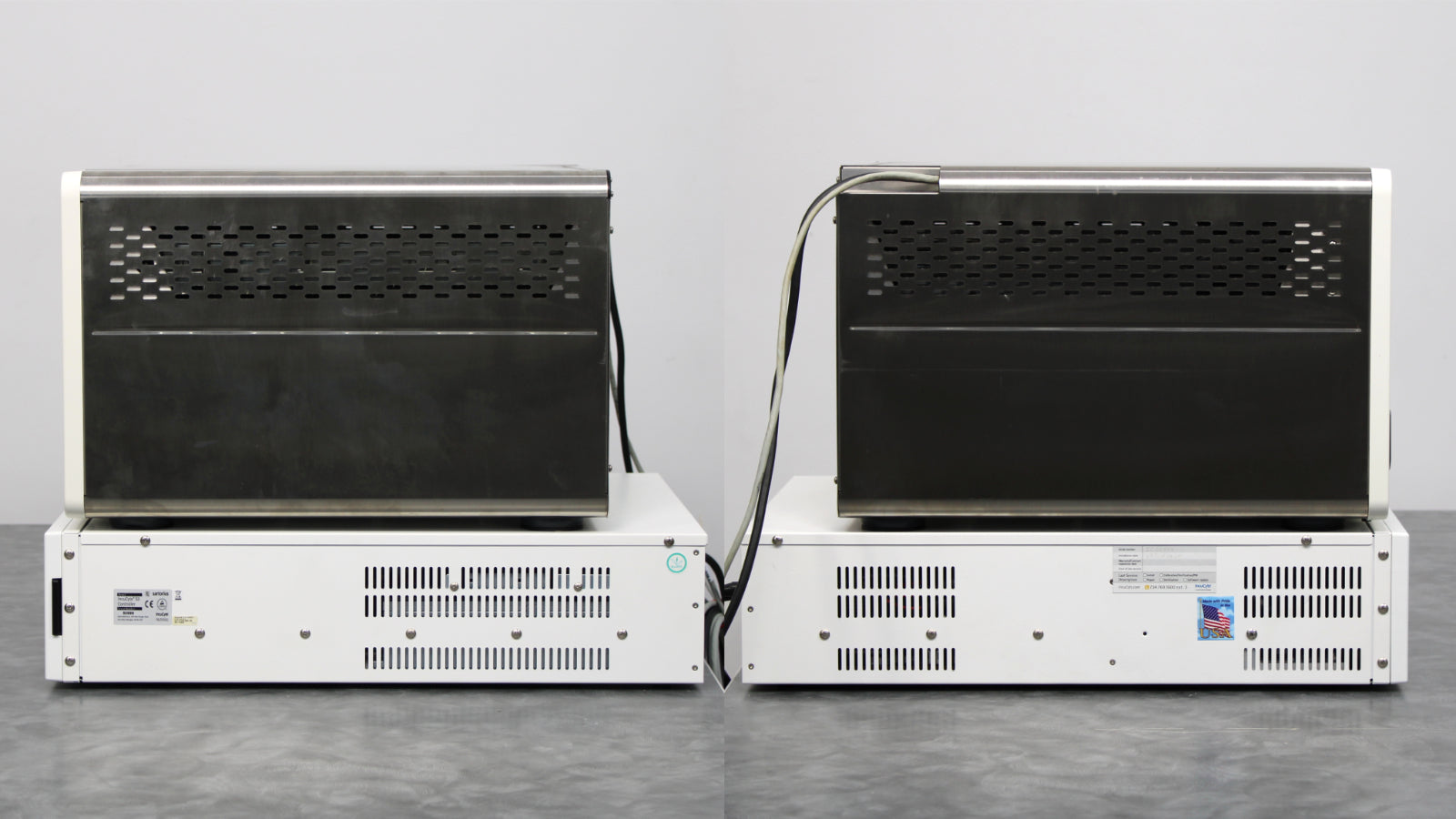

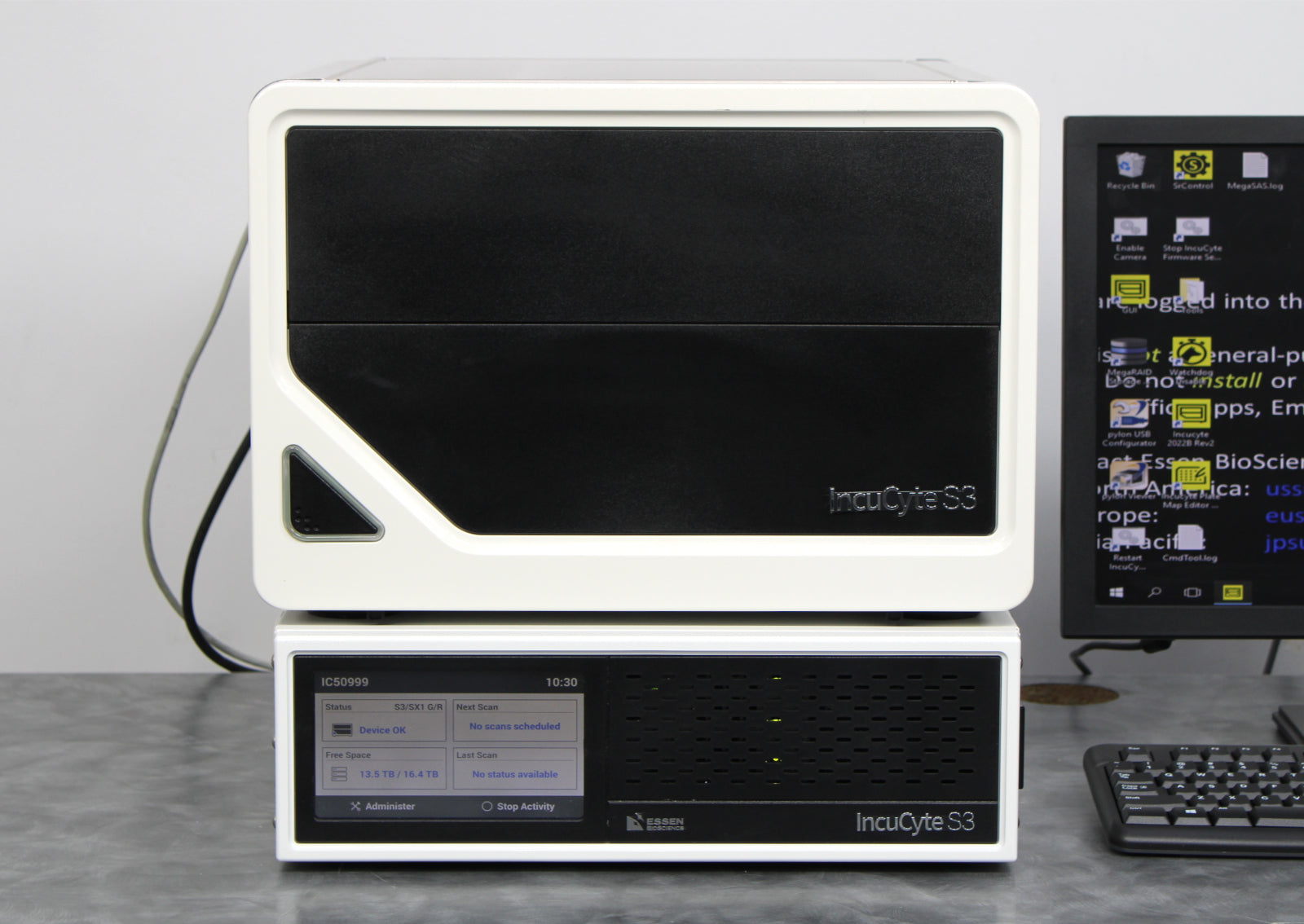

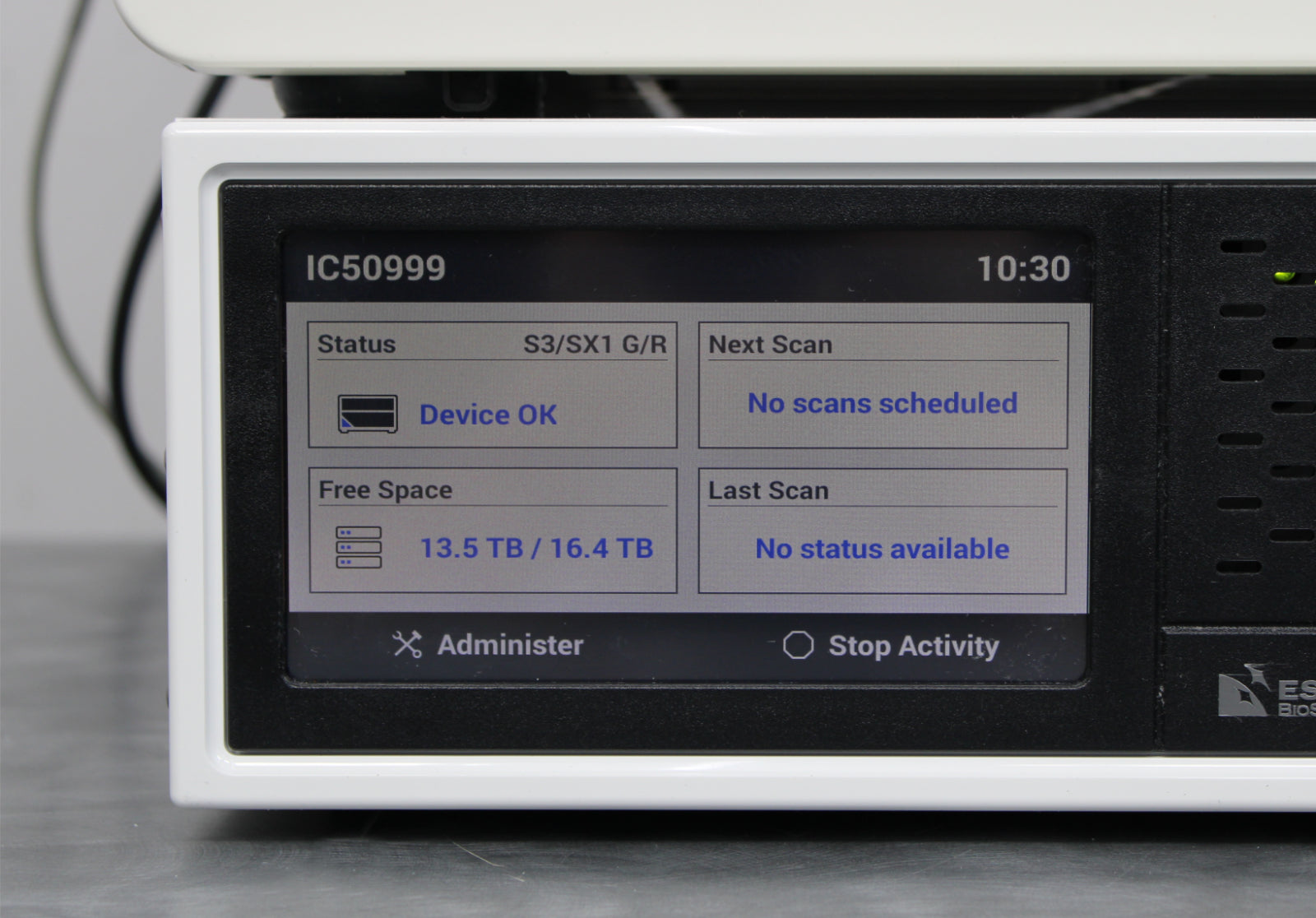

Incucyte S3 live-cell analysis system with the Green/Red optical module, made up of the microscope gantry and the controller. This is an earlier S3 with Essen BioScience badging. Configuration: Incucyte S3 gantry with 4X, 10X and 20X objectives on the automated turret; Incucyte S3 controller with touchscreen and four drive bays; three microplate holders. Condition and testing: tested by the seller's technicians after disinfection and inspection. Power and initialisation passed, the system warmed up to 'Device OK', the controller and gantry connected, and the gantry door opened and closed. The controller shows the S3/SX1 G/R optical module and 13.5 TB of 16.4 TB free. No further testing could be performed because the login username and password are not available. Minor cosmetic blemishes. Software and computer: the controller runs Windows; the Incucyte software login credentials are not available, so the software could not be opened by the seller. A monitor, keyboard and mouse are supplied.
What's Included
Incucyte S3 controller; Incucyte S3 gantry; 3 microplate holders; monitor, keyboard and mouse; VGA cable; 2 power cables.
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Sartorius
- Model
- Incucyte S3
- Phase
- Single
- Components
- Microscope gantryand external controller
- Objectives
- 4X, 10X, 20X on an automated turret
- System Type
- Live-cell imaging and analysis system that operates inside a cell culture incubator
- Current Draw
- 3.5 A max at 120 V, 1.75 A max at 240 V

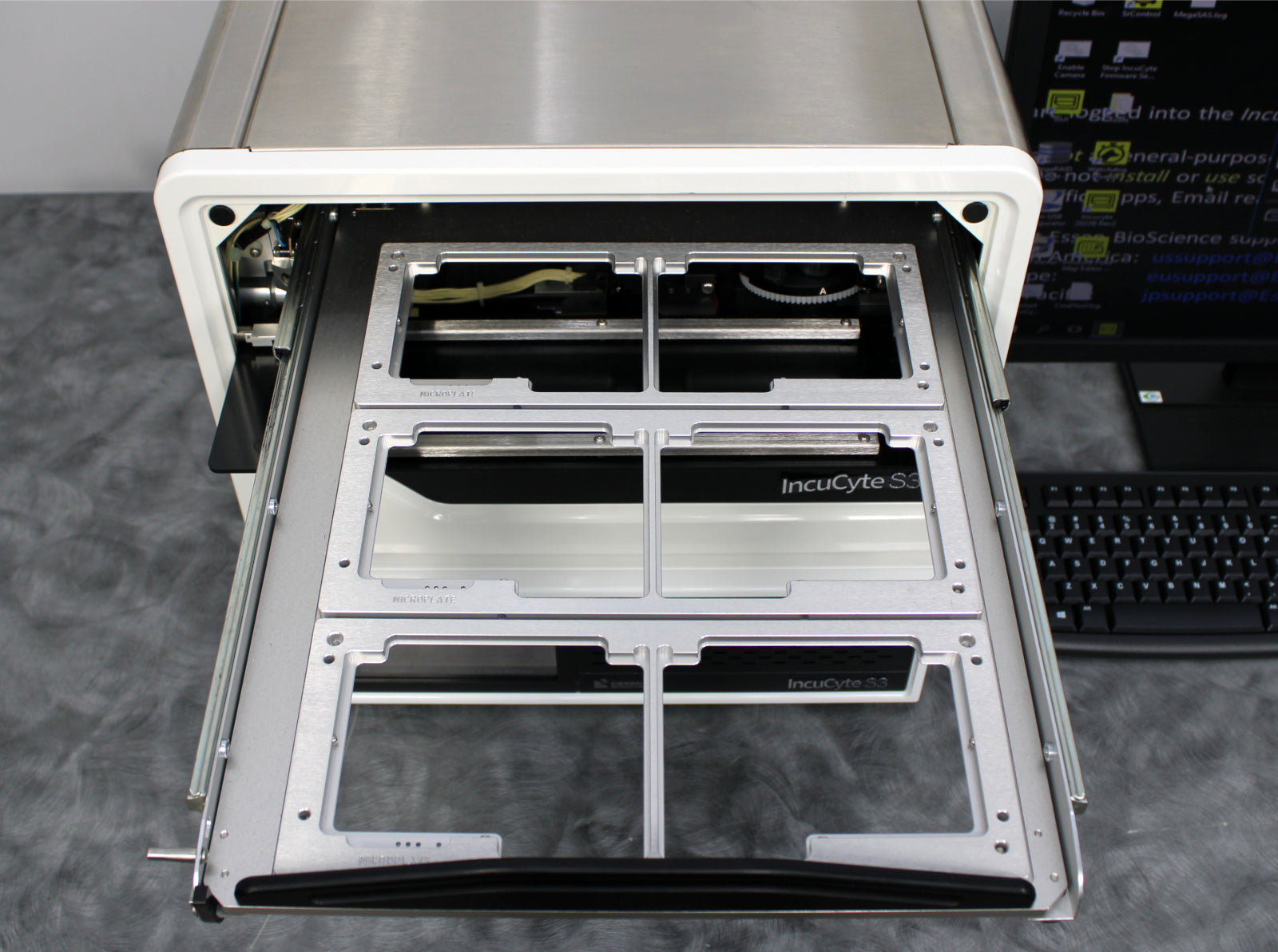

- Vessel Trays
- 3
- Imaging Modes
- HD phase contrast, green fluorescence, red fluorescence
- Other Labware
- 35, 60, 100 and 150 mm dishes and chamber slides
- Optical Module
- Green/Red dual colour module
- Max Microplates
- 6
- Gantry Weight Kg
- 23.6
- Image Resolution
- 4X: 2.82 µm/pixel; 10X: 1.24 µm/pixel; 20X: 0.62 µm/pixel
- Operating System
- 64-bit Windows 10
- Flask Compatibility
- T-25, T-50, T-75, T-100, T-175, T-225
- Controller Weight Kg
- 18.6
- Fluorescence Channels
- 2
- Gantry Dimensions Hwd
- 32.0 x 45.0 x 47.8 cm
- Incubator Requirement
- Incubator with more than 200 L internal volume
- Internal Data Storage
- 27.3 TB RAID and 64 GB RAM on instruments manufactured after 31 May 2021; earlier controllers show 16.4 TB
- Exported Image Formats
- JPEG, PNG, TIFF, MetaMorph Multi Dimensional File v2.0, Meta Imaging Series TIFF
- Exported Movie Formats
- WMV, AVI, MPEG-4
- Excitation Emission Red
- Excitation 567 to 607 nm, emission 622 to 704 nm
- Controller Dimensions Hwd
- 14.0 x 43.2 x 57.7 cm
- Excitation Emission Green
- Excitation 441 to 481 nm, emission 503 to 544 nm
- Gantry Operating Conditions
- 0 to 42 °C, 5 to 95 % RH non-condensing
- Controller Operating Conditions
- 0 to 33 °C, 5 to 90 % RH non-condensing
- Data Storage
- 16.4 TB
- Known Issues
- Incucyte login credentials not available
- Well Formats
- 6, 12, 24, 48, 96 and 384 well
- Seller Tested
- true
- Objectives Fitted
- 4X, 10X, 20X
- Optical Module Fitted
- Green/Red
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
