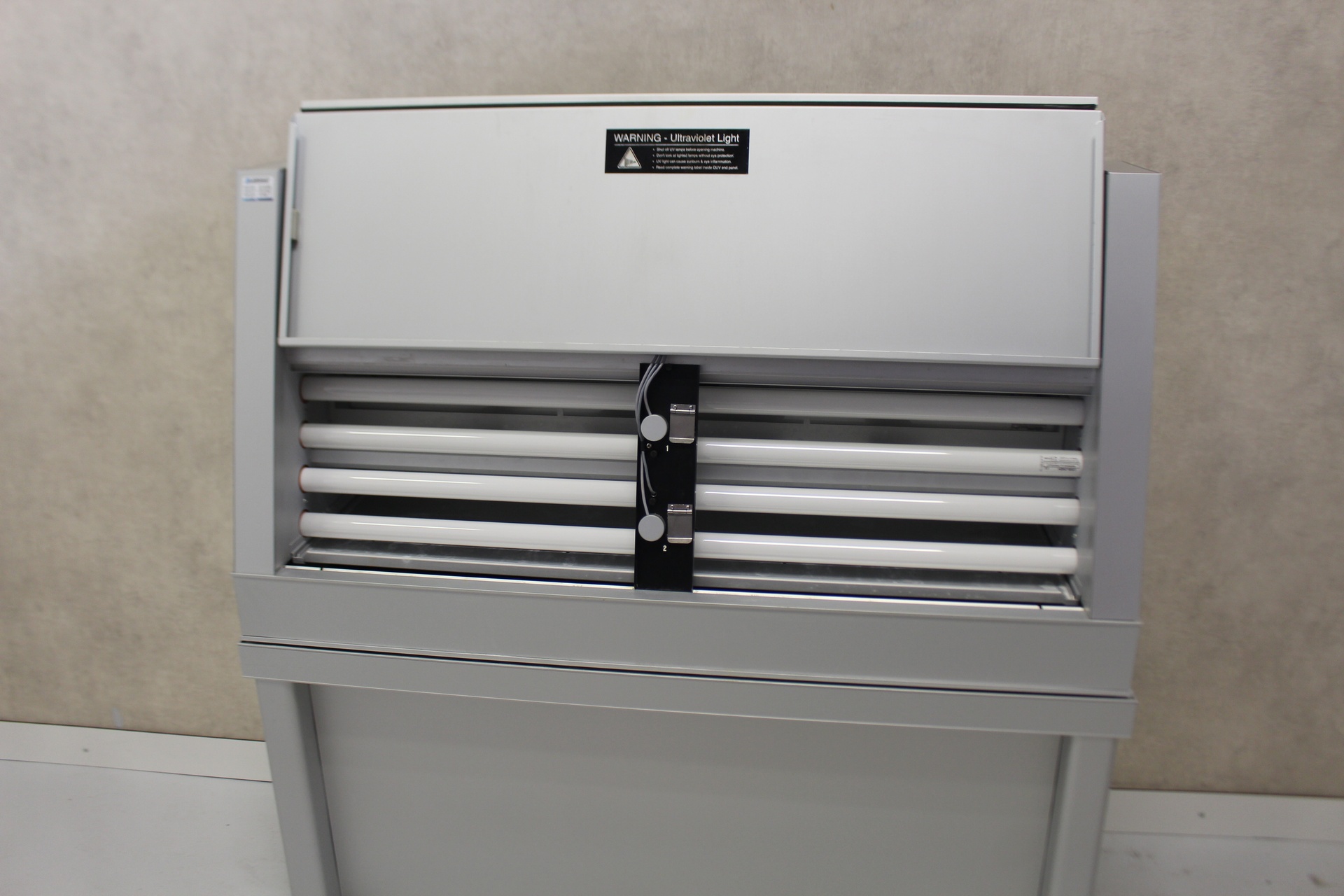

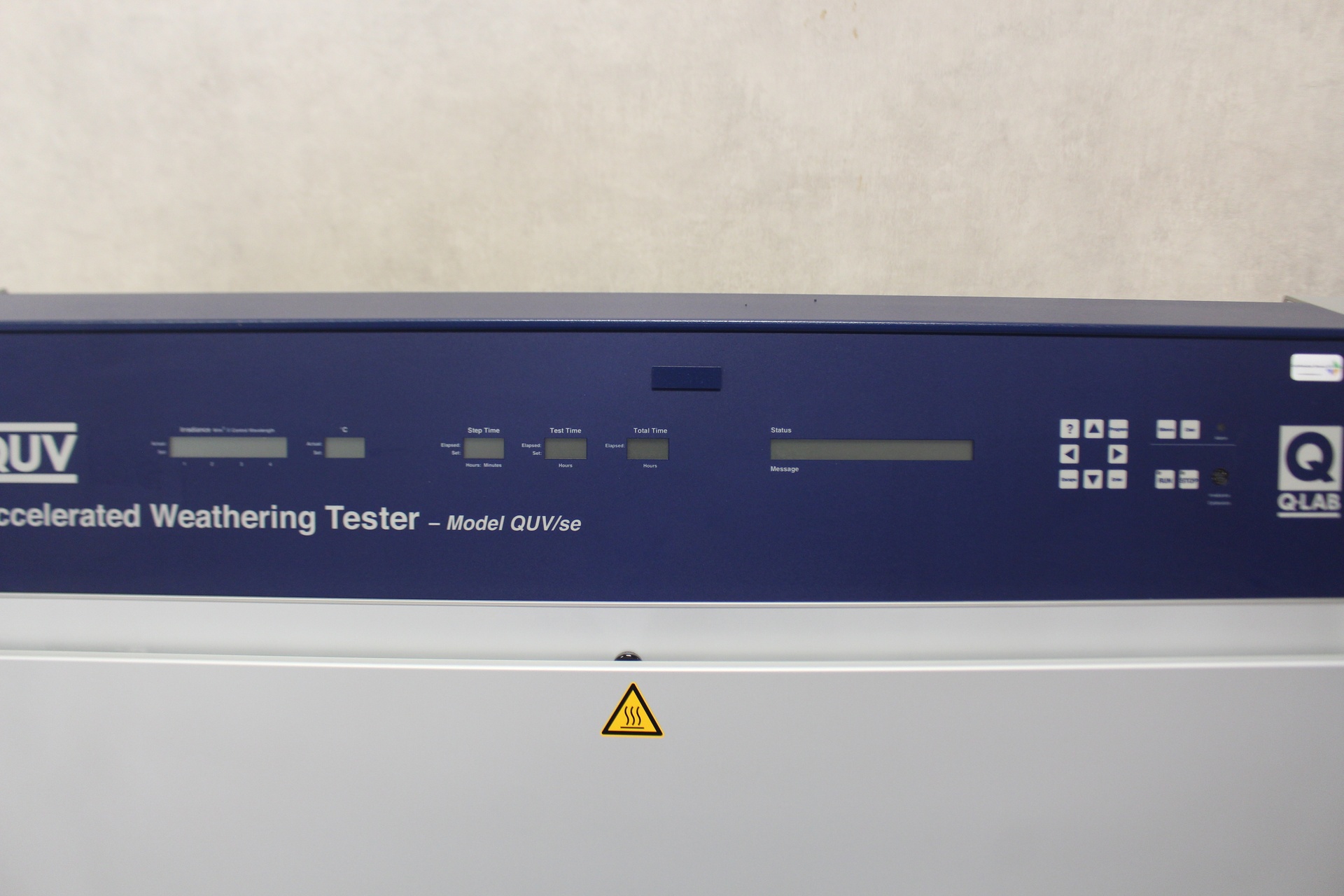

Q-LAB QUV/ SE Accelerated Weathering Tester

Description

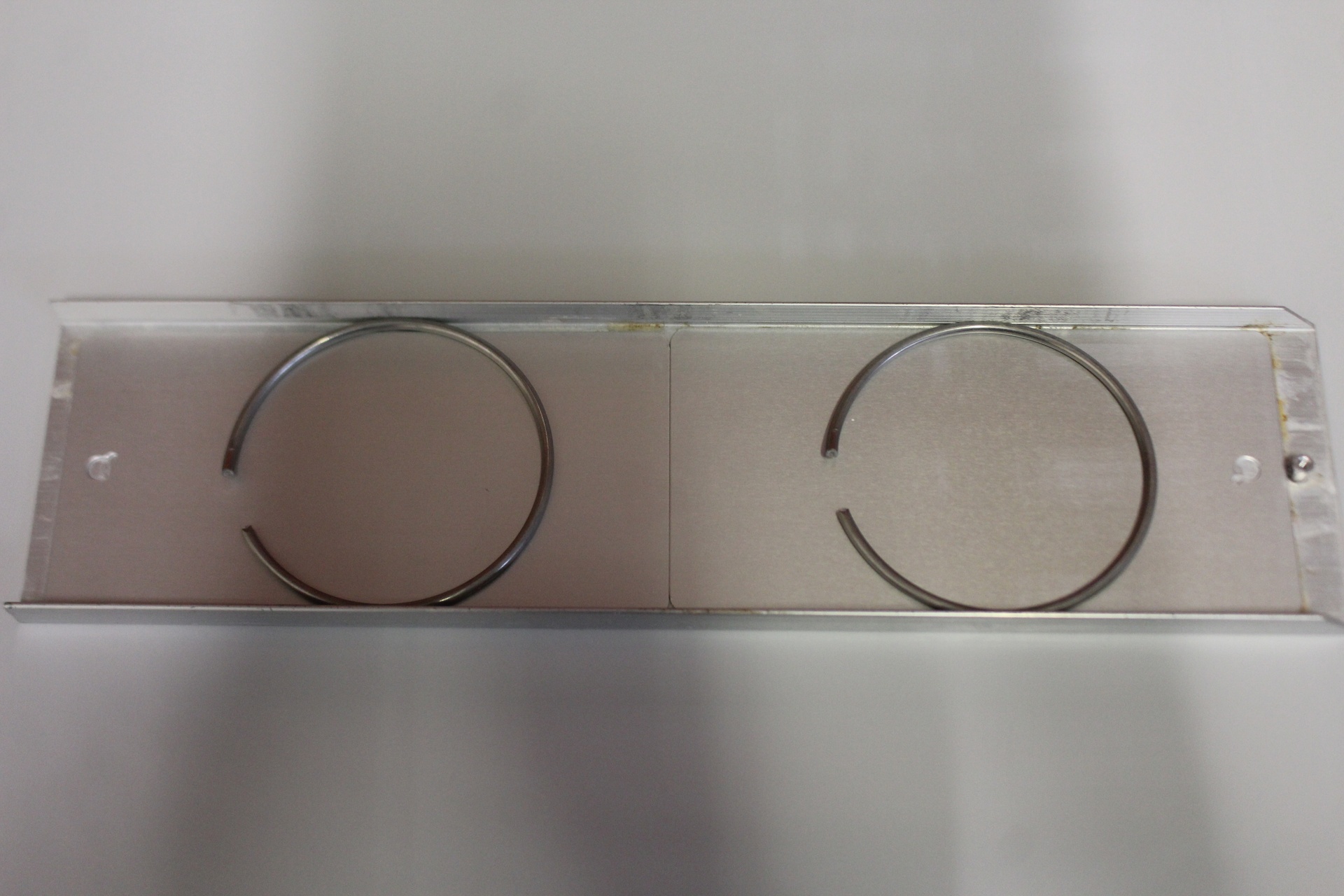

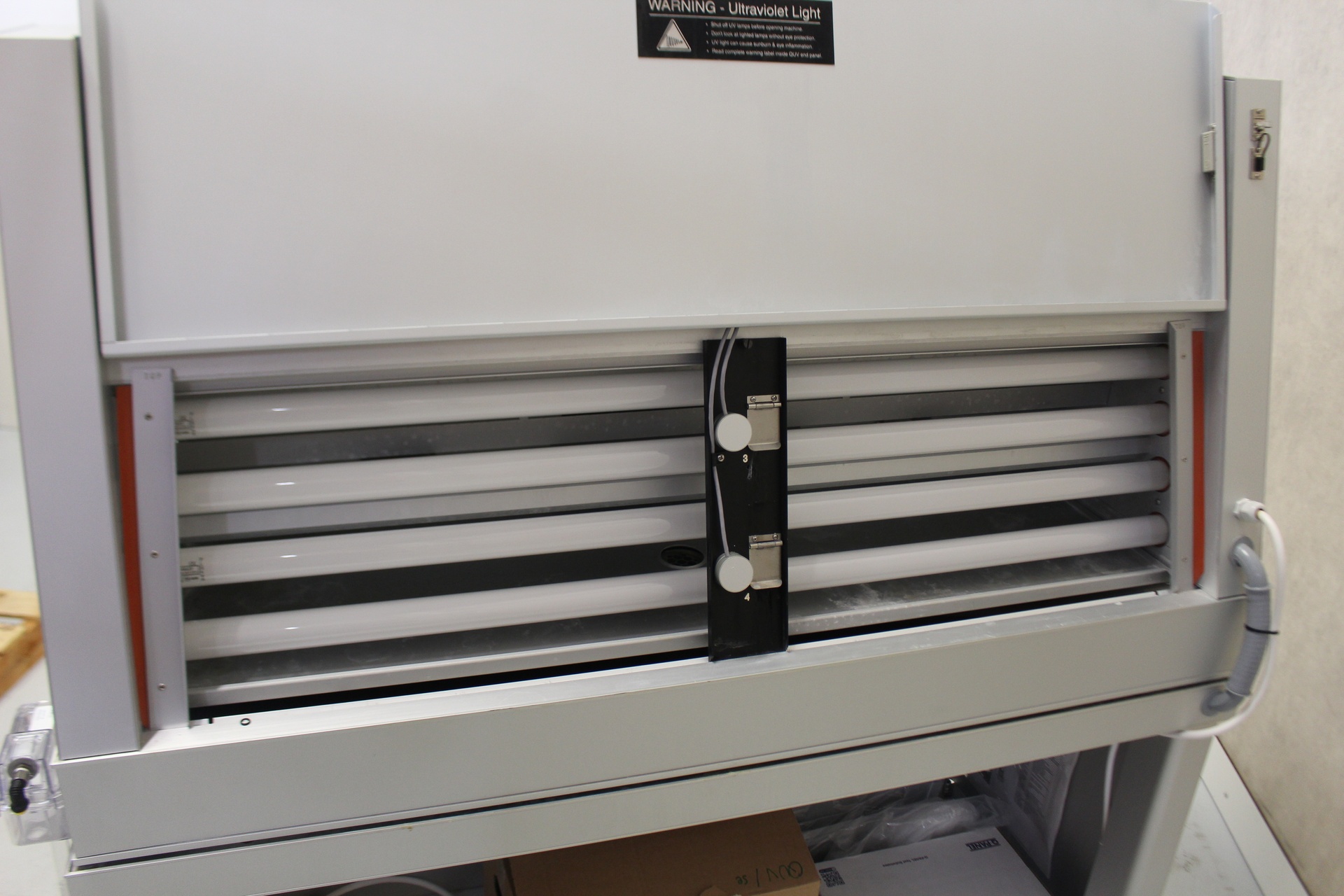

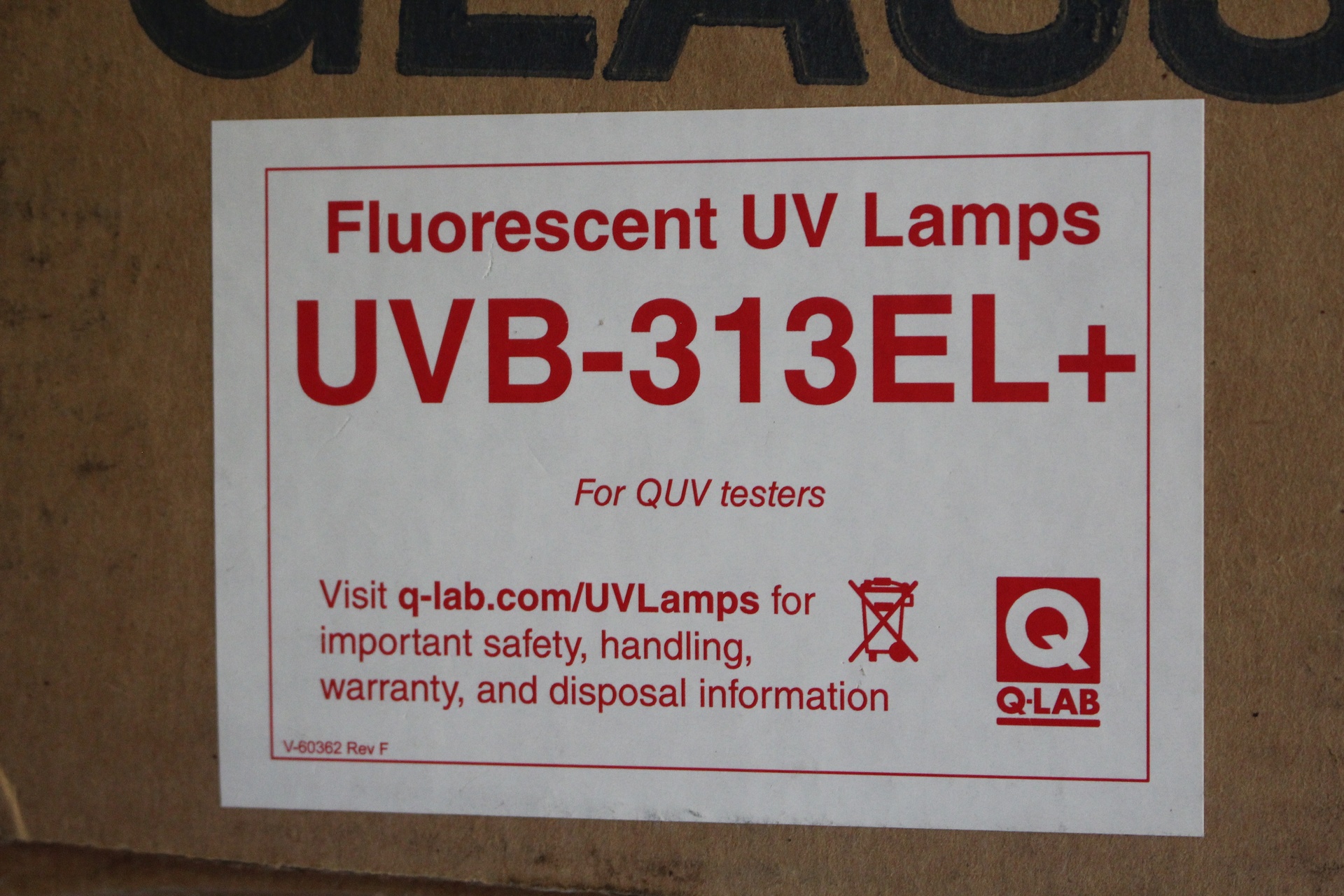

Sunlight, heat, and moisture cause millions of dollars of material damage every year. The QUV accelerated weathering tester exposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. In a few days or weeks, QUV testers can reproduce the damage that occurs over months or years outdoors. And with its newest model, QUV testers can now reproduce the damage caused by 254 nm UVC light used in sterilization equipment. With thousands of testers in service worldwide, the QUV tester is the world’s most widely-used weathering tester. Specimen Orientation: 75° from horizontal UV Fluorescent Lamps: 8 (T12 x 121 cm long) at 40 W each Onboard Irradiance Sensor: Wideband (250-400 nm) Specimen Exposure Area: 20 x 50 cm (2x each side), 20 x 50 cm (2x each side), 4000 cm2 total Specimen Capacity: 48 Specimens (75 x 150 mm) Inlet Water Pressure: 0.2 – 5.5 bar Inlet Water Purity: Tap water Water Consumption: 5L/day Dimensions (WxHxD): 1370 x 1350 x 530 mm Weight: 136 kg Features: SOLAR EYE Irradiance Control Uninsulated Black Panel (BP) Temp. Control Condensation Including: 8x UVA340+ daylight lamps 8x UVB313EL+ extraterrestrial lamps 24x sample plates (2x 75 x 150 mm per plate)
