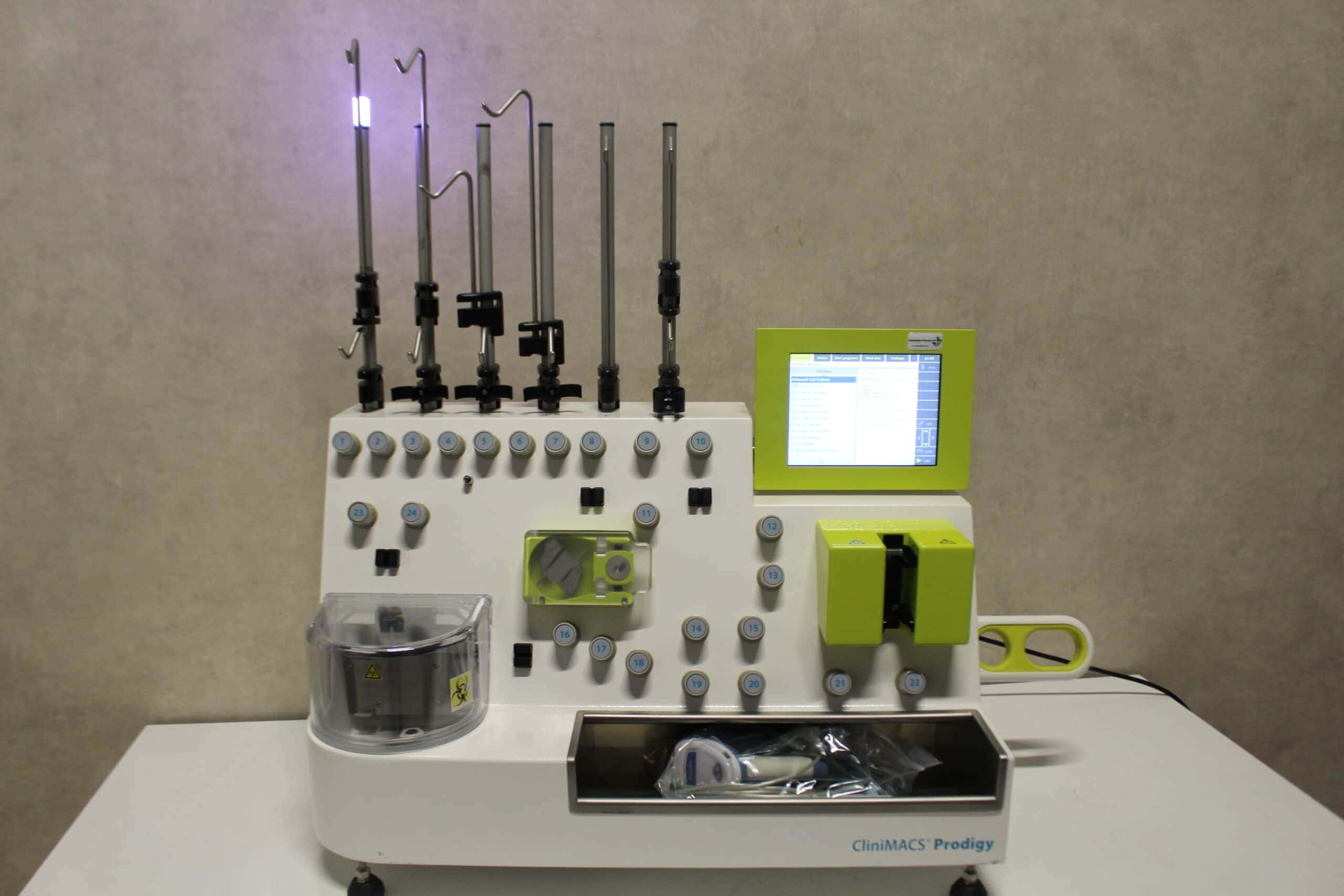

Miltenyi Biotec CliniMACS Prodigy Automated Cell Processing System

This unit

The CliniMACS Prodigy represents the next generation in automated cell processing. This device offers advanced integrated solutions to streamline cell processing workflows – from cell separation through cell culture to formulation of the final product. The CliniMACS Prodigy offers a flexible platform for cell processing applications enabling the magnetic separation of different cell types as well as customized cell processing protocols. The cell processing unit for fully automated washing, fractionation and cultivation of cells represents an integral component of the device. These processing steps take place in a single-use chamber, which is included as part of specific CliniMACS Prodigy Tubing Sets. The magnetic cell separation unit comprises a second integral component, enabling the separation of virtually any cell type. Pump speed: 2 – 400 mL/min Atmosphere control: Gas mix unit for CO2, compressed air, and N2; min. pressure: 1 bar, max. pressure: 2.5 bar Temperature control: +4 °C to +38 °C Centrifugation: Max. 2,500 rpm (400×g) Microscope camera: Max. magnification: 400-fold MACS tube sealer: For sealing CliniMACS Prodigy Tubing Sets PVC tubes Types of starting material: Leukapheresis, bone marrow, cryopreserved PSCs Available cell processing steps: Cell washing, density gradient centrifugation, cell activation, fluorescent antibody labeling of cells, cell depletion and / or enrichment via magnetic cell separation, viral transduction, cell expansion, expansion and differentiation of adherent cells, cell culture and medium exchange, formulation of final cell product Dimensions (WxDxH): 735 x 400 x 480 mm Weight: 70 kg
