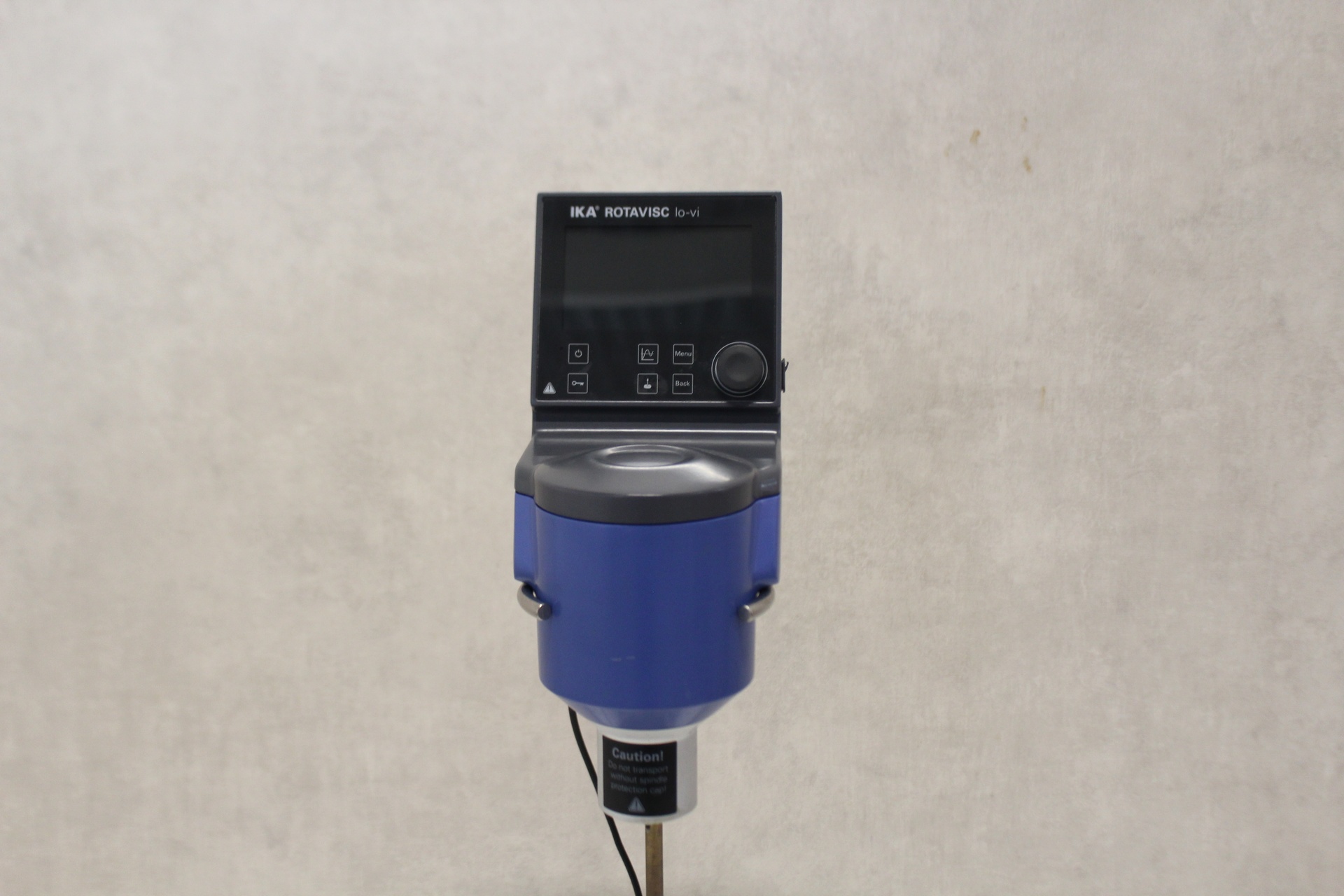

IKA ROTAVISC lo-vi Viscometer

Description

The ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement – the ROTAVISC delivers rapid and accurate results. Easy to operate The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks. Highest measurement accuracy The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %. Stepless speed ROTAVISC is a viscometer, which offers stepless speed adjustment. Viscosity Measuring Range: 6000000 mPas Viscosity Accuracy (FSR): 1 % Viscosity Repeatibility (FSR): 0.2 % Spring torque: 0.0673 mNm Overload protection: yes Direction of rotation: right Speed range: 0.01 – 200 rpm Setting accuracy speed: ±0.01 rpm Torque display: yes Torque measurement: yes Timer: yes Time setting range: 0.017 – 6000 min Temperature measurement resolution: 0.1 K Graph function: yes Operating mode: timer and continuous operation Calibration option: yes Touch function: yes Pemitted density: 9999 kg/dm3 Working temperature: -100 – 300 °C Dimensions (WxHxD): 351 x 629 x 372 mm Weight: 7.1 kg Including sindle sets: SP set-1 Spindle geometry: Cylinder Spindle length: 115 mm Sample volume: 500 ml Sample container: 600mL beaker low Working temperature max.: 300 °C Viscosity Accuracy (FSR): 1 % Viscosity Repeatibility (FSR): 0.2 % Min. FSR match ROTAVISC lo-vi: 15 mPa.s Max. FSR match ROTAVISC lo-vi: 6000000 mPa.s Min. FSR match ROTAVISC me-vi: 100 mPa.s Max. FSR match ROTAVISC me-vi: 64000000 mPa.s Min. FSR match ROTAVISC hi-vi I: 200 mPa.s Max. FSR match ROTAVISC hi-vi I: 128000000 mPa.s Min. FSR match ROTAVISC hi-vi II: 800 mPa.s Max. FSR match ROTAVISC hi-vi II: 512000000 mPa.s Material in contact with medium: stainless steel 1.4404 VAN-1 Spindle geometry: Vane Sample volume: 500 ml Sample container: 600mL beaker low Working temperature max.: 300 °C Viscosity Accuracy (FSR): 2 % Viscosity Repeatibility (FSR): 0.2 % Min. FSR match ROTAVISC lo-vi: 24.6 mPa.s Max. FSR match ROTAVISC lo-vi: 5100000 mPa.s Min. FSR match ROTAVISC me-vi: 262 mPa.s Max. FSR match ROTAVISC me-vi: 54300000 mPa.s Min. FSR match ROTAVISC hi-vi I: 524 mPa.s Max. FSR match ROTAVISC hi-vi I: 108600000 mPa.s Min. FSR match ROTAVISC hi-vi II: 2100 mPa.s Max. FSR match ROTAVISC hi-vi II: 434000000 mPa.s Material in contact with medium: stainless steel 1.4404 Excluding stand
