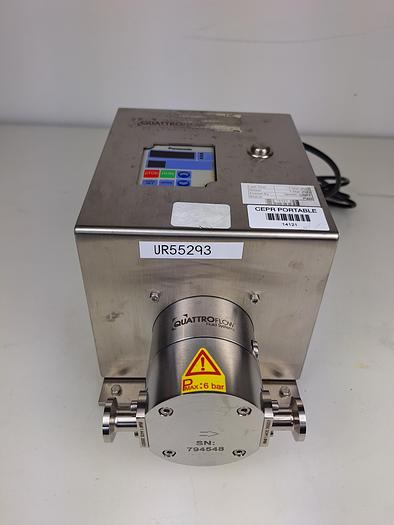

QuattroFlow QF150 Diaphragm Pump

Description

This listing is for a QuattroFlow QF150 Diaphragm Pump. The unit is in full working condition and is ready for immediate release. The Quattroflow 150S is a 4-piston Diaphragm pump, which is mainly used to pump water-like fluids that are typically handled in research-, pilot plant- or production facilities of the pharmaceutical, biotech, food or cosmetic research centres or plants. Examples: • Solutions containing proteins (albumin, IgG, Clotting factors, monoclonal antibodies, enzymes, vaccines.) • Solutions of polymers or suspensions (silicon, latex, chromatography media) • Cell suspensions (bacteria, yeast, algae, fungi, mammalian cells) • colloidal solutions • Suspensions of viruses or phage • Dairy products • Gelatine • Supplements and ingredients for cosmetic and food Flow rate max.: Eccentric shaft 3° l/h (lpm) 100 (1.67) 100 (1.67) Eccentric shaft 5° l/h (lpm) 180 (3) 180 (3) Flow rate min.: Eccentric shaft 3° l/h (lpm) 1 (0.017) 1 (0.017) Eccentric shaft 5° l/h (lpm) 1 (0.017) 1 (0.017) Pressure: Temperature of fluid < 40°C bar (psi) 6 (87) 6 (87) Temperature of fluid > 40°C bar (psi) 4 (58) 4 (58) Temperature max.: Fluid °C (°F) 80 (176) 80 (176) CIP °C (°F) 90 (194) 90 (194) SIP °C (°F) 130 (260) 130 (260) Autoclave °C (°F) 130 (260) 130 (260) Suction lift dry at: 3000 rpm 3000 rpm Eccentric shaft 3° m (ft) 1-1,5 (3.2-4.9) 1-1,5 (3.2-4.9) Eccentric shaft 5° m (ft) 2-3 (6.6-9.8) 2-3 (6.6-9.8) Volume specifications: Approximated volume per revolution at free output ml 0,72 (3°) 1,2 (5°) 0,72 (3°) 1,2 (5°) Filling volume without connectors ml 15 15 Residual volume (after idle with highspeed motor) ml 1-3 1-3 Product wetted surface (approx.) cm² (inch²) 112 (17) 112 (17) Speed range pump rpm 10-3000 10-3000 Connection specification inlet (standard) Connector " 1/4" TC 1/4" TC Flange diameter mm (inch) 25 25 Internal diameter mm (inch) 4,7 4,7 Connection specification outlet (standard) Connector " 1/4" TC 1/4" TC Flange diameter mm 25 25 Internal diameter mm (inch) 4,7 (0.19) 4,7 (0.19) Position of connectors Inline Inline Number of flow directions 4 4 Diameter drive shaft mm 7 7 Product wetted materials (standard): Pump housing SS316L SS316L Valve plate SS316L SS316L Diaphragms Santoprene Santoprene Valves EPDM EPDM O-rings EPDM EPDM Non-product wetted materials (standard): Pump housing SS316L SS316L Bearing housing SS316L SS316L Base plate SS316 SS316 Hood SS316 SS316 Dimensions pump with motor and housing: Length mm (inch) 257 (10,2) 277 (10-91) Width mm (inch) 164 (6,5) 200 (7,87) Height mm (inch) 185 (7,2) 195 (7,67) Weight pump with motor and housing kg (lb) 9,8 (22) 11,2 (25) IP protection class pump IP 54 54 Operating temperature range °C (°F) 0…40 (32…104) 10…30 (50…86)
