Cleaver Scientific microDOC Compact Gel Documentation System DI-HD-220

Description

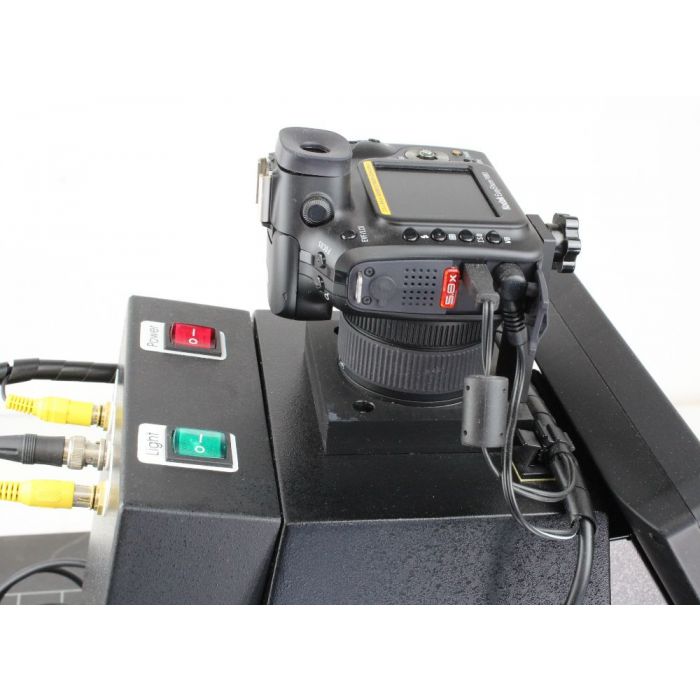

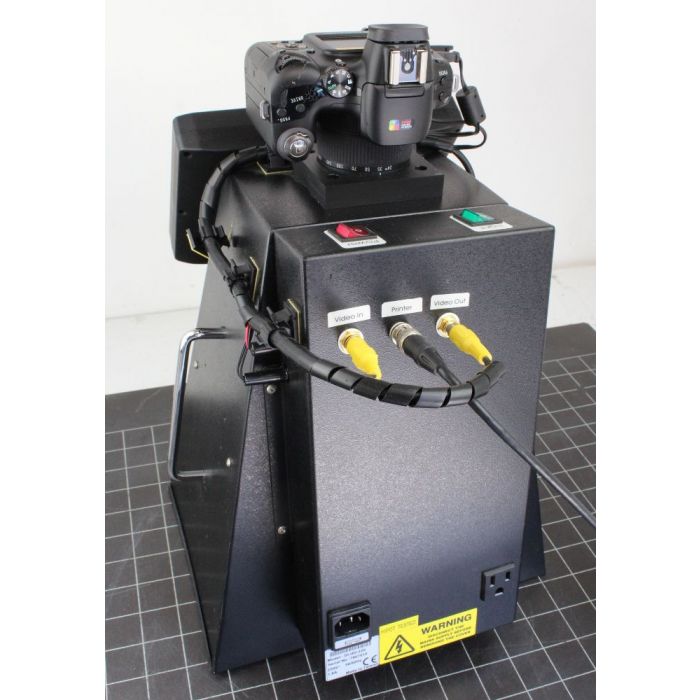

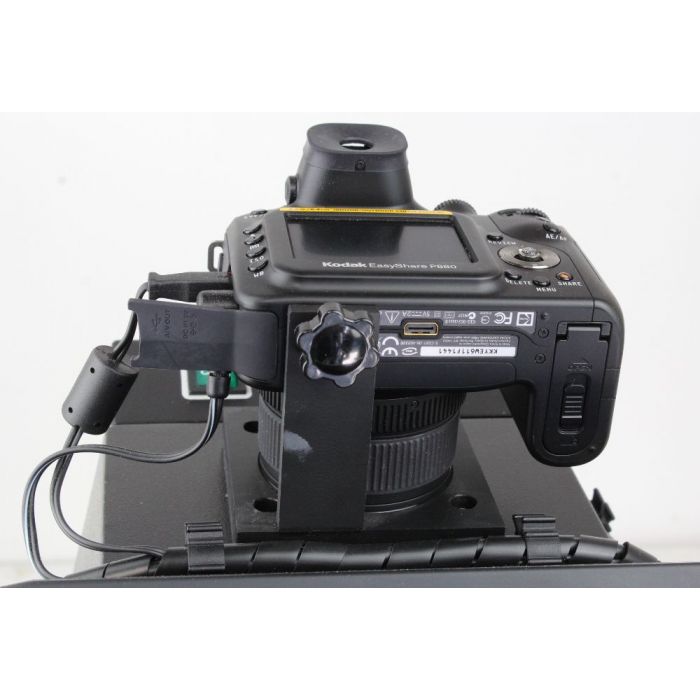

Cleaver Scientific microDOC Compact Gel Documentation System DI-HD-220 The MicroDOC is the researcher’s choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8″ TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured in colour, clearly and easily. Digital camera Image visualised within a large 8″ TFT colour monitor Light weight compact hood with easy access door and built-in inner lights Safety switches disconnect the UV source when the easy access door is opened Computer-free operation Camera: Kodac Easyshare P880 f/2.8-f/4.1 24 – 140 mm (35 mm equivalent) wide-angle to telephoto zoom lens 1/1.8-inch (7.18 x 5.32 mm) 8.3 MP 4:3 CCD sensor 640×480, 320×240 30fps QuickTime Movie video capture. Auto, Scene, Programmed Mode, Aperture priority, Shutter priority, Manual exposure – allows (B)ulb, Custom modes (stores 3 profiles) Manual zoom ring and optional use of manual focus ring (fly-by-wire). Autofocus uses hybrid phase detection system (sensors above the lens) for quick focus assist followed by contrast detection system (TTL) for fine focus. Phase detection system should be switched off in the menu when accessory lenses are mounted. 2.5-inch 480×240 (115k) pixel LCD panel Screen: Type 8″ TFT Resolution 600×800 Pixels Brightness 350 cd/mm2 Constant Ratio 300 : 1 Display Mode NTSC / PAL / SECAM mode, auto switching Power: 220V 50/60Hz
