Cytiva Biacore S200 SPR Biosensor Analyser

Specifications

Condition

Good

Year Manufactured

2021

Manufacturer

Cytiva

Model

Biacore S200

Ka

Proteins: 10^3 to 3 × 10^9 M-1s-1; LMW molecules: 10^3 to 5 × 10^7 M-1s-1

Kd

10^-5 to 6 s-1

Power

Processing unit: autorange 100 to 240 VAC, 50 to 60 Hz, Class 1 equipment; max. 4 A at 100 VAC. Max. power consumption including PC and printer 800 VA; overvoltage category II

Detection

Surface plasmon resonancebiosensor

Automation

48 h unattended operation

Flow Cells

Four

Mw Detection

No lower limit for organic molecules

Baseline Drift

Typically < 0.3 RU/min; blank subtracted drift < ± 0.003 RU/min

Baseline Noise

Typically < 0.015 RU

Buffer Selector

Automatic switching between four buffers

Flow Rate Range

From 1 to 100 μL/min

Flow Cell Height

40 μm

Flow Cell Volume

0.06 μL

Injection Volume

2 to 350 μL

Analysis Temperature

4°C to 45°C

Data Collection Rate

1, 10, or 40 Hz

Instrument Weight Kg

60

Operating Conditions

Indoor use only; operation 18°C to 33°C; max. relative humidity 80% RH non-condensing up to 31°C, decreasing linearly to 50% RH at 40°C; transport/storage -25°C to 60°C; altitude up to 2000 m; pollution degree 2

Sample Concentration

≥ 1 picomolar

Instrument Dimensions

[object Object]

Software Compatibility

Biacore S200 Control and Evaluation Software; Biacore Insight Software also listed. OS: Windows 10 Professional or Enterprise, 64-bit. Min PC: 3.0 GHz processor, RAM > 1 GB free, HDD > 2 GB free, graphics at least 1280 × 1024, 2 RS-232 ports.

Sample Refractive Index

1.33 to 1.40

Sample Storage Temperature

4°C to 45°C

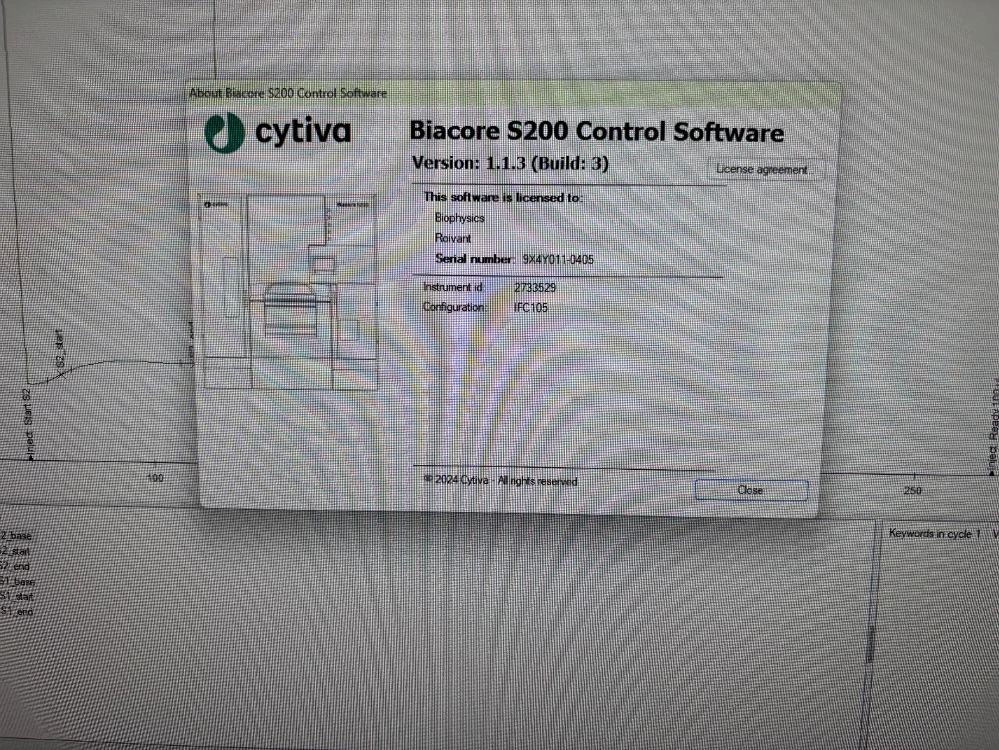

Software Included

Biacore S200 Control Software v1.1
