Sartorius Cubis MSA116P Microbalance

Description

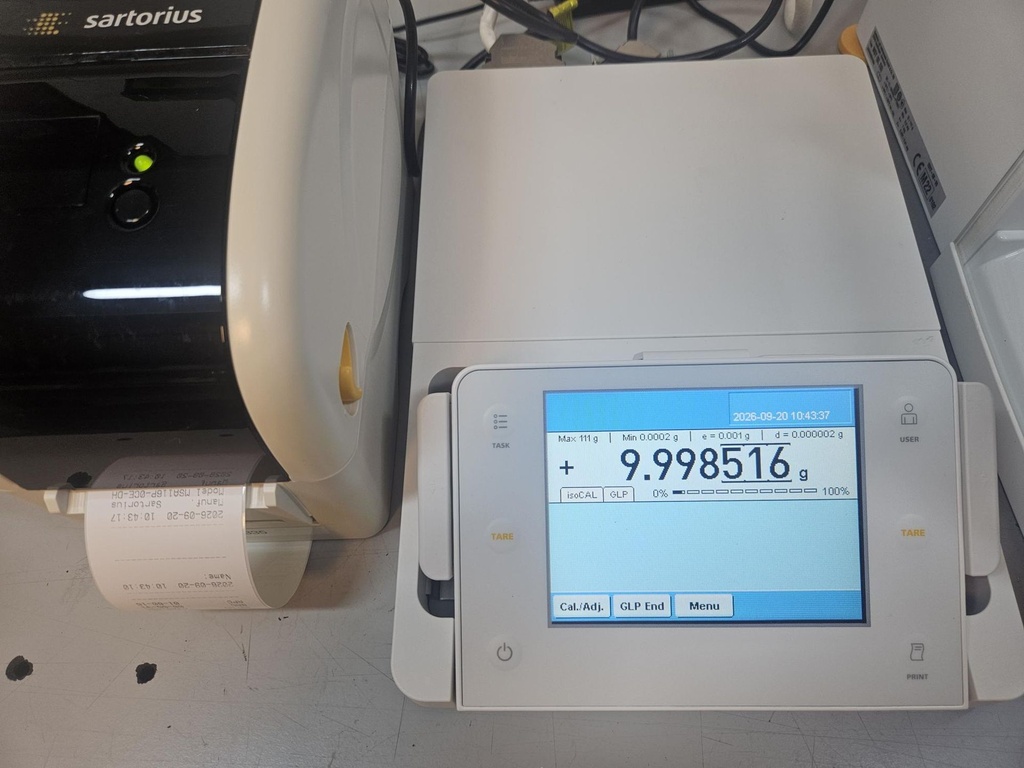

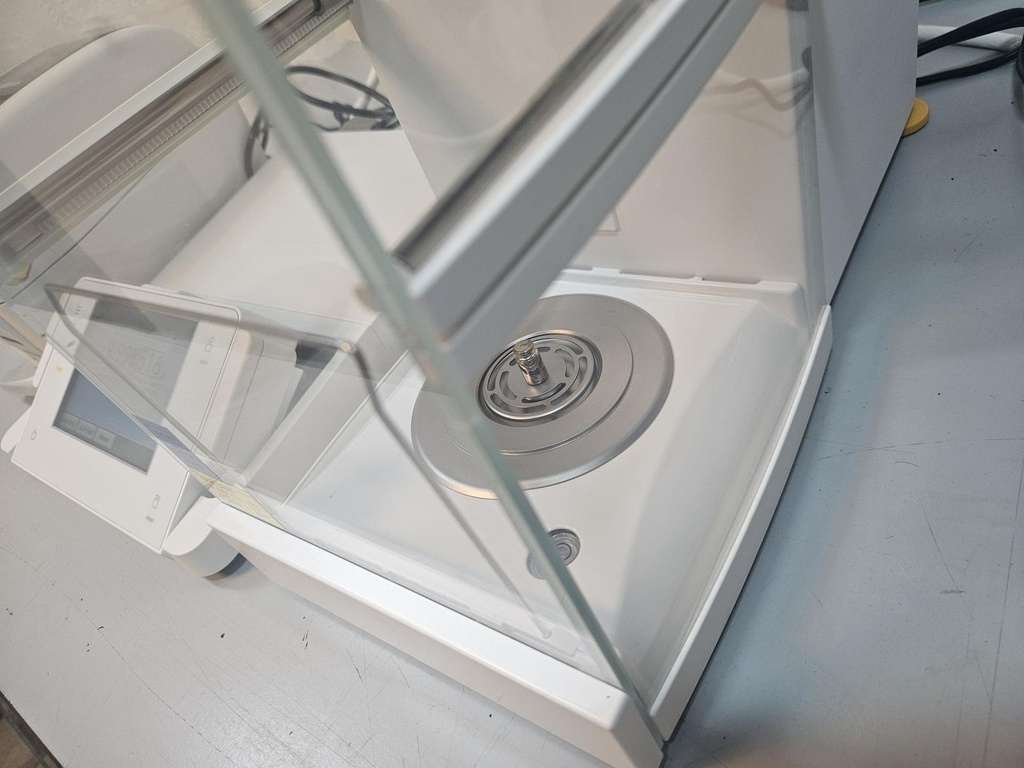

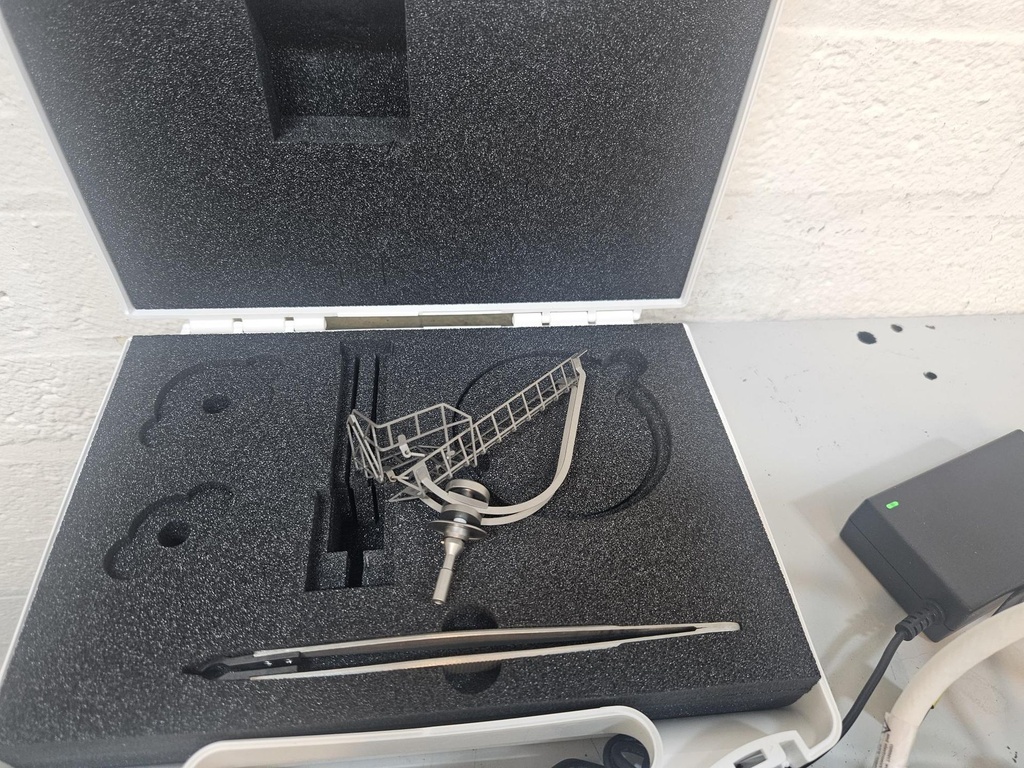

Sartorius Cubis MSA116P Microbalance – Complete Set Professional Sartorius Cubis high-capacity microbalance with MSA116P weighing module, YAC01MSA display and control unit, YDP30 GLP printer, and YSH02 adjustable sample holder. The MSA116P is specifically developed for accurately weighing very small quantities, even directly into relatively large laboratory containers. The balance has a maximum capacity of 111 g and a readability of up to 2 µg. Furthermore, the manufacturer states an optimal minimum weighing of approximately 1.64 mg for the 116P. The YSH02 sample holder is made of titanium and is adjustable for various types of laboratory vessels. It is specifically suitable for the Cubis high-capacity microbalances, including the 116P. Technical specifications Specification Data Brand Sartorius Series Cubis Weighing module MSA116P Configuration MSA116P-OCCE-DH Type High-capacity microbalance Weighing capacity 12 / 111 g Readability 2 / 10 µg Optimal minimum weighing approx. 1.64 mg Typical stabilization time approx. 3.5 s Typical response time approx. 10 s Display YAC01MSA MSA display/control unit Display type LCD with menu guidance Printer YDP30 GLP/GMP printer Sample holder YSH02, adjustable Sample-holder material Titanium grade 2 Draft shield DH, motorized Weighing pan approx. Ø50/90 mm depending on configuration Application Micro and high-capacity micro weighing GLP Yes, with YDP30 printer The MSA display unit has a large LCD display with menu guidance and control buttons. The YDP30 supports GLP/GMP printouts and features RS-232 and USB connections. Balance dimensions For the MSA116P with DH draft shield, Sartorius provides technical drawings including: Width: approx. 222 mm Height: approx. 435 mm Depth: approx. 358 mm Height of the weighing section: approx. 291 mm Weighing chamber width: approx. 222 mm For the MSA116P, the relevant pan opening is approx. Ø50 mm. The display/control unit can be installed separately from the weighing module, meaning the total required workspace depends on the chosen configuration. YDP30 GLP printer YDP30 dimensions: 241.3 × 139.9 × 177.4 mm (W × D × H). The printer is suitable for GLP/GMP printouts on standard paper and self-adhesive labels. Complete set The set consists of: Sartorius Cubis MSA116P microbalance MSA116P-OCCE-DH configuration YAC01MSA display and control unit YDP30 GLP/GMP printer YSH02 adjustable titanium sample holder DH draft shield Status: balance set in GLP mode. Access to certain admin and service functions requires the relevant passwords/authorization details; these can be obtained via Sartorius Service.
