Cytiva Xuri W25 Cell Expansion System

Description

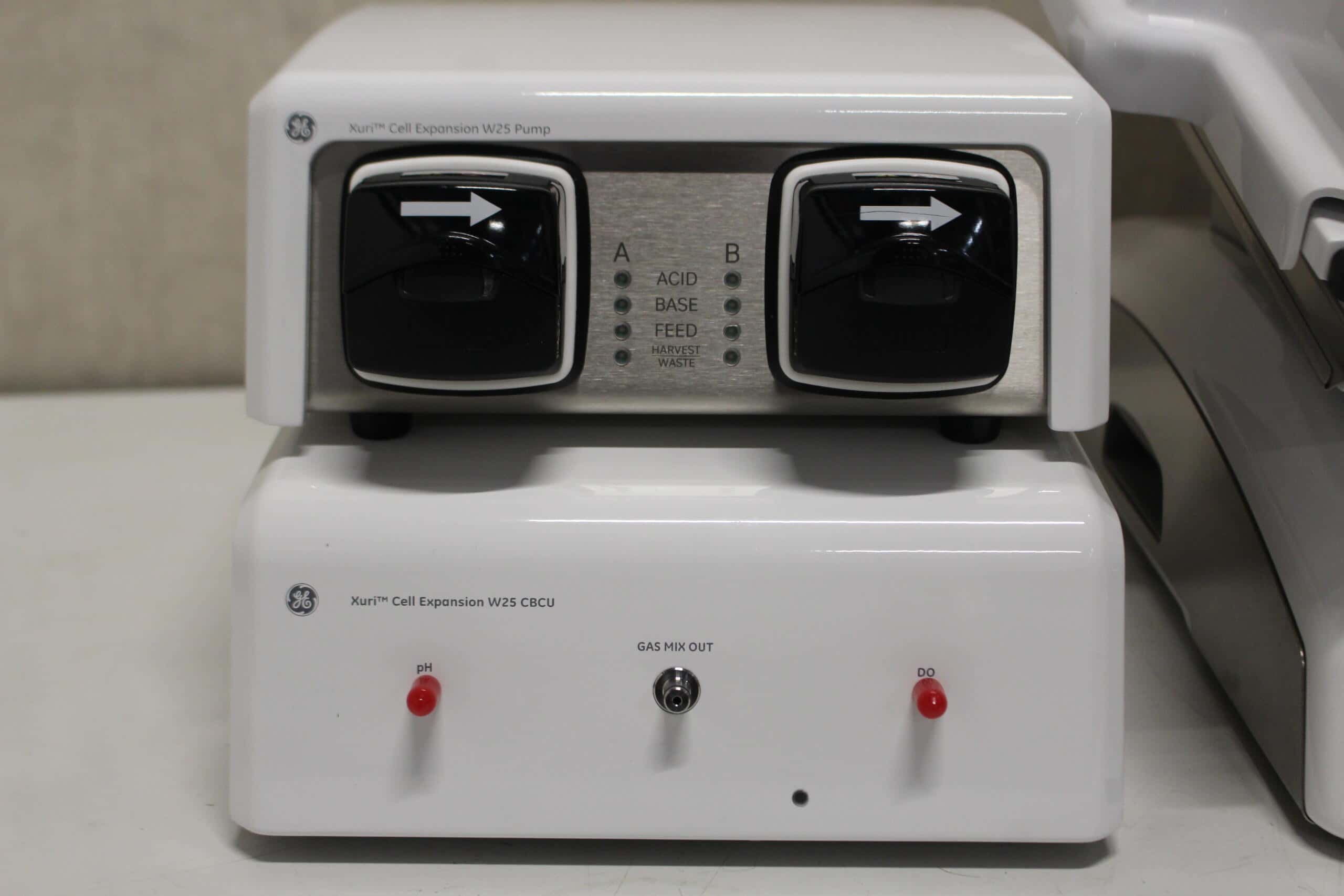

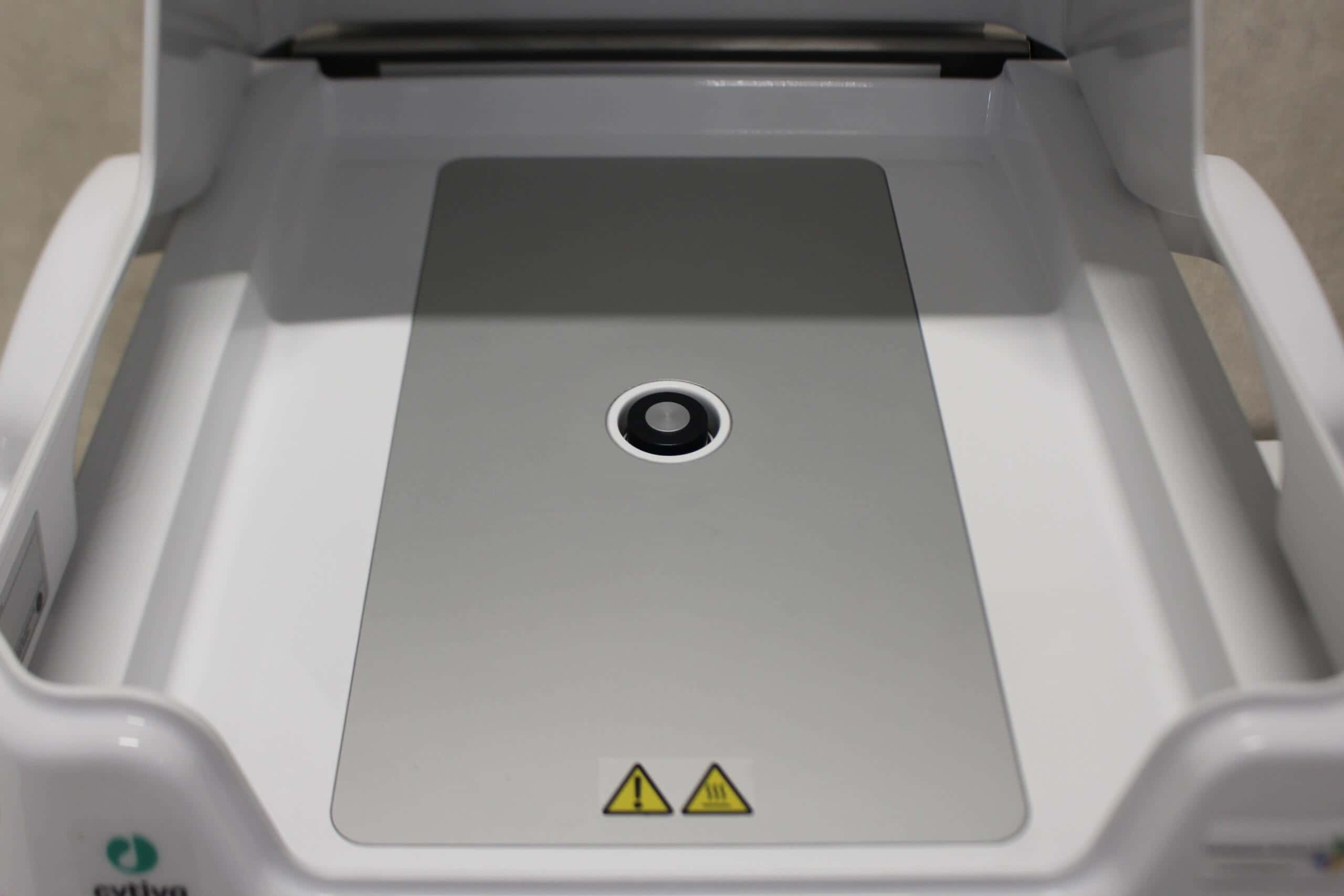

The Xuri Cell Expansion System W25 delivers an automated, controlled expansion environment for the growth of cell therapies in volumes up to 25 L across research, process development, and manufacturing operations. Closed system minimizes risk of cell contamination. High cell densities through automated perfusion protocols. Processes stay in control through advanced control capabilities and remote operation/monitoring via UNICORN software. Suitable for use in a regulated environment. Achieve >10 x 10⁶ cells/mL, in volumes up to 25 L, with non-invasive mixing, media perfusion, and efficient oxygen transfer in a low-sheer environment. External air supply (per CBCU): 1.0 to 1.5 bar, Normal use: 1.3 L/min, Fast fill: 3.5 L/min External CO2 supply (per CBCU): 1.0 to 1.5 bar, Normal use: 0.2 L/min, Fast fill: 0.5 L/min External O2 supply (per CBCU): 1.0 to 1.5 bar, Normal use: 0.7 L/min, Fast fill: 1.7 L/min Rocker specifications Rocking speed control range: 2 to 40 rpm Rocking angle control range: 2° to 12° Rocking speed profile range: 15% to 100% (The % value refers to the fraction of the angular displacement function that is sinusoidally shaped 15% gives an almost constant angular velocity 100% gives a sinusoidal rocking) Media weight control range: 0.5 to 25 kg Scale, absolute accuracy (single mode): ±(0.050 + 1% of load) kg Temperature sensor: Pt100 Class A Temperature measurement range: 2°C to 50°C Temperature setpoint difference: Max 10°C at ambient 21°C (The setpoint difference is reduced by 1°C for every degree centigrade that is increased from ambient temperature (e.g., at ambient 25°C, max setpoint difference is 6°C)) Temperature control range: (Ambient temperature + 5°C) to 40°C Temperature control accuracy (excl. measurement error): ±0.2°C CBCU specifications Gas flow control range: 50 to 1000 mL/min Total gas flow accuracy (reference flow – setpoint): ±(10 + 3% of read value) mL/min Fast fill flow: ~3 L/min CO2 control range: 0% to 15% CO2 CO2 measurement accuracy at 5% CO2: ±0.5% CO2 when mixed only with air/N2 CO2 control accuracy (versus setpoint): ±0.4% CO2 O2 control range: 0% to 50% O2 when mixed with N2, 21% to 50% O2 when mixed with air O2 measurement accuracy: ±(0.6 + 1% of read value) within 0% to 50% O2, when mixed only with air/N2 O2 control accuracy (versus setpoint): ±0.6% O2 pH measurement range: pH 4.5 to 8.5 pH control range: pH 6.0 to 8.0 pH measurement accuracy: ±0.05 pH within ±0.25 pH from offset calibration pH, ±0.1 pH within 0.25 to 0.5 pH from offset calibration pH pH control accuracy (versus setpoint): ±0.05 pH DO measurement range: 0% to 250% air saturation DO measurement accuracy: ±5% air saturation, excluding atmospheric pressure variations DO control range: 0% to 100% air saturation Pump specifications Pump flow rate range: 0.1 to 144 L /day (0.07 to 100 mL/min) Pump flow rate accuracy: ±(0.1 + 5% of read value) mL/min after calibration Accumulated pumped volume accuracy: ±10% of measured volume Supported tubing dimensions: Inner diameter 0.5 to 4.8 mm (1/50″ to 3/16″), Wall thickness 1.6 mm (1/16″) Dimensions rocker (WxHxD): 404 x 205 x 560 mm Dimensions CBCU (WxHxD): 276 x 117 x 360 mm Dimensions pump (WxHxD): 275 x 115 x 280 mm Weight rocker: 24 kg Weight CBCU: 4.8 kg Weight pump: 3.8 kg Excluding software
