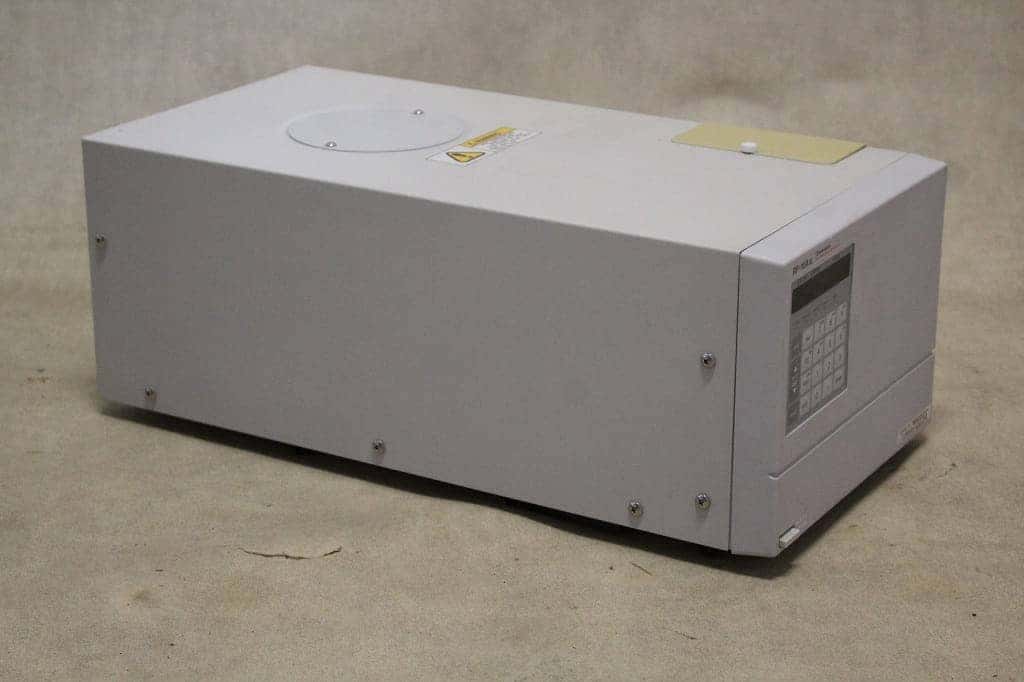

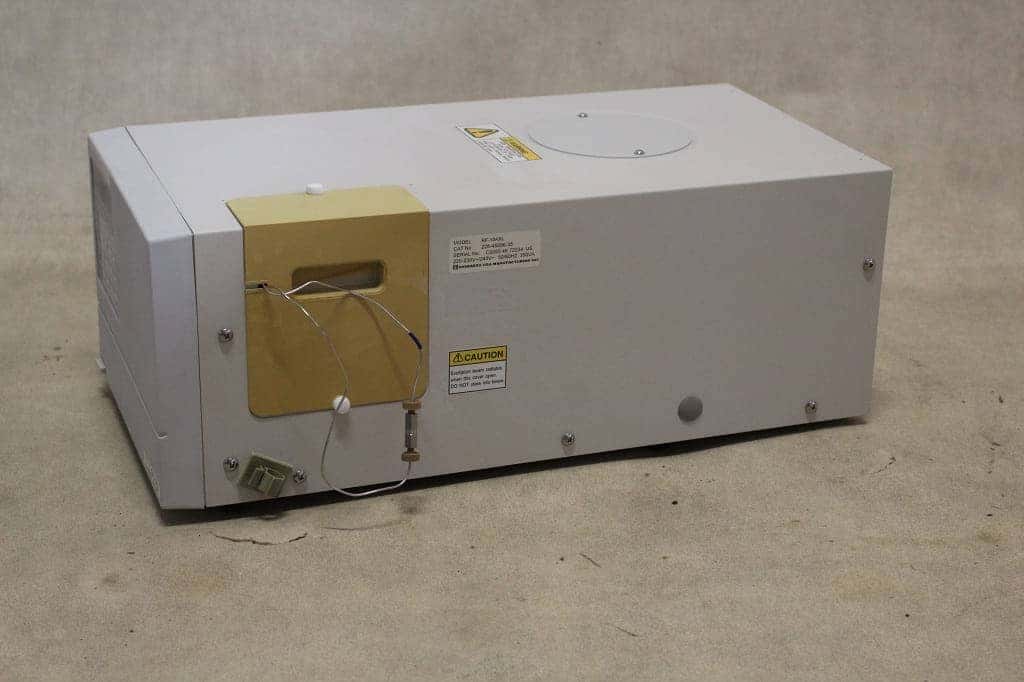

Shimadzu RF-10AXL Fluorescence Detector
Shimadzu · RF-10AXL Fluorescence Detector · ref ML-C23B8CF5
Description
Light source: High Precision Xenon lamp Excitation/emission monochromators: Concave, blazed holographic grating monochromators Measuring wavelength range: 200 – 650 nm Spectral bandwidth: 15 nm both in the excitation and emission sides Wavelength accuracy: ±2 nm Wavelength reproducibility: ±0.2 nm Sensitivity: The S/N ratio is 300 for the Raman line of distilled water (350nm excitation wavelength and 1.5 sec. time constant) Detector: Photomultiplier Cell (volume, pressure,material): 12 =L, approx. 20kgf/cm2 (2MPa) SUS316, Quartz, PTFE Wavelength scanning: Possible both for excitation and emission wavelengths. Time programming: Wavelengths parameters may be programmed in up to 32 steps Dimensions (WxDxH): 260 x 520 x 205 mm Weight: 17kg
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Shimadzu
- Model
- RF-10AXL Fluorescence Detector
- Detector
- Photomultiplier
- Warranty
- 6 months
- Sensitivity
- The S/N ratio is 300 for the Raman line of distilled water
- Light Source
- High Precision Xenon lamp
- Dimensions Wxdxh
- 260 x 520 x 205 mm
- Time Programming
- Wavelengths parameters may be programmed in up to 32 steps
- Spectral Bandwidth
- 15 nm both in the excitation and emission sides
- Wavelength Accuracy
- ±2 nm
- Wavelength Scanning
- Possible both for excitation and emission wavelengths.
- Measuring Wavelength Range
- 200 – 650 nm
- Wavelength Reproducibility
- ±0.2 nm
- Cell Volume Pressure Material
- 12 =L, approx. 20kgf/cm2SUS316, Quartz, PTFE
- Excitation Emission Monochromators
- Concave, blazed holographic grating monochromators
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: Netherlands
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
contact MerkaLoop about this equipment
