Bio-Rad Trans-Blot SD Semi-Dry Transfer Cell

Description

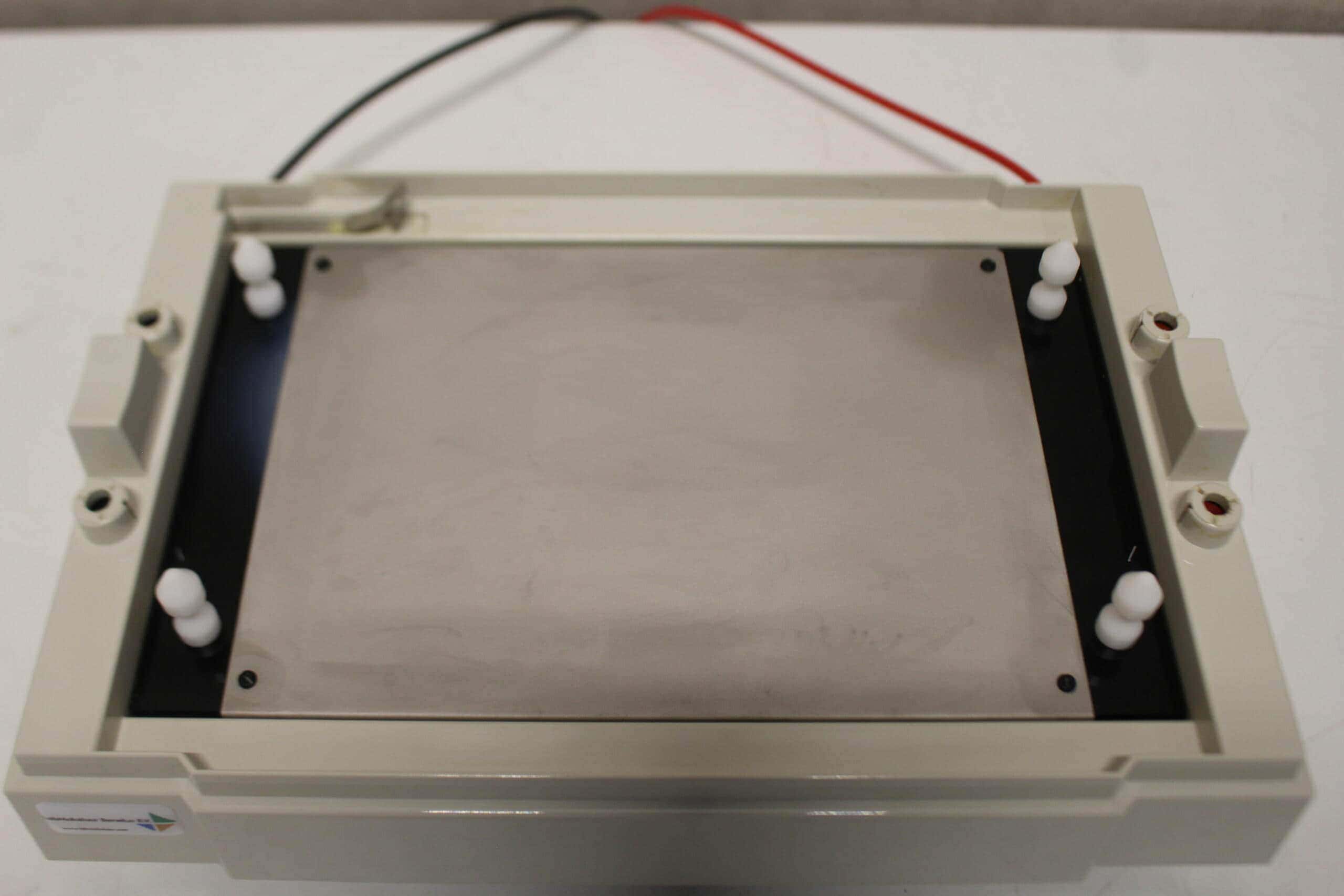

The Trans-Blot SD semi-dry transfer cell allows fast, efficient, economical blotting without a buffer tank or gel cassettes. Features and Benefits: Transfers take place in as little as 15 – 60 min Minimal buffer requirements save money Capacity to transfer up to four Mini-PROTEAN precast or handcast gels, or three Criterion gels Single-step locking system allows simple, speedy setup Platinum-coated titanium anode plate electrodes and stainless-steel cathode plate electrodes provide consistent and reliable transfers, durability, and long life Extra plastic templates required by other semi-dry blotters to prevent electrode short circuits are unnecessary Safety cover breaks the electrical current when lifted, preventing electrical shock Applications and Uses: Western blotting Nucleic acid transfer Northern and Southern blot transfers in 10 – 35 min Transfer of DNA and RNA using the unique agarose gel semi-dry blotting support frame Maximum gel size (WxL): 240 x 160 mm Buffer requirement: 200 ml Gel capacity: 4 Mini-PROTEAN precast or handcast gels, 3 Criterion gels, 1 – 3 PROTEAN II gel sandwiches Dimensions (WxDxH): 370 x 240 x 110 mm Weight: 3.6 kg
