Parker Balston UHPN2-1100 Nitrogen Generator

Description

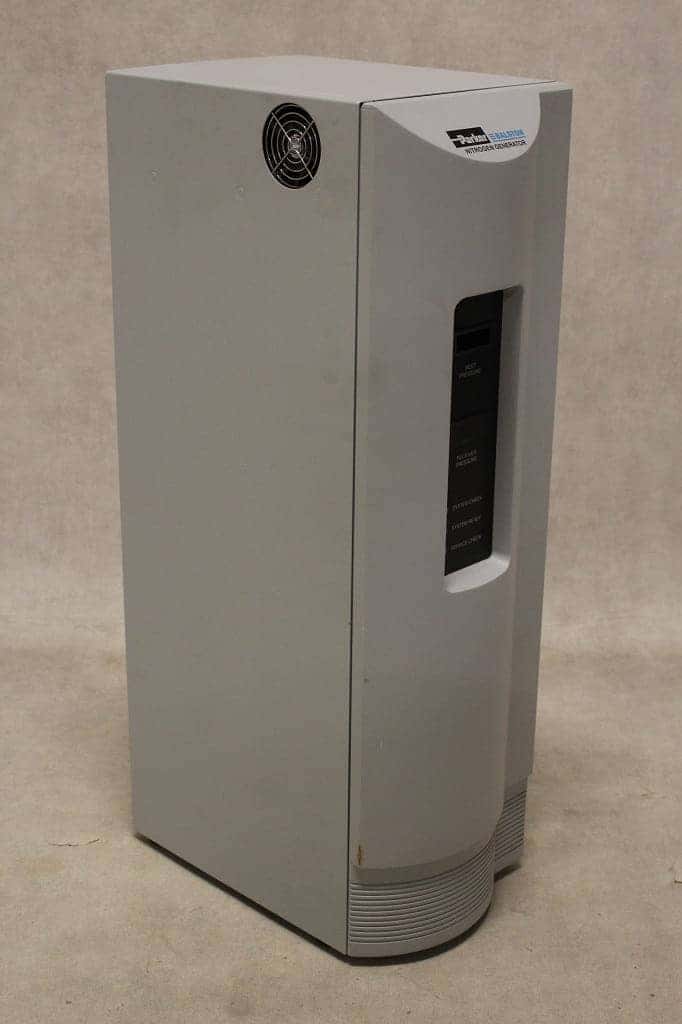

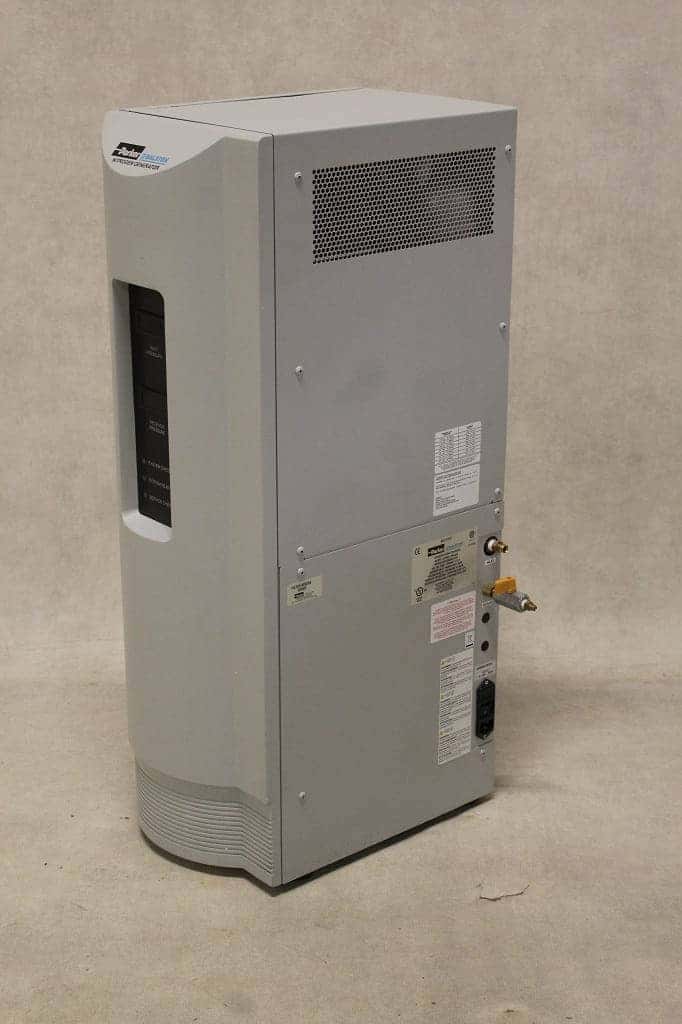

The Parker Balston Model UHPN2 Nitrogen Generator is completely engineered to transform standard compressed air into 99.9999% nitrogen, exceeding the specification of UHP cylinder gas. This system can produce up to 1.1 lpm of UHP nitrogen gas and is produced by utilizing a combination of state-of-the art purification technologies and high efficiency filtration. Pressure swing adsorption removes O2, CO2, and water vapor. A catalyst module is incorporated in the UHPN2 Series to oxidize hydrocarbons from the inlet air supply. High efficiency coalescing prefilters and a 0.01 micron (absolute) membrane filter is also incorporated into the design of the generators. The Parker Balston UHPN2 Nitrogen Generator is engineered and packaged in a small cabinet to fit on or under any benchtop. The systems eliminate the need for costly, inconvenient high pressure nitrogen cylinders. Typical applications include GC carrier and make-up gas and low flow sample concentrators. Produce a continuous supply of high purity nitrogen gas from existing compressed air Eliminate the need for costly, dangerous, inconvenient nitrogen cylinders in the laboratory Compact design frees up valuable laboratory floor space Offers long term cost stability – uncontrollable vendor price increases, contract negotiations, long term commitments and tank rentals are no longer a concern Ideal for carrier gas applications Nitrogen Purity: 99.9999% CO Concentration: < 1 ppm CO2 Concentration: < 1 ppm O2 Concentration: < 1 ppm H2O Concentration: < 1 ppm Hydrocarbon concentration: < 0.1 ppm Recommended Inlet Temperature: 25°C Max Air Consumption: 42 l/min Dimensions (WxDxH): 310 x 410 x 890 mm
