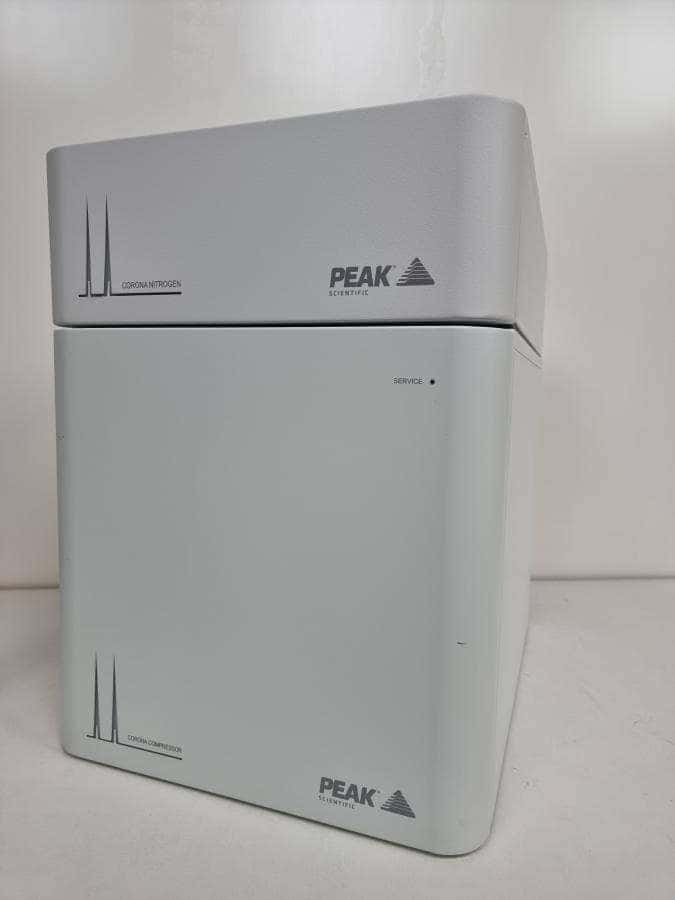

Peak Scientific Corona 1010 Nitrogen Generator + Compressor

Description

The Corona 1010 has been engineered to meet the specifications of the Thermo Scientific Corona Veo Charged Aerosol Detector. The Corona system is also suitable for a variety of other applications, requiring up to 5 L/min nitrogen for LC, HPLC or UHPLC. Peak’s Corona 1010 model has been developed to meet the demands of labs requiring high purity nitrogen for their applications. Suitable primarily for Charged Aerosol Detectors, the Corona 1010 generator delivers a high-purity, filtered nitrogen supply for applications requiring flows of up to 5l/min at 80psi. With a space-saving design, the Corona 1010 can fit seamlessly into any laboratory. Engineered with an dedicated compressor module for customers with no suitable supply of in-house compressed air, the Corona system provides a flexible solution for labs with differing configurations. Max Flow Rate: 5 lpm Max Pressure: 80 psi/5.5 bar Purity: <2% 02 at 5 L/min Gas Outlets: 1 x 1/4 ” BSPP Min Air Inlet Pressure: 7.6 bar/110 psi Min Air Inlet Flow: 30 lpm Min Inlet Air Quality: ISO8573 – 1:2010 Class 1.4.1 Phthalates: None Suspended Liquids: None Start-Up Time For Purity: 5 minutes Operating Temperature: 5°C – 35°C Heat Output: Up to 140 BTU/Hr Generator Dimensions (WxDxH): 156 x 417 x 540 mm Generator Weight: 12 Kg
