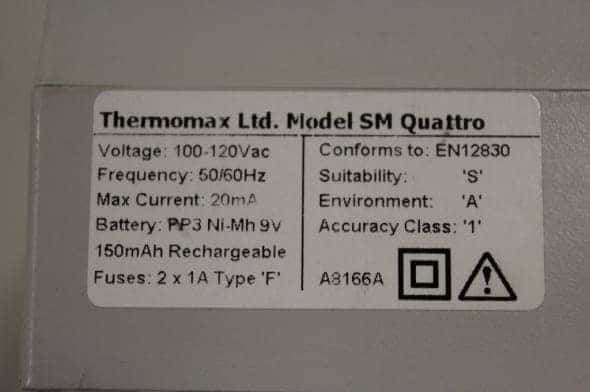

Thermomax SM Quattro Data Logger

Description

SM QUATTRO is a paperless logging and filing system, which allows the data of any day in its history to be read and examined with just a few key presses. The temperature from each Channel and alarm states are sampled every 15 minutes and stored to an internal databank. A large graphics LCD display (2″ x 3″) serves as man machine interface. It communicates the information to the user with clarity. Programming is friendly and easy, without compromising its sophistication and digital accuracy. Paperless data logger with date stamp 2-year clock/calendar for data logger filing The temperature from each Channel is sampled every 15 minutes and stored to in an internal databank ‘Percentage of internal databank used’ indication in bar graph and digital form ‘Internal databank 95% full’ indication to transfer contents to appropriate media Temperature resolution of 0.5°C Contents of internal databank can be transferred directly to the PC Complies with EU EMC Directive 89/336/EEC 24 VDC, 115 VAC Alarm high and low first stage threshold temperature adjustable in 1°C steps from -50°C to +50°C with independent delays adjustable in 1 minute steps from 1 to 99 minutes Alarm high and low second stage limits adjustable in 1°C steps from -50°C to +50°C. Alarm mute and reset facility Alarm relay output with 5A isolated (volt-free) changeover contacts Status screen for indication of system state Diagnostics screen for trouble-shooting Alarm history record for low alarm, high alarm and power fail Battery back-up for power blackout operation Defrost and alarm state sampled and stored every 15 minutes “Percentage of internal databank used” indication in bar graph and digital form 2.5 Year internal reusable databank for datalogging
