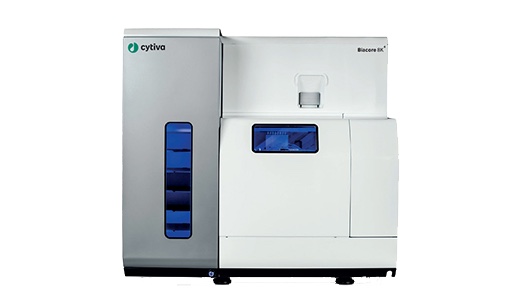

Cytiva Biacore 8K SPR Biosensor Analyser
Cytiva · Biacore 8K · ref ML-D709F13B
30-day seller guarantee.
Description
About this model
Eight-needle, 16-flow-cell SPR system for high-throughput screening and kinetic characterisation, with capacity for four 96- or 384-well plates and Biacore Insight software.
This unit
Refurbished Cytiva Biacore 8K surface plasmon resonance system with eight parallel channels, for high-throughput label-free kinetics, affinity and concentration analysis. It holds up to four 96- or 384-well plates, runs for around 60 hours unattended and characterises up to 768 interactions per run, controlled by Biacore Insight software. Condition and testing: refurbished and tested by the seller, who confirms system start-up, microfluidics and optics function before shipment. Software and computer: Biacore Insight software and workstation are included as quoted by the seller. Photos of the unit itself can be requested before purchase.
Equipment History & Condition
Refurbished and function-tested by the seller; ships from the USA.
What's Included
Biacore 8K instrument Biacore Insight software Workstation (as quoted by the seller)
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Cytiva
- Model
- Biacore 8K
- Ka
- Proteins: up to 10^9 M-1 s-1; LMW molecules: up to 10^7 M-1 s-1
- Kd
- 10^-6 to 0.5 s-1
- Power
- Processing unit: autorange voltage 100 to 240 V~, frequency 50/60 Hz. Power consumption: Processing unit: Maximum. 350 VA; Maximum. 550 VA
- Detection
- Surface plasmon resonance biosensor
- Automation
- 60 h unattended run time for Biacore 8K; 72 h for Biacore 8K+
- Flow Cells
- 16 in eight channels
- Mw Detection
- No lower limit for organic molecules
- Baseline Drift
- typically < 0.3 RU/min; blank subtracted drift < ±0.03 RU/min
- Baseline Noise
- < 0.02 RUtypically
- Flow Rate Range
- 1 to 100 μL/min
- Flow Cell Height
- 70 μm
- Flow Cell Volume
- 40 nL
- Injection Volume
- 1 to 200 μL
- Analysis Temperature
- 4°C to 40°C
- Data Collection Rate
- 1 or 10 Hz
- Instrument Weight Kg
- 127
- Sample Concentration
- ≥ 1 pM
- Instrument Dimensions
- [object Object]
- Software Compatibility
- Biacore Insight Software, includes SQL Server Express 2022 for local database; separate networked SQL server needed for full functionality. Min PC: 64-bit Windows 10 or 11 Enterprise/Professional, CPU at least four cores 2 GHz or faster, at least 16 GB RAM, at least 200 GB free disk, screen at least 1920 × 1080, one USB2 port.
- Sample Refractive Index
- 1.33 to 1.39
- Sample Storage Temperature
- 4°C to 40°C
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
