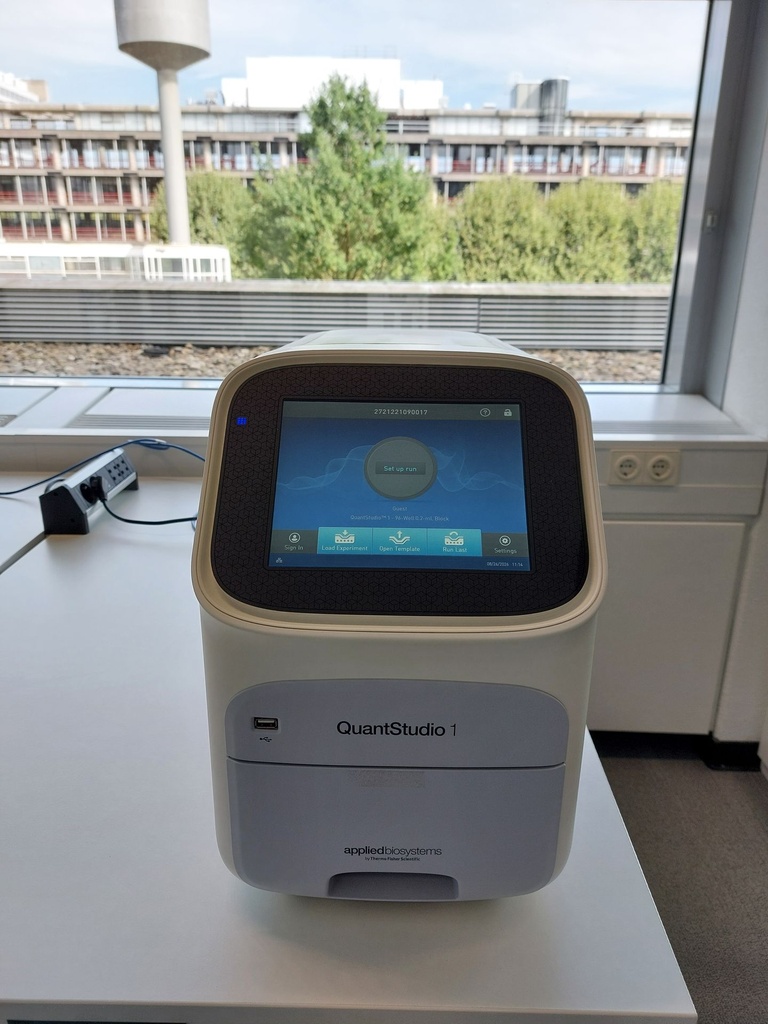

Applied Biosystems QuantStudio 1 Real-Time PCR System (96-Well)

Description

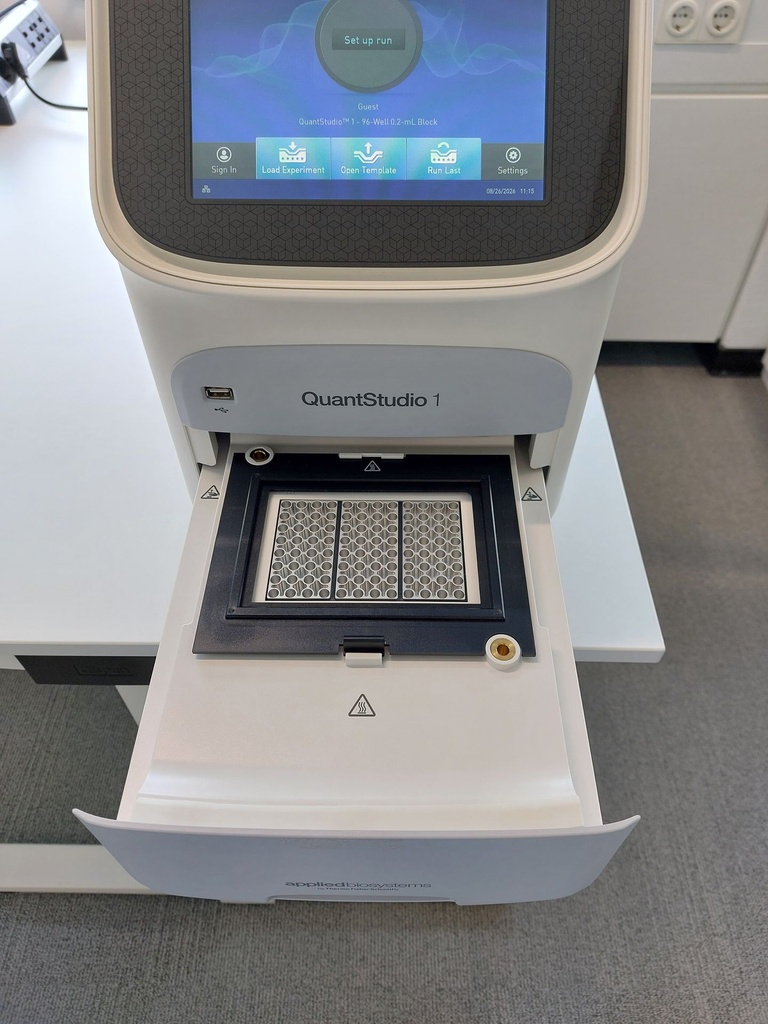

Applied Biosystems QuantStudio 1 Real-Time PCR Instrument – ​​96-Well, 0.2 mL Block The Applied Biosystems QuantStudio 1 Real-Time PCR Instrument is a compact and user-friendly real-time PCR system for qualitative and quantitative detection of nucleic acid sequences. The instrument features a fixed 96-well thermal block for 0.2 mL plates and an integrated 8.5-inch touchscreen for easy operation. The system is equipped with three coupled fluorescence channels and supports a wide range of commonly used qPCR dyes, including FAM, SYBR Green, SYTO 9, VIC, HEX, TET, JOE, JUN, ROX, and Texas Red. This allows up to three targets to be detected simultaneously. The QuantStudio 1 supports both standard PCR and Fast PCR protocols and is suitable for applications such as gene expression analysis, genetic variation, mutation detection, SNP genotyping, microRNA analysis, methylation studies, and pathogen detection. Technical specifications Specification Data Manufacturer Applied Biosystems / Thermo Fisher Scientific Model QuantStudio 1 Real-Time PCR System Type Real-Time PCR / qPCR Block Fixed, non-exchangeable Block size 96-well, 0.2 mL Reaction volume 10–100 µL per well Multiplexing Up to 3 targets Fluorescence channels 3 coupled filter channels Channel 1 FAM / SYBR Green / SYTO 9 Channel 2 VIC / HEX / TET / JOE Channel 3 JUN / ROX / Texas Red Excitation source Bright white LED Optical detection 3 coupled filters Excitation/detection range 450–600 nm / 500–640 nm Thermal technology Peltier Max. ramp rate 3.5 °C/s Average sample ramp rate 1.8 °C/s Temperature uniformity 0.4 °C Temperature accuracy 0.25 °C Thermal range 4–99.9 °C Dynamic range 10 log units Detection sensitivity Up to 1 copy Touchscreen 8.5 inches Operation Integrated touchscreen and computer/software Dimensions (H × W × D) 400 × 270 × 500 mm Weight <26 kg The official documentation states a temperature uniformity of 0.4 °C, a maximum ramp rate of 3.5 °C/s, and an average sample ramp rate of 1.8 °C/s. Included This version is offered including: QuantStudio 1 Real-Time PCR Instrument 96-well, 0.2 mL fixed block Integrated touchscreen Desktop computer 80 × MicroAmp EnduraPlate Optical 96-Well Clear Reaction Plates The desktop version is specifically described by Thermo Fisher as the QuantStudio 1 96-well, 0.2 mL system with external desktop computer. Applications Suitable for various molecular biological applications, including: Real-time PCR / qPCR Gene expression analysis Pathogen and infection detection Mutation detection SNP genotyping Copy number variation MicroRNA analysis Methylation analysis Genetic variation Viral load testing Research within oncology, genetics, and biotechnology Instrument dimensions: 400 × 270 × 500 mm (H × W × D) Weight: <26 kg
