Eppendorf MiniSpin Plus Microcentrifuge

Description

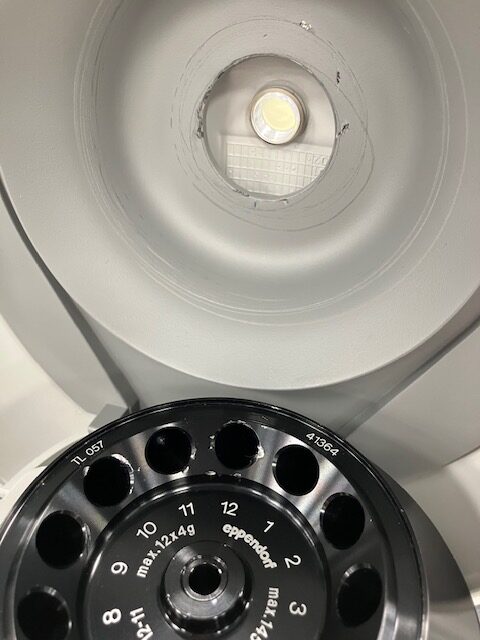

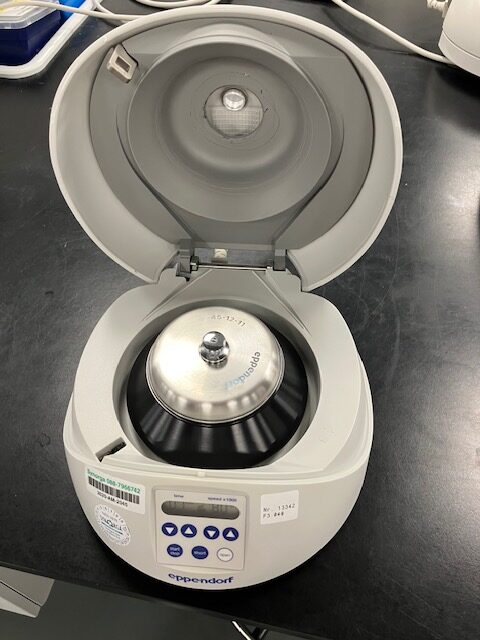

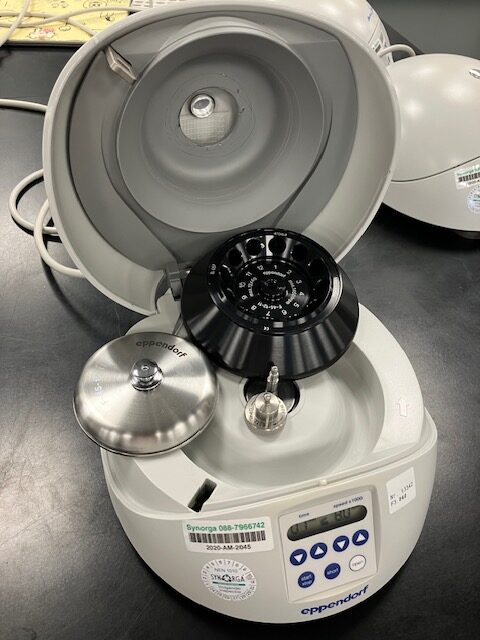

The Eppendorf MiniSpin plus is a compact and user-friendly mini-centrifuge for routine work with microtubes and small sample volumes. Thanks to its compact size, the centrifuge is suitable for use in individual laboratory workstations and in laboratories where space is limited. The centrifuge is equipped with an F-45-12-11 fixed-angle rotor (45°) for up to 12 × 1.5/2.0 mL microtubes. The MiniSpin plus reaches a maximum speed of 14,500 rpm, corresponding to a maximum relative centrifugal force of 14,100 × g. The rotor also supports suitable adapters for smaller tube types. A practical feature of the MiniSpin plus is the automatic conversion between rpm and RCF (× g). Additionally, the centrifugation time can be set up to 99 minutes or continuous centrifugation is enabled. Technical specifications Specification Data Manufacturer Eppendorf Model MiniSpin plus Type Mini centrifuge / micro centrifuge Rotor F-45-12-11 Rotor angle 45° fixed angle Rotor capacity 12 × 1.5/2.0 mL tubes Max. speed 14,500 rpm Max. RCF 14,100 × g Speed ​​setting 800–14,500 rpm, 100 rpm increments Timer 15 s – 99 min Continuous operation Yes Automatic rpm/RCF conversion Yes Acceleration to max. speed approx. 13 s Braking time from max. speed approx. 12 s Noise level <52 dB(A) Power supply 230 V, 50–60 Hz Power consumption 85 W Current consumption 0.6 A at 230 V Dimensions (W × D × H) 225 × 230 × 130 mm Weight without rotor 3.7 kg Rotor weight F-45-12-11 450 g Ambient temperature 10–40 °C Relative humidity 10–75%, non-condensing According to Eppendorf, the dimensions of the MiniSpin plus are 225 × 230 × 130 mm (W × D × H). Rotor F-45-12-11 The included F-45-12-11 rotor is a fixed-angle rotor with 12 positions for 1.5/2.0 mL tubes. The rotor has a maximum tube diameter of 11 mm and is suitable for a maximum load of 12 × 4 g (tubes and contents). Condition Used. The centrifuge shows damage to the lid and the rotor, as visible in the photos. The equipment is therefore offered as used laboratory equipment, taking the visible damage into account.
