Sartorius Incucyte S3 Live-Cell Analysis System (Green/Red)
Sartorius · Incucyte S3-C2 · 2022 · ref ML-183300C8
Description
About this model

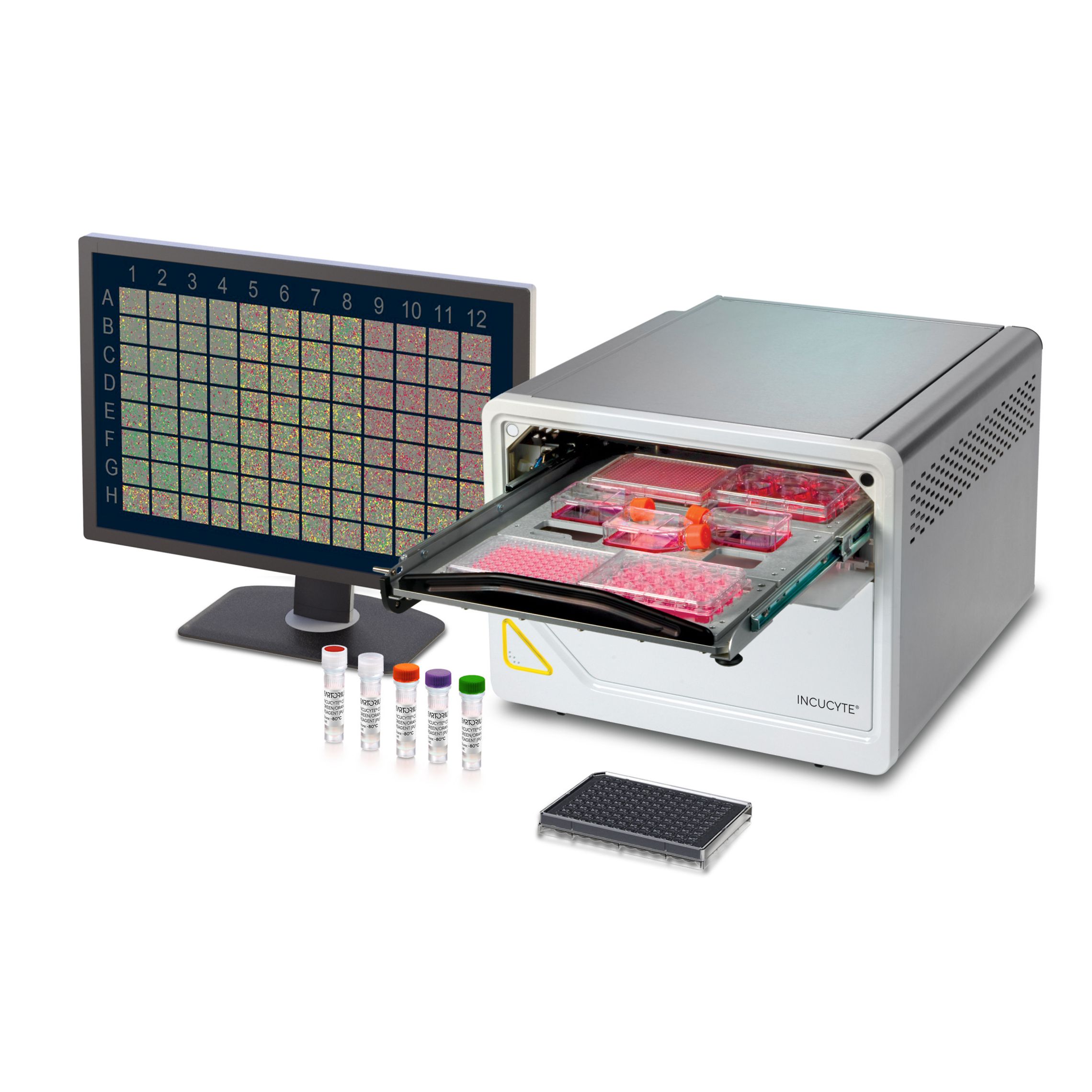

The Incucyte S3-C2 is a live-cell imaging and analysis system that sits inside a standard cell culture incubator and images cells in their vessels over hours to weeks. A microscope gantry with an automated 4X, 10X and 20X objective turret acquires HD phase contrast and green and red fluorescence images from up to six microplates, or flasks and dishes on three interchangeable trays, while an external controller schedules scans, stores the data and runs the analysis software.
This unit
Incucyte S3 live-cell analysis system built in 2022 with the Green/Red fluorescence module, made up of the microscope gantry and the controller. Configuration: Incucyte S3 gantry with Green/Red module and 4X, 10X and 20X objectives; Incucyte S3 controller with touchscreen and 16.4 TB of image storage; three vessel trays. Condition and testing: the seller describes the unit as in very good condition, fully tested and ready for immediate use. The controller is shown powered on and running its warm-up cycle, with 16.0 TB of storage free. Software and computer: the controller is a dedicated Windows 10 PC.
What's Included
Incucyte S3 gantry with Green/Red module; Incucyte S3 controller; 4X, 10X and 20X objectives; three vessel trays; power cable.
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2022
- Manufacturer
- Sartorius
- Model
- Incucyte S3-C2
- Phase
- Single
- Components
- Microscope gantryand external controller
- Objectives
- 4X, 10X, 20X on an automated turret
- System Type
- Live-cell imaging and analysis system that operates inside a cell culture incubator
- Current Draw
- 3.5 A max at 120 V, 1.75 A max at 240 V
- Vessel Trays
- 3
- Imaging Modes
- HD phase contrast, green fluorescence, red fluorescence
- Other Labware
- 35, 60, 100 and 150 mm dishes and chamber slides
- Optical Module
- Green/Red dual colour module
- Max Microplates
- 6
- Gantry Weight Kg
- 23.6
- Image Resolution
- 4X: 2.82 µm/pixel; 10X: 1.24 µm/pixel; 20X: 0.62 µm/pixel
- Operating System
- 64-bit Windows 10
- Flask Compatibility
- T-25, T-50, T-75, T-100, T-175, T-225
- Controller Weight Kg
- 18.6
- Fluorescence Channels
- 2
- Gantry Dimensions Hwd
- 32.0 x 45.0 x 47.8 cm
- Incubator Requirement
- Incubator with more than 200 L internal volume
- Internal Data Storage
- 27.3 TB RAID and 64 GB RAM on instruments manufactured after 31 May 2021; earlier controllers show 16.4 TB
- Exported Image Formats
- JPEG, PNG, TIFF, MetaMorph Multi Dimensional File v2.0, Meta Imaging Series TIFF
- Exported Movie Formats
- WMV, AVI, MPEG-4
- Excitation Emission Red
- Excitation 567 to 607 nm, emission 622 to 704 nm
- Controller Dimensions Hwd
- 14.0 x 43.2 x 57.7 cm
- Excitation Emission Green
- Excitation 441 to 481 nm, emission 503 to 544 nm
- Gantry Operating Conditions
- 0 to 42 °C, 5 to 95 % RH non-condensing
- Controller Operating Conditions
- 0 to 33 °C, 5 to 90 % RH non-condensing
- Data Storage
- 16.4 TB
- Seller Tested
- true
- Objectives Fitted
- 4X, 10X, 20X
- Voltage This Unit
- 230 V, 50 Hz
- Optical Module Fitted
- Green/Red
