Teledyne ISCO CombiFlash NextGen 300+ Flash Chromatography System (ELSD)
Teledyne · CombiFlash NextGen 300+ · 2018 · ref ML-3E9C9FF9
30 day money back warranty from the date of delivery.
Description
About this model
Automated flash chromatography system and the fully featured model in the CombiFlash NextGen range. It reads the size and type of each RediSep column by RFID and sets a default gradient and flow rate, and monitors vapour, solvent level and waste level during the run.
This unit

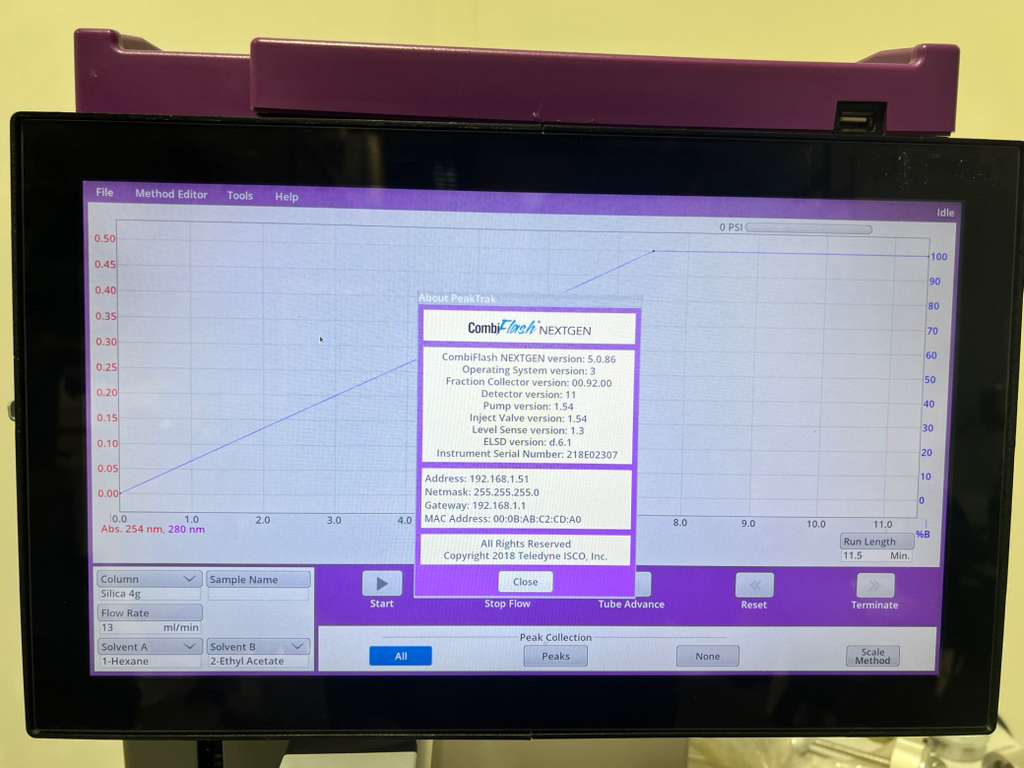

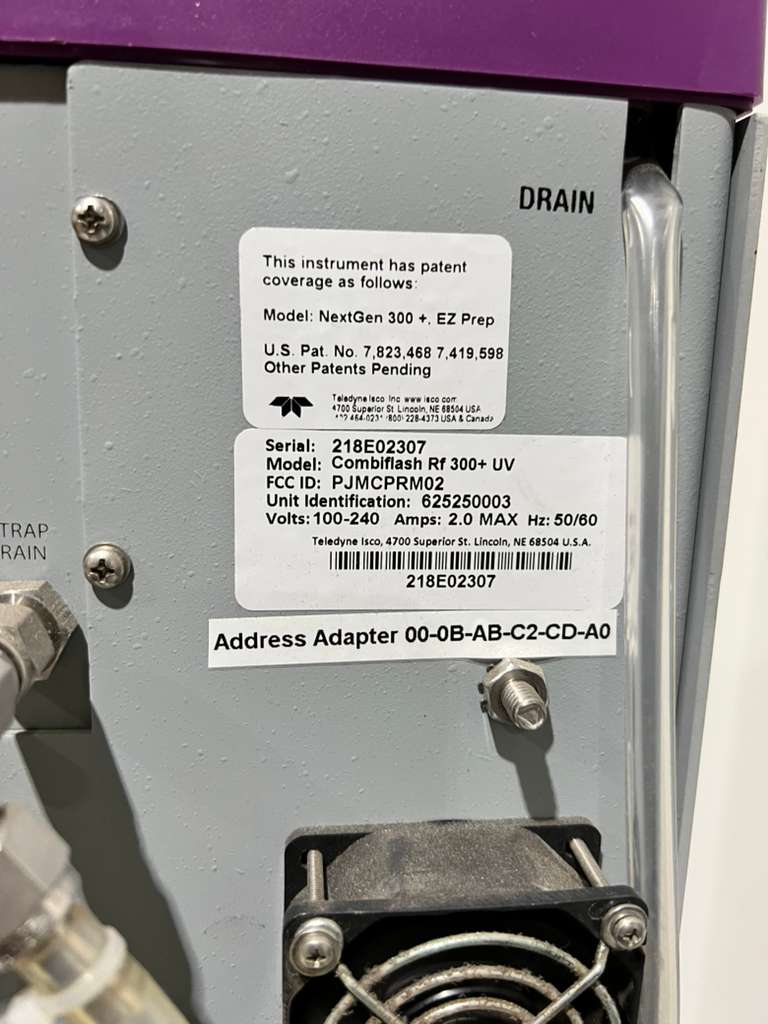

Teledyne ISCO CombiFlash NextGen 300+ automated flash chromatography system with UV detection and an evaporative light scattering detector (ELSD). It runs 1 to 300 mL/min at up to 300 psi (20 bar), forms a binary gradient from four solvent inlets and takes RediSep columns from 4 g to 330 g. The NextGen 300+ is the fully featured model in the range: a solid load injection valve, RFID recognition of columns and racks, and active vapour, solvent level and waste level monitoring are standard. Condition and testing: Pre-owned, complete system. Function-tested by the seller before shipment. Powers on and runs the PeakTrak control software (CombiFlash NextGen version 5.0.86). Configuration: The instrument software reports UV detection at 254 and 280 nm and an ELSD (version d.6.1). The ELSD needs a gas supply at 60 to 70 psi (4.1 to 4.8 bar). The serial label reads Combiflash Rf 300+ UV; the unit carries the NextGen 300+ front panel and software. Software and computer: Controlled from the on-board touchscreen with PeakTrak software; no PC needed. It can also be controlled from a web browser over the network. Power: 100 to 240 V, 50/60 Hz. Not included: glassware, test tubes and columns.
Equipment History & Condition
Pre-owned; inspected and function-tested by the seller. Ships from the USA.
What's Included

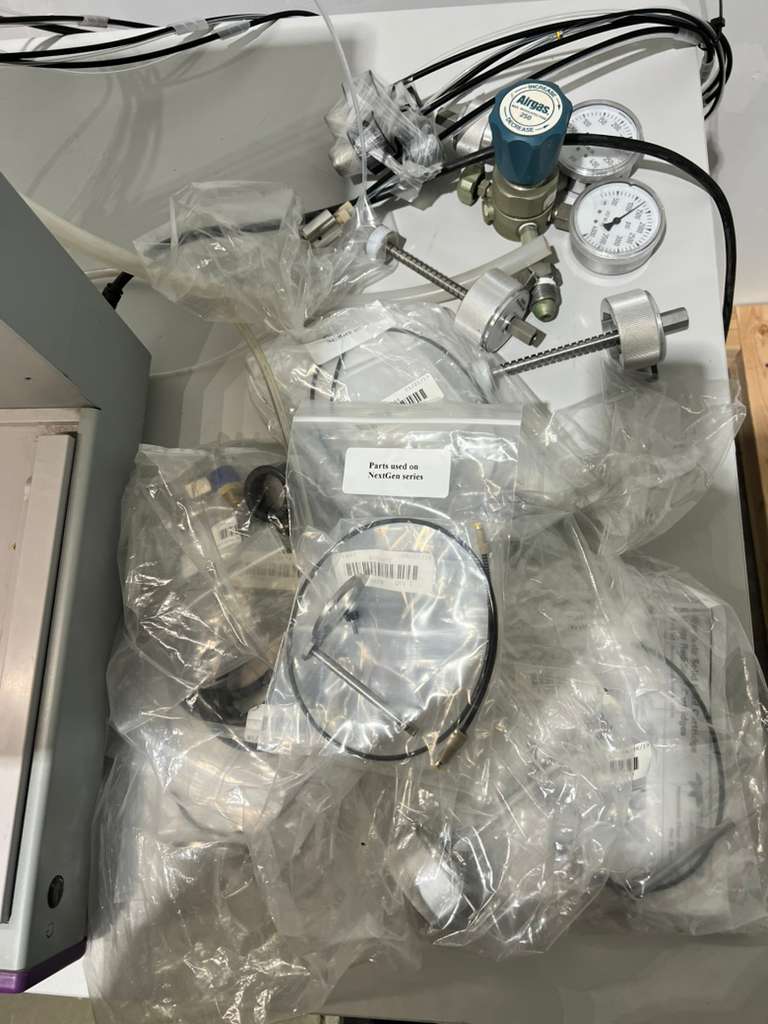

CombiFlash NextGen 300+ system Solvent, waste and level-sensing lines Gas regulator NextGen series spare parts and fittings Power cable
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2018
- Manufacturer
- Teledyne
- Model
- CombiFlash NextGen 300+
- Fraction Collector Included
- Two internal rack positions with RFID rack recognition
- Pump
- Dual syringe
- Uv Lamp
- Deuterium
- Gradient
- Binary gradient from four solvent inlets, with automatic solvent selection; third solvent modifier standard
- Detection
- Variable UV 200 to 400 nm or UV-vis 200 to 800 nm; ELSD and mass spectrometer optional
- Max Pressure
- 300 psi; 250 psi above 200 mL/min
- Certification
- CE, TUV, RoHS
- Peak Detection
- Slope or threshold
- Sample Loading
- Liquid and manual solid load standard; solid load injection valve
- User Interface
- 12 or 15 inch capacitive touchscreen with PeakTrak software; web browser control over the network
- Elsd Gas Supply
- 60 to 70 psig, under 2.5 SLPM
- Flow Rate Range
- 1 to 300 mL/min
- Safety Features
- Active vapour, solvent level and waste level monitoring; post-run column air purge
- Gradient Accuracy
- ±2% of full scale
- Instrument Weight
- 27.7 kg; 33.6 kg with ELSD
- Flow Rate Accuracy
- ±5%
- Wavelength Accuracy
- ±1 nm
- Column Compatibility
- RediSep columns 4 g to 330 g
- Flow Cell Pathlength
- 0.1 mm
- Instrument Dimensions
- 66 x 36 x 43 cm
- Operating Temperature
- 20 to 40 °C
- Programmable Gradients
- Linear, step, isocratic
- Detector Types
- UV; ELSD
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
contact MerkaLoop about this equipment
