Sartorius Incucyte S3-C2 Live-Cell Analysis System (with PHCbi CO2 Incubator)
Sartorius · Incucyte S3-C2 · 2023 · ref ML-49945844
Description
About this model

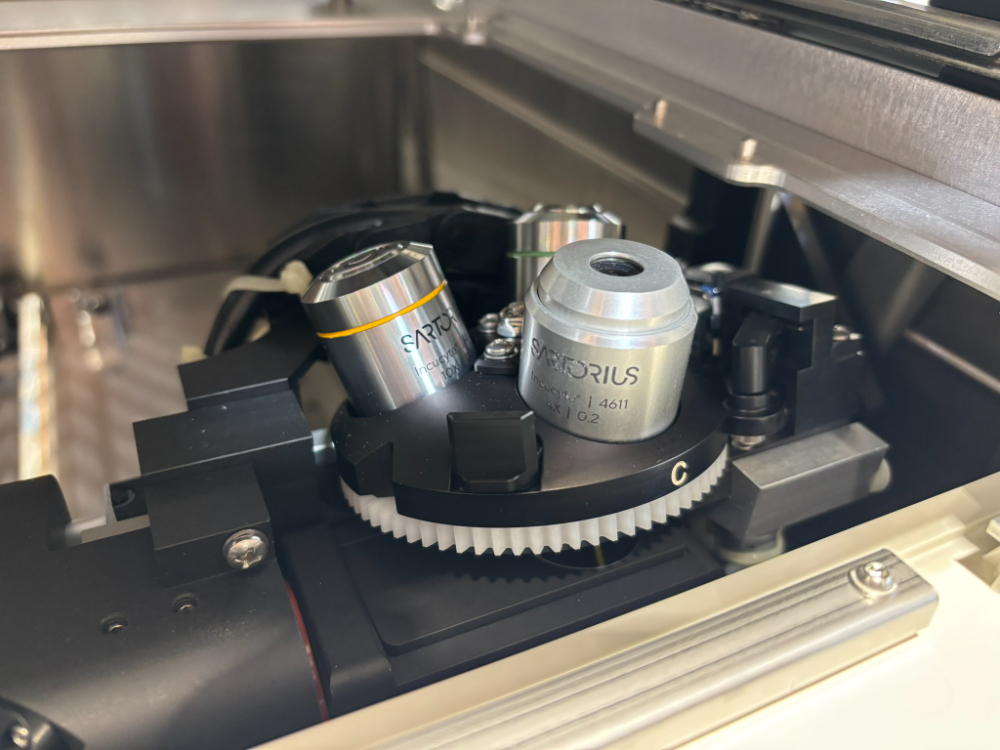

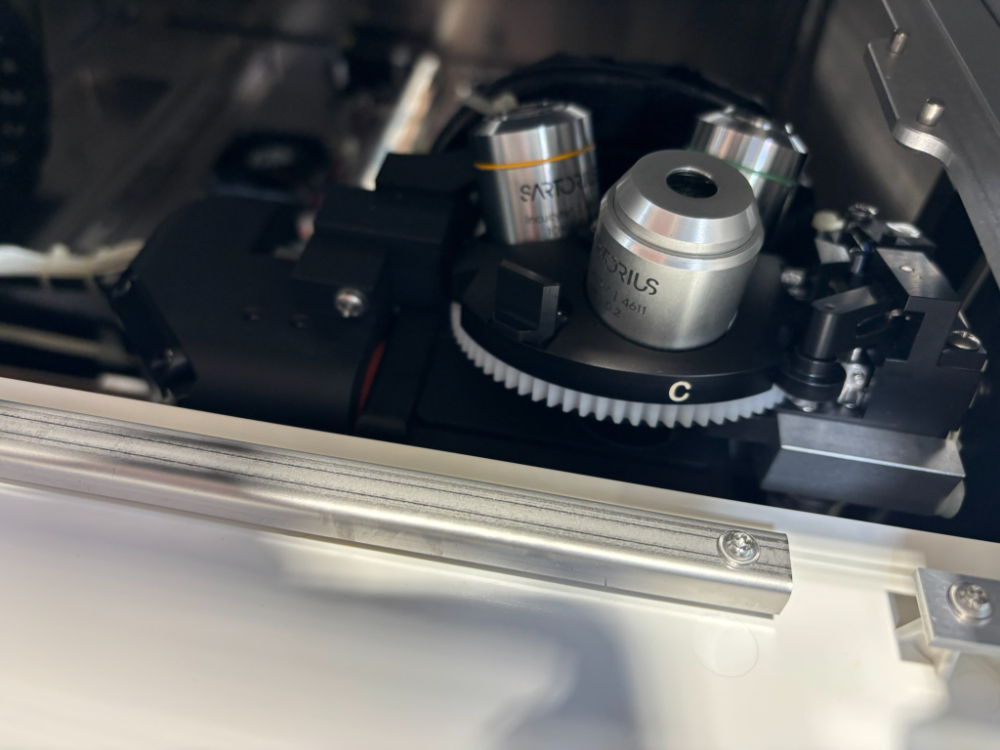

The Incucyte S3-C2 is a live-cell imaging and analysis system that sits inside a standard cell culture incubator and images cells in their vessels over hours to weeks. A microscope gantry with an automated 4X, 10X and 20X objective turret acquires HD phase contrast and green and red fluorescence images from up to six microplates, or flasks and dishes on three interchangeable trays, while an external controller schedules scans, stores the data and runs the analysis software.
This unit

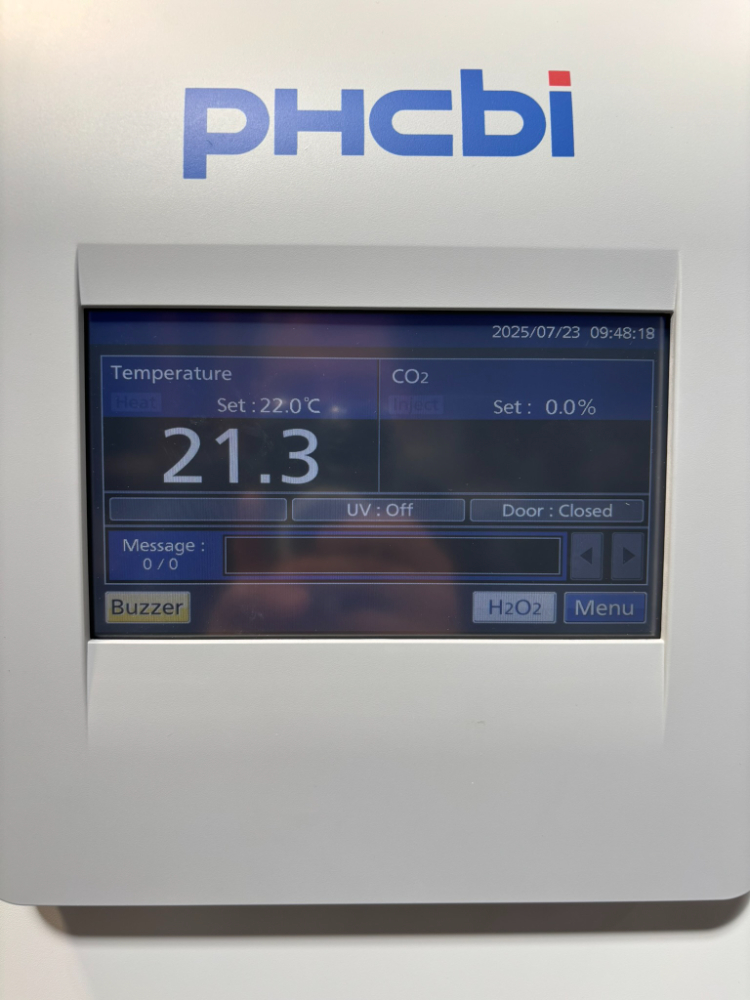

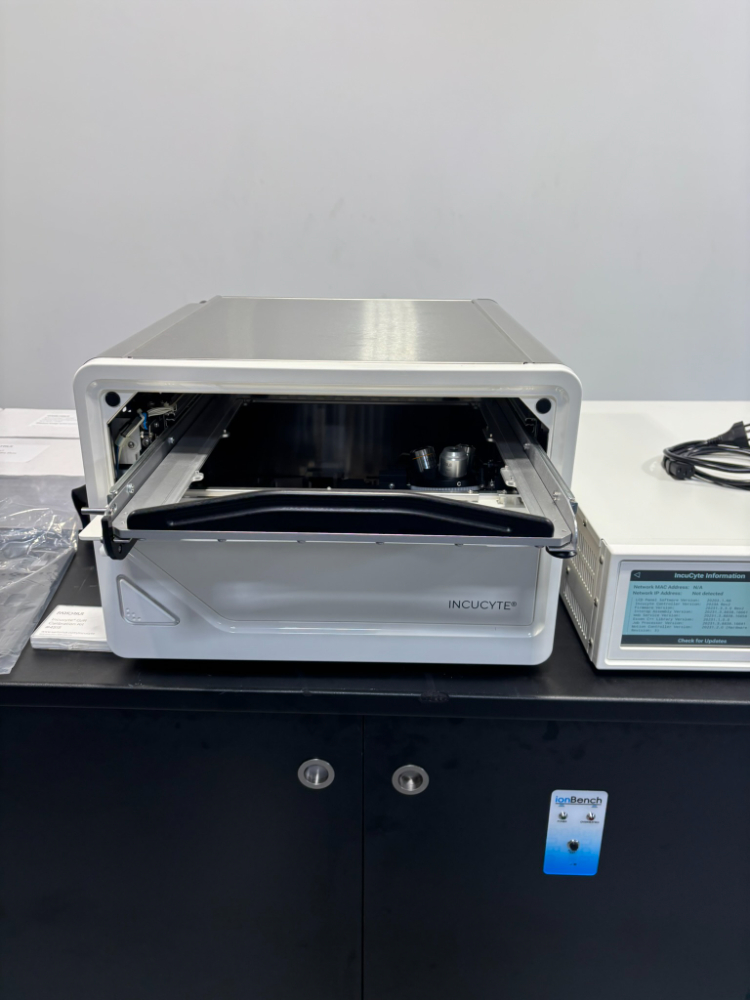

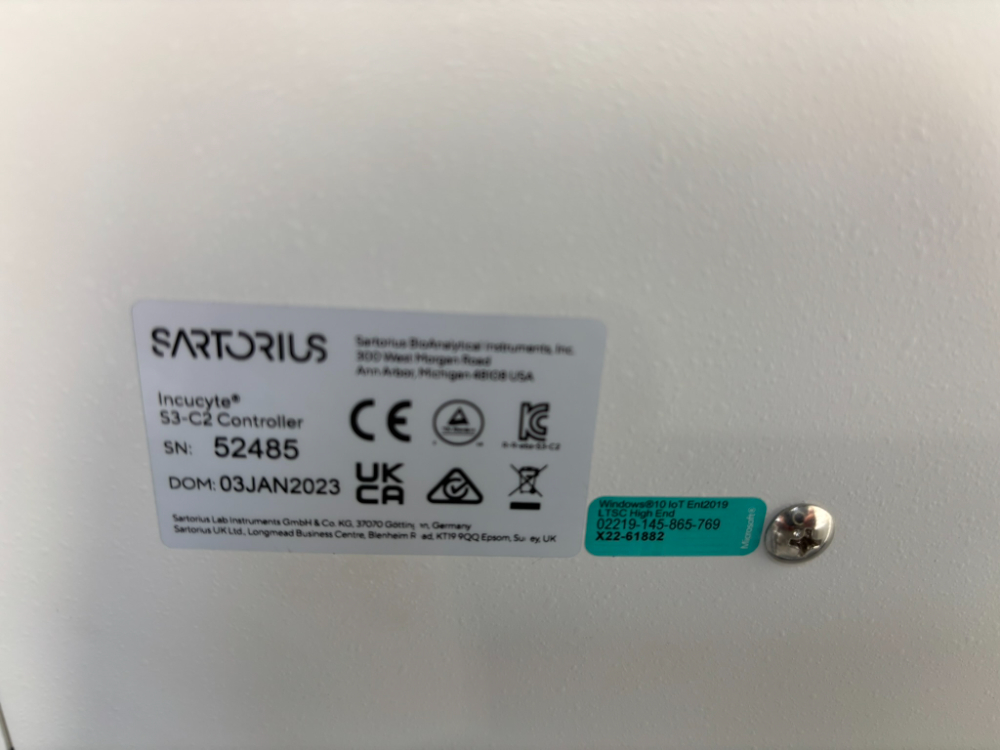

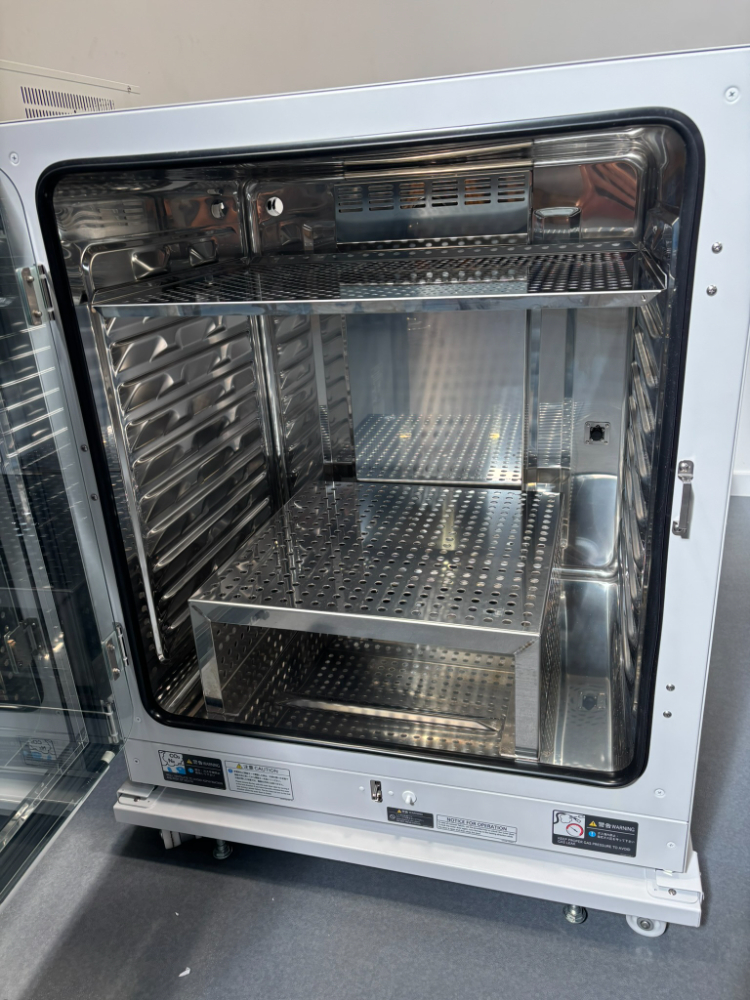

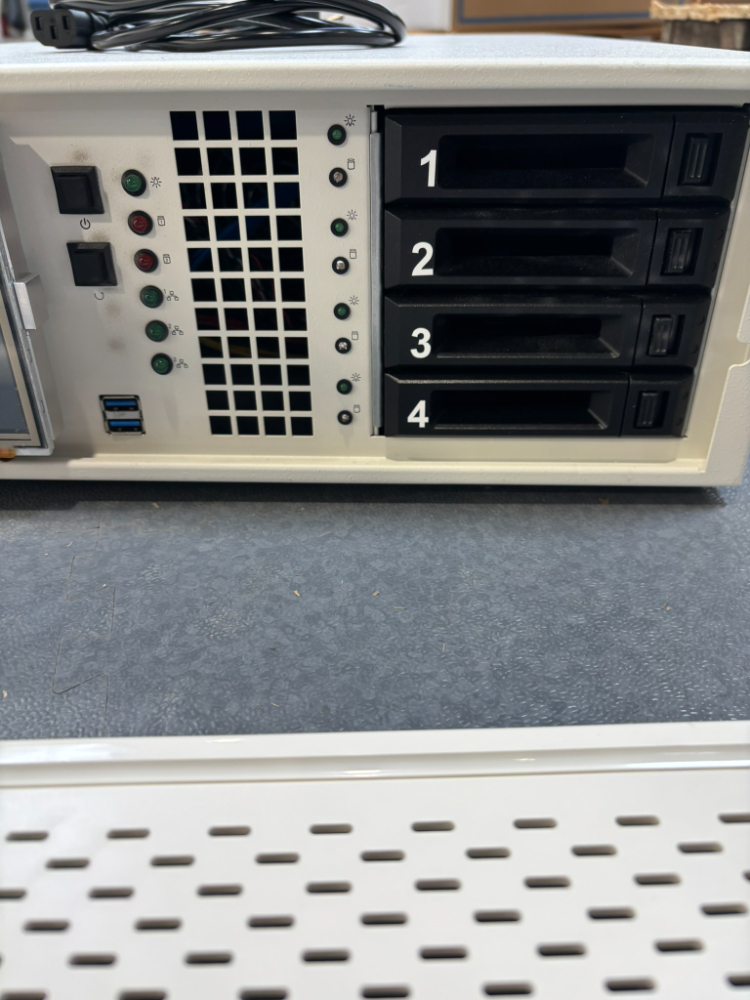

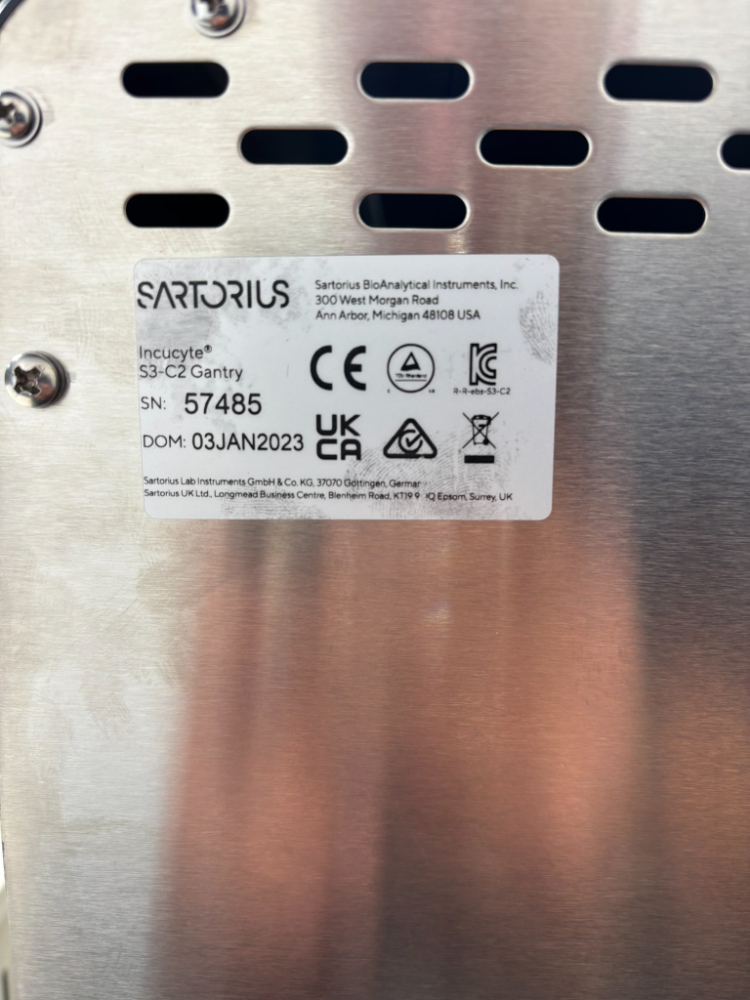

Incucyte S3-C2 live-cell analysis system built in January 2023, supplied with the PHCbi CO2 incubator it was installed in. Configuration: Incucyte S3-C2 gantry with objectives fitted on the automated turret; Incucyte S3-C2 controller with touchscreen and four drive bays; PHCbi MCO-230AICUV-PE CO2 incubator (230 L) with H2O2 decontamination generator. Condition and testing: used. In the seller's photographs the controller is powered on and its information screen is displayed; the network connection reads 'Not detected'. Software and computer: the controller runs Windows 10. Versions shown on the controller: LCD panel software 2020.3.1.66, Incucyte controller 2023A Rev2, firmware 2021.3.3.0 Rev2, motion controller 2023.1.2.0 (hardware revision 3).
What's Included

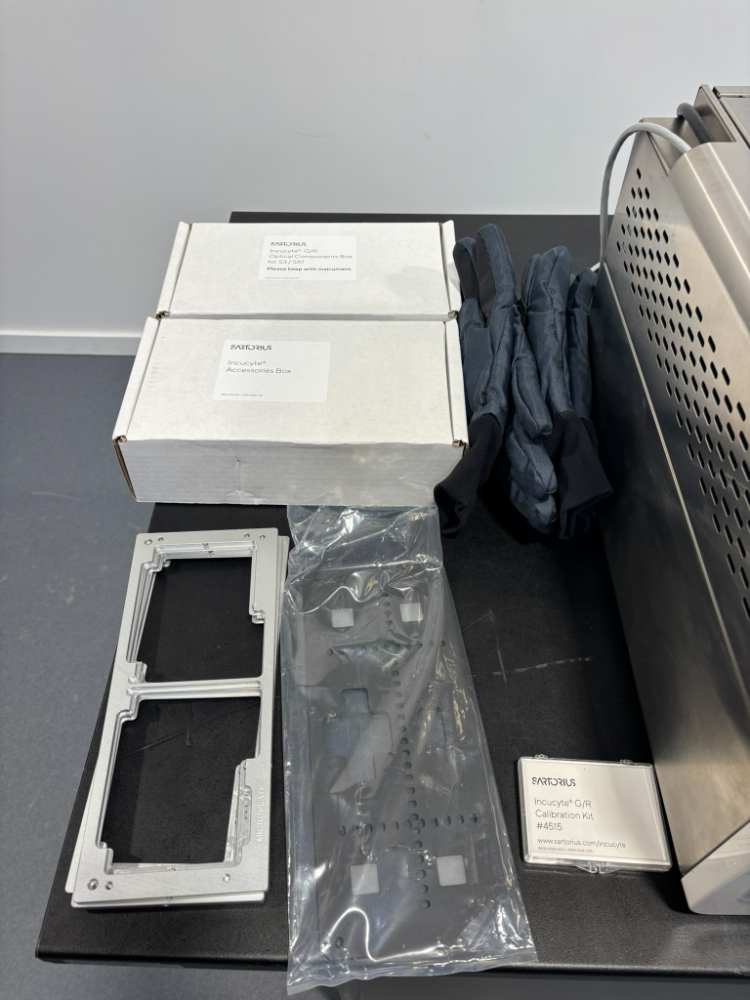

Incucyte S3-C2 gantry; Incucyte S3-C2 controller; objectives as fitted; vessel trays; PHCbi MCO-230AICUV-PE CO2 incubator with shelves, trays and H2O2 generator; incubator operating instructions; power cables.
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2023
- Manufacturer
- Sartorius
- Model
- Incucyte S3-C2
- Phase
- Single
- Components
- Microscope gantryand external controller
- Objectives
- 4X, 10X, 20X on an automated turret
- System Type
- Live-cell imaging and analysis system that operates inside a cell culture incubator
- Current Draw
- 3.5 A max at 120 V, 1.75 A max at 240 V
- Vessel Trays
- 3
- Imaging Modes
- HD phase contrast, green fluorescence, red fluorescence
- Other Labware
- 35, 60, 100 and 150 mm dishes and chamber slides
- Optical Module
- Green/Red dual colour module
- Max Microplates
- 6
- Gantry Weight Kg
- 23.6
- Image Resolution
- 4X: 2.82 µm/pixel; 10X: 1.24 µm/pixel; 20X: 0.62 µm/pixel
- Operating System
- 64-bit Windows 10
- Flask Compatibility
- T-25, T-50, T-75, T-100, T-175, T-225
- Controller Weight Kg
- 18.6
- Fluorescence Channels
- 2
- Gantry Dimensions Hwd
- 32.0 x 45.0 x 47.8 cm
- Incubator Requirement
- Incubator with more than 200 L internal volume
- Internal Data Storage
- 27.3 TB RAID and 64 GB RAM on instruments manufactured after 31 May 2021; earlier controllers show 16.4 TB
- Exported Image Formats
- JPEG, PNG, TIFF, MetaMorph Multi Dimensional File v2.0, Meta Imaging Series TIFF
- Exported Movie Formats
- WMV, AVI, MPEG-4
- Excitation Emission Red
- Excitation 567 to 607 nm, emission 622 to 704 nm
- Controller Dimensions Hwd
- 14.0 x 43.2 x 57.7 cm
- Excitation Emission Green
- Excitation 441 to 481 nm, emission 503 to 544 nm
- Gantry Operating Conditions
- 0 to 42 °C, 5 to 95 % RH non-condensing
- Controller Operating Conditions
- 0 to 33 °C, 5 to 90 % RH non-condensing
- Co2 Control
- true
- Temp Control
- true
- Manuals Included
- true
- Software Version
- Controller 2023A Rev2; firmware 2021.3.3.0 Rev2
- Incubator Included
- PHCbi MCO-230AICUV-PE, serial 221160362
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: France
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
