Sartorius Incucyte SX5 Live-Cell Analysis System
Sartorius · Incucyte SX5 · 2021 · ref ML-788BC3A9
Description
About this model
The Incucyte SX5 is the five-colour successor to the Incucyte S3. It sits inside a standard cell culture incubator and images cells in their vessels over hours to weeks, with HD phase contrast and up to five fluorescence channels across interchangeable optical modules (Green/Orange/NIR as standard). An external controller schedules scans, stores the data and runs the analysis software.
This unit

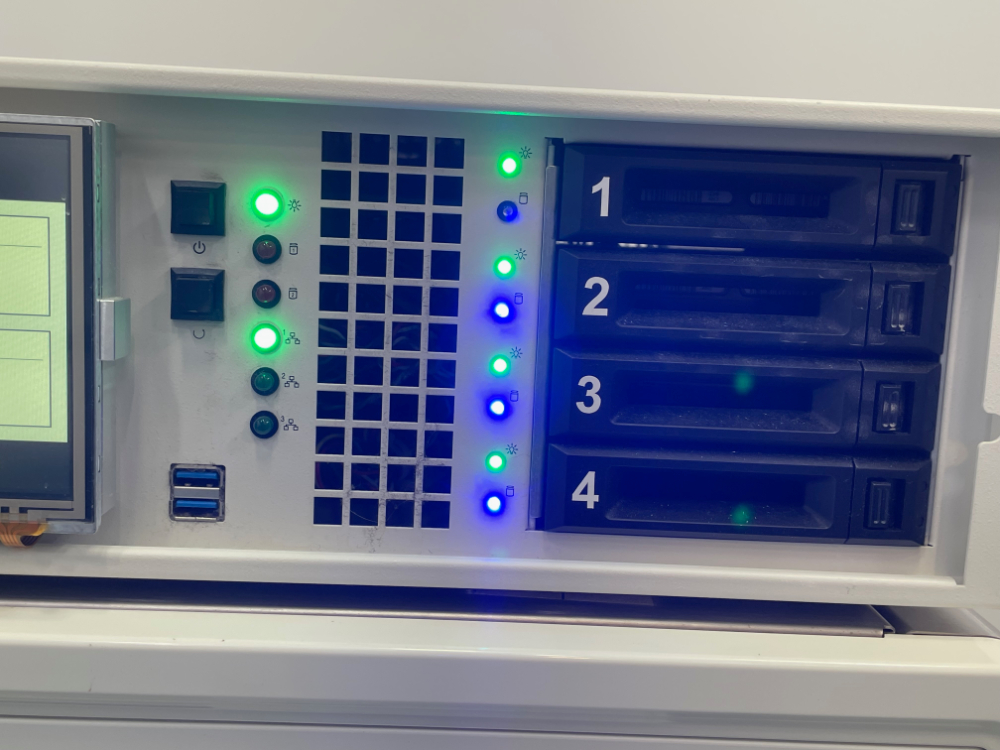

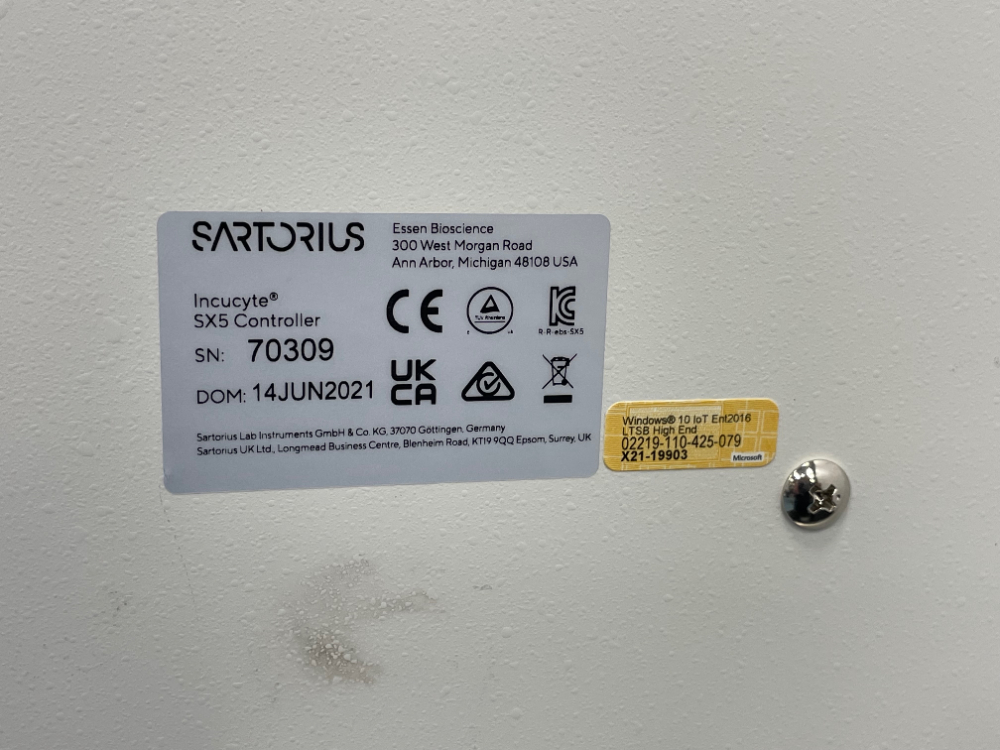

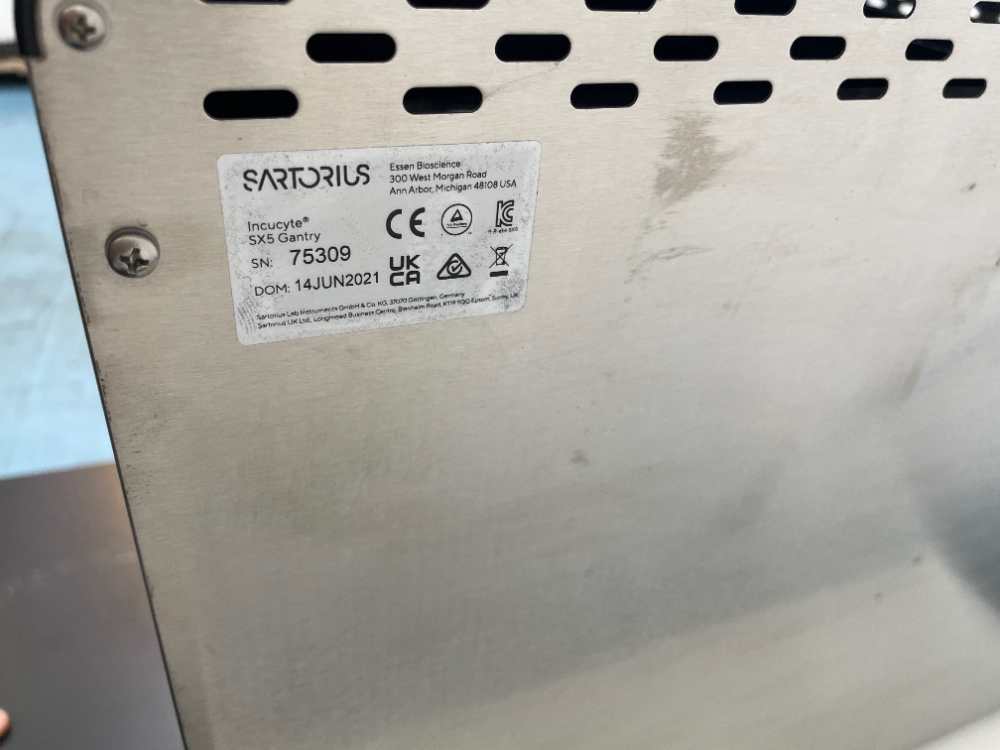

Incucyte SX5 live-cell analysis system built in June 2021, made up of the microscope gantry and the controller. Configuration: Incucyte SX5 gantry; Incucyte SX5 controller with touchscreen and four drive bays. Condition and testing: used, sold as removed from service. In the seller's photographs the controller is powered on. Software and computer: the controller runs Windows 10.
What's Included
Incucyte SX5 gantry; Incucyte SX5 controller.
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2021
- Manufacturer
- Sartorius
- Model
- Incucyte SX5
- Phase
- Single
- Components
- Microscope gantryand external controller
- Objectives
- 4X, 10X, 20X
- System Type
- Live-cell imaging and analysis system that operates inside a cell culture incubator
- Current Draw
- 3.5 A max at 120 V, 1.75 A max at 240 V
- Imaging Modes
- HD phase contrast plus up to five fluorescence channels across interchangeable optical modules, up to three at once
- Gantry Weight Kg
- 23.1
- Image Resolution
- 4X: 2.82 µm/pixel; 10X: 1.24 µm/pixel; 20X: 0.62 µm/pixel
- Operating System
- 64-bit Windows 10
- Controller Weight Kg
- 16.6
- Gantry Dimensions Hwd
- 34.1 x 45.0 x 47.4 cm
- Incubator Requirement
- 200 L minimum internal volume
- Internal Data Storage
- 27.3 TB RAID, 64 GB RAM
- Exported Image Formats
- JPEG, PNG, TIFF, MetaMorph Multi Dimensional File v2.0, Meta Imaging Series TIFF
- Exported Movie Formats
- WMV, AVI, MPEG-4
- Optical Module Optional
- Green/Red; Metabolism
- Optical Module Standard
- Green/Orange/NIR: green ex 453 to 485 nm, em 494 to 533 nm; orange ex 546 to 568 nm, em 576 to 639 nm; NIR ex 648 to 674 nm, em 685 to 756 nm
- Controller Dimensions Hwd
- 14.0 x 43.2 x 57.7 cm
- Gantry Operating Conditions
- 0 to 42 °C, 5 to 95 % RH non-condensing
- Controller Operating Conditions
- 0 to 33 °C, 5 to 90 % RH non-condensing
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
