Unchained Labs Uncle Protein Stability Analyser
Unchained Labs · Uncle · 2018 · ref ML-7DBC9590
Description
About this model
Benchtop protein stability analyser that combines full-spectrum fluorescence, static light scattering (SLS) and dynamic light scattering (DLS) in one instrument. It measures thermal melting (Tm), aggregation onset (Tagg), particle size and polydispersity on up to 48 samples per run, using 9 µL of sample in sealed capillary cassettes (Unis). Supports thermal ramp, isothermal and DSF dye-based methods, plus viscosity, kD, B22 and G22 applications.
This unit

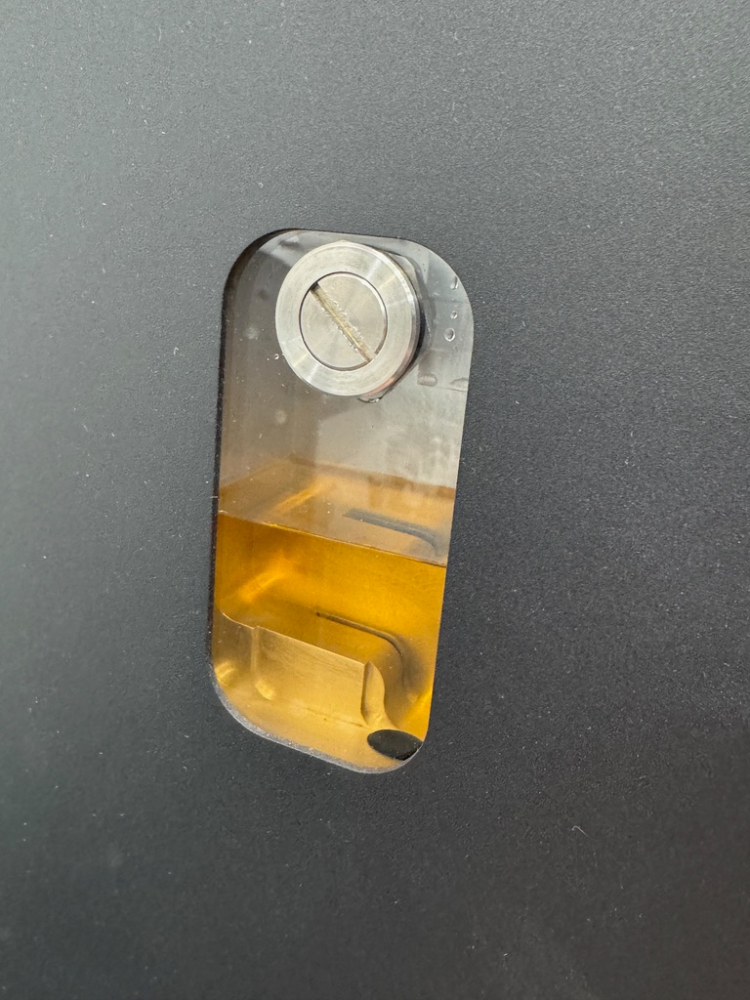

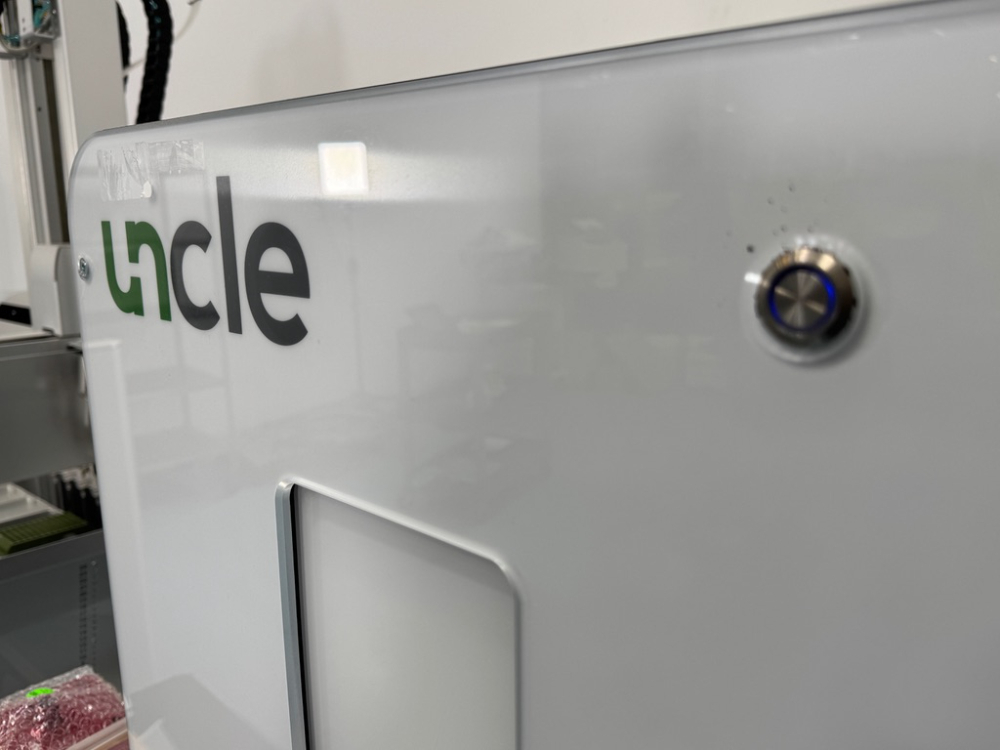

Unchained Labs Uncle protein stability analyser, manufactured in November 2018. It combines full-spectrum fluorescence, SLS and DLS to measure Tm, Tagg and particle size on up to 48 samples of 9 µL per run. Condition and testing: used. The photos show the front power button illuminated and coolant present in the reservoir sight window. The exterior is clean with no visible damage. Software and computer: not included.
What's Included
Uncle instrument
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2018
- Manufacturer
- Unchained Labs
- Model
- Uncle
- Fuse
- T6.3AL, 250 V
- Weight
- 50 kg
- Voltage
- 110 to 240 V AC, 50 to 60 Hz, single phase
- Regulatory
- Optional 21 CFR Part 11 software
- Consumables
- Uni sample cassettes
- Laser Class
- Class 1 laser product
- DLS Detector
- Avalanche photodiode
- Heating Rate
- 0.1 to 10 °C/min
- Tm Precision
- <2% CV
- Maximum Power
- 600 W
- SLS Detection
- Intensity at 266 nm and 473 nm
- SLS Resolution
- About 15 kDa change in mean molecular mass
- Samples Per Run
- 48
- AAV Concentration
- ≥5 x 10^11 viral genomes per mL
- DLS Size Accuracy
- ±2%
- Excitation Lasers
- 266 nm and 473 nm
- Temperature Accuracy
- ±0.1 °C
- Minimum Sample Volume
- 9 µL
- Dimensions (W X D X H)
- 54 x 50 x 58 cm
- Fluorescence Detection
- CCD spectrometer, 250 to 720 nm
- Measurement Techniques
- Full-spectrum fluorescence, static light scattering, dynamic light scattering
- Sample Temperature Range
- 15 to 95 °C
- DLS Molecular Weight Range
- 192 Da to 25 MDa
- Sample Concentration Range
- 0.05 to 300 mg/mL IgG
- DLS Hydrodynamic Diameter Range
- 0.3 to 1000 nm
- DLS Minimum Sample Concentration
- 0.1 mg/mL

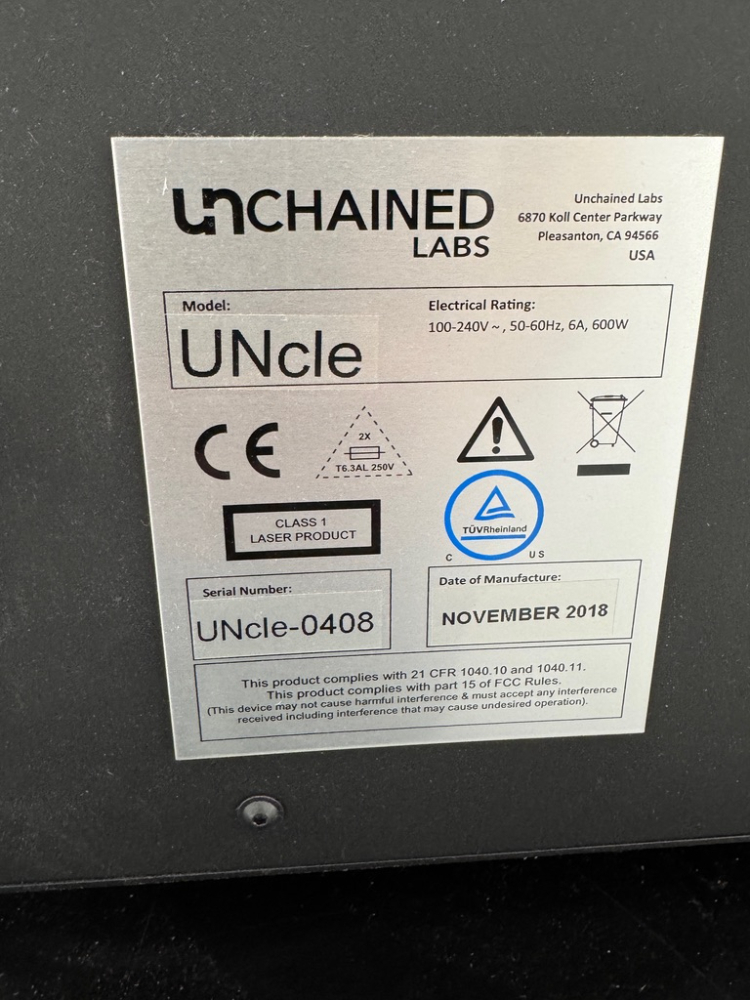

- Rating Plate
- 100-240 V, 50-60 Hz, 6 A, 600 W, Class 1 laser product
- Date Of Manufacture
- November 2018
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
