NanoTemper Prometheus Panta Protein Stability Analyser
NanoTemper · Prometheus Panta · 2022 · ref ML-AB53C908
Price
Price on quoteCustom configuration. Final price on quote only.
We plant a tree for every item soldDescription
About this model
Benchtop instrument for label-free biophysical characterisation of proteins. It runs nanoDSF, dynamic light scattering (DLS), static light scattering (SLS) and backreflection in parallel on the same 10 µL sample, across a thermal ramp or isothermally, for up to 48 capillaries per run. Reports Tm, Tonset, particle radius, polydispersity, kD, B22, molecular weight and turbidity onset. Operated from a touchscreen and a laptop running Panta Control and Panta Analysis.
This unit

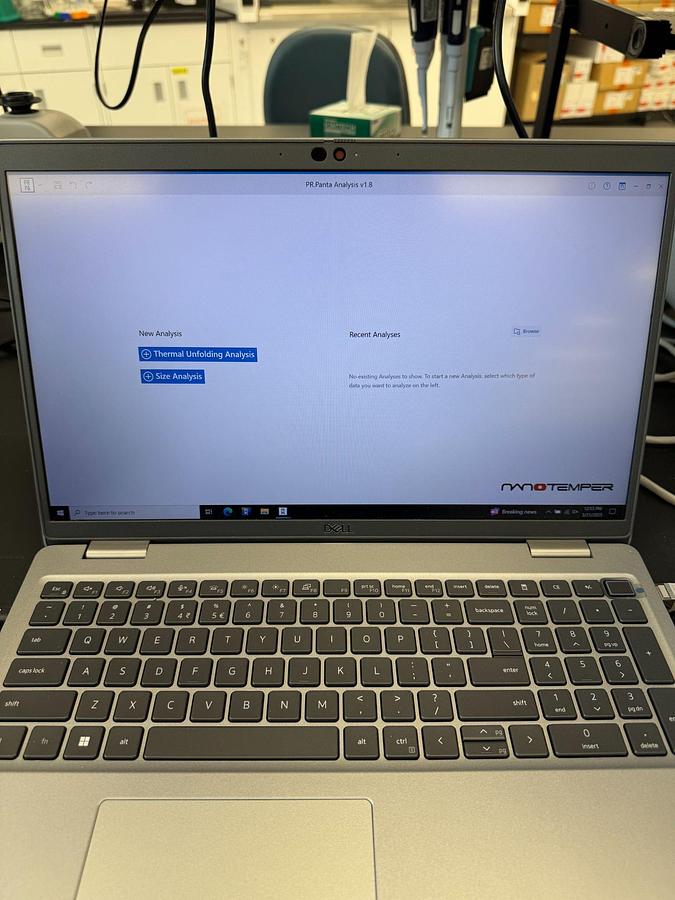

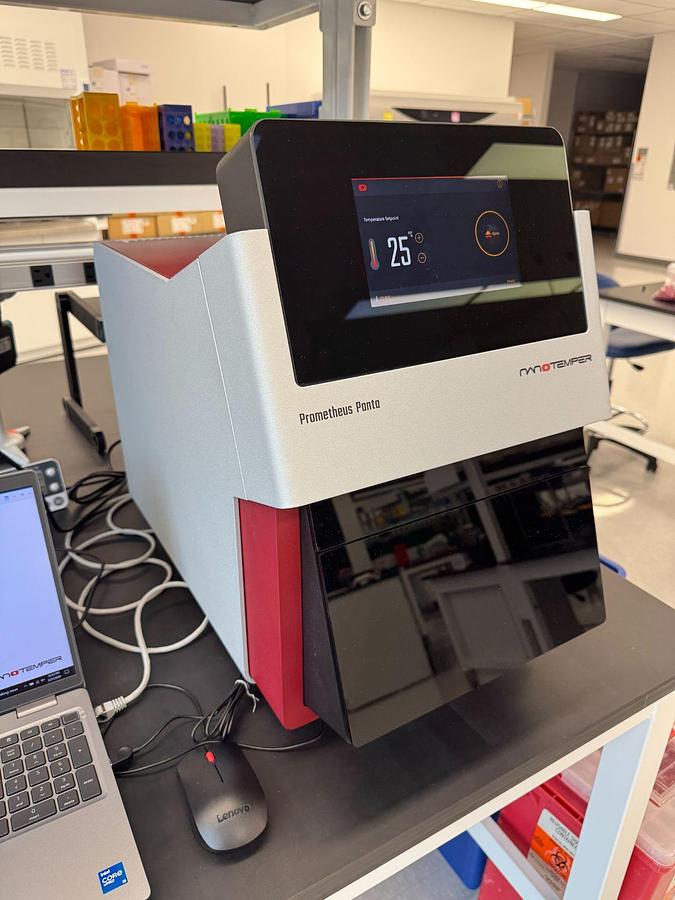

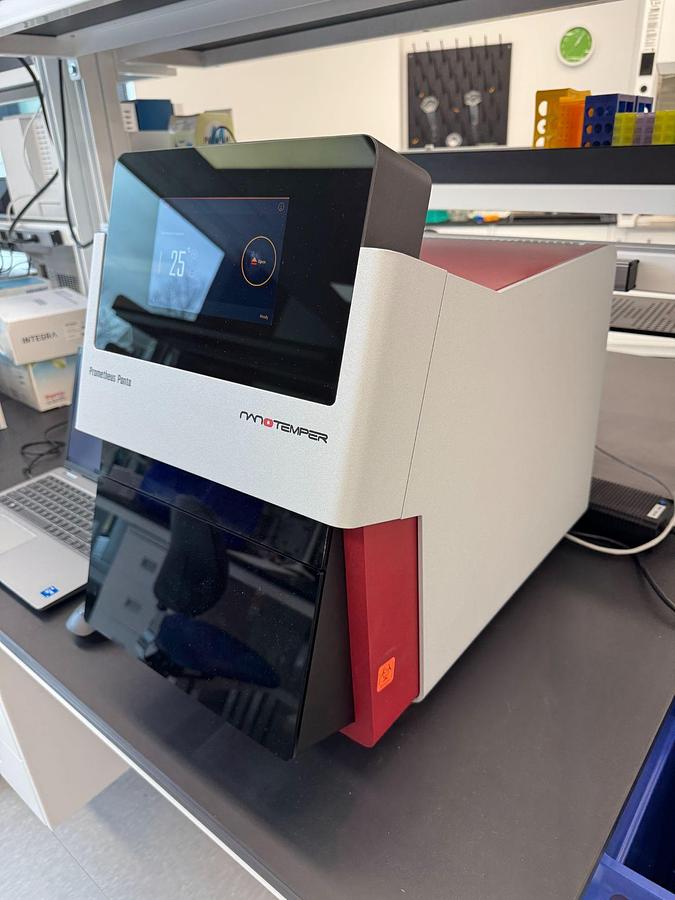

NanoTemper Prometheus Panta protein stability system, built in November 2022. It measures thermal unfolding by nanoDSF together with DLS, SLS and backreflection on up to 48 capillaries per run, using 10 µL of sample and no dyes. Condition and testing: lightly used. The photos show the instrument powered on with the touchscreen at a 25 °C setpoint and communicating with its laptop. Software and computer: supplied with a Dell laptop. PR.Panta Analysis version 1.8 is shown running on it.
Equipment History & Condition
Lightly used unit, located in the United States
What's Included
Prometheus Panta instrument, Dell laptop with Panta software, power supply and cables
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2022
- Manufacturer
- NanoTemper
- Model
- Prometheus Panta
- Weight
- 35 kg
- Compliance
- CE, CB, NRTL/UL, CSA
- Consumables
- Standard capillaries PR-C002, high sensitivity capillaries PR-C006, capillary chips PR-AC002 / PR-AC006, sealing paste PR-P001
- Laser Class
- Class 1 laser product
- Heating Rate
- 0.1 to 7 °C/min
- Power Supply
- 100 to 240 V AC, 50/60 Hz, 230 VA max
- Tm Precision
- ±0.1 °C
- Sample Format
- Single-use capillaries, borosilicate glass or quartz
- Sample Volume
- 10 µL
- Sample Capacity
- 48 single capillaries per run
- Electrical Input
- 24 V DC, 10 A
- Sample Viscosity
- Up to 50 Pa.s
- Country Of Origin
- Germany
- NanoDSF Detection
- 330 nm and 350 nm, ± 10 nm
- NanoDSF Excitation
- 280 ± 10 nm
- Analysis Cycle Time
- Under 2 hours for typical applications
- DLS Detection Angle
- 140°
- Parameters Reported
- nanoDSF: Tm, Tonset, ΔG. DLS: rH, PDI, kD, Tsize. SLS: MW, B22, Tscattering. Backreflection: Tturb
- Particle Size Range
- DLS/SLS: about 0.5 nm to 1 µm radius. Backreflection: ≥12.5 nm radius
- Computer Requirements
- Windows 10 64 bit or higher, 12th Gen Intel Core i5 or better, 8 GB RAM, 1920 x 1080 display, 1000 Mbps Ethernet
- Detection Technologies
- nanoDSF, DLS, SLS, backreflection
- Dimensions (W X H X D)
- 35 x 51 x 52 cm
- DLS/SLS Laser Wavelength
- 405 ± 5 nm
- Temperature Control Range
- 15 to 110 °C
- Sample Concentration Range
- nanoDSF: 5 µg/mL to 250 mg/mL. DLS/SLS: 0.08 mg/mL to 40% w/v
- Temperature Control Accuracy
- ±0.1 °C
- Computer
- Dell laptop
- Software Version
- PR.Panta Analysis v1.8
- Date Of Manufacture
- November 2022
