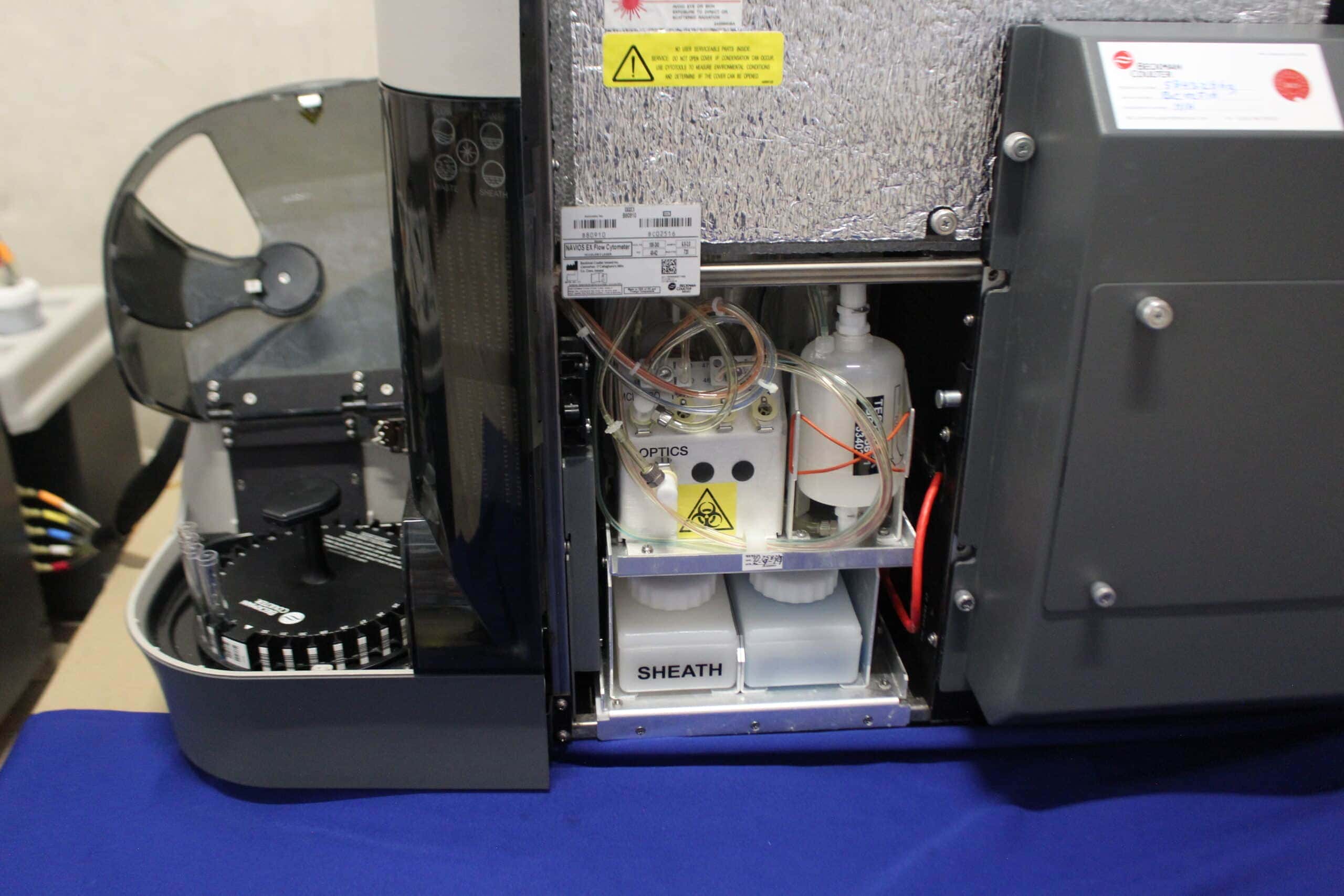

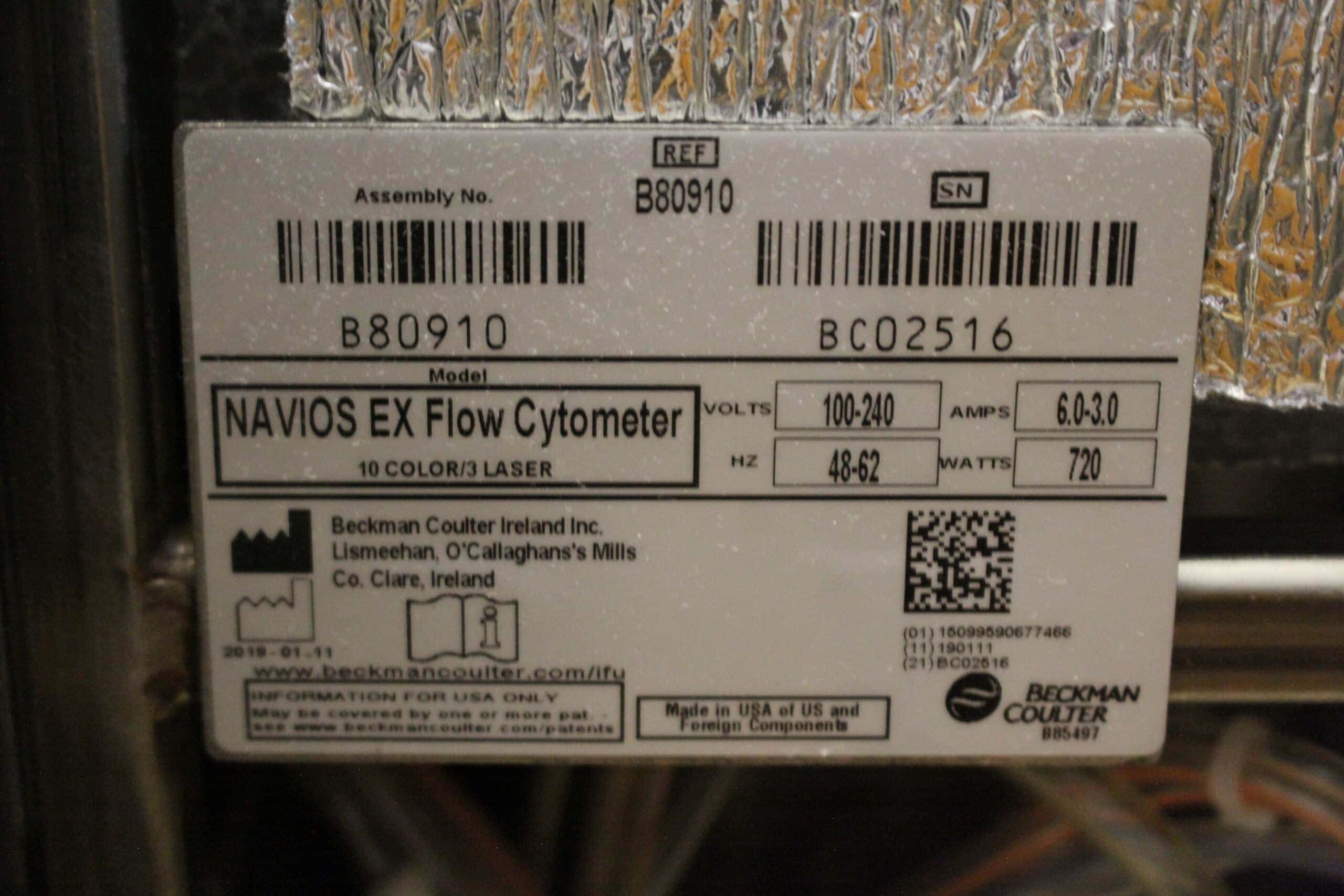

Beckman Coulter Navios EX Flow Cytometer

Description

Lasers: Blue Solid State: 488 nm, 55 mW, Software Controlled Red Solid State Diode: 638 nm, 50 mW, Software Controlled Violet Solid State: 405 nm, 80 mW, Software Controlled Configuration: Nominal 90 µm spatially separated beam spots Flow cell: 430 µm x 180 µm rectangular channel Collection optics: Fixed integrated optics and quartz flow cell design with a numerical aperture of > 1.2 Detector filters: Forward Scatter: 488/20 Blue Laser: 525/40, 575/30, 614/20 , 675/20, 695/30, 755LP Dyes: FITC, PE, ECD, PC5 or PEC5.5, PECy7 Red Laser: 660/20, 725/20, 755 LP Dyes: APC or Alexa Fluor 647, APC-Alexa Fluor 700, APC-Cy7, APC-Alexa Fluor 750 Violet Laser: 450/50, 550/40 Dyes: Pacific Blue, Krome Orange Forward Scatter Detector: Fourier design providing up to 3 measurements of forward angle Side Scatter Detector: High performance photodiode with electronic attenuation Fluorescence Detectors: FL1 – FL6 Fluorescent Detectors Flow rates: Continuous pressure is applied to the sample tube based on user selected flow rates: Low, Medium and High Performance: Carryover: < 0.1%, Dead volume as low as 2 µL when using Beckman Coulter 12 x 75 mm polypropylene tube and adjustable probe Acquisition modes: 32 tube Multi Carousel Loader (MCL), Single tube sampling mode, Automated work list acquisition, Manual work list mode Mixing: The MCL vortexes each tube individually before sample acquisition Barcode reading: Carousel number, tube location, and tube barcode verified to worklist Biosafety: Biohazard contained wash station thoroughly rinses sample probe Throughput: 10000 normal leukocytes is 82 tubes/hour Scatter resolution: Resolves 0.4 micron particles from background noise using Forward Scatter, Maximum detection of up to 40 microns Fluorescence sensitivity: FITC < 107 MESF, PE < 64 MESF, PC5 < 13 MESF Acquisition rate: 25000 events per second, 90% yield Cytometer dimensions (WxHxD): 950 x 610 x 730 mm Cytometer weight: 104 kg Supply cart dimensions (WxHxD): 724 x 298 x 495 mm Supply cart weight: 30 kg Software included but requires a new licence purchase.
