Sartorius Incucyte S3 Live-Cell Analysis System (Green/Red)
Sartorius · Incucyte S3 · ref ML-B1C8CAEA
Description
About this model
The Incucyte S3 is a live-cell imaging and analysis system that sits inside a standard cell culture incubator and images cells in their vessels over hours to weeks. A microscope gantry with an automated 4X, 10X and 20X objective turret acquires HD phase contrast and green and red fluorescence images from up to six microplates, or flasks and dishes on three interchangeable trays, while an external controller schedules scans, stores the data and runs the analysis software.
This unit

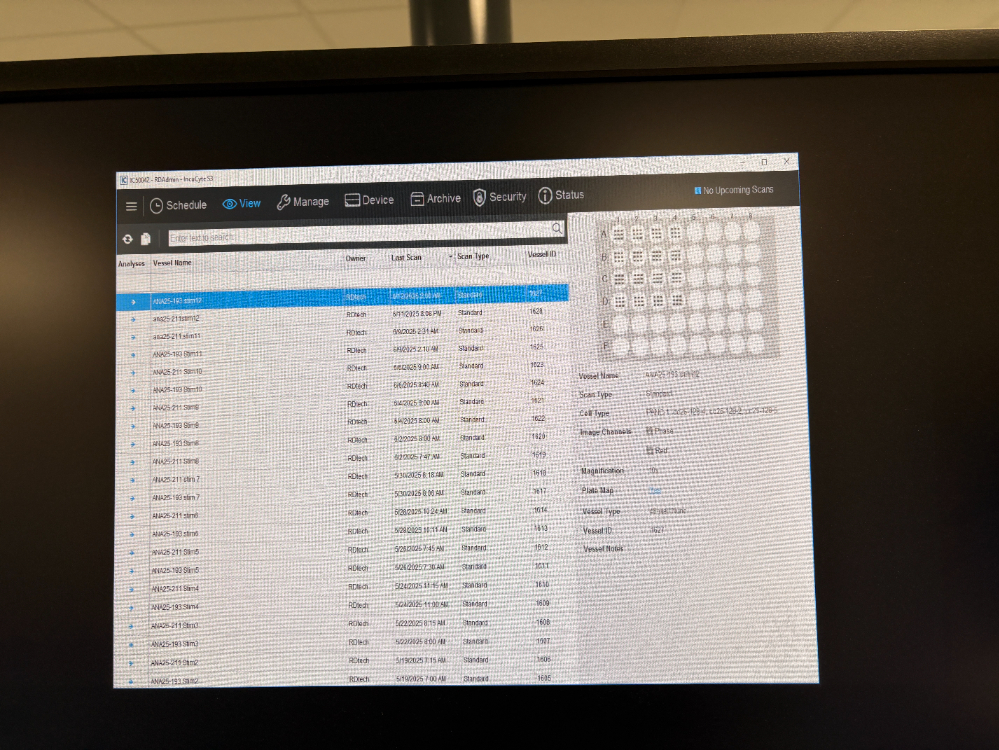

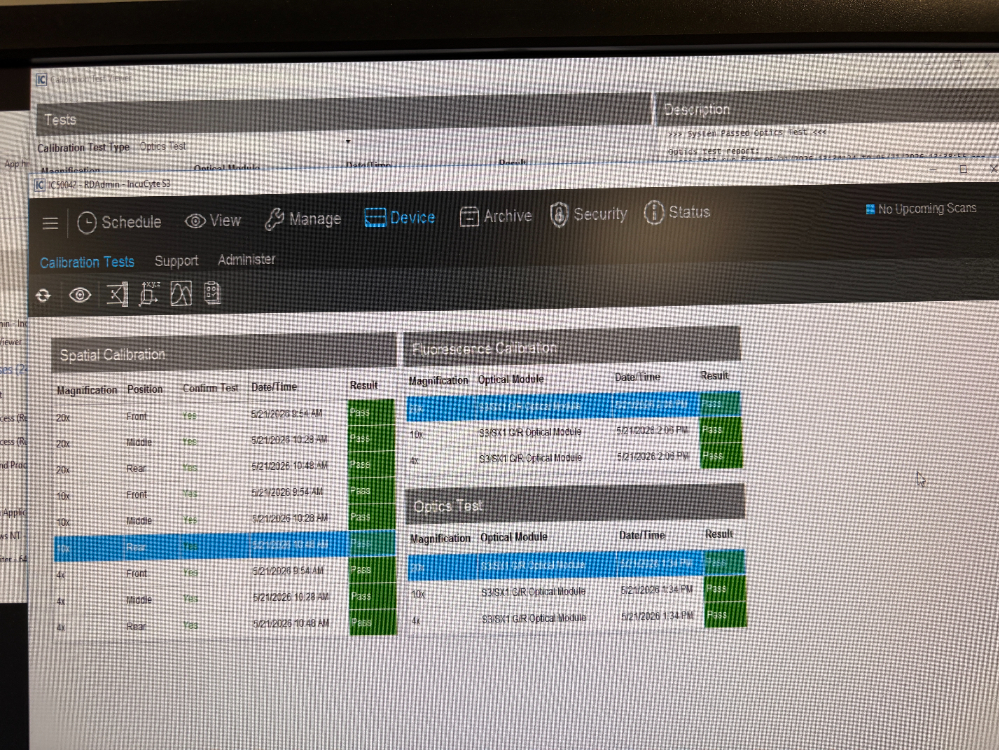

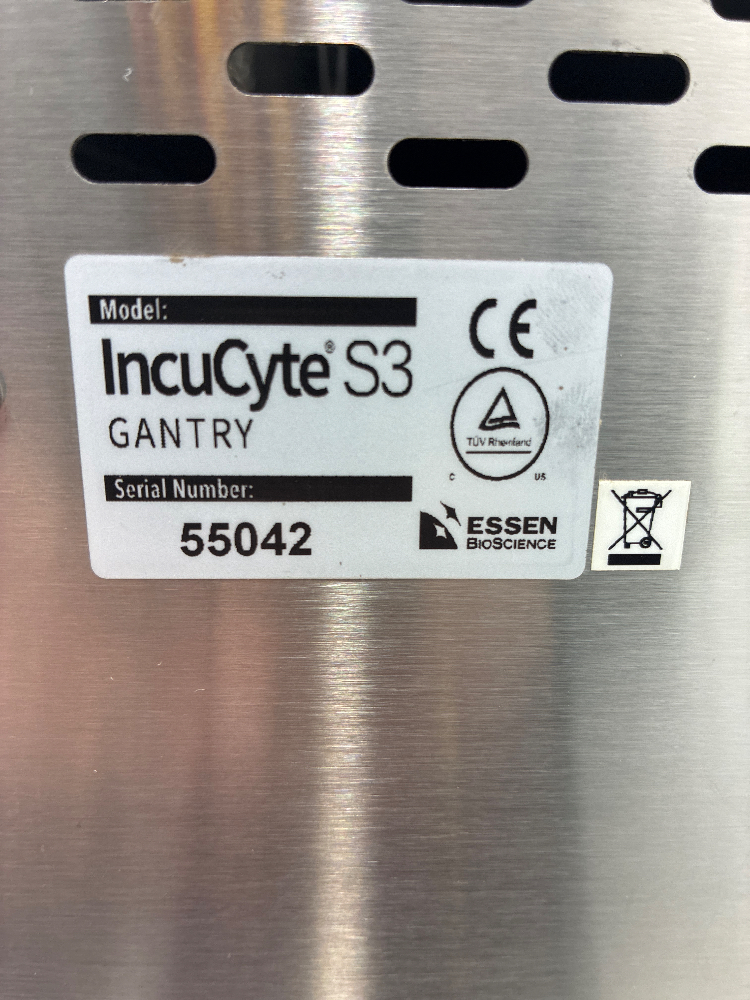

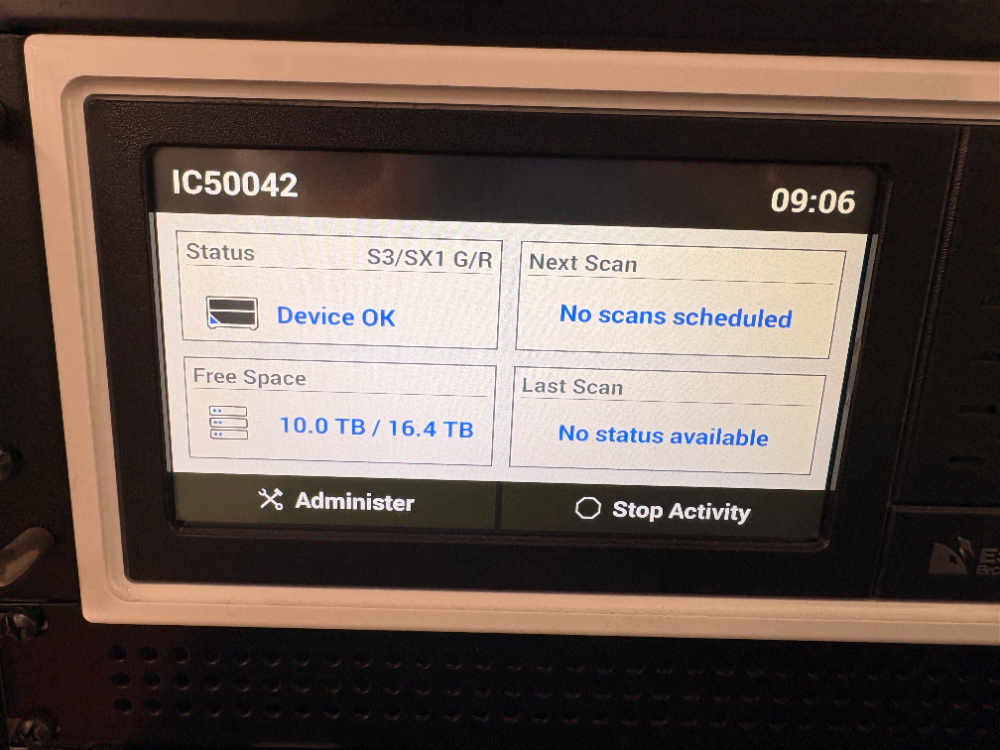

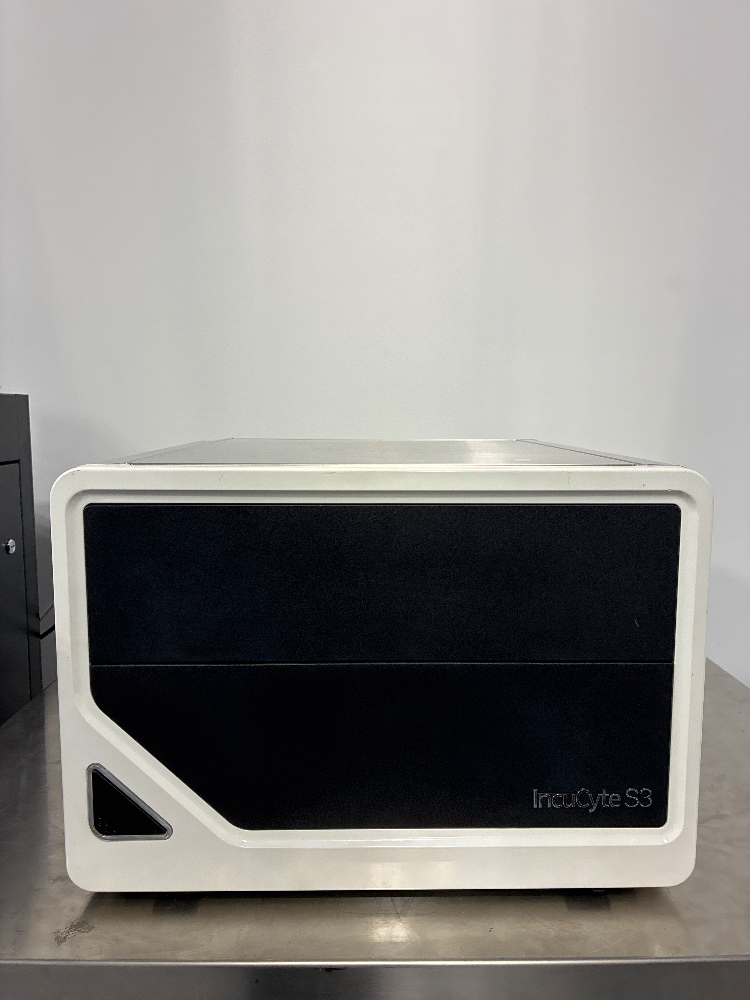

Incucyte S3 live-cell analysis system with the Green/Red optical module, supplied in a rack cabinet with its controller, monitor, keyboard and an uninterruptible power supply. This is an earlier S3 with Essen BioScience badging. Configuration: Incucyte S3 gantry; Incucyte S3 controller rack-mounted in a cabinet with pull-out keyboard and monitor; APC uninterruptible power supply. Condition and testing: listed by the seller as refurbished. In the seller's photographs the controller reports 'Device OK' with the S3/SX1 G/R optical module recognised and 10.0 TB of 16.4 TB free, and the Incucyte software calibration page shows spatial calibration, fluorescence calibration and optics tests passed at 4X, 10X and 20X. Software and computer: the controller runs the Incucyte software, shown open with archived scans in the photographs.
What's Included

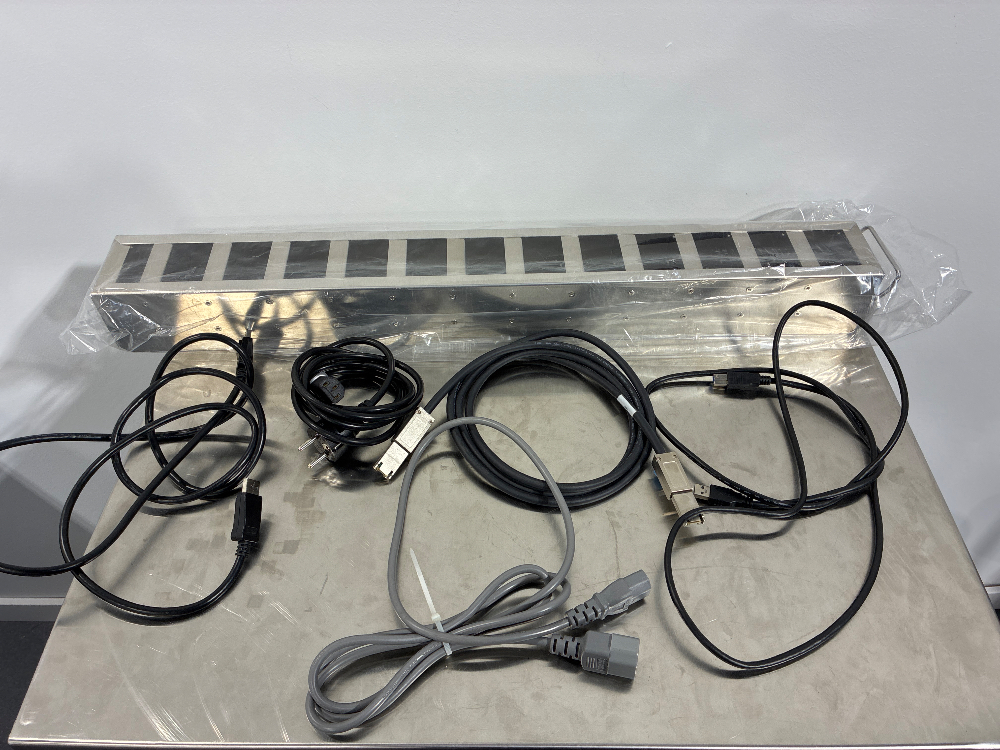

Incucyte S3 gantry; Incucyte S3 controller in rack cabinet; monitor and keyboard; APC uninterruptible power supply; power and data cables; user manuals; software installation CD; mounting brackets and tools.
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Sartorius
- Model
- Incucyte S3
- Phase
- Single
- Components
- Microscope gantryand external controller
- Objectives
- 4X, 10X, 20X on an automated turret
- System Type
- Live-cell imaging and analysis system that operates inside a cell culture incubator
- Current Draw
- 3.5 A max at 120 V, 1.75 A max at 240 V
- Vessel Trays
- 3
- Imaging Modes
- HD phase contrast, green fluorescence, red fluorescence
- Other Labware
- 35, 60, 100 and 150 mm dishes and chamber slides
- Optical Module
- Green/Red dual colour module
- Max Microplates
- 6
- Gantry Weight Kg
- 23.6
- Image Resolution
- 4X: 2.82 µm/pixel; 10X: 1.24 µm/pixel; 20X: 0.62 µm/pixel
- Operating System
- 64-bit Windows 10
- Flask Compatibility
- T-25, T-50, T-75, T-100, T-175, T-225
- Controller Weight Kg
- 18.6
- Fluorescence Channels
- 2
- Gantry Dimensions Hwd
- 32.0 x 45.0 x 47.8 cm
- Incubator Requirement
- Incubator with more than 200 L internal volume
- Internal Data Storage
- 27.3 TB RAID and 64 GB RAM on instruments manufactured after 31 May 2021; earlier controllers show 16.4 TB
- Exported Image Formats
- JPEG, PNG, TIFF, MetaMorph Multi Dimensional File v2.0, Meta Imaging Series TIFF
- Exported Movie Formats
- WMV, AVI, MPEG-4
- Excitation Emission Red
- Excitation 567 to 607 nm, emission 622 to 704 nm
- Controller Dimensions Hwd
- 14.0 x 43.2 x 57.7 cm
- Excitation Emission Green
- Excitation 441 to 481 nm, emission 503 to 544 nm
- Gantry Operating Conditions
- 0 to 42 °C, 5 to 95 % RH non-condensing
- Controller Operating Conditions
- 0 to 33 °C, 5 to 90 % RH non-condensing
- Data Storage
- 16.4 TB
- Seller Tested
- true
- Manuals Included
- true
- Objectives Fitted
- 4X, 10X, 20X
- Optical Module Fitted
- Green/Red
