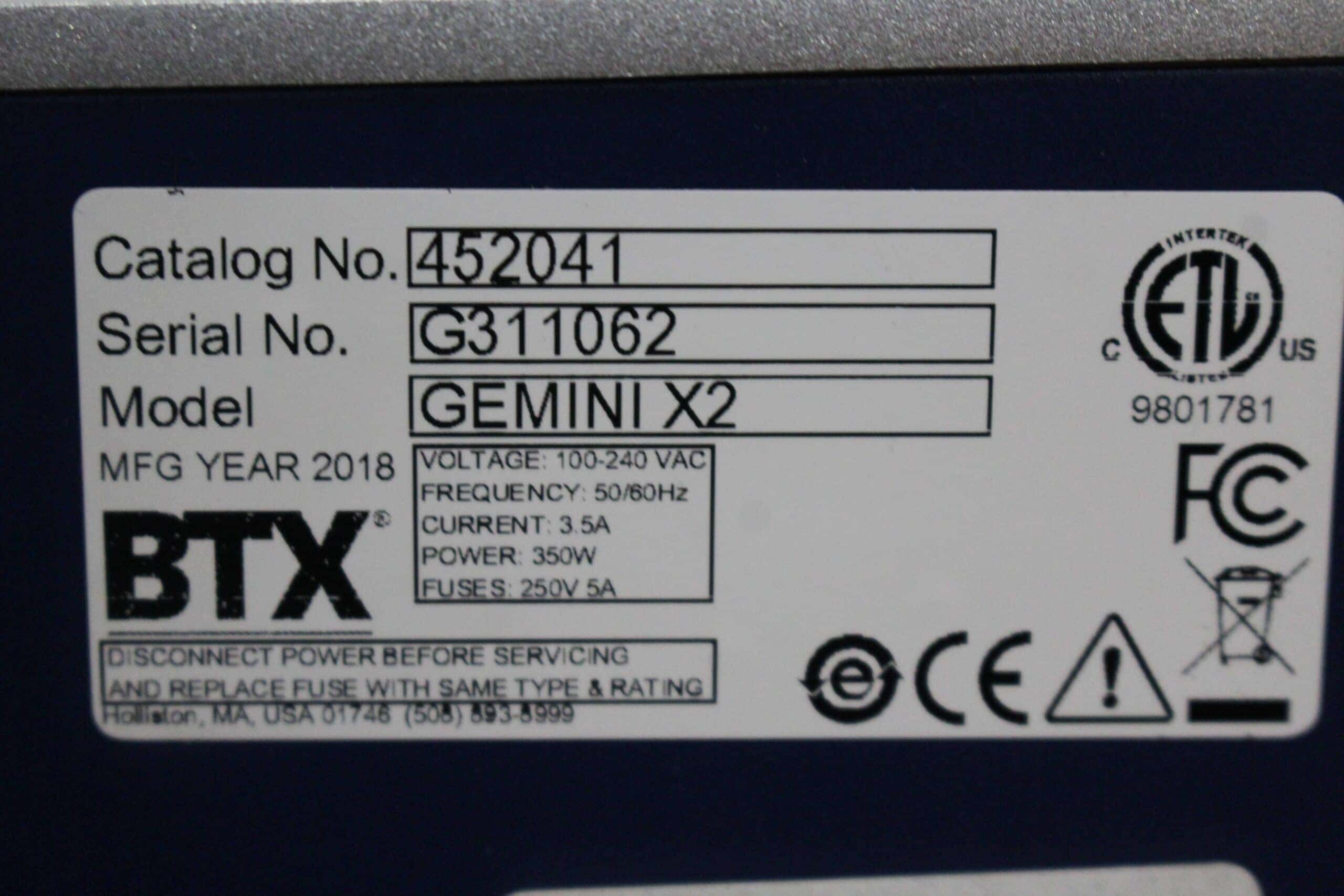

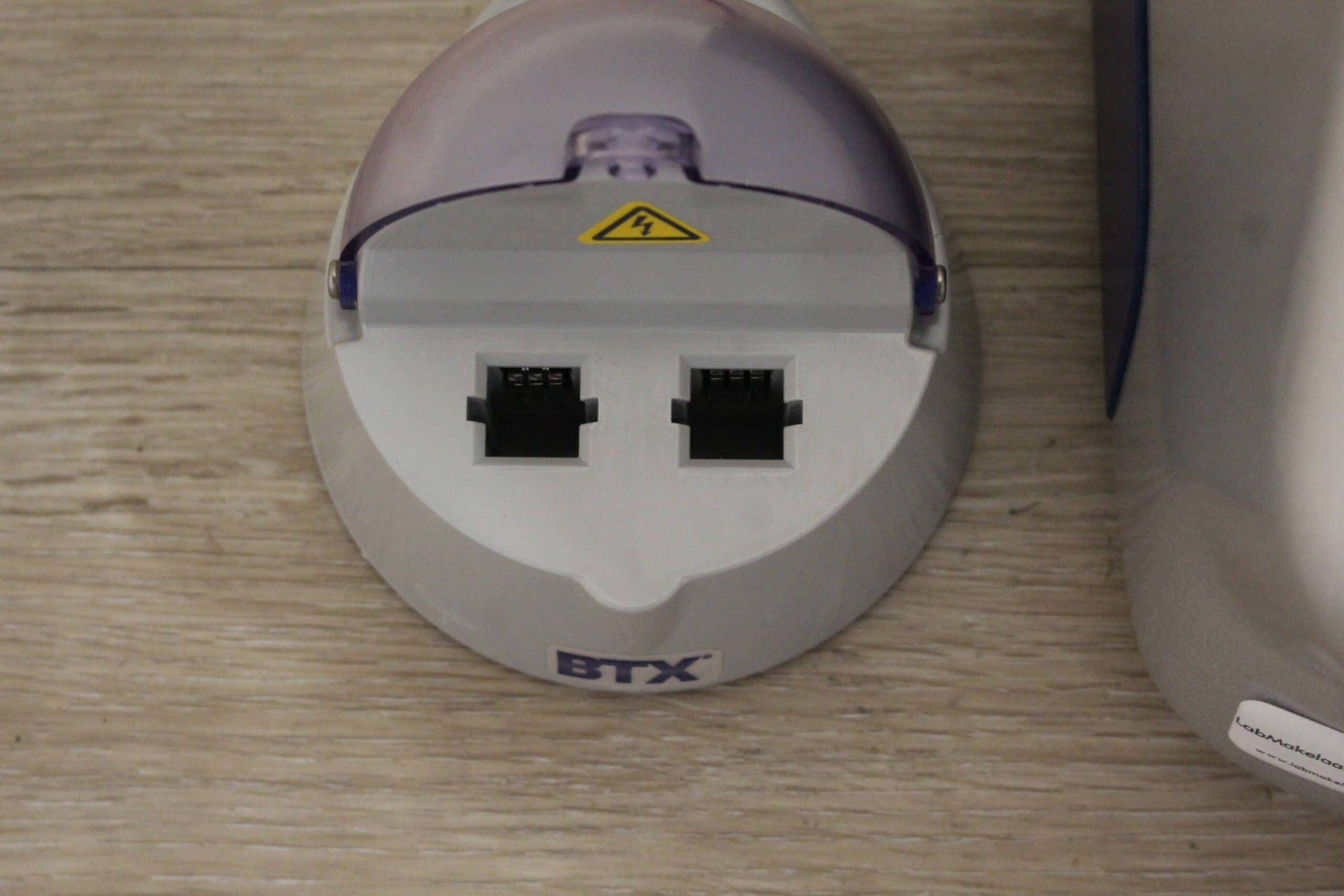

BTX Gemini X2 Twin Wave Electroporator

Description

Square Wave Pulse Ranges Voltage Range: LV Mode 5 to 500/1 V res, HV Mode 505 to 3000/5 V res Voltage Accuracy: LV Mode 5%, HV Mode 5% Pulse Length Range: LV Mode 10 µs to 999 µs/ 1 µs res, 1 ms to 999 ms/1 ms res, HV Mode 10 µs to 600 µs/1 µs Multiple Pulsing: LV Mode 1 to 120 (10 per sample), HV Mode 1 to 36 (3 per sample), Pulse Interval 0.1 s to 10 sec Capacitance in µF: LV Mode 3775 µF, HV Mode 85 µF, Voltage Droop 20% Load < 1 K Ω, 10% Load > 1 K Ω Exponential Decay Pulse Ranges Voltage Range: LV Mode 5 to 500/1 V res, HV Mode 505 to 3000/5 V res Voltage Accuracy: LV Mode 5%, HV Mode 5% Time Constant Range: LV Mode 1 ms to 5.158 S, HV Mode 0.5 ms to 133.875 ms Multiple Pulsing: Multiple Pulsing 1 to 12 (Rint <100 ohm), 1 to 24 (Rint >100 ohm), Pulse Interval 5 to 30 sec Capacitance in µF: LV Mode 25 to 3275 µF/25 µF res, HV Mode 10, 25, 35, 50, 60, 75, 85 µF Internal Resistance (in parallel with load): LV 25 to 1575 Ω / 25 Ω res, HV 50 to1575 Ω / 25 Ω res Sample Resistance (Load) Exponential Decay or Square: LV Mode PL ≤ 100ms, load ≥ 8-9 Ω, PL >100ms, load ≥100 Ω, HV Mode Load ≥ 40 Ω Charging Time: LV < 7 sec, HV < 4 sec Monitoring: Pulse Voltage, Width, Droop % and Sample Resistance Programmability: Storage over 1000 Protocols Arc Control: Yes Interlock Switches: Yes Pre-Pulse Sample Resistance Check: Yes Pulse Over Current Protection: Yes PC Control: Yes PC Communications: Yes Log Report: Yes Remote Operation: Yes Foot Switch Control: Yes Dimensions (HxWxD): 324 x 286 x 216 mm Weight: 7.3 kg
