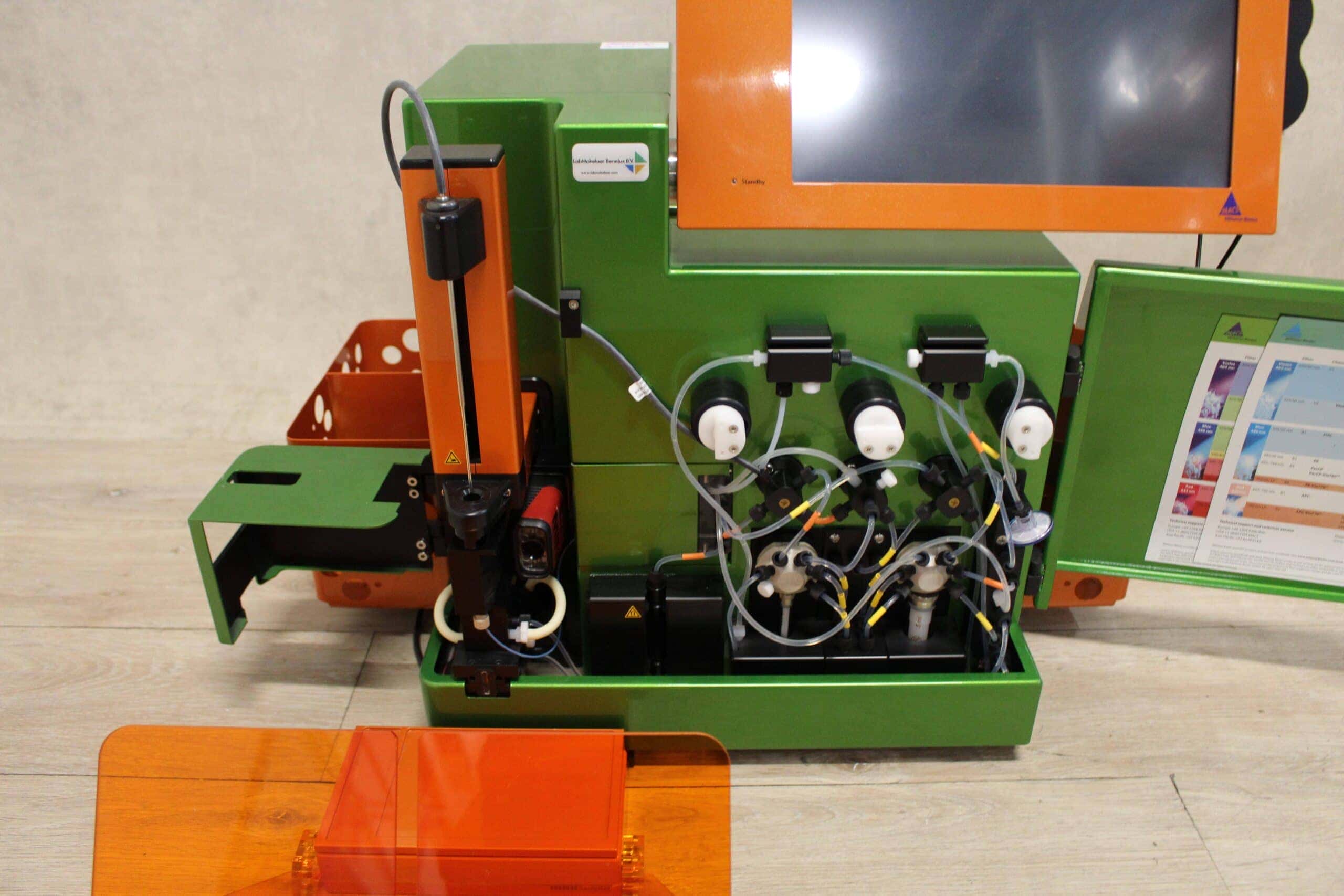

Miltenyi Biotec MACSQuant Analyzer 10 Flow Cytometer

Description

The MACSQuant Analyzer 10 brings to life the versatility and power required for modern flow cytometry applications. Whether mining for rare cells, analyzing the efficiency of your cell manufacturing process or investigating signaling pathways, you are equipped for the task at hand. With a range of automated features, this flow cytometer lays the foundation for true automation present in all instruments belonging to the MACSQuant Family of flow cytometers. Laser excitation (spatially separated): 405 nm (40 mW), 488 nm (30 mW), 640 nm (20 mW) Emission detectors: FSC: 488/10 nm, SSC: 488/10 nm, V1: 450/50 nm, V2: 525/50 nm, B1: 525/50 nm, B2: 585/40 nm, B3: 655–730 nm, B4: 750 nm LP, R1: 655–730 nm, R2: 750 nm LP Fluorescence sensitivity and resolution: MESFs (CV <5%), FITC <200, PE <100, APC <150 Flow cell dimensions: 200 x 250 μm Fluorescence detectors: Optimized with spectrally matched PMTs for all channels Minimal uptake volume: 1 μL (25 μL recommended for volumetric counting applications) Sample flow rate: 25, 50, or 100 µL/min or automate flow rate to maintain 500, 1000, or 2000 events/second Measurement speed: <25 minutes per 96-well plate (5 μL measurement volume per well) Sample uptake: 1–450 µL Maximal event rate: Up to 15,000 events/second Dimensions (WxDxH): 669 x 500 x 554 mm Weight: 50 kg
