Binder VDL 115 Vacuum Drying Oven (ATEX)
Binder · VDL 115 · 2025 · ref ML-E00BD897
Description
About this model
Safety vacuum drying oven for materials that release flammable solvents. ATEX-compliant design with heated aluminium expansion racks, touchscreen controller showing temperature and pressure, programme-controlled drying with automatic venting at the end of the process, internal data logger with USB export and a pressure interlock that only enables heating below 100 mbar.
This unit

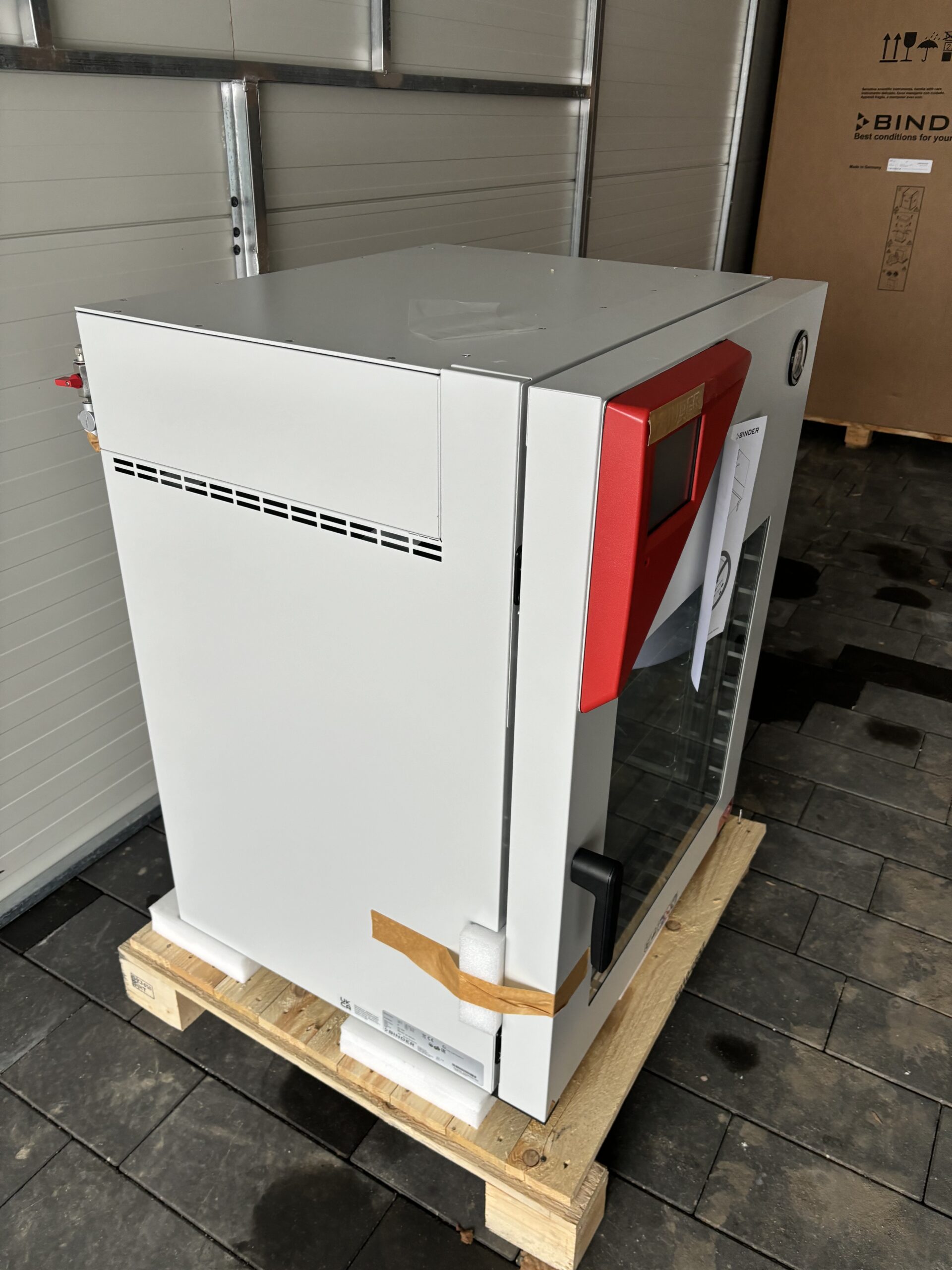

Binder VDL 115 safety vacuum drying oven, 115 L, for drying materials that give off flammable solvents. Safety concept to the ATEX directive 2014/34/EU, marked Ex II 2/3/- G IIB T3 Gb/Gc/- X. Temperature range from 9 °C above ambient to 110 °C. Configuration: 230 V single-phase version with touchscreen controller showing temperature and pressure graphically, programme-controlled drying with automatic venting at the end of the process, internal data logger with USB export, Ethernet interface, two aluminium heating shelves (expandable to six), DN 16 access port, and a connection for venting with ambient air or inert gas. Maximum load 20 kg per shelf, 70 kg in total. Rated power 1.6 kW. Condition: like new, factory tested. A vacuum pump is not part of the oven and is needed to run it.
Equipment History & Condition
Manufacturer demonstration unit, built 2025.
What's Included
Binder VDL 115 vacuum drying oven, two aluminium heating racks.
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Like New
- Year Manufactured
- 2025
- Manufacturer
- Binder
- Model
- VDL 115
- Plug
- CEE 7/7
- Interface
- Ethernet, USB
- Leak Rate
- 0.01 bar/h
- Unit Fuse A
- 10

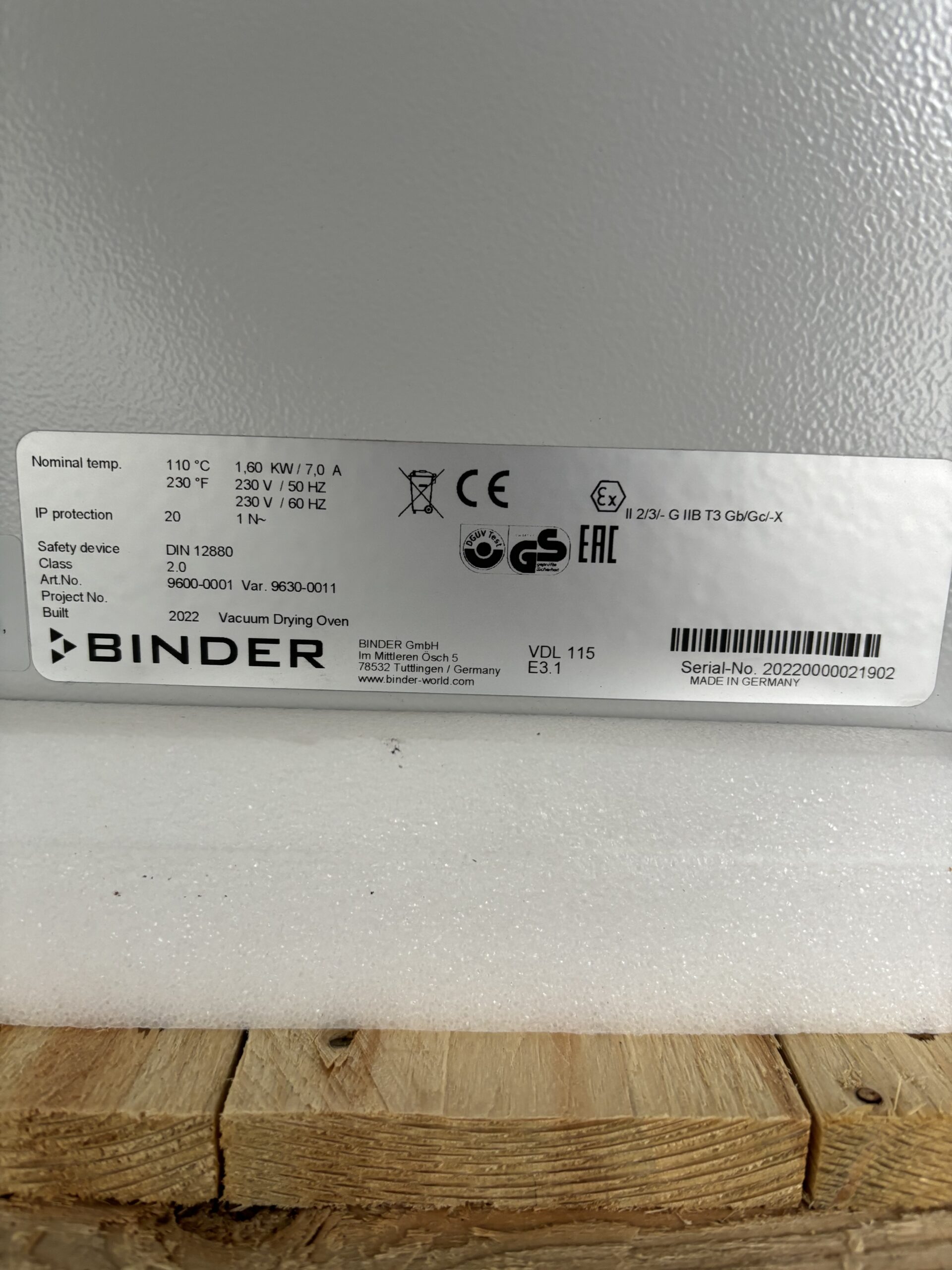

- Atex Marking
- EX II 2/3/- G IIB T3 Gb/Gc/- X
- Net Weight Kg
- 158
- Rated Voltage
- 200 to 230 V 1~ 50/60 Hz
- Atex Directive
- 2014/34/EU
- Shelves Std Max
- 2/6
- Energy 100c Wh H
- 230
- Load Per Rack Kg
- 20
- Nominal Power Kw
- 1.6
- Exterior W H D Mm
- 743 x 942 x 581
- Interior Volume L
- 119
- Interior W H D Mm
- 506 x 506 x 460
- Permitted Load Kg
- 70
- Temperature Range
- ambient +9 C to 110 C

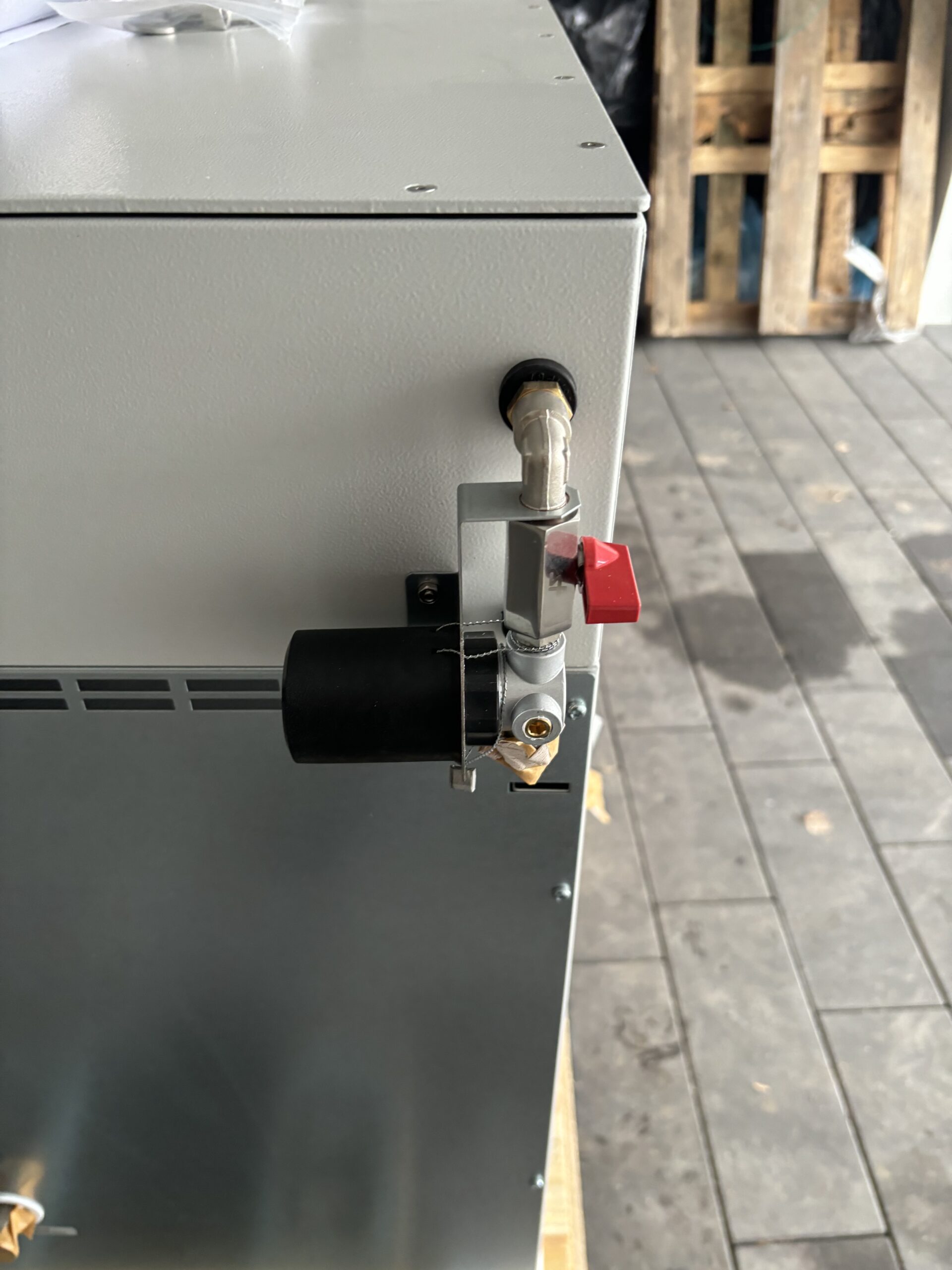

- Vacuum Connection
- DN 16 small flange
- Sound Pressure Dba
- 40
- Article Number 230v
- 9630-0011
- Measuring Access Port
- DN 16 small flange
- Wall Clearance Back Mm
- 100
- Wall Clearance Side Mm
- 70
- Heating Up Time To 100c Min
- 170
- Temperature Uniformity 100c K
- 2.9
- Temperature Fluctuation 100c K
- 0.1
Service History
Ex-demonstration unit, factory tested
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: Poland
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
