Sartorius Incucyte S3 Live-Cell Analysis System (Green/Red)
Sartorius · Incucyte S3 · ref ML-F493044D
Seller's warranty covering parts and labour; a support case must be opened within 60 days and the original packing materials kept.
Description
About this model
The Incucyte S3 is a live-cell imaging and analysis system that sits inside a standard cell culture incubator and images cells in their vessels over hours to weeks. A microscope gantry with an automated 4X, 10X and 20X objective turret acquires HD phase contrast and green and red fluorescence images from up to six microplates, or flasks and dishes on three interchangeable trays, while an external controller schedules scans, stores the data and runs the analysis software.
This unit

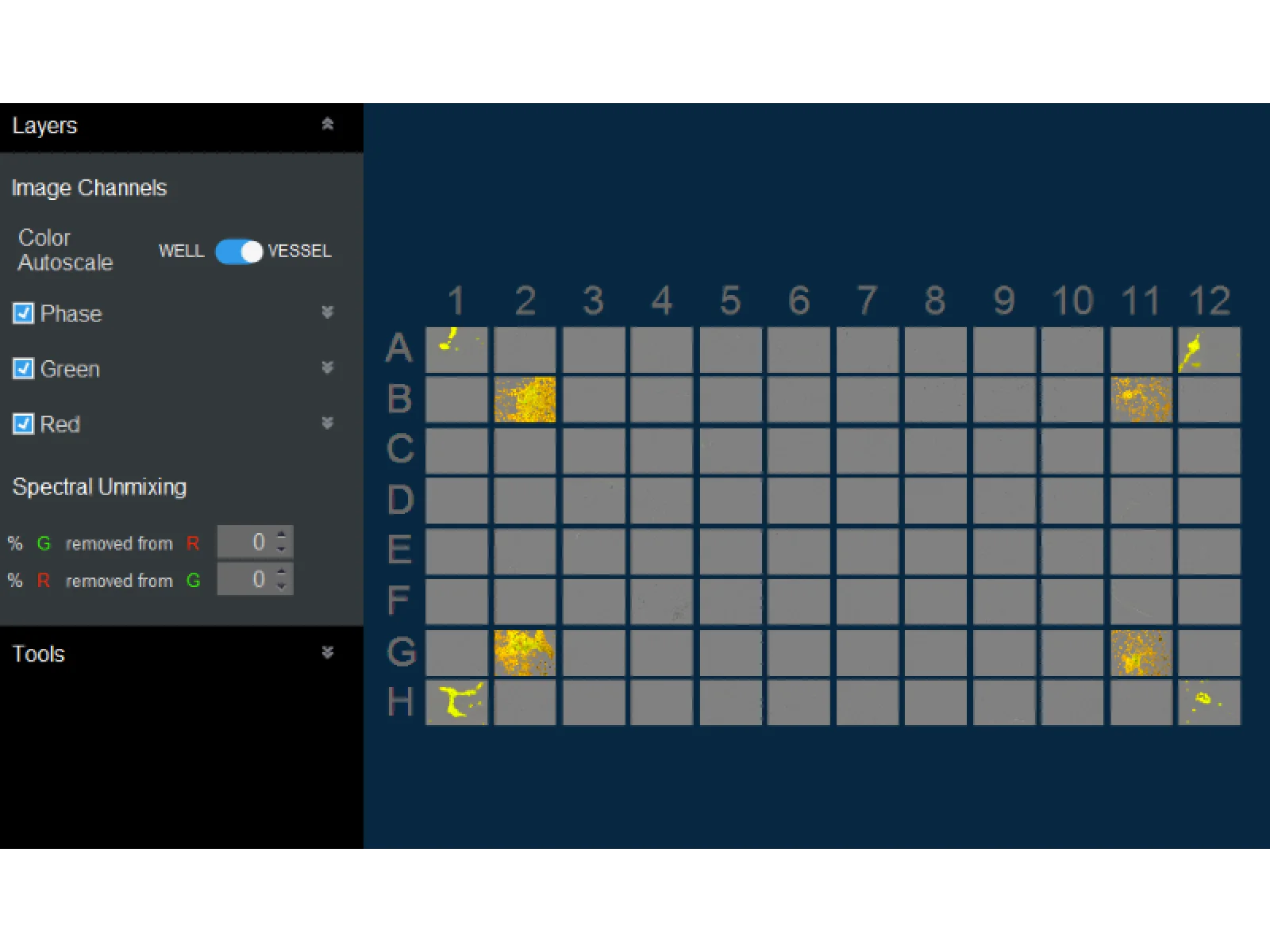

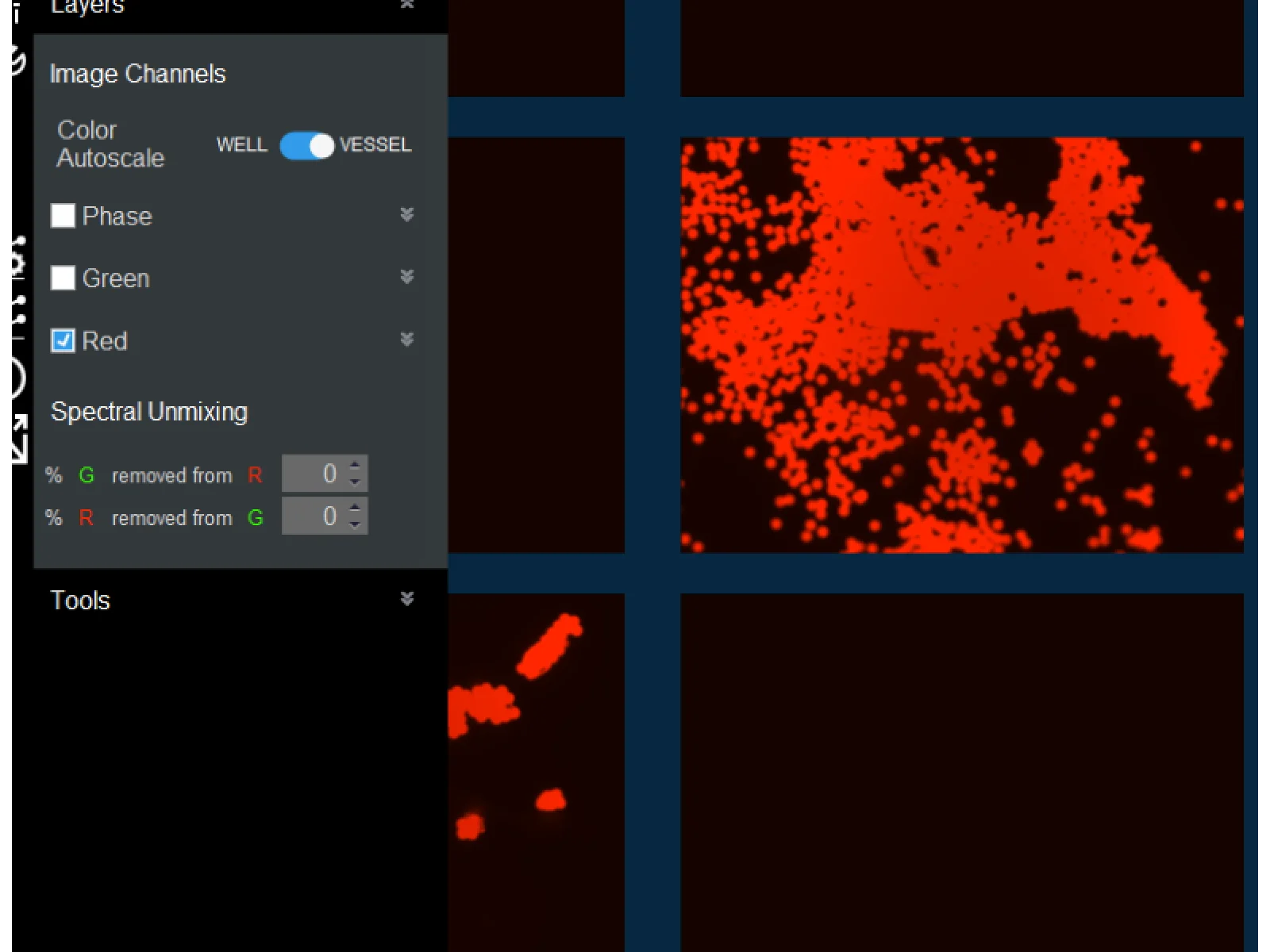

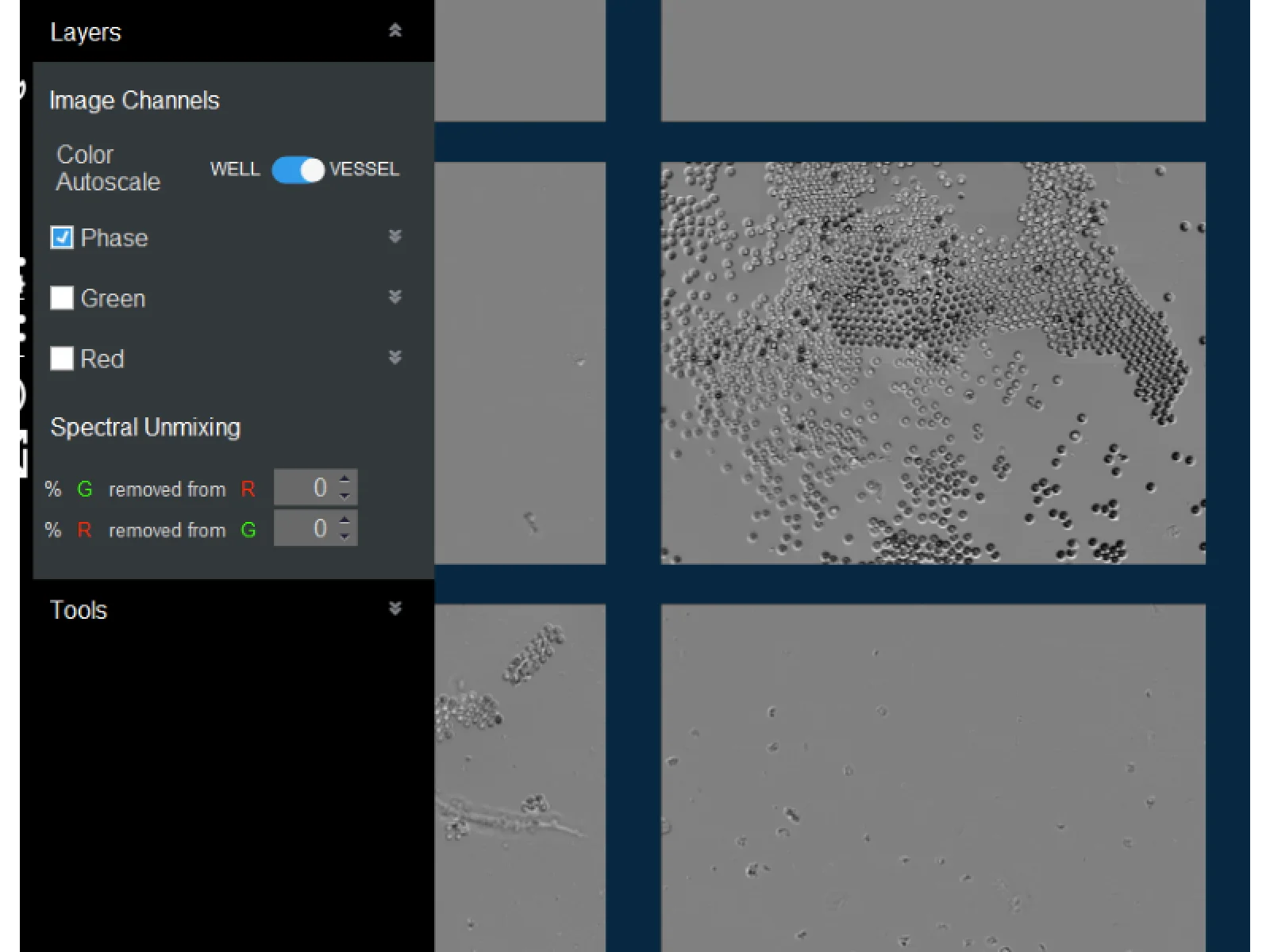

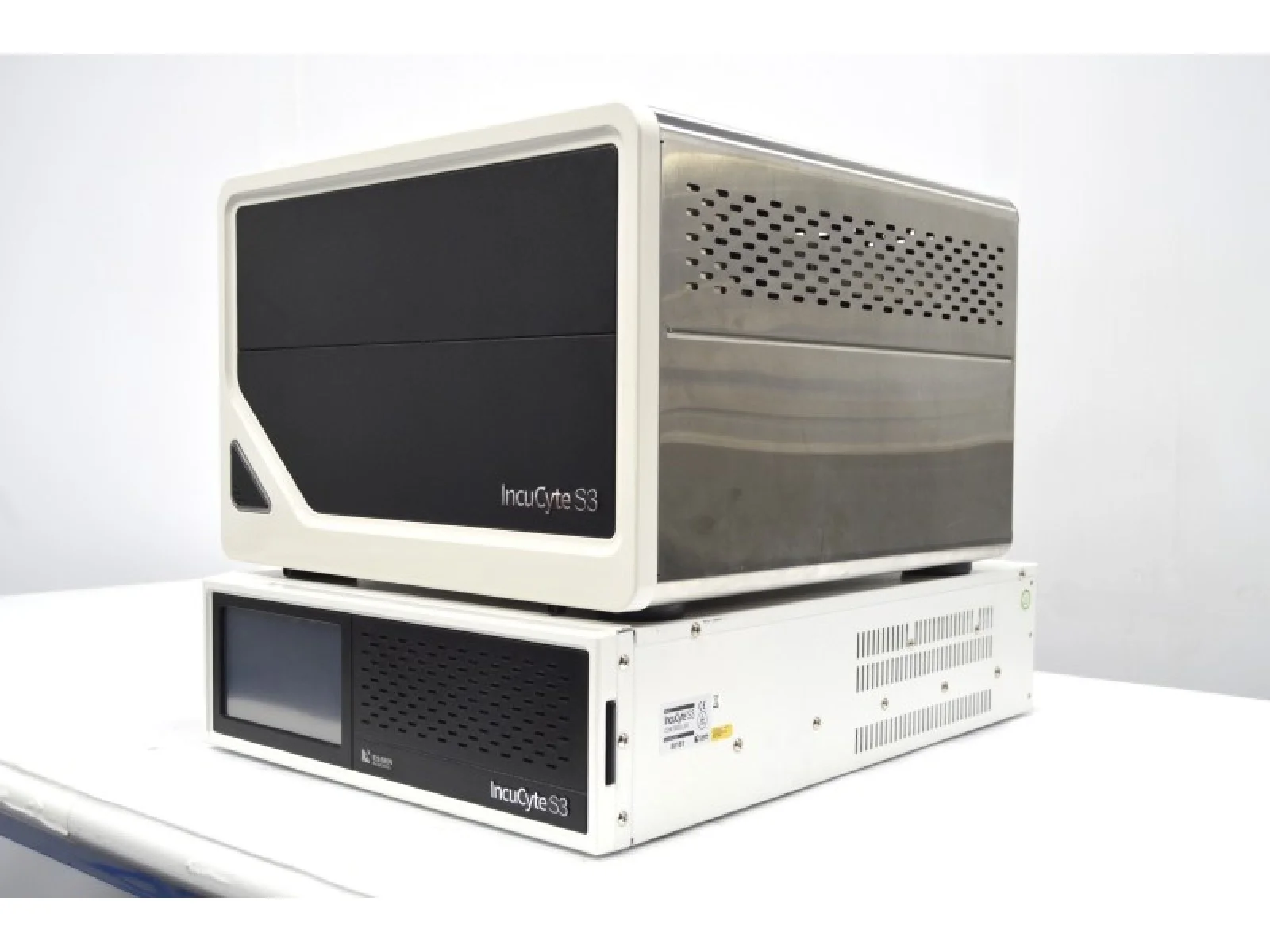

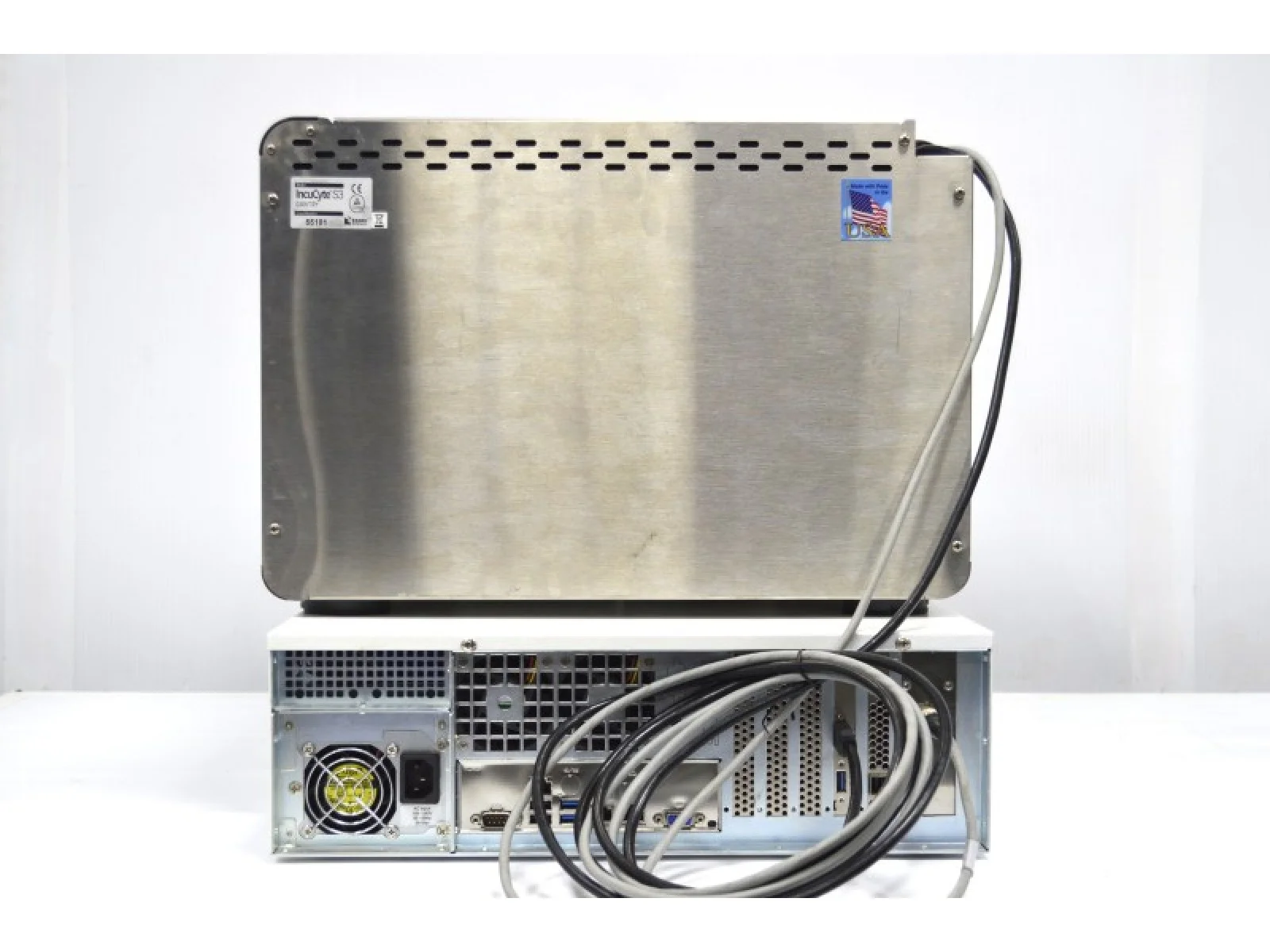

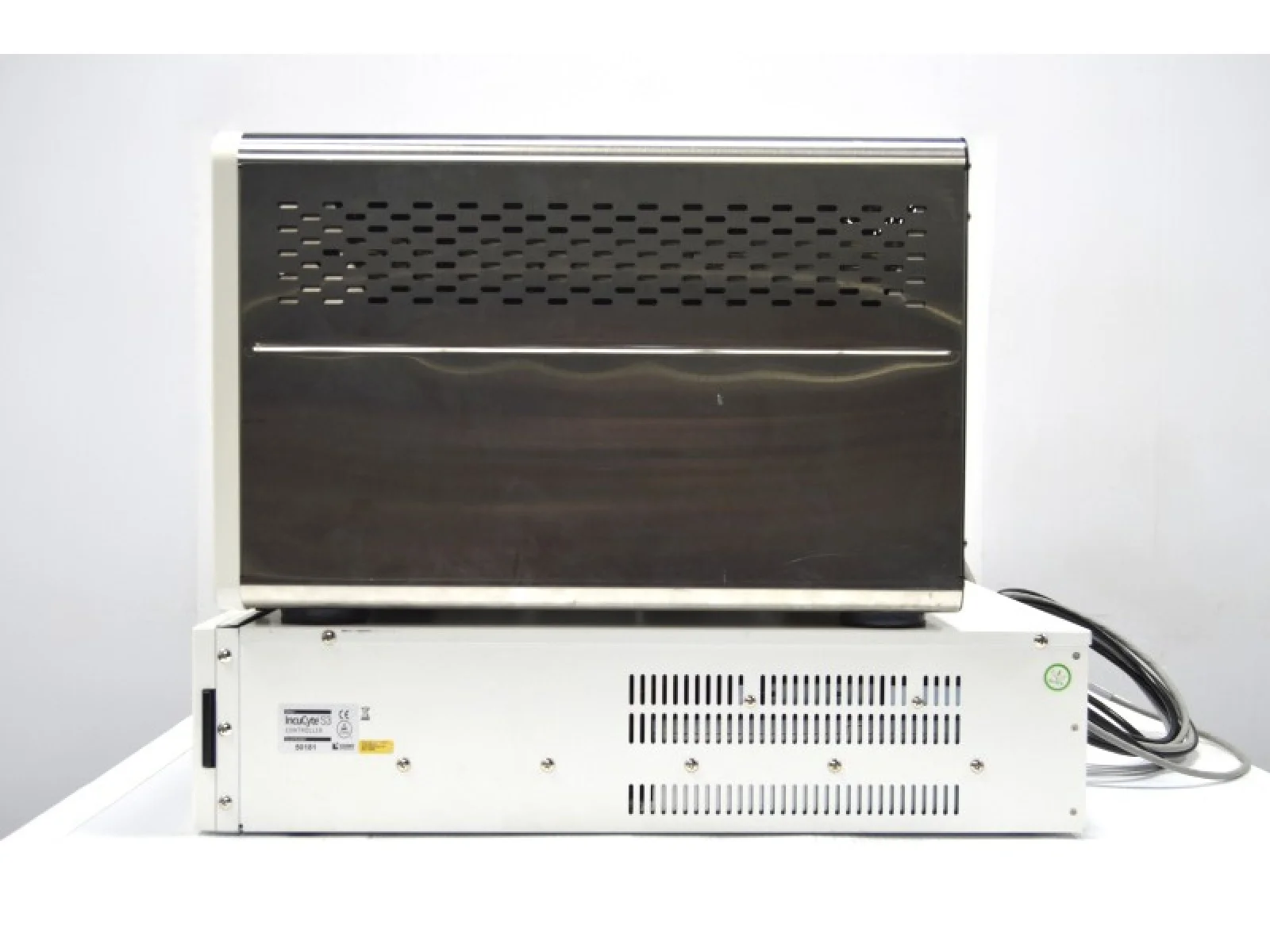

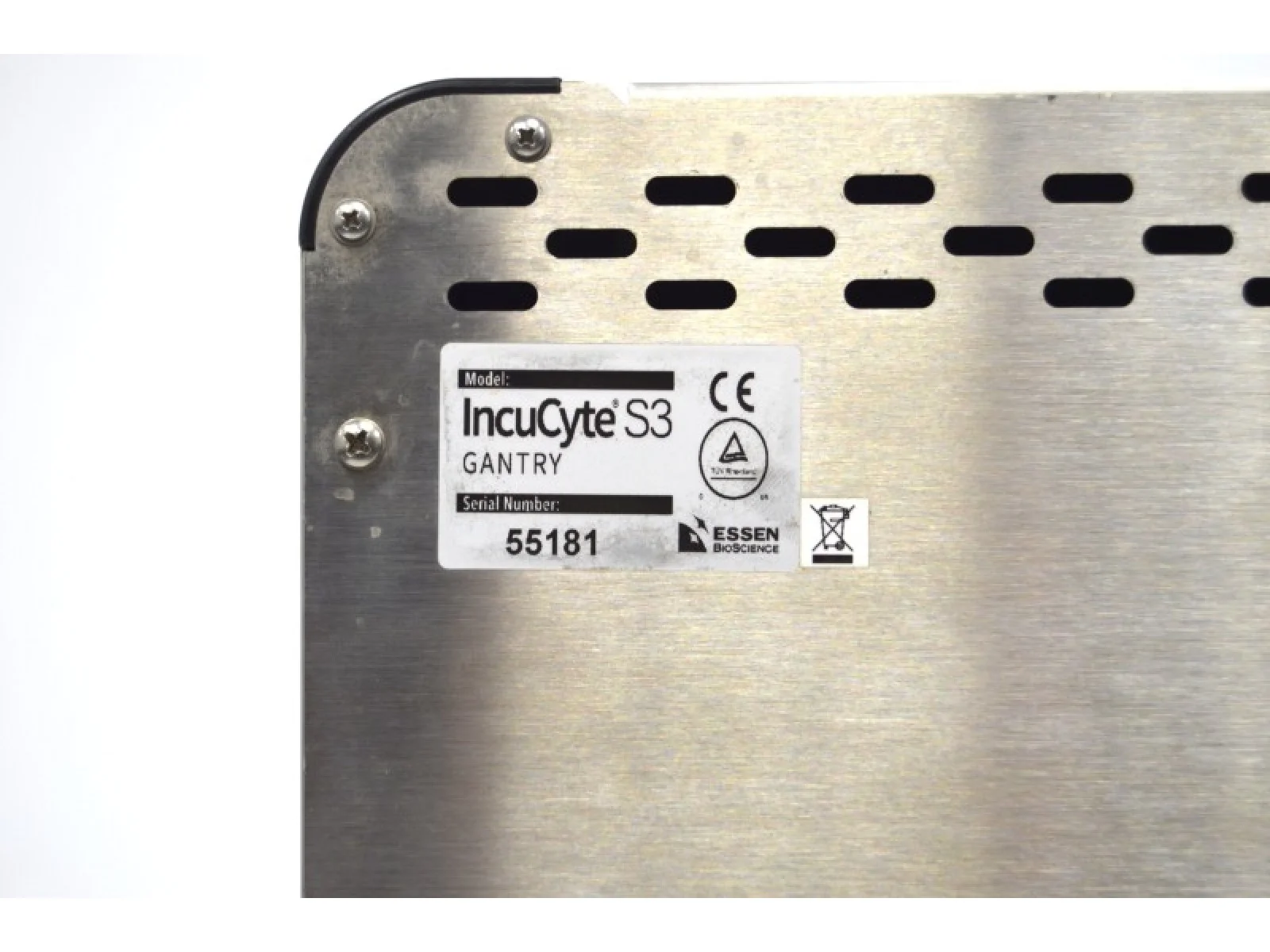

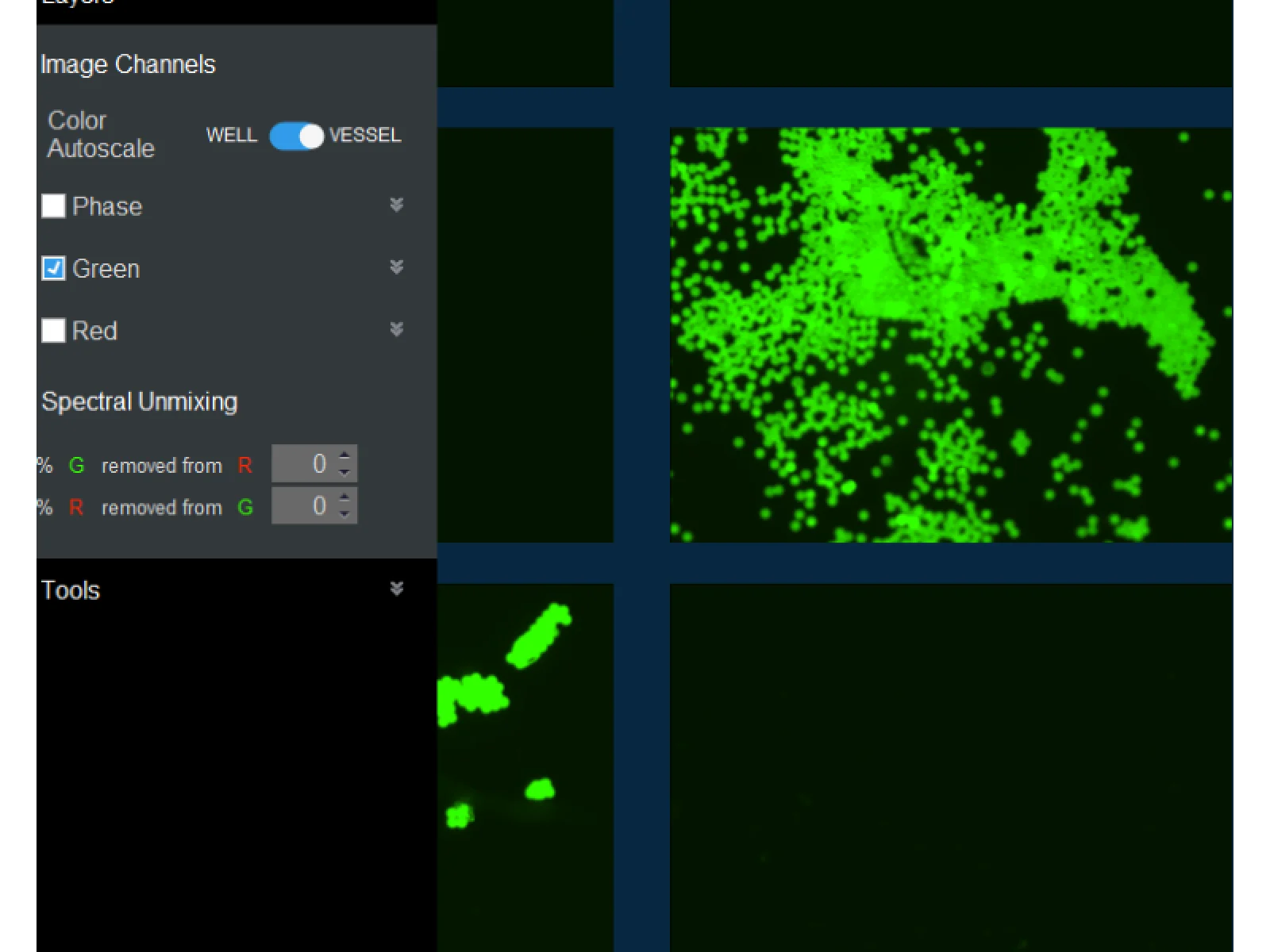

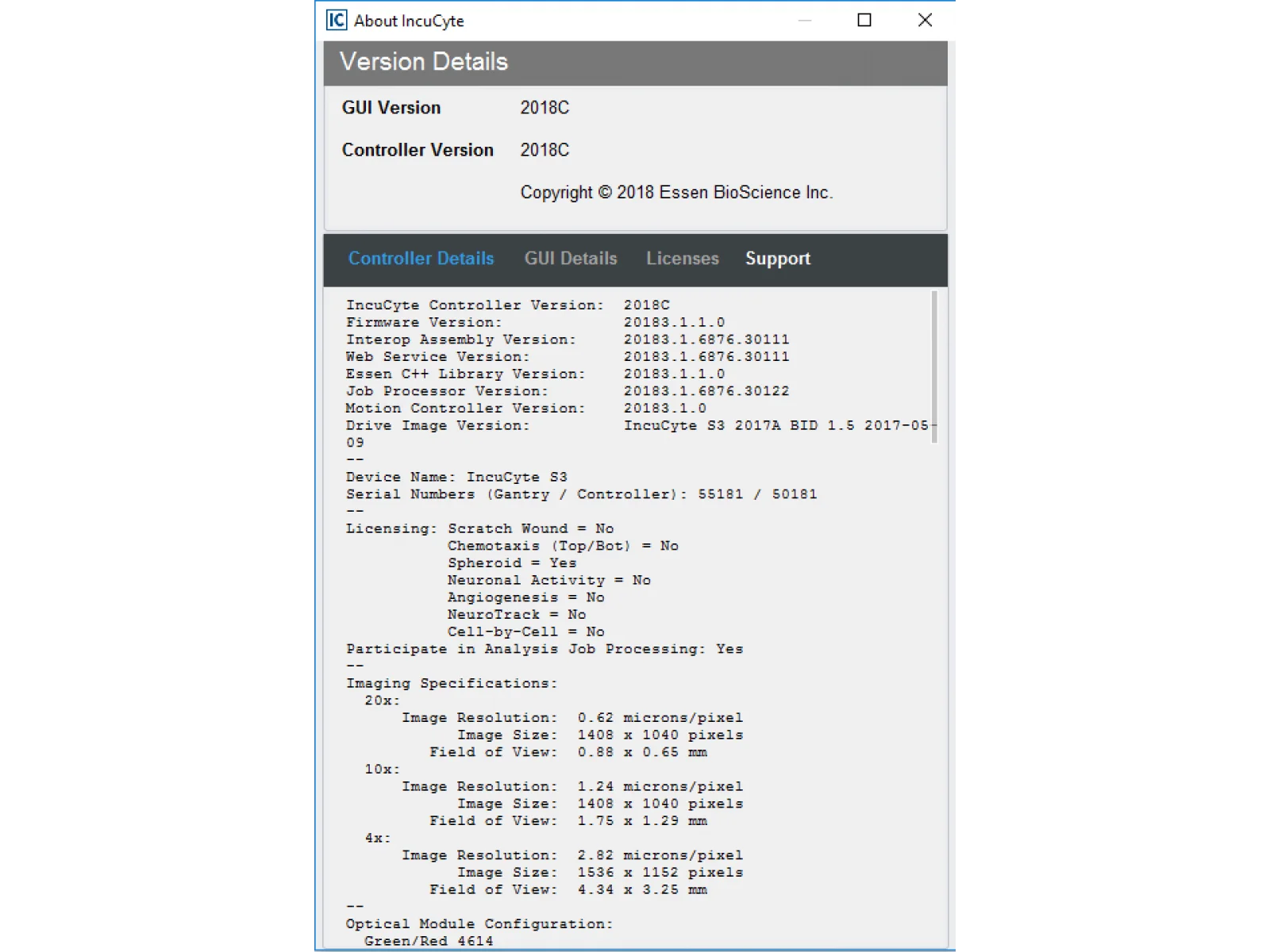

Incucyte S3 live-cell analysis system with the Green/Red optical module, made up of the microscope gantry and the controller. This is an earlier S3 with Essen BioScience badging. Configuration: Incucyte S3 gantry with Green/Red dual colour module and 4X, 10X and 20X objectives on the automated turret, three tray positions; Incucyte S3 controller with 16.37 TB data storage; Basler ace 1920-155um camera. Condition and testing: serviced and tested by the seller's in-house service team and reported fully functional. The seller powered the system on with a normal start-up, initialised it with no system errors, confirmed a stable software connection, completed the warm-up, ran motion, optical and fluorescence calibrations, cleaned and inspected the mechanical and optical components, and completed imaging scans in all channels with the 4X, 10X and 20X objectives. Good cosmetic condition. Software and computer: Incucyte controller software 2019C with user interface 2018C. Licensed modules shown on the controller: Spheroid. Not licensed: Scratch Wound, Chemotaxis, Neuronal Activity, Angiogenesis, NeuroTrack, Cell-by-Cell. A monitor, keyboard and mouse are supplied with the controller.
What's Included
Incucyte S3 gantry with Green/Red optical module; Incucyte S3 controller; 4X, 10X and 20X objectives; monitor, keyboard and mouse; power and communication cables; remote instrument set-up and training session.
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Sartorius
- Model
- Incucyte S3
- Phase
- Single
- Components
- Microscope gantryand external controller
- Objectives
- 4X, 10X, 20X on an automated turret
- System Type
- Live-cell imaging and analysis system that operates inside a cell culture incubator
- Current Draw
- 3.5 A max at 120 V, 1.75 A max at 240 V
- Vessel Trays
- 3
- Imaging Modes
- HD phase contrast, green fluorescence, red fluorescence
- Other Labware
- 35, 60, 100 and 150 mm dishes and chamber slides
- Optical Module
- Green/Red dual colour module
- Max Microplates
- 6
- Gantry Weight Kg
- 23.6
- Image Resolution
- 4X: 2.82 µm/pixel; 10X: 1.24 µm/pixel; 20X: 0.62 µm/pixel
- Operating System
- 64-bit Windows 10
- Flask Compatibility
- T-25, T-50, T-75, T-100, T-175, T-225
- Controller Weight Kg
- 18.6
- Fluorescence Channels
- 2
- Gantry Dimensions Hwd
- 32.0 x 45.0 x 47.8 cm
- Incubator Requirement
- Incubator with more than 200 L internal volume
- Internal Data Storage
- 27.3 TB RAID and 64 GB RAM on instruments manufactured after 31 May 2021; earlier controllers show 16.4 TB
- Exported Image Formats
- JPEG, PNG, TIFF, MetaMorph Multi Dimensional File v2.0, Meta Imaging Series TIFF
- Exported Movie Formats
- WMV, AVI, MPEG-4
- Excitation Emission Red
- Excitation 567 to 607 nm, emission 622 to 704 nm
- Controller Dimensions Hwd
- 14.0 x 43.2 x 57.7 cm
- Excitation Emission Green
- Excitation 441 to 481 nm, emission 503 to 544 nm
- Gantry Operating Conditions
- 0 to 42 °C, 5 to 95 % RH non-condensing
- Controller Operating Conditions
- 0 to 33 °C, 5 to 90 % RH non-condensing
- Camera
- Basler ace 1920-155um
- Data Storage
- 16.37 TB
- Well Formats
- 6, 12, 24, 48, 96 and 384 well
- Seller Tested
- true
- Licensed Modules
- Spheroid
- Software Version
- Controller 2019C, GUI 2018C
- Objectives Fitted
- 4X, 10X, 20X
- Optical Module Fitted
- Green/Red
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
