ThalesNano H-Cube Pro Flow Hydrogenation Reactor
ThalesNano · H-Cube Pro · 2015 · ref ML-2A450703
Price
Price on quoteCustom configuration. Final price on quote only.
We plant a tree for every item soldDescription
About this model
Continuous-flow hydrogenation reactor generating hydrogen on board by water electrolysis, with CatCart catalyst cartridges, up to 100 bar and 150 °C.
This unit
ThalesNano H-Cube Pro continuous-flow hydrogenation reactor, serial 190/2015, with its ThalesNano micro HPLC feed pump. The H-Cube Pro generates hydrogen on board by water electrolysis, so no hydrogen cylinder is needed, and runs CatCart catalyst cartridges at up to 100 bar and 150 °C. Configuration: - H-Cube Pro reactor with touchscreen, serial 190/2015 - ThalesNano 170269 micro HPLC pump, serial Z0056344 Condition and testing: used, sold as is with no guarantee or warranty. The seller states it powers on; no functional test is reported. Software and computer: controlled from the on-board touchscreen; no PC needed.
Equipment History & Condition
Surplus equipment sold as is; ships from the USA.
What's Included
ThalesNano H-Cube Pro reactor ThalesNano 170269 micro HPLC pump (S/N Z0056344)
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Fair
- Year Manufactured
- 2015
- Manufacturer
- ThalesNano
- Model
- H-Cube Pro
- Pump
- External HPLC pump supplied
- Power
- [object Object]
- Catcarts
- 30 mm or 70 mm CatCarts
- Flow Rate
- 0.3 – 3 mL/min
- Concentration
- Up to 2.0 M depending on the substrate, at 1 mL/min with a 70 mm CatCart
- H2 Production
- Up to 60 NmL/min
- Pressure Range
- Atmospheric to 100 bar
- Water Reservoir
- 300 mL
- Temperature Range
- 10 to 150 °C
- Water Specification
- Deionized water with maximum conductivity of 71 nS/cm
- Instrument Weight Kg
- [object Object]
- Instrument Dimensions
- [object Object]
- Gas Module Connections
- Inlet: male 1/8" OD stainless steel, 5/64" ID, 1/64" wall; Outlet: 1/16" stainless steel line with Swagelok fitting and ferrule
- Software Compatibility

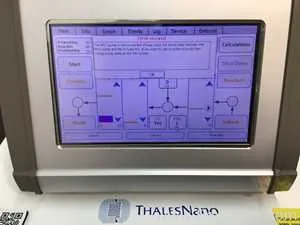

- Touchscreen interface with real-time monitoring, data logging and export, method storage, timer function and Symplex optimisation algorithm
- Gas Module Flow Rates N2
- 0 – 100 NmL/min, 100-1000 NmL/min
- Gas Module Inlet Pressure
- Minimum: 25 bar, Maximum 140 bar
- Gas Module Outlet Pressure
- Maximum 100 bar
- Gas Module Compatible Gases
- compressed air, syngas, H2, O2, CO, CH4, C2H6, C2H4, Ar, He, N2, N2O, NO, CO2
- Gas Module MFC Calibrating Gas
- Nitrogen
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
