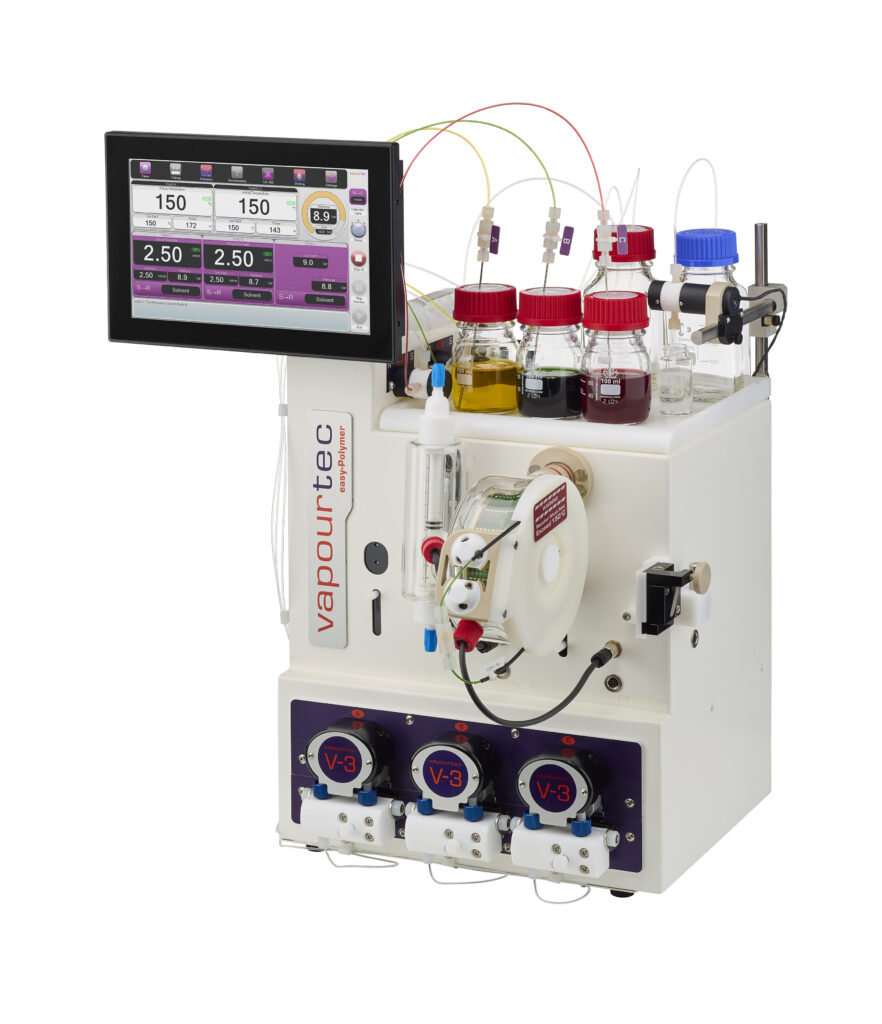

Vapourtec E-Series Flow Chemistry System (easy-Medchem, 3 pumps)

Specifications

Condition

Good

Manufacturer

Vapourtec

Model

E-Series easy-Medchem

Other

Low pressure inert gas blanketing; collection valve and gantry

Pumps

2 or 3 V-3 pumps

Flow Range

10 µL/min to 10 mL/min

Part Numbers

50-1306 E-Series system, 2 pumps + inert kit + collection gantry + open-access interface + standard tube reactor + column reactor; 50-1307 same with 3 pumps

Configuration

Advanced E-Series system, optimised for medicinal chemistry; two or three independent pumps; supplied with two reactors; manual control via touch panel

Pump Pressure

Up to 10 bar

Package Includes

An adjustable packed bed column reactor, ambient to 150 °C; A tube reactor assembly, ambient to 150 °C; User interface with manual control software; An Organometallic pumping kit; 2 or 3 V-3 pumps; Product collection gantry

Fixed Bed Reactor

Ambient to 150°C; Sizes from 3 ml to 20 ml; Glass and PTFE reactors

Reactor Positions

2 individual reactor positions, independently temperature controlled

Flow Range V3 Pump

0.10 to 10.0 mL/min

Standard Tube Reactor

Ambient to 150°C; PFA, stainless steel or Hastelloy

Software Compatibility

Touchscreen user interface with manual control software. Optional E-Series automation software sold separately.

Back Pressure Regulator

Manually adjustable back pressure regulator

Cooled Tube Reactor Option

-70°C to ambient

High Temperature Tube Reactor Option

Ambient to 250°C; Options for 50 bar or 200 bar
