ThalesNano H-Cube Pro Flow Hydrogenation Reactor (with Gas Module)
ThalesNano · H-Cube Pro · 2013 · ref ML-FF7518B1
Price
Price on quoteCustom configuration. Final price on quote only.
We plant a tree for every item soldDescription
About this model

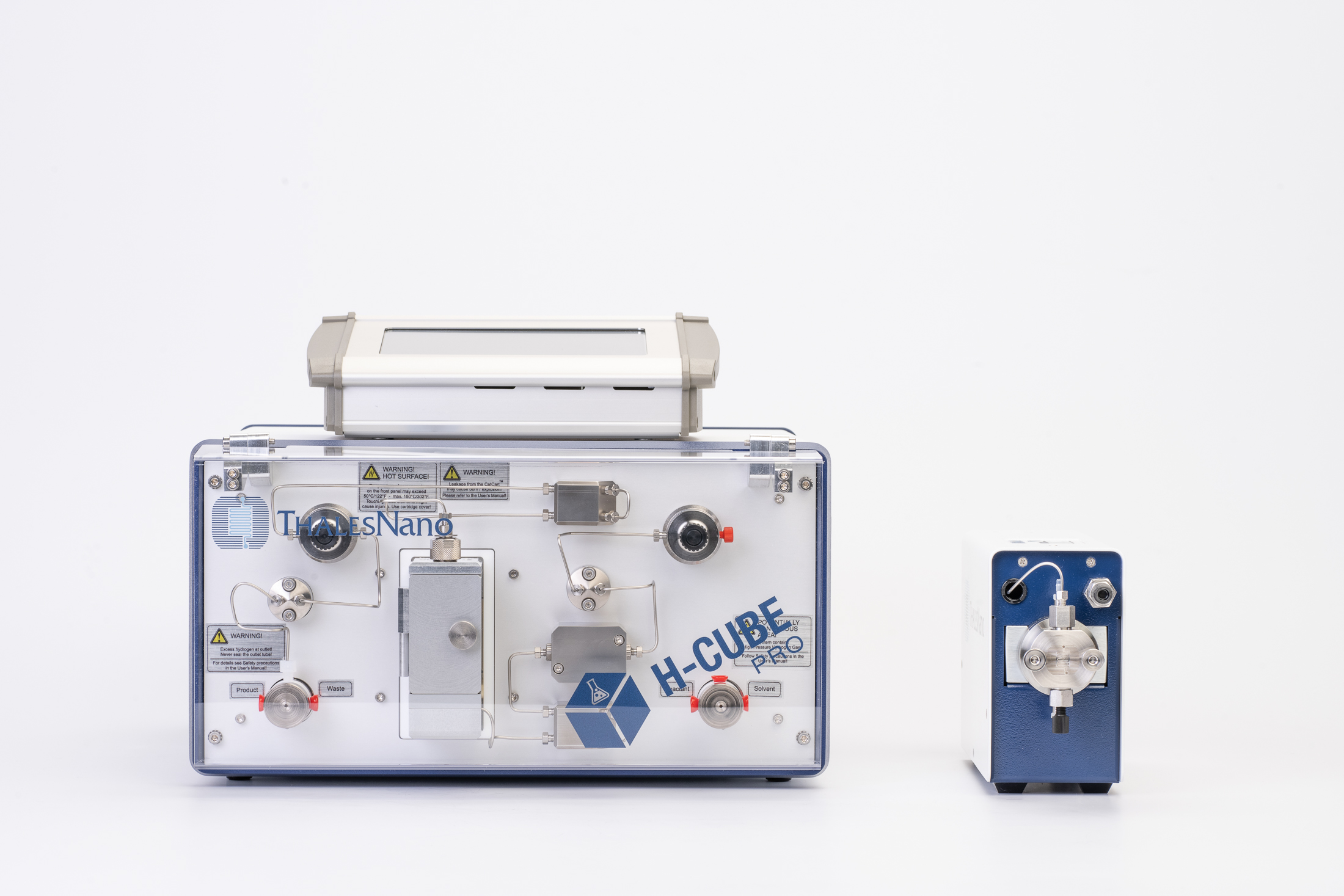

Continuous-flow hydrogenation reactor generating hydrogen on board by water electrolysis, with CatCart catalyst cartridges, up to 100 bar and 150 °C.
This unit

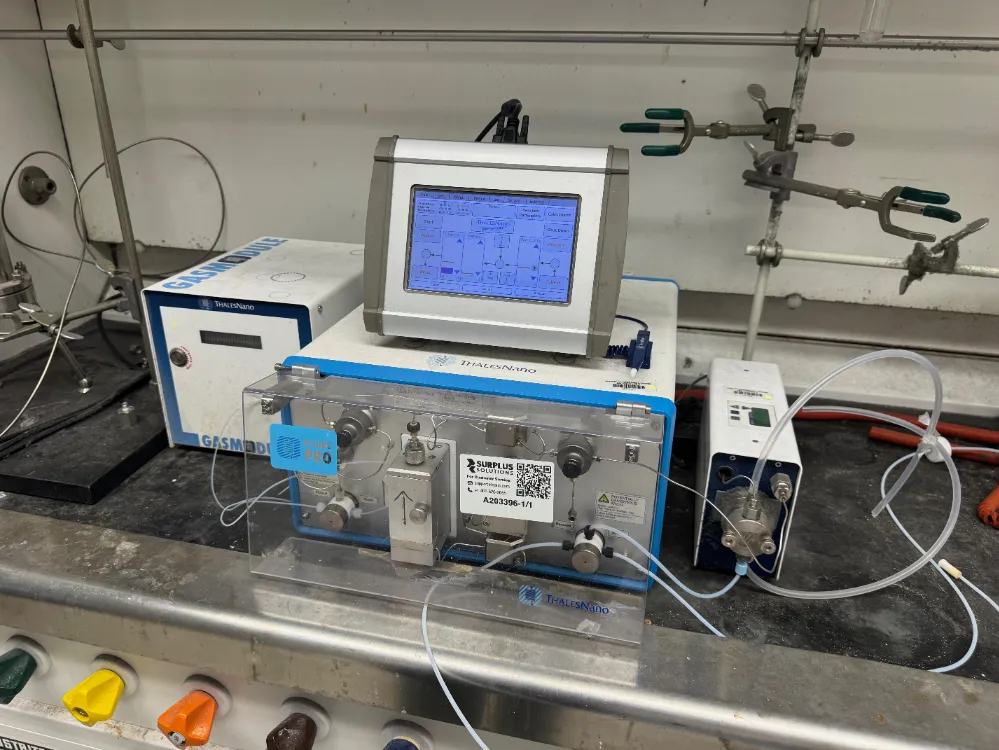

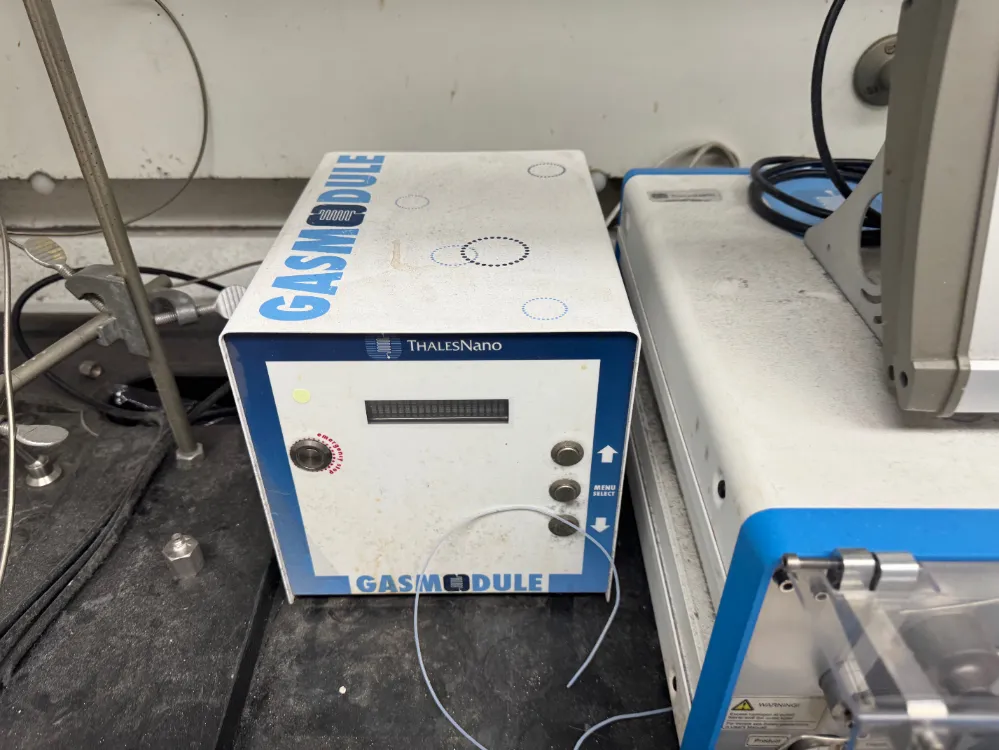

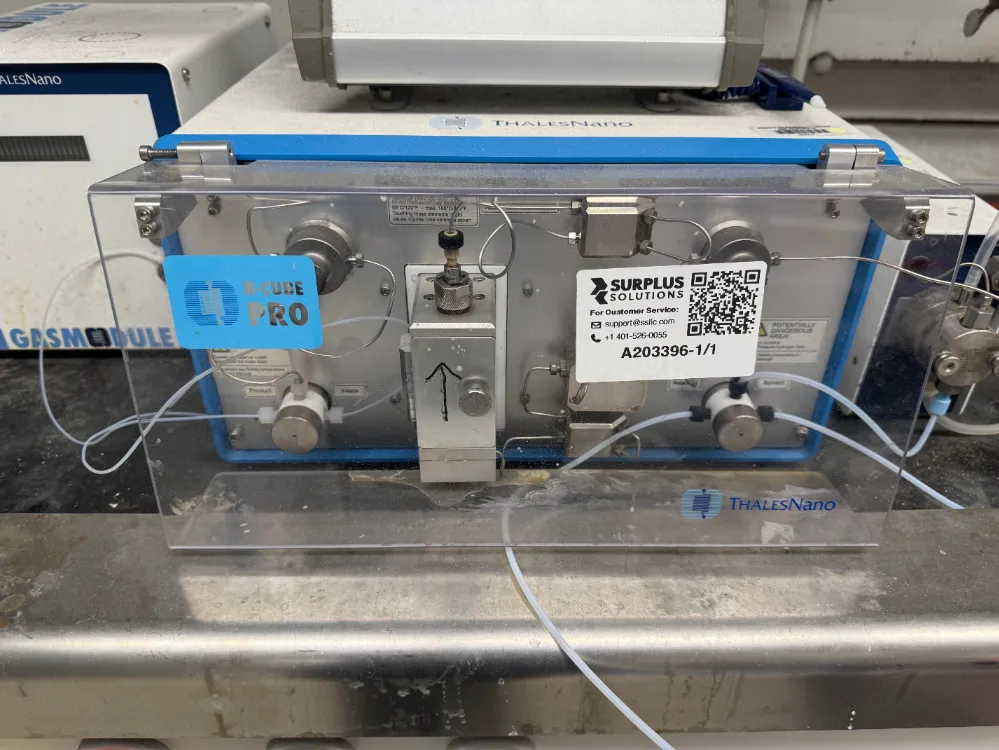

ThalesNano H-Cube Pro continuous-flow hydrogenation reactor, serial 111, manufactured 2013, with the Gas Module for introducing other gases, touchscreen controller and an auxiliary control module. It generates hydrogen on board by water electrolysis and runs CatCart catalyst cartridges at up to 100 bar and 150 °C. Configuration: - H-Cube Pro reactor with touchscreen controller, serial 111 - Gas Module with regulator - Auxiliary control module Condition and testing: used. Software and computer: on-board touchscreen control; no PC needed. For flow hydrogenation, and with the Gas Module for reactions with other gases such as CO, O2 or syngas at controlled flow. Not a general flow chemistry system.
Equipment History & Condition
Used; manufactured 2013. Ships from the USA.
What's Included
ThalesNano H-Cube Pro with touchscreen controller Gas Module regulator Auxiliary control module Connected tubing and lines
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Year Manufactured
- 2013
- Manufacturer
- ThalesNano
- Model
- H-Cube Pro
- Pump
- External HPLC pump supplied
- Power
- [object Object]
- Catcarts
- 30 mm or 70 mm CatCarts
- Flow Rate
- 0.3 – 3 mL/min
- Concentration
- Up to 2.0 M depending on the substrate, at 1 mL/min with a 70 mm CatCart
- H2 Production
- Up to 60 NmL/min
- Pressure Range
- Atmospheric to 100 bar
- Water Reservoir
- 300 mL
- Temperature Range
- 10 to 150 °C
- Water Specification
- Deionized water with maximum conductivity of 71 nS/cm
- Instrument Weight Kg
- [object Object]
- Instrument Dimensions
- [object Object]
- Gas Module Connections
- Inlet: male 1/8" OD stainless steel, 5/64" ID, 1/64" wall; Outlet: 1/16" stainless steel line with Swagelok fitting and ferrule
- Software Compatibility

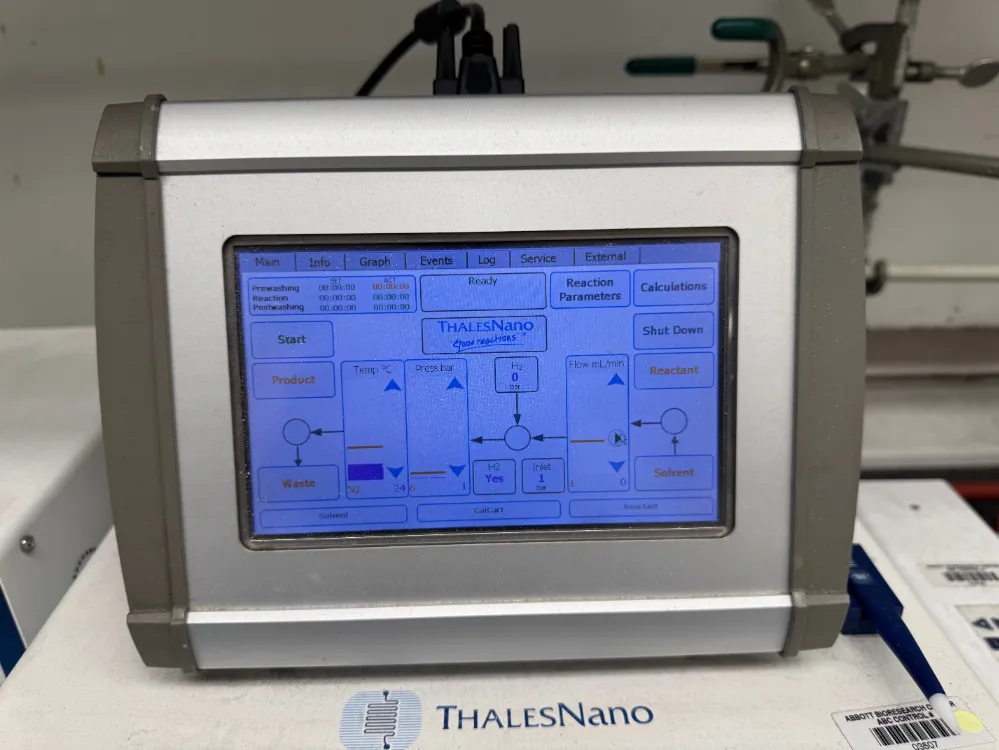

- Touchscreen interface with real-time monitoring, data logging and export, method storage, timer function and Symplex optimisation algorithm
- Gas Module Flow Rates N2
- 0 – 100 NmL/min, 100-1000 NmL/min
- Gas Module Inlet Pressure
- Minimum: 25 bar, Maximum 140 bar
- Gas Module Outlet Pressure
- Maximum 100 bar
- Gas Module Compatible Gases
- compressed air, syngas, H2, O2, CO, CH4, C2H6, C2H4, Ar, He, N2, N2O, NO, CO2
- Gas Module MFC Calibrating Gas
- Nitrogen
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
