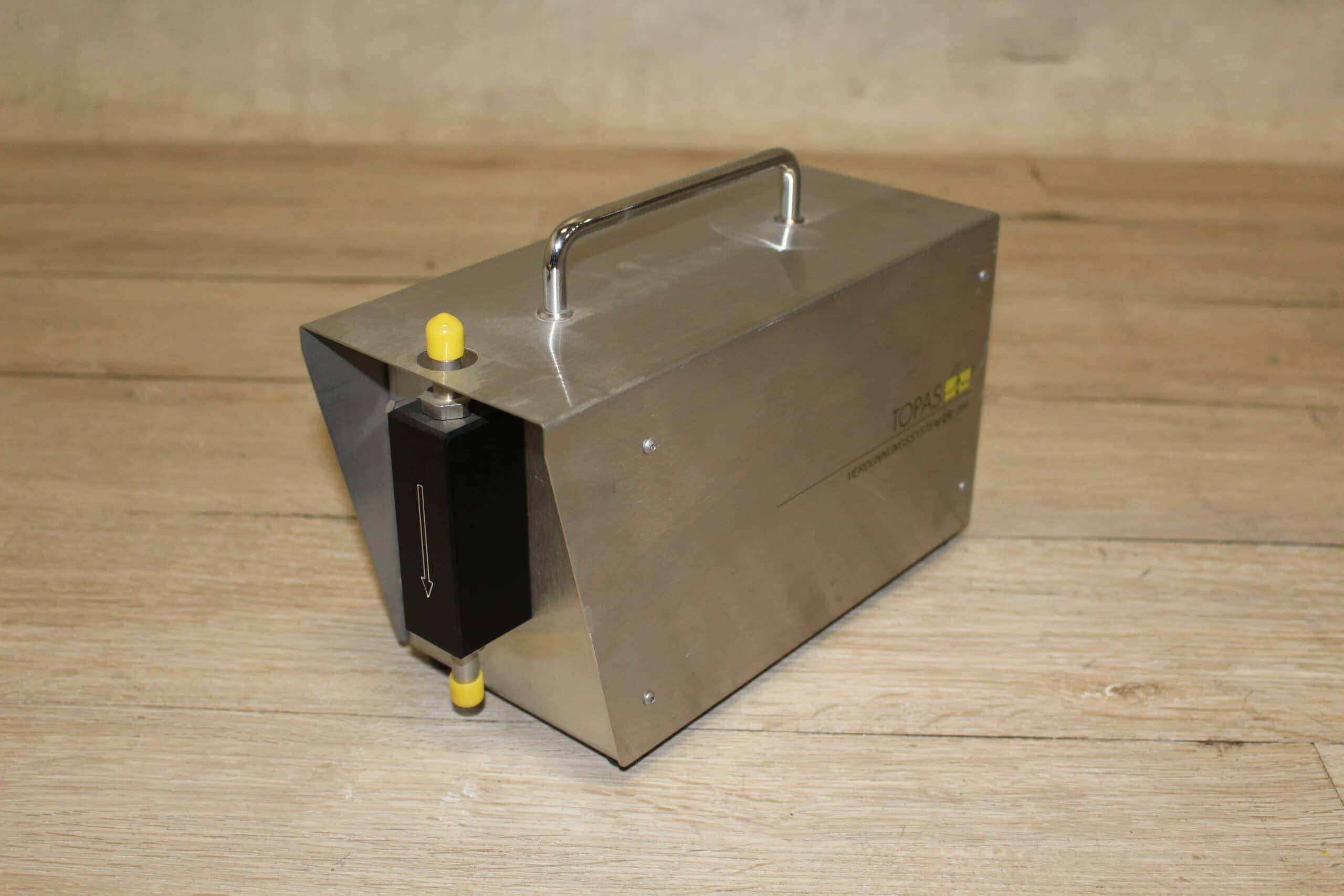

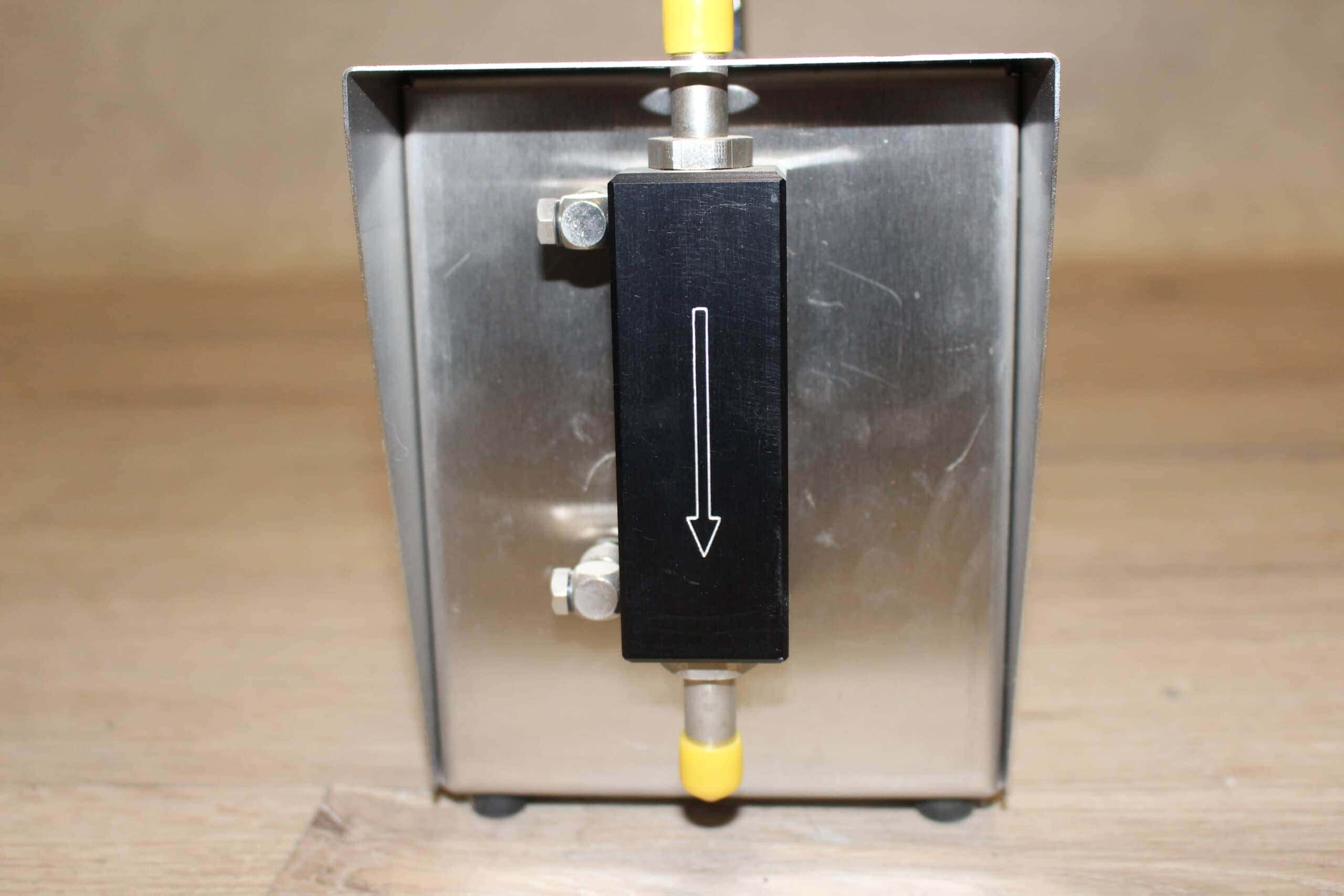

Topas DIL 554 Dilution System
Topas · DIL 554 · ref ML-4A399F03
Description
Dilution System for static dilution (1:100) of aerosols at static air flow rate (28,3 L/min) for mobile operation. The main application of the DIL 554 Aerosol Dilution System is in the verification of test aerosols for testing clean rooms. Purpose of conditioning: dilution of aerosols Sample condition, outlet: diluted aerosol Dilution factor: 100 Aerosol, volumetric flow rate: 28.3 L/min Setting method: manual Sample condition, inlet: non-diluted aerosol Power supply: 9 V battery block Hose connector: Ø 10 mm Pressure drop: approx. 0,6 kPa Environmental condition, temperature: 10 to 50°C Environmental condition, max. counterpressure: ± 30 kPa Dimensions (WxHxD): 120 x 195 x 300 mm Weight: 3,2 kg
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Topas
- Model
- DIL 554
- Warranty
- 6 months
- Power Supply
- 9 V battery block
- Pressure Drop
- approx. 0,6 kPa
- Hose Connector
- Ø 10 mm
- Setting Method
- manual
- Dilution Factor
- 100
- Dimensions Wxhxd
- 120 x 195 x 300 mm
- Sample Condition Inlet
- non-diluted aerosol
- Purpose Of Conditioning
- dilution of aerosols
- Sample Condition Outlet
- diluted aerosol
- Aerosol Volumetric Flow Rate
- 28.3 L/min
- Environmental Condition Temperature
- 10 to 50°C
- Dilution System For Static Dilution 1
- 100) of aerosols at static air flow ratefor mobile operation.
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: Netherlands
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
contact MerkaLoop about this equipment
