Biotage Selekt Flash Chromatography System (SEL-2SV)
Biotage · Selekt · ref ML-D9CCC63F
60 days, parts and labour. A support case must be opened within the warranty period; keep the original packing.
Description
About this model
Automated flash purification system with two column channels, four solvent inlets, 1 to 300 mL/min at up to 30 bar, UV (200-400 nm) or UV-Vis (198-810 nm) detection and RFID rack handling. Optional Spektra software licence.
This unit

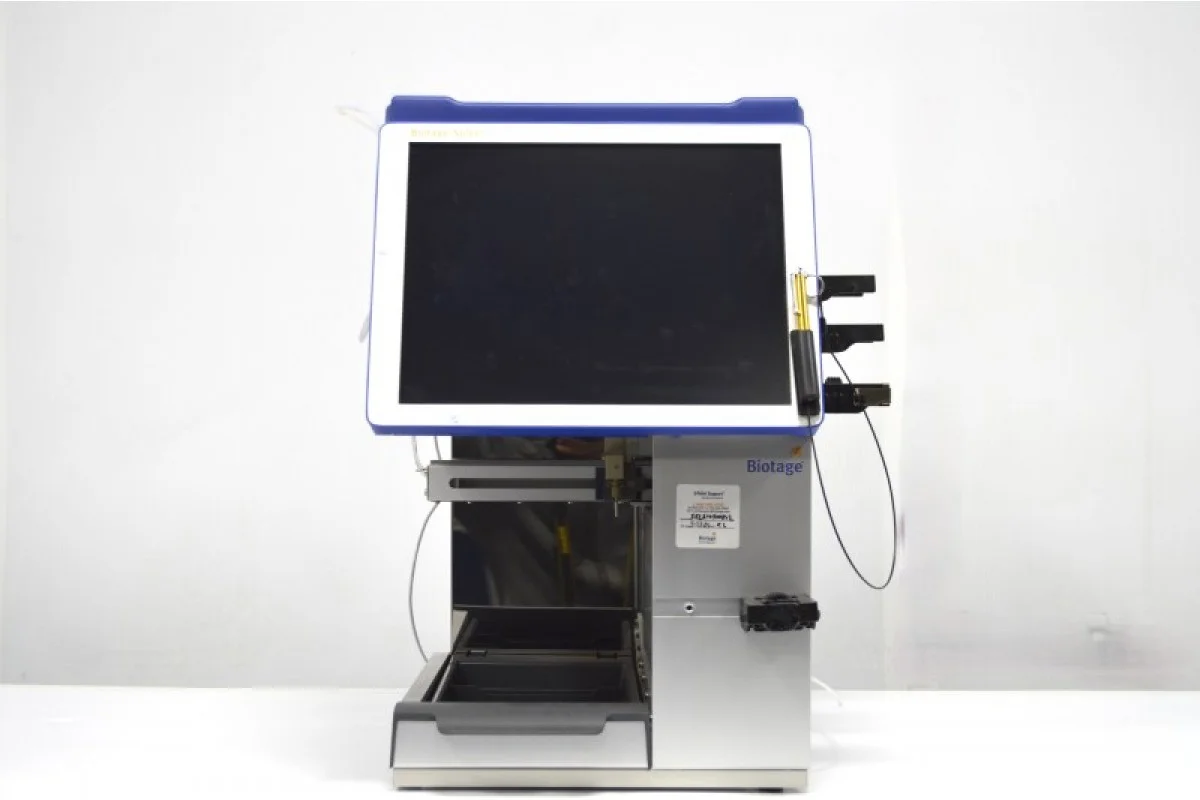

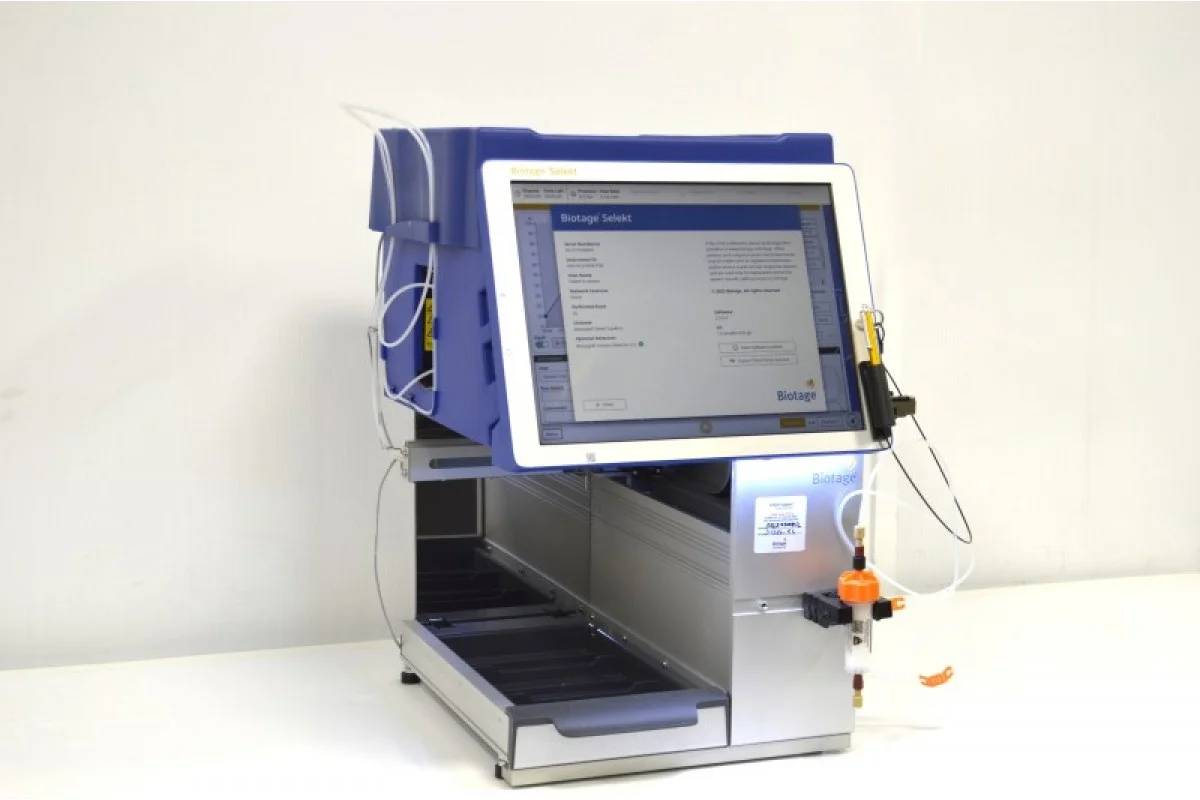

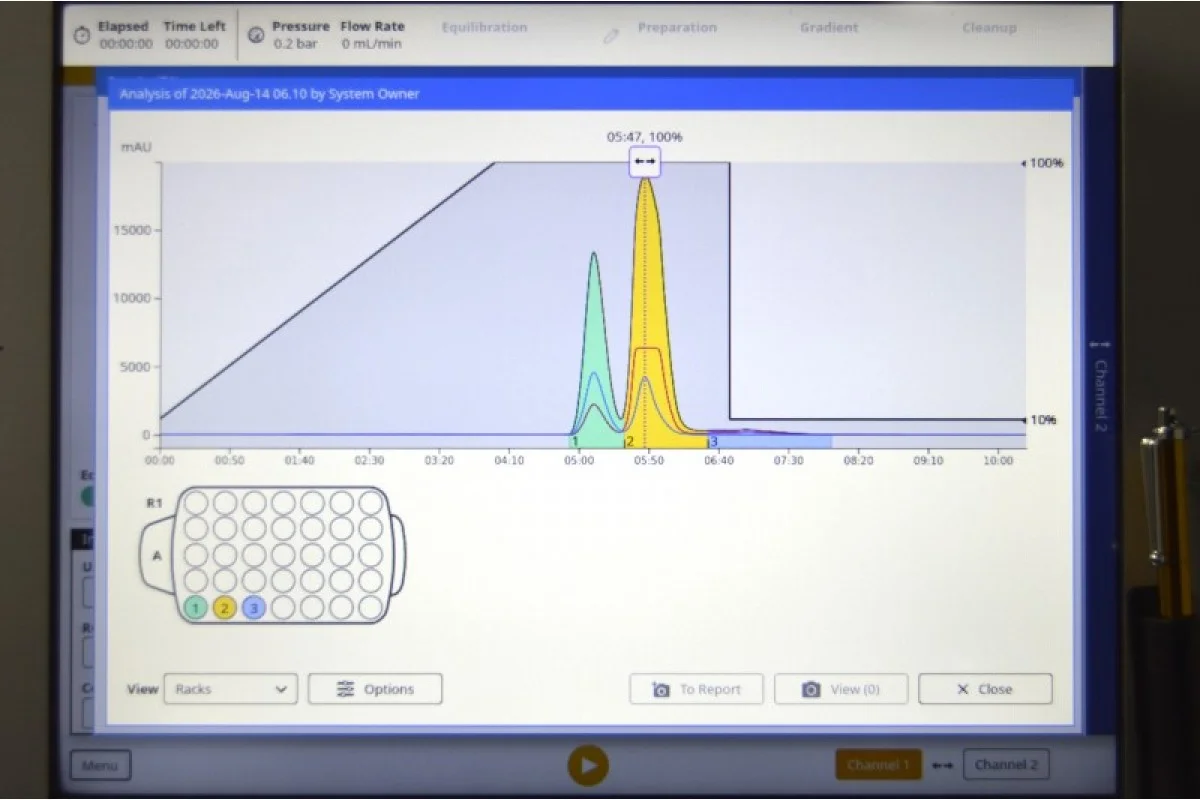

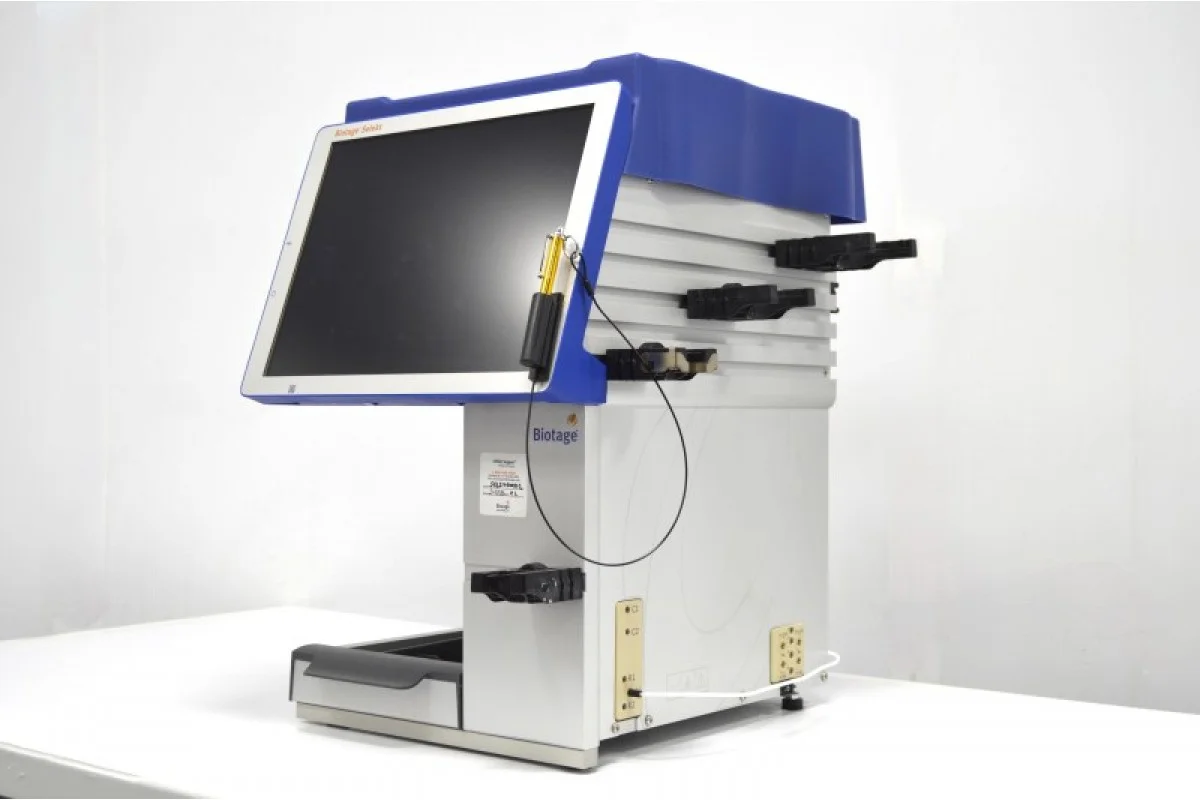

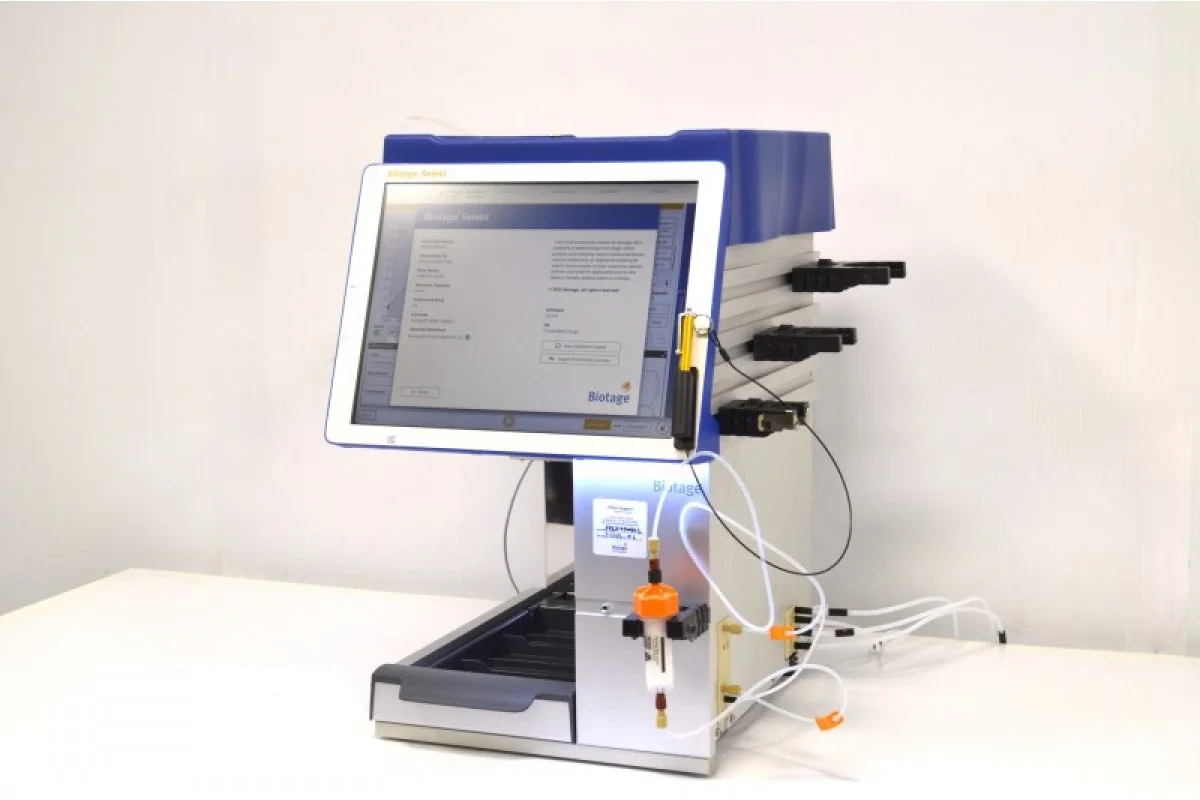

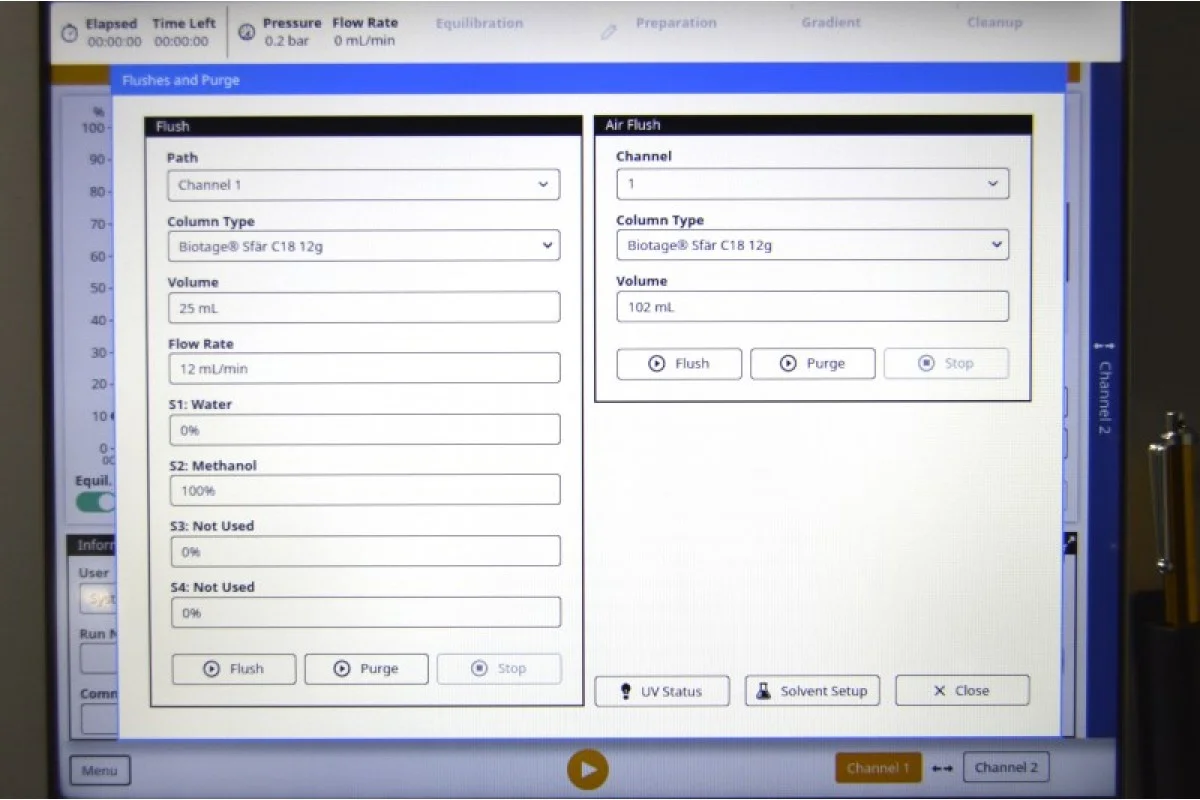

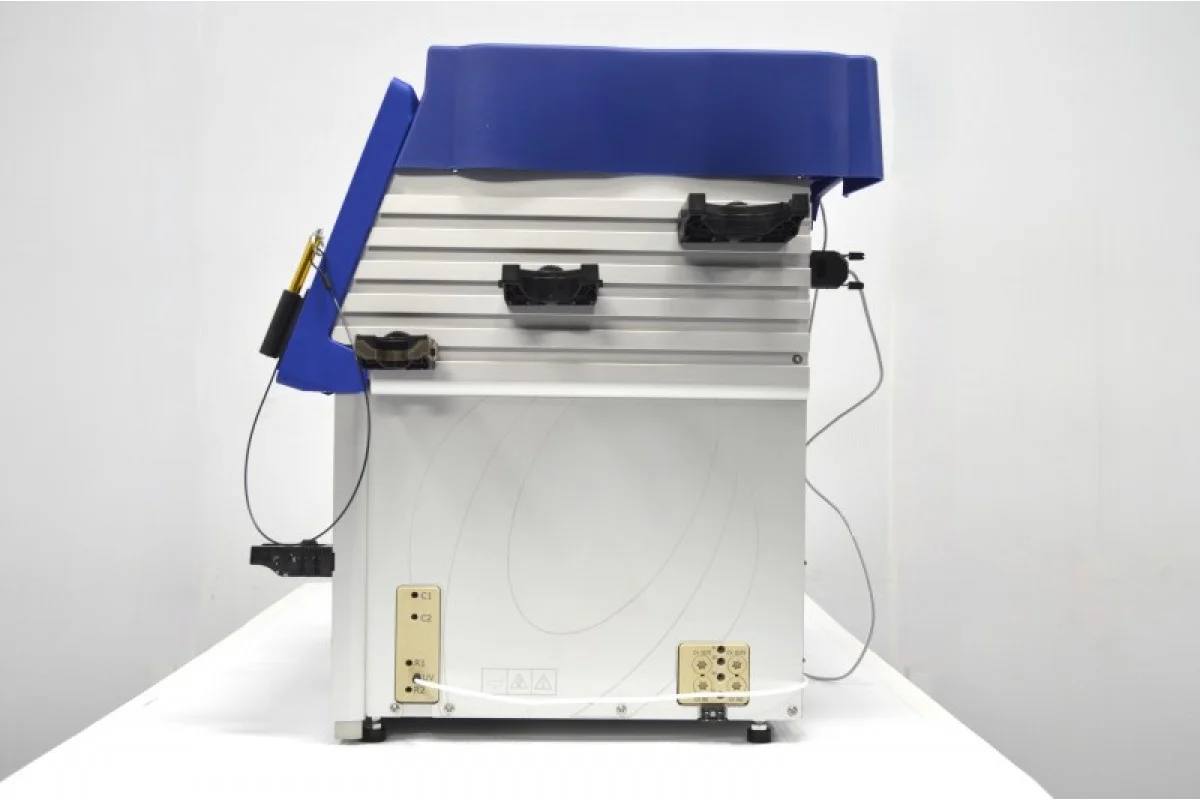

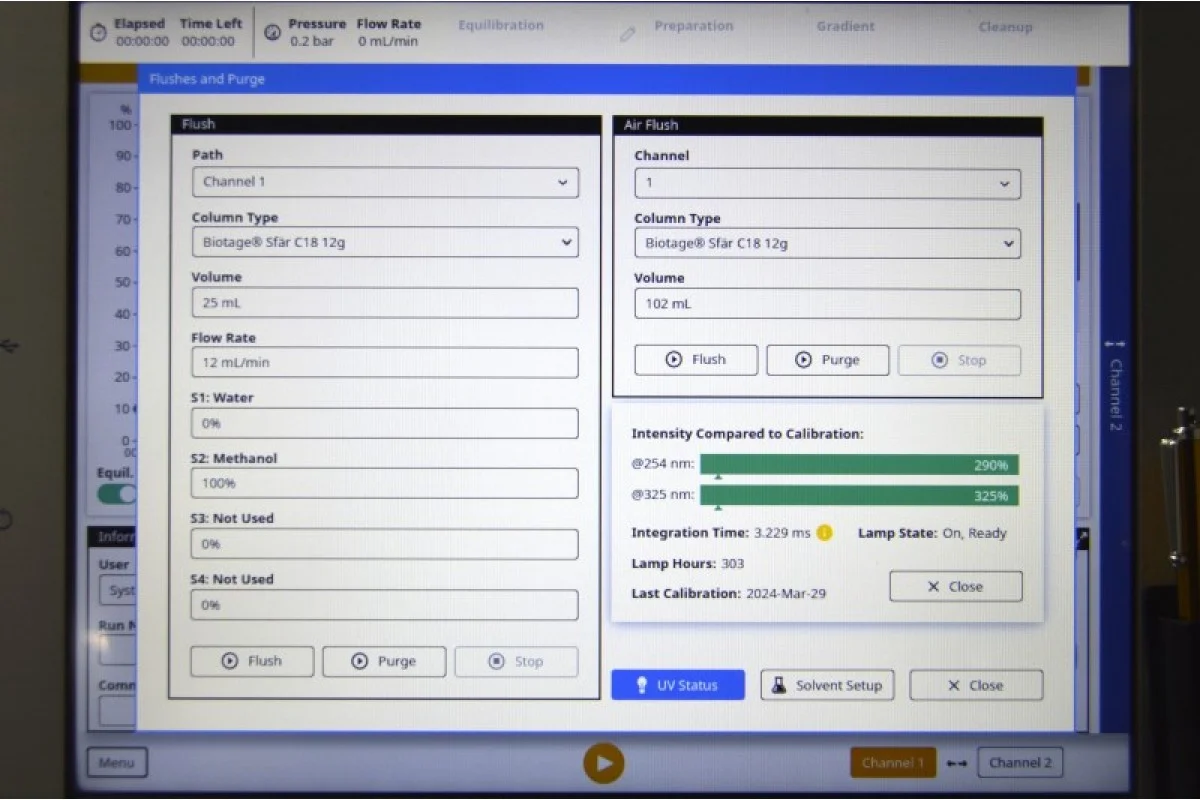

Biotage Selekt SEL-2SV automated flash purification system with Spektra licence: two column channels, four solvent channels, UV detector 200 to 400 nm, 1 to 300 ml/min at up to 30 bar (435 psi), QR column identification, RFID rack handling and solvent tray leak detection. Configuration: - Biotage Selekt SEL-2SV, serial SEL210500842 - Spektra licence - Solvent detector Condition and testing: Pre-owned, good condition with only 26 runs; some cosmetic scratches on the touchscreen. Lamp 303 hours, last UV calibration 29 March 2024. Serviced by the seller, who verified power-up and initialisation, fraction arm positioning, RFID rack detection, the QR scanner, solvent ports 1 to 4, method creation, gradient formation, flush and air flush, and a reverse-phase run with a phenacetin and N-benzylbenzamide test mix. Passed all tests. Software and computer: On-board software 2.3.0.4 with Spektra licence; no PC needed. Not included: glassware, test tubes, columns.
Equipment History & Condition
Pre-owned; serviced and tested by the seller's in-house service team. Ships from the USA.
What's Included
Biotage Selekt SEL-2SV Collection tray for three racks Collection rack 4 column holders (10, 25, 50 and 200 g) 4 solvent lines with weighted filters 4 solvent bottle caps (38-430 thread) Solvent tray with leak sensor Standard power cord Touchscreen stylus
Pre-owned equipment sold by a third-party reseller through MerkaLoop. Ships directly from the reseller.
Specifications
- Condition
- Good
- Manufacturer
- Biotage
- Model
- Selekt
- Max Pressure
- 0–30 bar. bar
- Ports
- Ethernet port, 4 USB ports, 2 D-Sub 9-pin ports, and AUX port.
- Power
- Electrical supply: 100–127, 220–240 VAC, 50/60 Hz. Connect only to a grounded outlet. Fuses: T4A-250 VAC, P/N 411916. Max power consumed: 300 VA.
- Spektra
- Add-on software licence for the Selekt family. Lambda-all scans all wavelengths at once for full spectral analysis of peaks as they elute; lambda-all and two individual wavelengths can be shown at once; post-run processing, automatic baseline correction and wavelength focusing.
- Firmware
- Pump V0.13.25, Controller V1.18.64, UV detector V0.10.22, RFID V1.06.04
- Interface
- 15.0"solvent stable TFT LCD touch screen.
- Data Entry
- Touchscreen or USB connection to mouse/keyboard.
- Rack Types
- 13 x 100 mm, 16 x 100 mm, 16 x 150 mm, 18 x 150 mm, 25 x 150 mm, 120 mL, 240 mL, and 480 mL.
- Part Numbers
- SEL-2SV = Biotage Selekt, Two Channel, Single Collection Bed, UV Detector; SEL-2SW = Biotage Selekt, Two Channel, Single Collection Bed, UV-VIS Detector
- Certification
- CE and FCC marked. CB and NRTL certified.
- Network Access
- Included
- Solvent Supply
- A maximum of 4 x 5 liter reservoirs on the optional secondary solvent containment. Larger reservoirs than 5 liters must be placed elsewhere. Note: To be compliant with the secondary containment regulations, do not use containers larger than 4 liters.
- Column Channels
- Two
- Flow Rate Range
- 1–300 mL/min, in 1 mL/min increments.
- Solvent Channels
- Four solvent lines; binary gradient with an additional modifier
- Wetted Materials
- stainless steel, FFKM, PEEK, PP, PE, FEP, PTFE, silica, carbon fiber filled PTFE, and fused silica
- Column Size Range
- Up to 340 g; up to 1.85 kg with an added safety valve
- Gradient Precision
- ±2%.
- Rack Identification
- Rack Handling + RFID
- Instrument Weight Kg
- 23–25 kgdepending on the system configuration
- Operating Conditions
- Location: A laboratory fume hood with the capacity to handle leakage of solvents and provide suitable airflow to prevent the build-up of flammable vapors. Ambient temperature: Operating: 15–32 °C. Storage and transportation: -25–60 °C. Humidity: 20–95% RH. Altitude: Operation: up to 2000 m above sea level. Pollution degree 2.
- Column Identification
- QR Code Scanner
- Instrument Dimensions
- Footprint:335/550 mm x 393 mm. The width depends on using one or two collection trays. Height: 545 mmexcluding secondary solvent containment.
- Software Compatibility
- On-board UNIX-based Java interface with full on-screen QWERTY keyboard. Optional: Biotage Spektra Software Package, Selekt Remote Control, Selekt Monitor API.
- Max Number Of Fractions
- 144 fractions with no rack changeusing 13 x 100 mm racks.
- Max Total Fraction Volume
- 3,840 mL with no rack change, 480 mL bottle racks.
- Internal Detector Wavelength
- 200–400 nmor 198–810 nm. Amplitude range: 0 to 6400 mAU; accuracy of ±5 mAU.
- Usage
- 26 runs, lamp 303 h
- Technique
- Flash
- Detector Types
- UV 200-400 nm; Biotage Solvent Detector
- Software Included

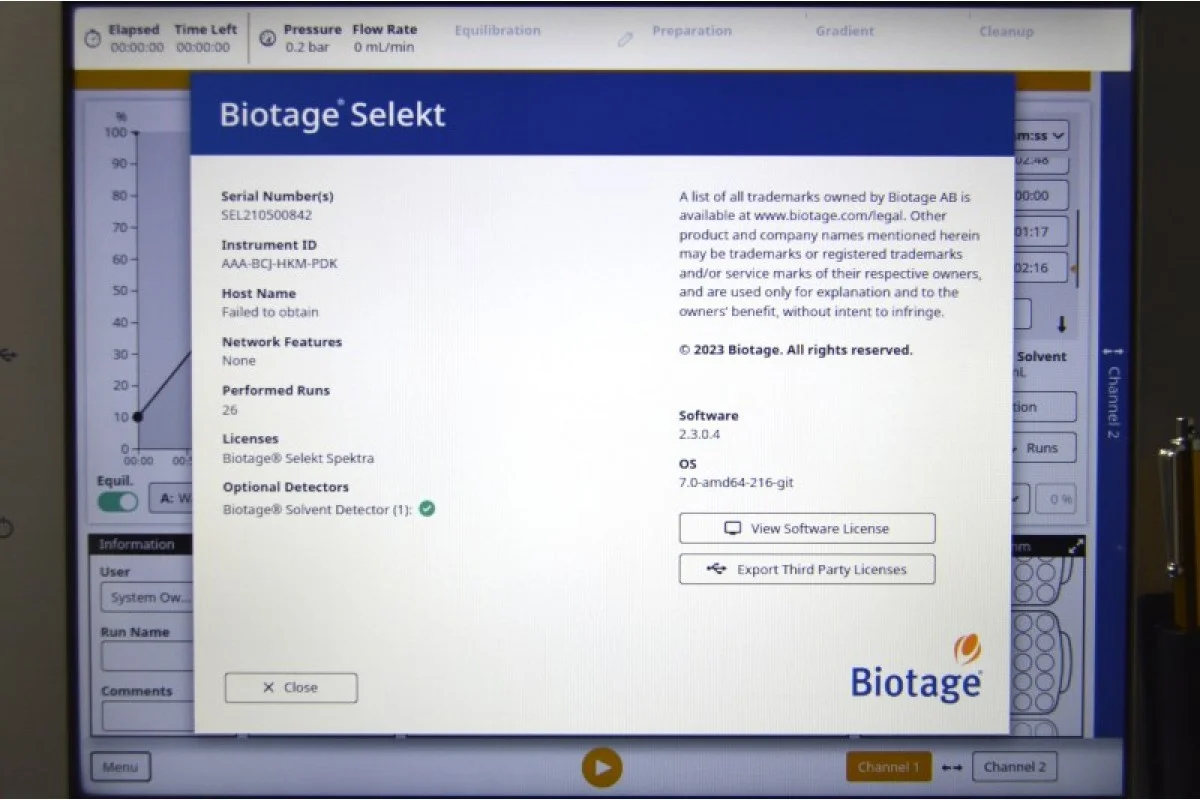

- Selekt software 2.3.0.4, Spektra licence
Shipping & Logistics
MerkaLoop coordinates all logistics. Timelines depend on seller location and your destination.
- MerkaLoop coordinates all logistics
- Shipping quoted before payment
- Ships globally
Shipping from: United States
It is your responsibility to check local regulations and requirements for the handling, acceptance, and servicing of secondhand and new equipment.
