Radleys Reactor-Ready Pilot Lab Reactor (20 L)

Description

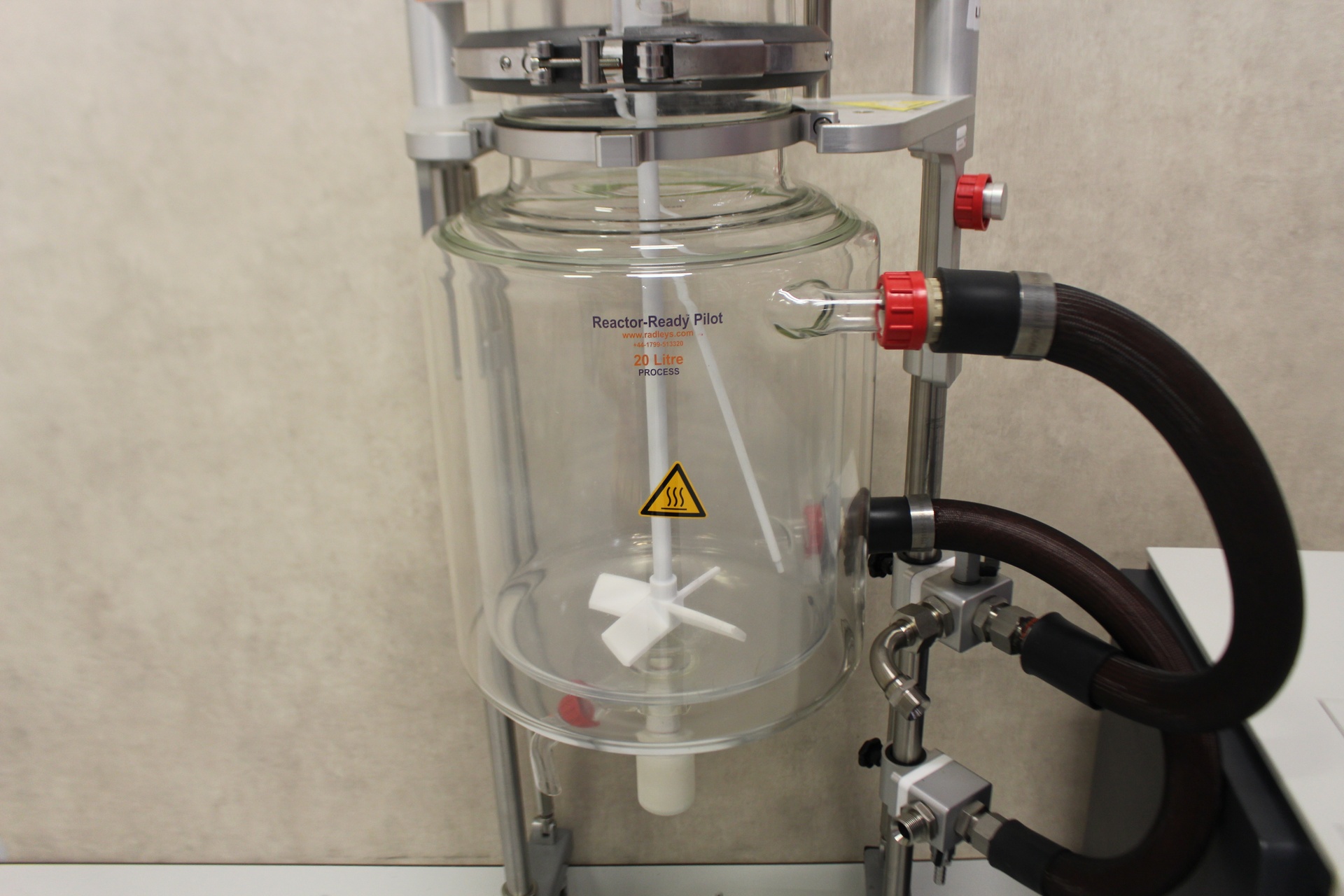

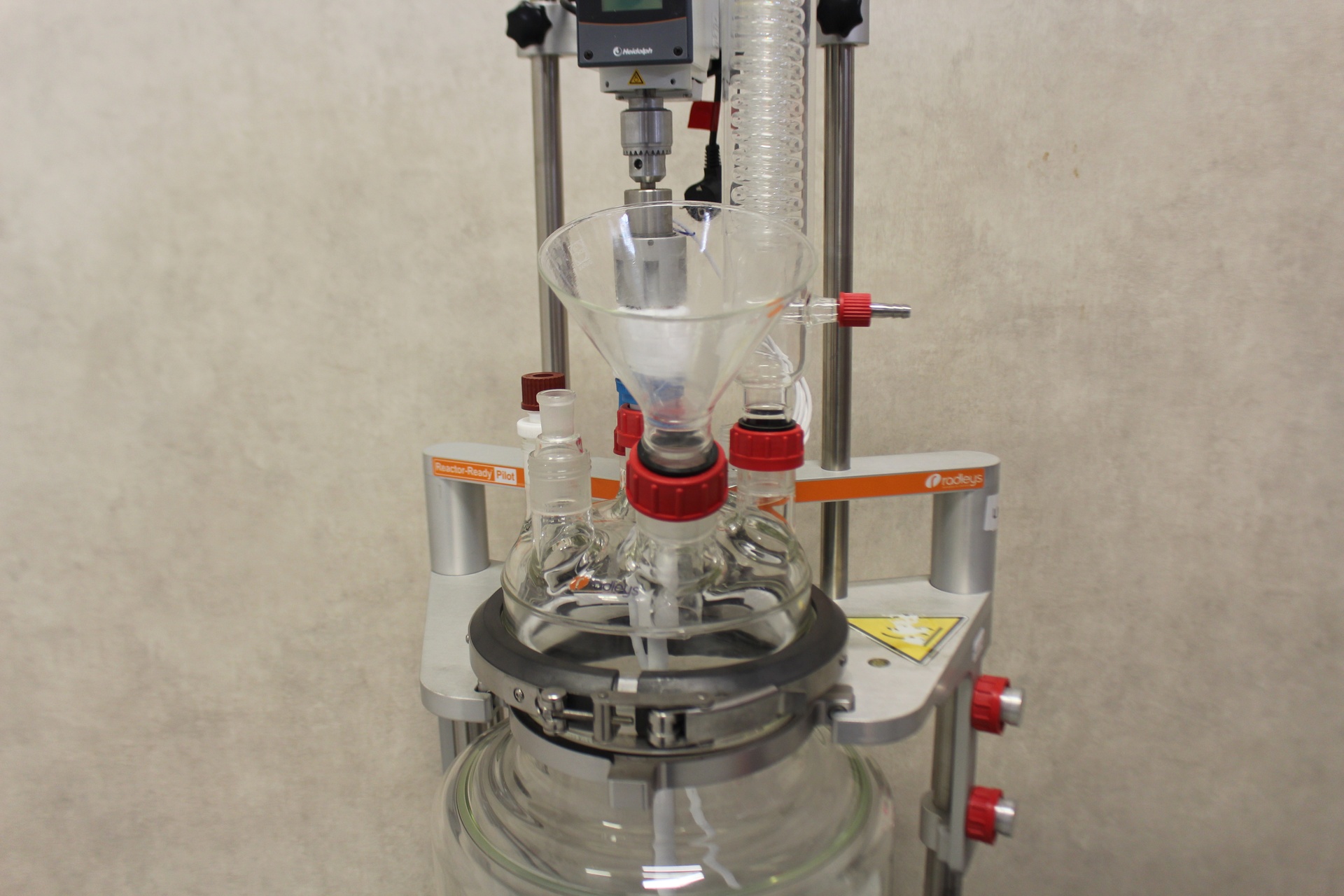

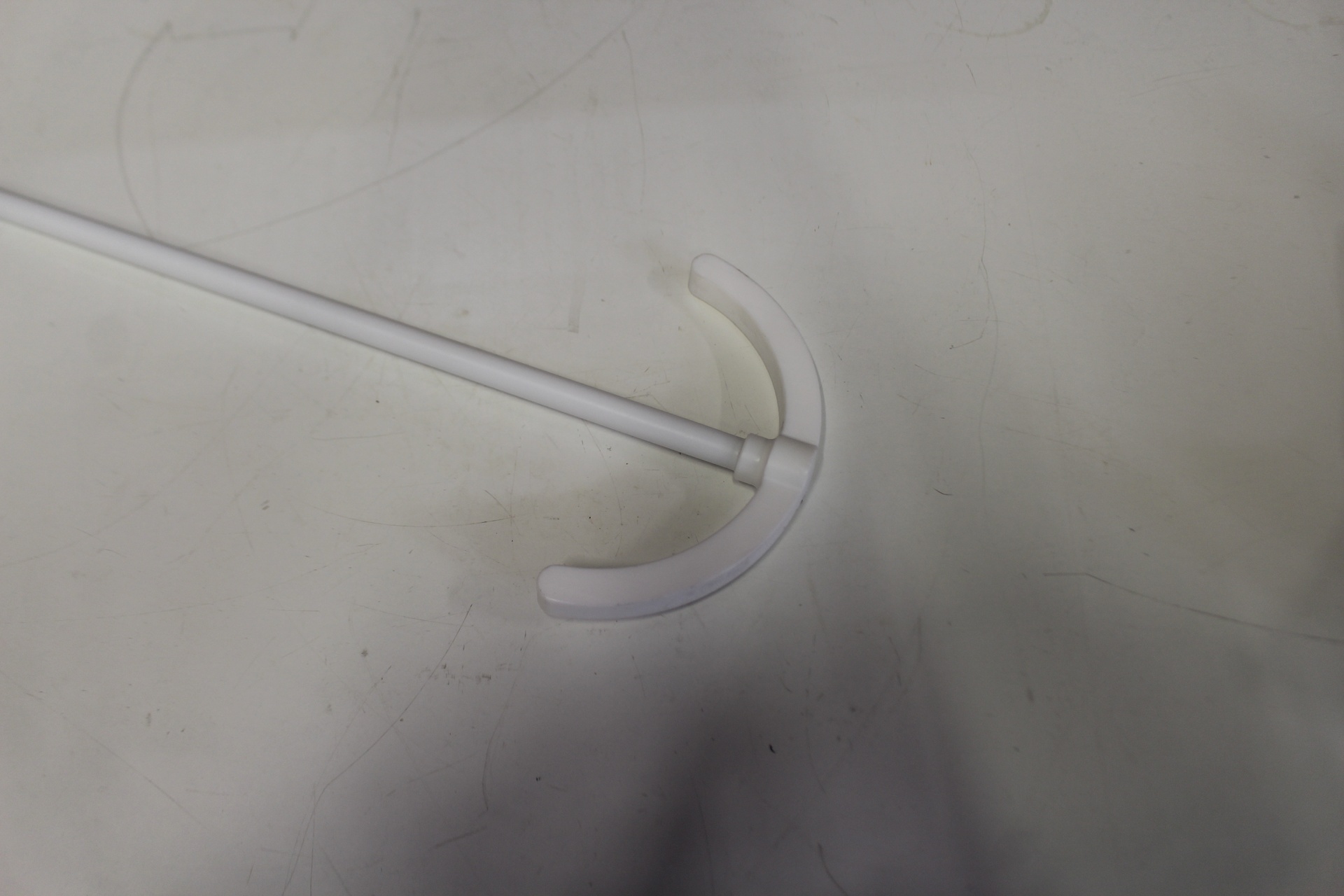

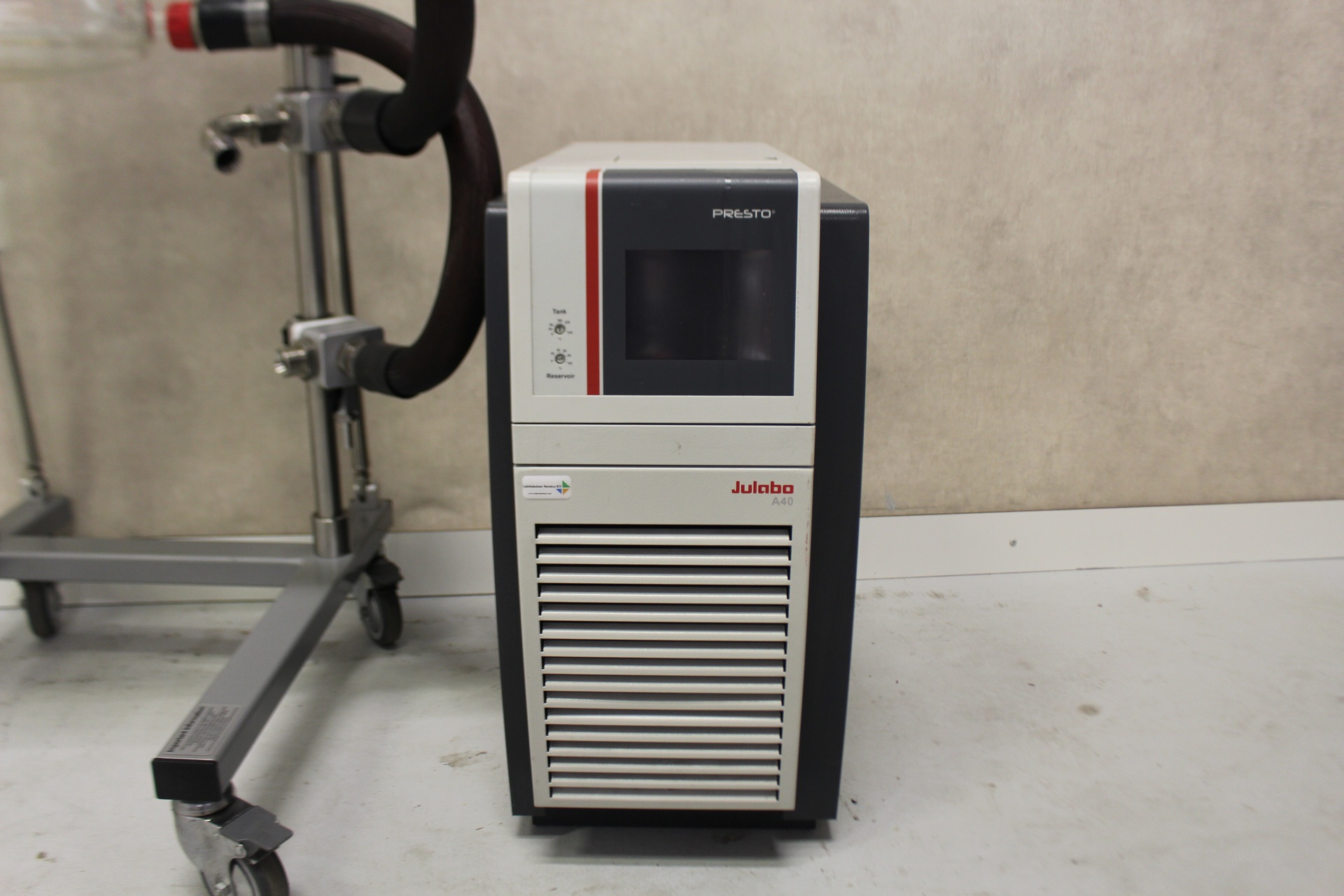

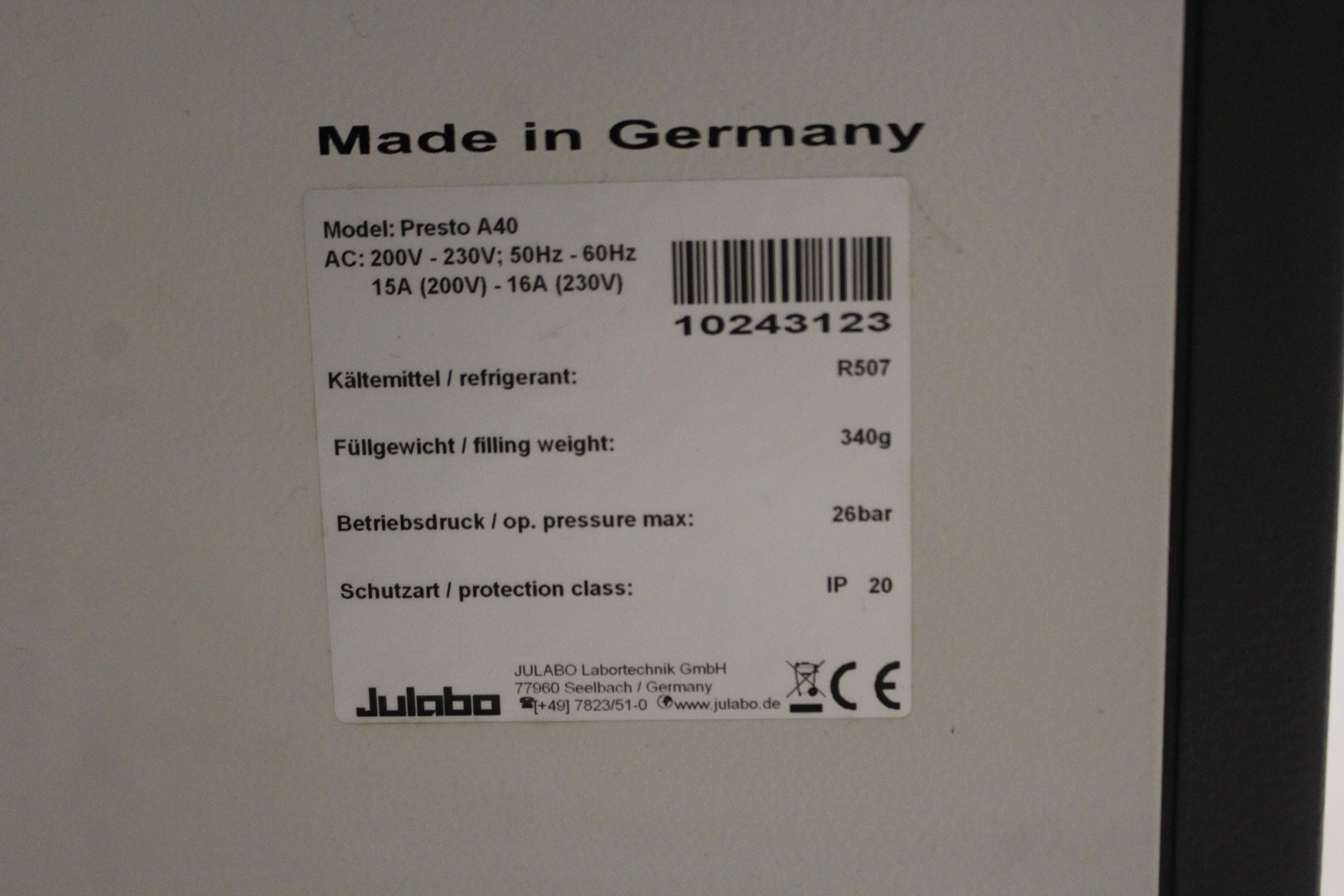

Reactor-Ready Pilot Process Reaction Vessel Features Jacketed vessel with dish shaped bottom. Feature a 1.25 ratio of internal height to diameter to mimic the geometry of plant scale reactors. Single vessel of 20 litres. Precision engineered borosilicate glass vessels with DN200 flange. DN200 lid with 7 Rodaviss conical ground glass joints PTFE Stirrer Shafts Anchor and Propeller style Nominal Capacity: 20 L Total Working Volume: 22.7 L Internal Diameter: 290 mm External Diameter: 350 mm Jacketed Height: 363 mm External Height: 660 mm Thermofluid Jacket Volume: 9.8 L Heat Transfer Area: 0.38 m2 Including: Julabo Presto A40 Process Thermostat Temperature range: -40 to 250 °C Temperature stability: ±0.01 to ±0.05 °C Temperature display resolution setting: 0.01 °C Temperature display resolution: 0.01 °C Pump flow rate: 0 to 40 l/min Pump discharge pressure: 0.1 to 1.7 bar Expansion tank fill volume: 4.8 l Internal usable expansion volume: 2.7 l Minimum process volume: 3.5 l Active heat exchanger volume: 1.7 l Dimensions (WxDxH): 330 x 590 x 670 mm Weight: 79 kg
