Büchi Piccoclave Laboratory Pressure Reactor System

Description

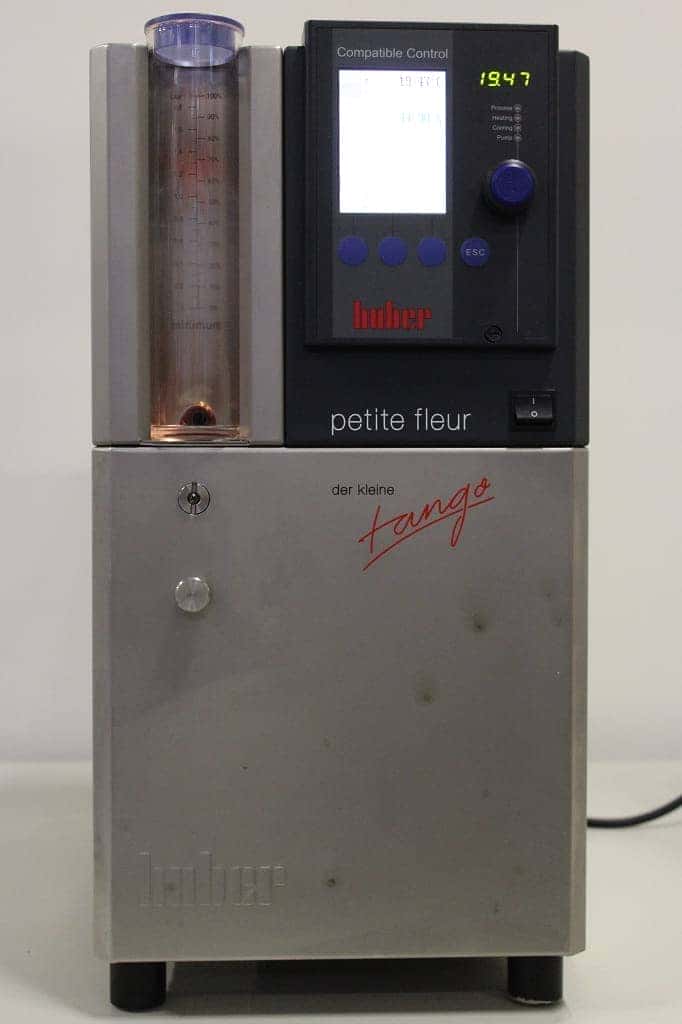

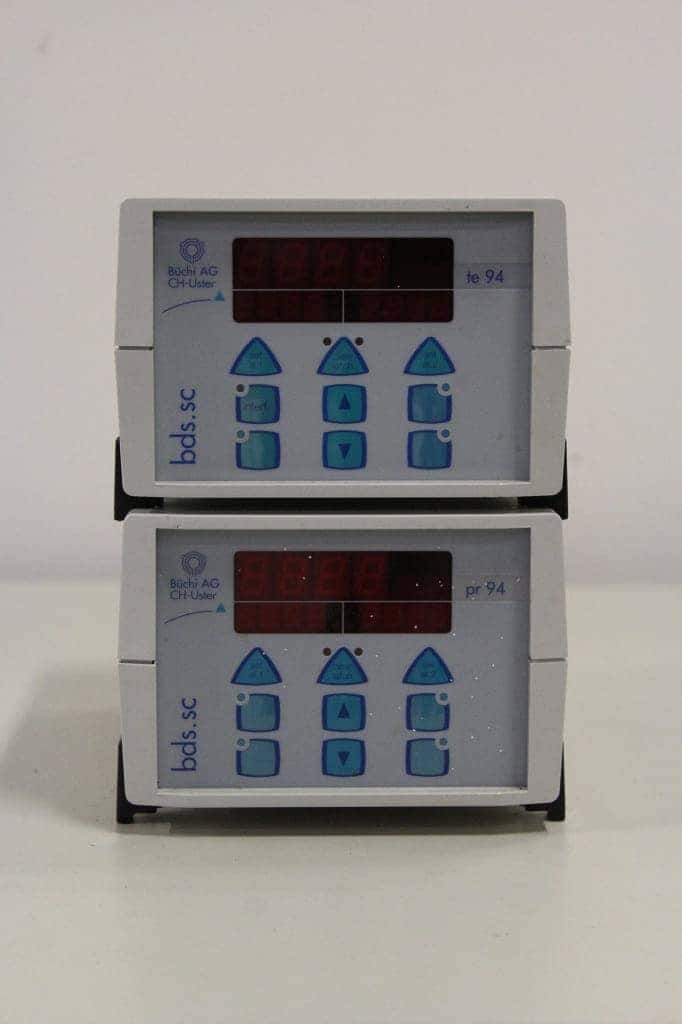

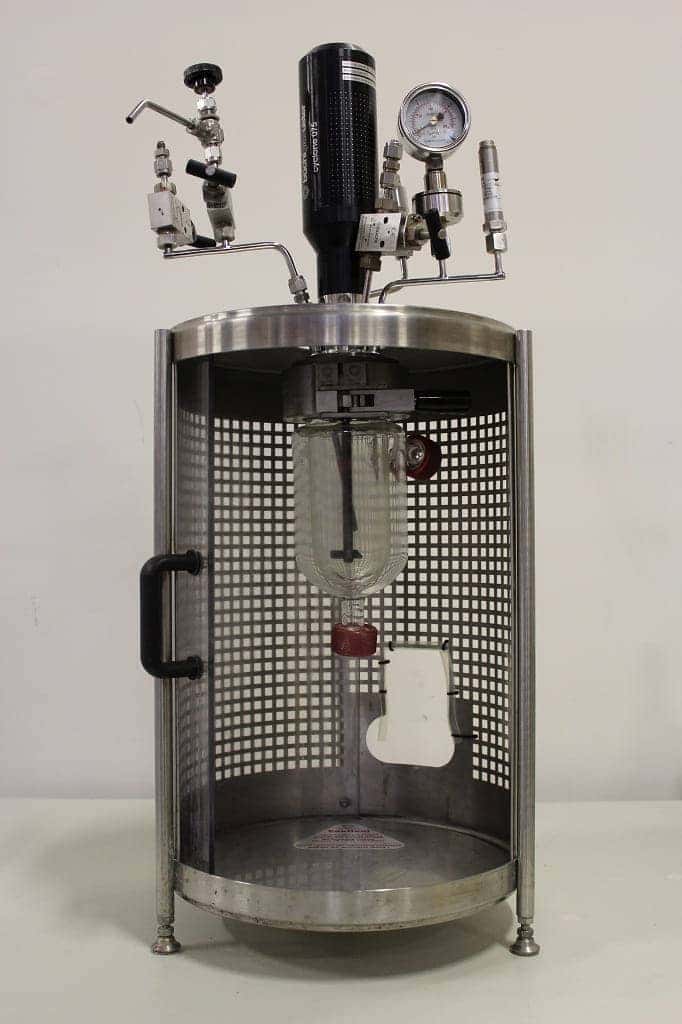

System contains: Büchi Picoclave Type 1 glass reactor Huber Petite Fleur heating- /cooling circulator Büchi BDS SC te 94 temperature monitoring unit Büchi BDS SC pr 94 pressure monitoring unit Pressure transducter and manometer on Y piece Diptube and gas inlet on Y piece Software Picoclave: Reactor type: Type 1 Reactor volume: 250 ml Typical used volume: 200 ml Pressure: up to 10 bar Temperature: up to 200 °C Material: Borosilicate glass 3.3, stainless steel, Hastelloy The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring. The magnetic drive ensures efficient mixing and stirring of the process media as well as excellent heat transfer. The Fast Action Closure makes changing vessels quick and easy without the use of tools. Safety features guarantee safe reactions under pressure. Petite Fleur: General information & temperature controller: Temperature range: -40…200 °C Temperature stability: ±0,01 °C Temperature control: TAC, self-optimizing (True Adaptive Control) Display resolution: 0,01 °C Alarm message: optical, acoustical Controller: Pilot ONE (E-grade “Professional”) Safety class: III / FL Protection class: IP20 Dimensions (W x D x H): 260 x 450 x 504 mm Weight: 45 kg Heating / cooling capacity: Heating capacity: 1,5 kW Cooling capacity: 200°C/0.48kw, 150°C/0.48kw, 100°C/0.48kw, 50°C/0.48kw, 20°C/0.48kw, 0°C/0.48kw, -20°C/0.27kw, -40°C/0.04kw Cooling machine: air-cooled Refrigerant: R290 (0,08 kg) Circulation pump: Pressure pump max.: 25 l/min ; 0,9 bar Pump connection: M16x1 AG male Permissible viscosity: 50 mm²/s Connections: Pt100 connection: Pt100 Analogue input: via optional Com.G@te Analogue output: via optional Com.G@te Digital interface: RS232, Ethernet, USB Device, USB Host Operating data: Permissible ambient temp.: 5…40 °C Noise level: 58 dB(A) Filling volume min.: 1,5 Litres Volume of expansion: 2 Litres Power supply: 230V 1~ 50Hz
